IPADS

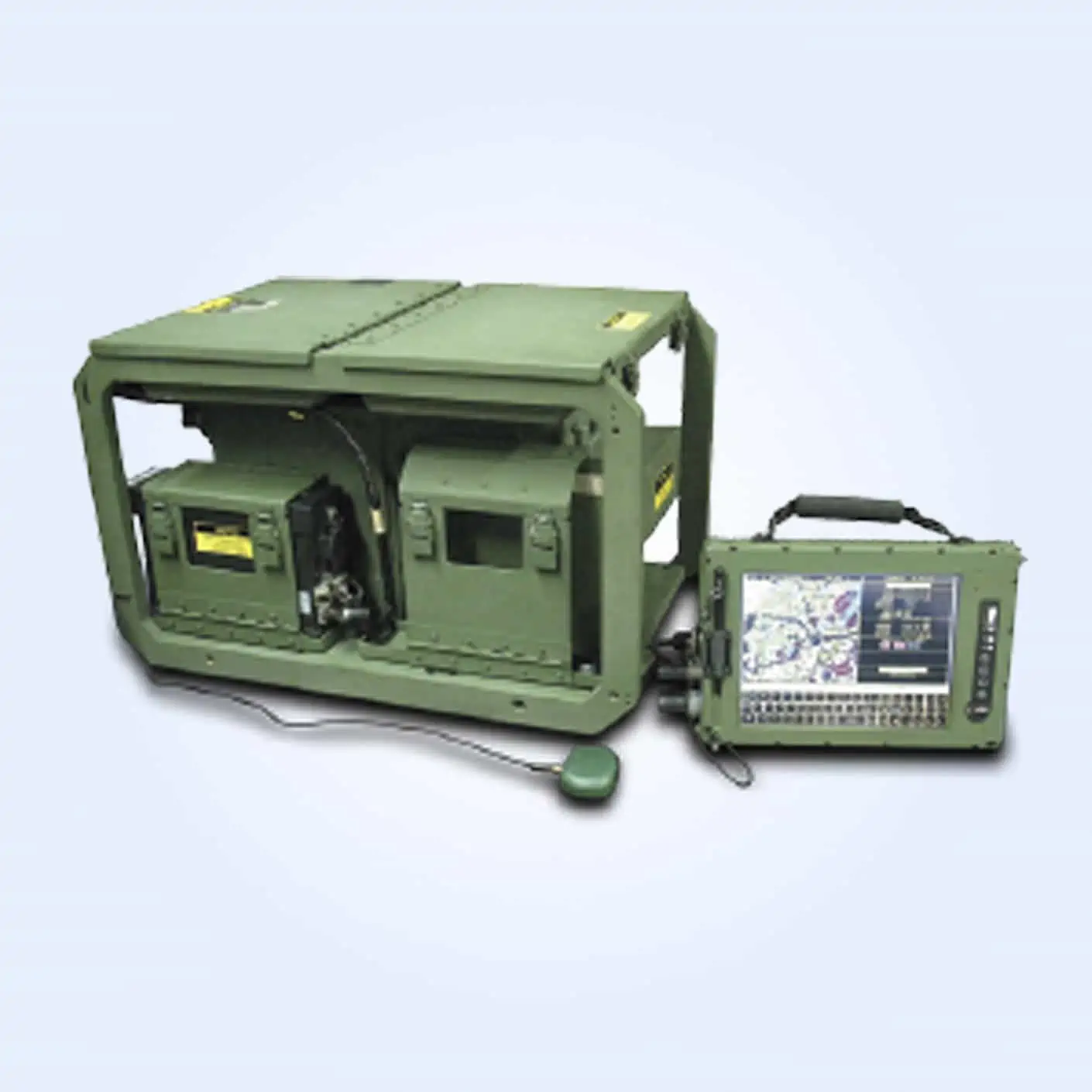

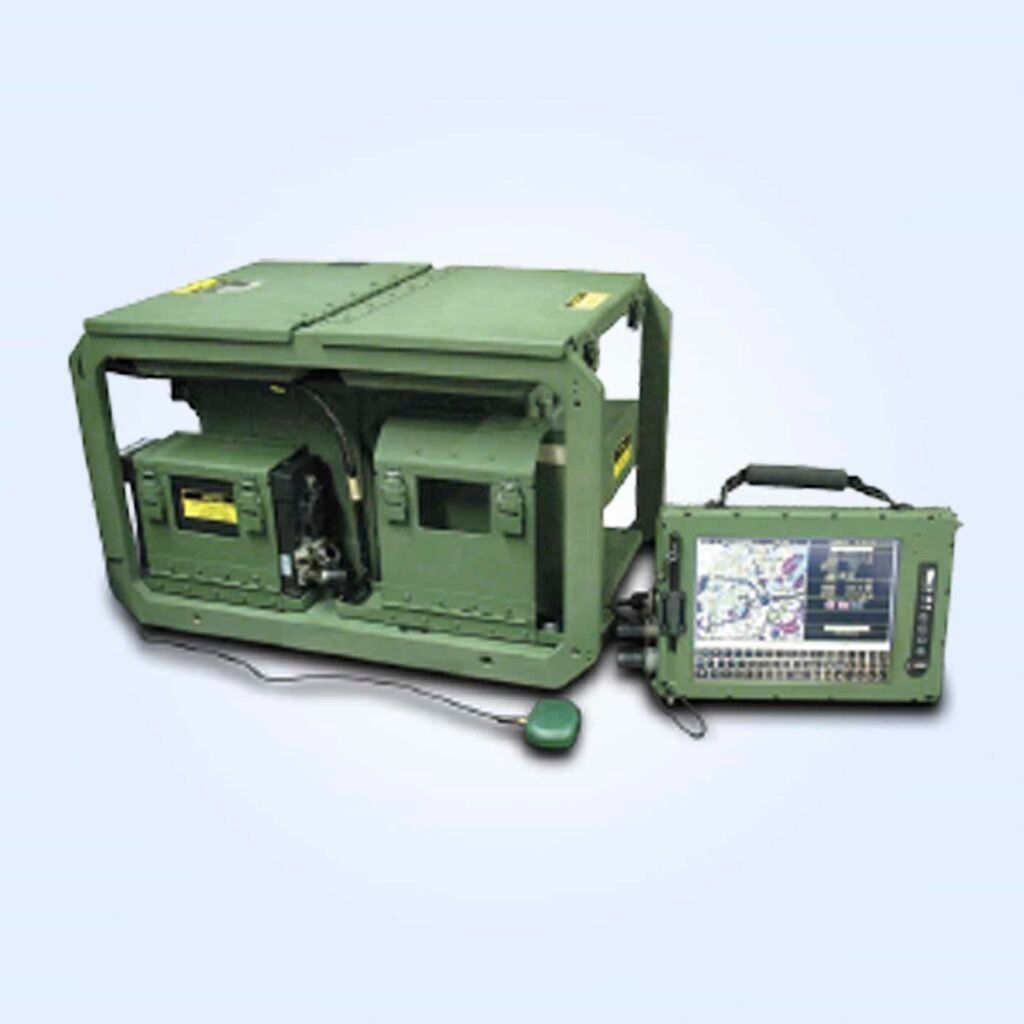

The Improved Position and Azimuth Determining System (IPADS) is an inertial surveying system designed for demanding military requirements. The lightweight solution is housed in a robust frame, is two-person portable and is ideal for artillery and weapons initialization and alignment.
The system features GPS anti-jamming and spoofing capabilities, require no periodic calibration, and meet a range of military standards including MIL-STD-461E/464A, MIL-STD-810F, and MIL-STD-1275D.
An international version (IPADS-I) is available to suit the needs of military forces around the world.
 | IPADS | IPADS-I |
Dimensions (L x W x H) |
24.75 x 15.75 x 16.125 in (62.87 x 40.01 x 40.96 cm) - standard configuration 16.9 x 8.9 x 10.8 in (43.0 x 22.5 x 27.5 cm) - optional configuration using DRU-H-R, smaller CDU, and Li-Ion batteries |
|
Weight | 137 lbs (62 kg) - standard 68 lbs (31 kg) - optional |
|
Power | 5.36 A @ 28 VDC (150 W) | |
Initialization Time | Static Align: 10 min 0° to 65° N/S latitude 20 min 65° to 75° N/S latitude Hot Start Align: 5 min 0° to 65° N/S latitude 10 min 65° to 75° N/S latitude Moving Base Align: 15 min (GPS Option) |
Static Align: 10 min 0° to 65° N/S latitude Hot Start Align: 5 min 0° to 65° N/S latitude Moving Base Align: 15 min (GPS Option) |
Inertial Accuracy | 4th-Order Accuracy: Orienting Line Azimuth: 0.4 mil PE 0° to 65° N/Slatitude 0.6 mil PE, 65° to 75° N/S latitude Horizontal: 4 m CEP Vertical: 2 m PE 5th-Order Accuracy: Orienting Line Azimuth: 0.4 mil PE, 0° to 65° N/S latitude 0.6 mil PE, 65° to 75° N/S latitude Horizontal: 7 m CEP Vertical: 3 m PE |
Orienting Line Azimuth: 0.6 mil PE 0° to 65° N/S latitude Horizontal: 7 m CEP Vertical: 3 m PE |
GPS-Aided Accuracy | Orienting Line Azimuth: 0.4 mil PE 0° to 65° N/Slatitude 0.6 mil PE, 65° to 75° N/S latitude Horizontal: 4 m CEP Vertical: 2 m PE |
Orienting Line Azimuth: 0.6 mil PE, 0° to 65° N/S latitude Horizontal: 4 m CEP Vertical: 2 m PE |
