Advanced FOG-Based Inertial Sensing Technologies for Unmanned Systems

Aegiverse is a developer of advanced FOG (fiber optic gyro)-based inertial sensing technologies for drones, airplane and underwater vehicles. As an agile startup company incubated by Taiwan’s National Central University, we produce COTS solutions and also leverage our strong R&D experience to develop custom solutions for our clients, handling every stage from initial concept through to market.

Our unique FOG technology utilizes a multi-layered architecture that combines multiple elements into a module, providing significant, size, weight and cost reductions. This makes our products ideal for a wide range of unmanned systems applications in all domains, including UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles), UUVs (unmanned underwater vehicles) and even CubeSats and space vehicles.

Fiber Optic Gyros

Our single-axis fiber optic gyros feature an advanced closed-loop design with a compact and lightweight form factor that is easy to integrate and is ideal for mass production.

Providing reliable and accurate angular velocity measurement, they are highly suited to precision stabilization and control applications in UAVs and robotics, and are also ideal for higher-order systems such as IMUs and inertial navigation systems.

SG-1A-EC Fiber Optic GyroSG-1A-EC
0.030 °/hr bias instability
0.010 °/√hr ARW
60 x 60 x 72 mm
300 grams
SG-2A-EC Fiber Optic GyroSG-2A-EC
0.3 °/hr bias instability
0.04 °/√hr ARW
60 x 60 x 65 mm
270 grams
SG-1C-EC Fiber Optic GyroSG-1C-EC
0.3 °/hr bias instability
0.03 °/√hr ARW
93 x 93 x 45 mm
500 grams

FOG-Based IMUs

Our advanced six-axis IMUs integrate our closed-loop fiber optic gyros with high-end quartz accelerometers, offering accurate measurement of angular velocity, linear acceleration, and orientation for drones and unmanned systems.

The robust IMUs feature compact and easy-to-install designs, and the product range includes rugged models that have been tested to IP67 and MIL-STD-810F standards as well as under high-impact and high-vibration conditions experienced by rocket launches.

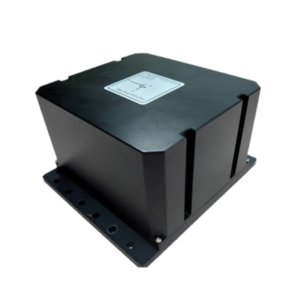

MU-1A-AC FOG IMUMU-1A-AC
0.050 °/hr gyro bias instability
0.010 °/√hr ARW
12 μg accelerometer bias instability
65 μg/√Hz VRW
150 × 170 × 99 mm
2 kg
MU-2A-AC FOG IMUMU-2A-AC
0.020 °/hr gyro bias instability
0.010 °/√hr ARW
12 μg accelerometer bias instability
65 μg/√Hz VRW
158 × 140 × 86 mm
1.5 kg
MU-2A-MC FOG IMUMU-2A-MC
0.020 °/hr gyro bias instability
0.010 °/√hr ARW
1.5 μg accelerometer bias instability
30 μg/√Hz VRW
232 × 188 × 128 mm, 4.5 kg
MIL-STD-810F & IP67
MU-2A-RT FOG IMUMU-2A-RT
0.020 °/hr gyro bias instability
0.010 °/√hr ARW
1.5 μg accelerometer bias instability
30 μg/√Hz VRW
158 × 140 × 86 mm
1.7 kg

FOG-Based AHRS

Our AHRS (attitude and heading reference systems) combine FOG and MEMS gyros with three-axis accelerometers, providing automatic attitude stabilization and inertial positioning with the aid of sophisticated AI-based algorithms.

These compact, lightweight and easily-integrated units are ideal for a wide range of small-to-medium size unmanned systems including UAVs, UGVs, USVs and ROVs.

AR-1A-EC FOG AHRSAR-1A-EC
0.020° roll & pitch accuracy
0.002° heading accuracy
60 x 60 x 72 mm
300 grams
AR-1A-UY FOG AHRSAR-1A-UY
0.020° roll & pitch accuracy
0.005° heading accuracy
60 x 60 x 65 mm
270 grams
AR-1C-UC FOG AHRSAR-1C-UC
0.050° roll & pitch accuracy
0.010° heading accuracy
60 x 60 x 60 mm
270 grams

Products

SG-1A-EC Fiber Optic Gyro

Single-axis closed-loop FOG with 0.03 °/hr bias instability

SG-2A-EC Fiber Optic Gyro

Single-axis closed-loop FOG with 0.3 °/hr bias instability

SG-1C-EC Fiber Optic Gyro

Single-axis closed-loop FOG with 0.03 °/√hr ARW

MU-1A-AC FOG IMU

Six-axis FOG-based inertial measurement unit with 0.05 °/hr gyro bias instability

MU-2A-AC FOG IMU

Six-axis FOG-based inertial measurement unit with 0.02 °/hr gyro bias instability

MU-2A-MC FOG IMU

MIL-STD-810F six-axis FOG-based IMU with 1.5 μg accelerometer bias instability

MU-2A-RT FOG IMU

Six-axis FOG-based inertial measurement unit with 1.5 μg accelerometer bias instability

AR-1A-EC FOG AHRS

Six-axis FOG-based AHRS with 0.002° heading accuracy

AR-1A-UY FOG AHRS

Six-axis FOG-based AHRS with 0.005° heading accuracy

AR-1C-UC FOG AHRS

Six-axis FOG-based AHRS with 0.01° heading accuracy
