Tronics Microsystems - TDK CorporationTronics Microsystems, a subsidiary of TDK Corporation, is a leading manufacturer of high-precision digital accelerometers and MEMS gyros for demanding unmanned systems and autonomous vehicle applications.

We are the market’s only supplier of both high-performance force-rebalance digital SMD accelerometers and gyros, and our MEMS sensors are ideal for incorporation into IMUs and INS for UAVs (unmanned aerial vehicles) and UGVs (unmanned ground vehicles) operating in highly dynamic and challenging environments.

MEMS Accelerometers

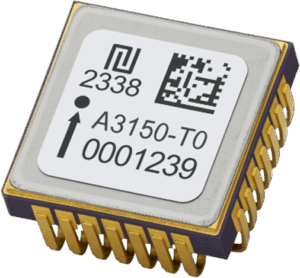

AXO315 MEMS Accelerometer

Digital accelerometer with high bias stability & repeatability for railway, drones, autonomous vehicles and robotics

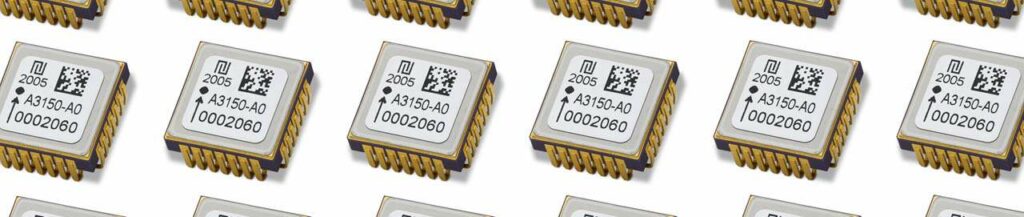

Precision accelerometers

The AXO315 is a digital high-performance closed-loop MEMS accelerometer designed as a performance-equivalent yet more SWaP (size, weight and power)-efficient alternative to incumbent analogue force-rebalance quartz and mechanical servo-accelerometers. Featuring very low noise and excellent linearity, the AXO315 delivers best-in-class composite bias repeatability and scale factor repeatability under demanding temperature and vibration conditions.

axo high-performance Linear accelerometerEnclosed in a hermetically-sealed SMD (surface mount device) ceramic package, the miniature accelerometer provides a 24-bit SPI interface for easy integration and reduced part counts in PCB designs.

The system is designed with fully hard-coded electronics and no embedded software, and features built-in temperature compensation and self-test.

The digital accelerometer shares the same interface as our GYPRO high performance gyros, making the two MEMS sensors complementary and easy to integrate in IMU and INS. It is also free from dual-use export control.

single axis accelerometer mems sensors

The versatile MEMS sensor is ideal for a wide range of unmanned systems applications, including:

  • GNSS-aided positioning and navigation of trains and land vehicles
  • Incorporation into IMUs (inertial measurement units) for ROVs (remotely operated vehicles), railway, drones and autonomous vehicles
  • Integration into INS (inertial navigation systems) for UGVs (unmanned ground vehicles) and land-based robotics

More information: AXO315 MEMS Accelerometer

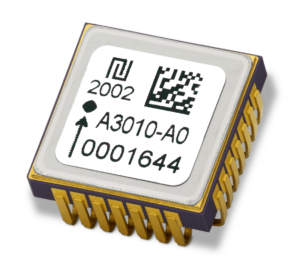

AXO301 MEMS Accelerometer

Digital closed-loop accelerometer with high resolution and stability for high-vibration environmentsAXO301 high-resolution MEMS accelerometer

The AXO®301 is a high-accuracy single axis closed-loop MEMS accelerometer designed to provide acceleration and deceleration measurements for high-vibration applications such as UGVs (unmanned ground vehicles), land robotics and automated train control.

Providing a performance-equivalent and cost-effective alternative to quartz and servo-accelerometers, the miniature accelerometer is enclosed in a hermetic SMD package, making it ideal for even the most SWaP (size, weight and power)-limited applications.

Featuring a 24-bit digital SPI interface, the AXO®301 can be easily integrated into high-performance IMU and INS designs. The system’s built-in self-test capability ensures initial verification of the sensor’s integrity and continuous in-operation functionality.

More information: AXO301 MEMS Accelerometer

Product comparison:

AXO315 AXO301
Size 12 x 12 x 5.5 mm 12 x 12 x 5.5 mm
Weight 1.4 g 1.4 g
Full-Scale Acceleration Range ± 14g ± 1g
Bandwidth >300 Hz >15 Hz
1 Year Composite Bias Repeatability 1 mg 1 mg
1 Year Composite Scale Factor Repeatability 600ppm 600ppm
Bias Instability (Allan variance) 4 μg 4 μg
Velocity Random Walk (Allan variance) 0.006 m/s/√hr 0.006 m/s/√hr
Noise Density 15 μg/√Hz 8 μg/√Hz
Vibration Rectification Error 20µg/g² 20µg/g²

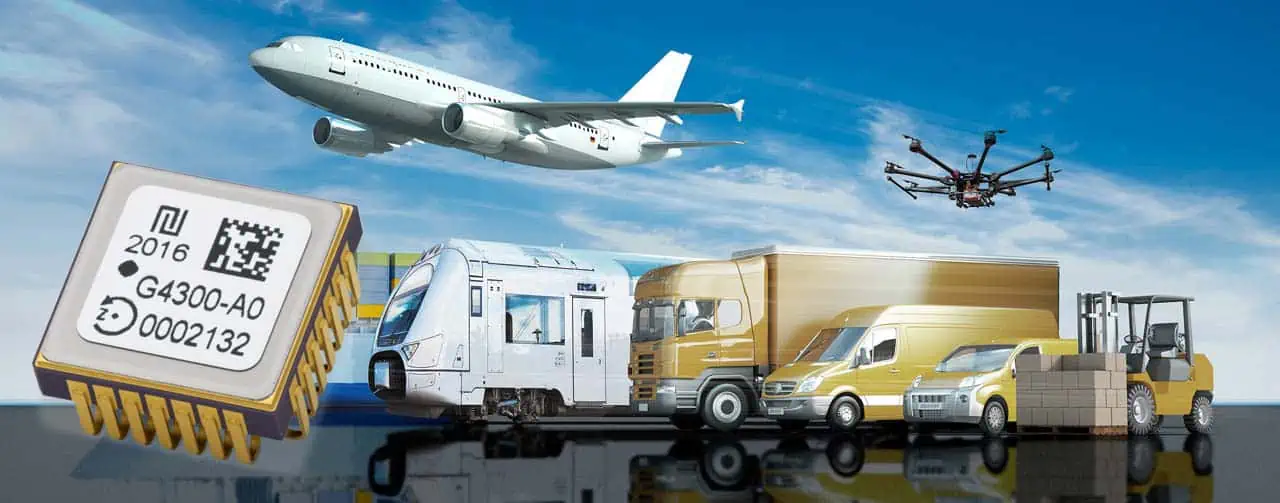

GYPRO MEMS Gyroscopes

Precision angular rate sensor for railway, drones and autonomous vehicles

GYPRO MEMS Gyros family

The GYPRO family of high-performance digital closed-loop MEMS gyroscopes provides angular rate measurement with ultra-low noise, low latency and high linearity. Designed to provide a digital SMD alternative to expensive and bulky FOG, DTG or quartz gyros, the MEMS sensors offer high bias stability and scale factor repeatability and low angular random walk.

high precision gyroscopesWeighing just 2 grams, the miniature digital gyroscopes are housed in a hermetically-sealed SMT package, and provide a 24-bit SPI interface for easy integration and reduced bills of materials compared to analogue sensors.

The design is built around fully hard-coded electronics with no embedded software, and features built-in temperature compensation and self-test.gypro high-performance mems gyroscopes

GYPRO gyros are factory calibrated and temperature-compensated to provide high-accuracy digital output over a broad temperature range. An embedded temperature sensor allows on-chip or external compensation.

The GYPRO family includes four variants:

GYPRO2300 – low noise gyro, standard configuration
GYPRO2300LD – low noise gyro, low delay configuration
GYPRO3300 – low noise gyro, improved vibration tolerance and ultra-low delay configuration
GYPRO4300 – low noise gyro, high bias stability and low ARW – sampling now

GYPRO MEMS gyroscopes are non-classified under dual-use export control.

Drone gyroscope mems sensor

The versatile sensors are ideal for a wide range of unmanned systems applications, including:

  • GNSS-aided positioning and navigation of trains and land vehicles

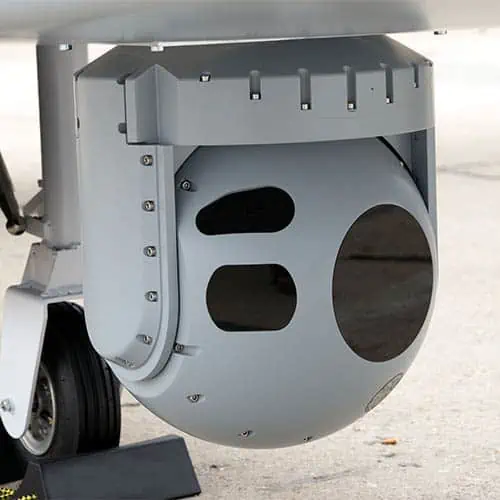

  • Antenna and gimbal stabilization and pointing
  • IMU, INS and AHRS (attitude and heading reference systems) for drones and autonomous vehicles

Specifications:

GYPRO 2300 GYPRO 2300LD GYPRO 3300 GYPRO 4300
Size (mm) 19.6 x 11.5 x 2.9 19.6 x 11.5 x 2.9 19.6 x 11.5 x 3.7 12 x 12 x 5.5
Weight 2g 2g 2g 2g
Input Range ±300 °/s ±300 °/s ±300 °/s ±300 °/s
Bandwidth 100 Hz >200 Hz >200 Hz >200 Hz
Data Rate 200 Hz 1700 Hz 1800 Hz 1800 Hz
Latency 40 ms 2 ms 1 ms <1 ms
Bias Repeatability 10°/h 10°/h 10°/h 10°/h
Bias Instability (Allan variance) 0.8°/h 0.8°/h 0.8°/h 0.3°/h
Angular Random Walk 0.14°/√hr 0.14°/√hr 0.15°/√hr 0.10°/√hr

More information: GYPRO MEMS Gyroscopes
