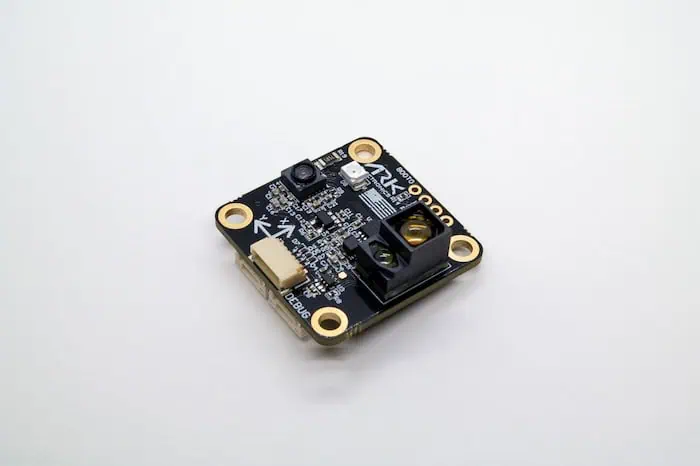

ARK Flow Sensor
The ARK Flow optical flow sensor delivers best-in-class precision navigation and positioning capabilities for unmanned aerial vehicles. Providing highly accurate movement detection by analyzing surface patterns and motion, and also incorporating a time-of-flight distance sensor, it is ideal for ensuring stable flight performance even under GNSS-denied conditions such as inside buildings, tunnels and urban canyons.
The sensor runs PX4 open-source firmware and supports updates over DroneCAN. It also provides support for ROS2.
Specifications:
| Dimensions: | 3 x 3 x 1.4 cm |
| Weight: | 5g |
| Power: |
5V 71 mA average, 76 mA max |
| Optical Flow Sensor: |
PixArt PAW3902 Tracks under super low light condition of >9 lux Wide working range from 80mm up to infinity Up to 7.4 rad/s 40mW IR LED built onto board for improved low light operation |
| Distance Sensor: |
Broadcom AFBR-S50LV85D Integrated 850 nm laser light source Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels Typical distance range up to 30m Operation of up to 200k Lux ambient light Works well on all surface conditions Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels |
