Gensets for Drones & Hybrid-Electric Unmanned Aircraft
As unmanned aerial vehicles (UAVs) increasingly require extended flight times and improved operational efficiency, gensets have become a vital element in the design and functionality of drones and hybrid-electric aircraft. By delivering consistent onboard power, gensets enhance the range, endurance, and flexibility of unmanned platforms, supporting diverse applications from surveillance to logistics. This category features gensets and associated power supply technologies explicitly designed for drone and UAV integration, focusing on hybrid propulsion systems and micro gas turbine innovations.
Overview
Gensets for Drones & Hybrid-Electric Unmanned Aircraft
By
Staff Writer Last updated: May 15th, 2025
Gensets, short for generator sets, are self-contained units that combine a generator with a prime mover, typically a small internal combustion engine or a gas turbine, to produce electrical power.
In unmanned systems, gensets are engineered to provide a reliable onboard power supply for drones and hybrid-electric aircraft, where they either supplement or replace traditional battery systems. By converting fuel into electrical energy, gensets support propulsion, onboard avionics, payload systems, and other mission-critical electronics.
Their integration into UAV platforms is essential for overcoming the limitations of battery-only configurations, particularly in applications where long endurance, high payload demands, or remote operation are required.
Applications of Gensets in Hybrid & Electric UAVs

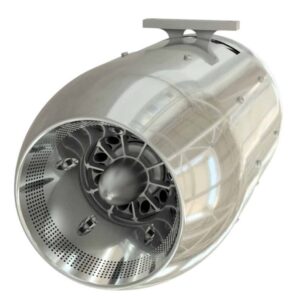

Aviation Genset from NEX Power.
Hybrid-electric UAVs benefit significantly from genset integration. These systems combine the high energy density of fuel with the precision and flexibility of electric propulsion. Gensets serve as an intermediary between fuel storage and electric motors, converting liquid fuel into electrical power on demand.
Key application areas include:
Surveillance and ISR missions: Gensets enable persistent flight durations for ISR drones, necessary for intelligence, surveillance, and reconnaissance (ISR) operations.
Cargo and logistics UAVs: In delivery applications, gensets extend range and reduce turnaround time compared to all-electric cargo drones.
Emergency response and communications: Emergency and first-responder drones operating in disaster recovery or remote communications often require long-endurance capabilities provided by genset-powered systems.
Agricultural and industrial monitoring: Long-endurance UAVs with genset power supplies are ideal for covering vast rural or industrial areas with minimal recharging infrastructure.
Types of Gensets Used in Unmanned Systems
Gensets for UAVs are designed for efficiency, lightweight construction, and compact form factors. The most common configurations include:
Micro gas turbine gensets: These units use a small turbine engine to drive a generator, offering high power-to-weight ratios and multi-fuel capability. They are particularly suited for high-performance UAVs and hybrid-electric aircraft due to their efficiency at high altitudes and reduced maintenance requirements.
Internal combustion gensets: Compact gasoline or diesel engines paired with alternators are commonly used in medium-sized drones. These gensets are favored for their simplicity and availability of fuel, but typically require more maintenance than turbine systems.
Fuel cell-assisted gensets: In some advanced UAV designs, gensets are integrated with hydrogen fuel cells to create hybrid power systems. While not widespread, this approach offers promising efficiency and emissions reductions.
Each type is selected based on mission requirements, desired endurance, payload capacity, and regulatory considerations.
Advantages of Using Gensets in Drone Propulsion
The primary benefit of using a genset in UAV propulsion is extended operational time. Traditional battery-powered drones are limited by current battery energy densities, often requiring frequent recharging or battery swaps. Gensets, by contrast, allow drones to operate for hours or even days, depending on the fuel type and system design.
Other advantages include:
Fuel flexibility: Some aviation gensets can operate on multiple fuel types, including JP-8, diesel, and gasoline, enhancing logistical versatility.
Thermal management: Hybrid-electric systems using gensets can optimize thermal profiles more effectively than batteries alone, vital for avionics stability and overall UAV integrity.
Redundancy and reliability: Gensets provide an additional layer of power security, making UAVs more reliable in critical operations.
Reduced dependency on ground infrastructure: With gensets onboard, UAVs are less dependent on charging stations or battery swap facilities, supporting operations in remote or contested environments.
How Gensets Support Hybrid-Electric Propulsion
Hybrid-electric UAVs combine combustion and electric propulsion to maximize endurance, reduce emissions, and increase efficiency. In such configurations, the genset acts as an onboard energy generator that charges batteries or directly powers electric motors.
This setup allows for a variety of operational modes:
Electric-only mode: For stealth or low-emission phases, drones can operate purely on battery power.
Combustion mode: During cruise or high-demand phases, the genset activates to provide additional thrust or recharge onboard batteries.
Combined mode: Both systems work together to achieve peak performance or to optimize for fuel savings and endurance.
This adaptability makes gensets a key enabler for future UAV designs, including hybrid-electric aircraft aimed at more extended missions and sustainable aviation.
Considerations for Integrating Aviation Gensets
Incorporating a genset into a UAV or hybrid aircraft requires careful consideration of size, weight, and power (SWaP) parameters. Engineering teams must evaluate:
Power-to-weight ratio: A high-efficiency aviation genset must deliver sufficient power without introducing excessive mass.
Cooling and ventilation: Internal combustion and turbine gensets produce heat, requiring thermal management systems.
Vibration isolation: Engine-driven systems introduce vibration, which can impact avionics or sensor payloads.
Fuel storage and delivery: Systems must include secure, lightweight fuel tanks and efficient fuel delivery mechanisms compatible with UAV form factors.
EMI shielding: The electrical output must be stabilized and shielded to prevent interference with communication and navigation systems.
Genset suppliers in the UAV sector can sometimes provide tailored integration support to ensure system compatibility with airframes, propulsion architecture, and regulatory frameworks.
Leading Innovations in Drone Gensets
Recent advances in drone generator technology are pushing the boundaries of what hybrid-electric UAVs can achieve. Some of the most notable developments include:
Compact micro gas turbines with integrated alternators, enabling high-altitude operation with low acoustic signatures.
Hybrid-electric genset modules that automatically balance power between combustion generation and battery storage, enhancing energy efficiency.
Digital power management systems that integrate gensets with avionics and mission control software for real-time energy monitoring and optimization.
Manufacturers are also exploring additive manufacturing techniques to reduce component weight and increase the thermal efficiency of turbine blades and combustion chambers — an important step in miniaturizing gensets for smaller UAVs.
Summary of Gensets for UAVs and Hybrid-Electric Aircraft
As UAVs evolve in complexity and mission scope, gensets are becoming an indispensable element in power architecture. From micro gas turbines to hybrid-electric modules, these systems extend operational time, increase system reliability, and enhance power flexibility. Whether serving as a primary drone power supply or supplementing batteries in a hybrid-electric aircraft, gensets are critical for unlocking long-endurance capabilities across various unmanned applications.
With continued innovation in aviation gensets, including improvements in efficiency, form factor, and fuel compatibility, the integration of generator technology into UAV platforms is set to drive the next generation of unmanned aerial systems, bridging the gap between today’s limitations and tomorrow’s autonomous possibilities.
