Laser Designator Technology & Payloads for UAV

Laser designator payloads for UAVs (unmanned aerial vehicles) play a vital role in modern defense and tactical operations by enhancing targeting precision and overall mission effectiveness. These advanced systems, which utilize laser rangefinders, infrared lasers, and sophisticated targeting mechanisms, are integral in guiding precision munitions and providing accurate real-time targeting data. Whether used for military, surveillance, or reconnaissance missions, UAV-mounted laser target designators ensure that operators can engage targets with maximum accuracy while maintaining a safe operational distance.

What is a Laser Designator?

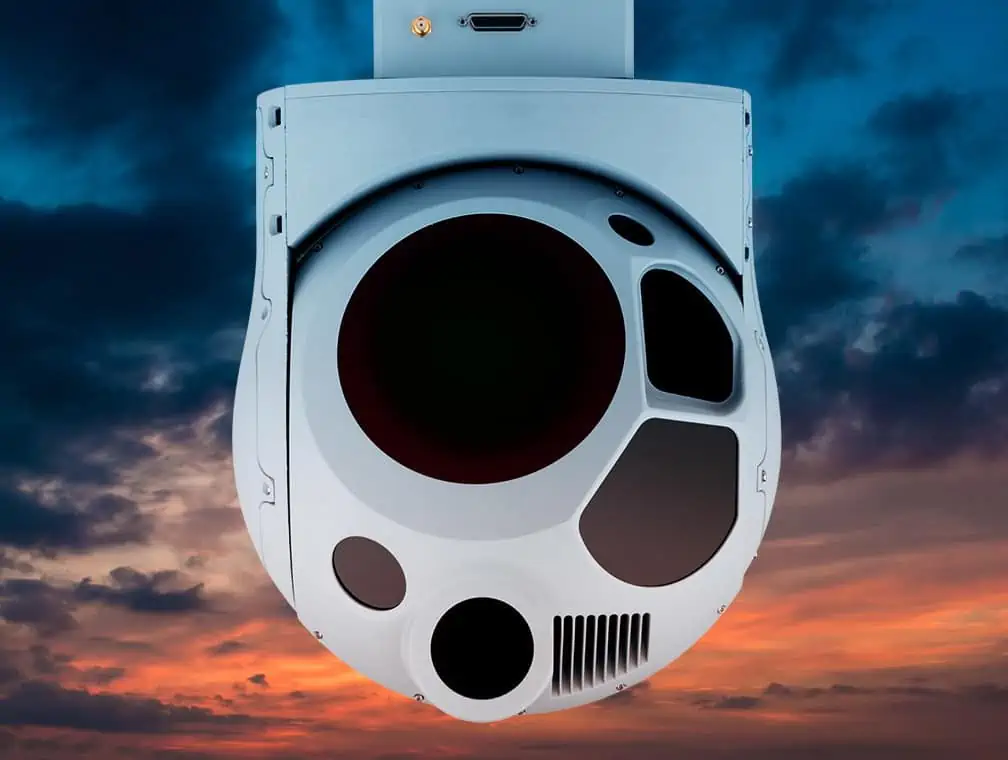

Drone camera gimbal from Trillium.

Laser designators, also known as laser target designators (LTDs), are designed to direct a focused laser beam at a specific target. This beam reflects back to the sensor, allowing operators to determine the exact distance to the target and providing data for guided weapon systems to accurately engage the target. When integrated with UAV platforms, these payloads offer unparalleled advantages in terms of precision and flexibility, especially in complex and dynamic environments where high accuracy is essential.

UAVs equipped with laser designators are capable of illuminating targets from a distance, providing real-time information to ground forces or aircraft that can then launch precision-guided munitions (PGMs) based on the laser’s guidance. The precision of laser targeting systems significantly reduces the risk of collateral damage, ensuring that only the intended target is hit with minimal impact on surrounding structures or personnel.

Key Components of Laser Designator Payloads for UAVs

Laser Rangefinder

A core feature of laser designators is the laser rangefinder, which measures the distance between the UAV and the designated target. By emitting a laser pulse and measuring the time it takes for the reflection to return to the sensor, the rangefinder calculates the exact distance with high precision. This data is critical for the operation of various weapon systems and provides UAV operators with the information needed to adjust flight paths or targeting parameters.

Infrared Lasers

Infrared lasers are crucial in ensuring that laser designators can operate effectively in low-visibility conditions, such as during the night or in adverse weather. Unlike visible lasers, infrared beams are invisible to the naked eye, making them ideal for covert operations. Infrared laser designators can target with accuracy in environments that might otherwise limit the functionality of visible lasers, such as in nighttime or foggy scenarios. The integration of infrared technology allows UAVs to operate undetected while still providing critical targeting and surveillance capabilities.

Targeting Systems

The laser targeting system, a vital part of UAV-mounted payloads, combines the laser designator with optical sensors, cameras, and tracking software. These systems allow for the identification, designation, and continuous tracking of targets while in flight. By integrating optical cameras, the UAV can capture real-time imagery, providing operators with a visual confirmation of the target. In conjunction with the laser designator, these systems enable accurate and persistent target illumination, ensuring continuous guidance for precision munitions.

Stabilization and Tracking

Laser designators require precision stabilization to maintain the accuracy of targeting over long distances, especially when mounted on UAVs. Stabilization systems ensure that even if the UAV is moving or facing external forces such as wind, the laser designator remains aligned with the target. Advanced tracking technology also helps keep the laser aimed at the target throughout the operation, ensuring that the target remains illuminated and locked on, whether the UAV is stationary or in motion.

Advantages of UAV Laser Designator Payloads

UAV gimbal payload with LWIR and MWIR thermal imaging options from Trillium.

High Precision in Targeting

The primary benefit of laser designators is their ability to guide weapons and munitions to their exact target, significantly increasing accuracy compared to traditional, unguided systems. A laser target designator enables weapons to follow the laser beam to the target with an extremely high level of precision. This capability is especially critical in operations where minimizing collateral damage and civilian casualties is a priority. Laser-guided weapons can pinpoint their target with minimal deviation, ensuring that the strike is both effective and controlled.

Versatility in Adverse Conditions

One of the key advantages of UAV-mounted laser designators is their ability to function in a wide range of environmental conditions. Infrared laser technology is particularly effective in challenging visibility conditions, such as nighttime, fog, or smoke. Laser rangefinders and targeting systems that utilize infrared lasers ensure that UAVs can perform targeting and surveillance tasks regardless of lighting conditions or weather interference, making them reliable tools for 24/7 operations.

Operational Safety and Risk Reduction

Laser designators significantly reduce the risk to human operators by enabling remote targeting from UAVs. In traditional operations, personnel may need to approach dangerous or hostile targets to provide precise targeting data. With UAV-mounted laser designators, operators can engage in precise targeting from a safe distance, reducing the risk of exposure to enemy fire or other hazards. This capability enhances mission safety, allowing UAVs to conduct reconnaissance, target designation, and strike operations without endangering human lives.

Extended Range for Engagement

Laser designators on UAVs are effective at providing targeting capabilities from great distances, often beyond the reach of other traditional targeting systems. By using a laser rangefinder, UAVs can identify and engage targets from altitudes and distances that would otherwise be challenging for ground-based systems. This extended range is particularly valuable for reconnaissance and surveillance missions, where the UAV can remain at a safe distance while still providing accurate targeting information for weapons or other assets.

UAV Laser Designators Applications

Laser designators mounted on UAVs are increasingly used across various military and defense applications, including:

• Precision Airstrike Coordination – UAV-mounted laser designators guide precision-guided bombs or missiles to enemy targets, enabling military forces to strike with surgical accuracy. Whether used for air-to-ground or ground-to-air engagements, laser-guided munitions significantly improve strike effectiveness, reducing collateral damage and enhancing mission success.
• Reconnaissance and Surveillance – UAVs equipped with laser designators can conduct surveillance operations, identifying potential threats in real-time and marking targets for subsequent engagement. These systems enable UAVs to perform ISR (intelligence, surveillance, and reconnaissance) tasks while simultaneously providing targeting data for other platforms or ground forces.
• Border Surveillance and Counter-Terrorism – UAV laser designators are invaluable for monitoring borders or sensitive areas where human presence may be limited or risky. These systems enable security forces to track and designate targets across vast areas, providing accurate data for response teams and enhancing overall border security.
• Search and Rescue Operations – In search and rescue missions, UAVs with laser target designators can assist in locating and marking objects, vehicles, or individuals in distress. The precision of laser targeting can guide emergency response units to specific locations, improving the effectiveness of rescue operations.

Future Trends in UAV Laser Designator Technology

The development of UAV laser designators continues to evolve, with trends focusing on miniaturization, enhanced battery efficiency, and integration with artificial intelligence (AI). Future systems may feature smaller, more powerful payloads that can be used on a wider range of UAV platforms, including smaller tactical drones. AI integration could enable more advanced target recognition and tracking, automating parts of the targeting process to reduce operator workload and increase the speed of response.

Laser designators for UAVs enhance operational effectiveness by providing precise targeting and guiding systems for a wide array of applications. With advanced capabilities in laser rangefinding, infrared targeting, and stabilization, UAV-mounted laser designators are key components of modern defense strategies, ensuring mission success and reducing risks in complex environments. As technology advances, these systems will continue to provide new levels of operational capability and precision in the defense sector.
