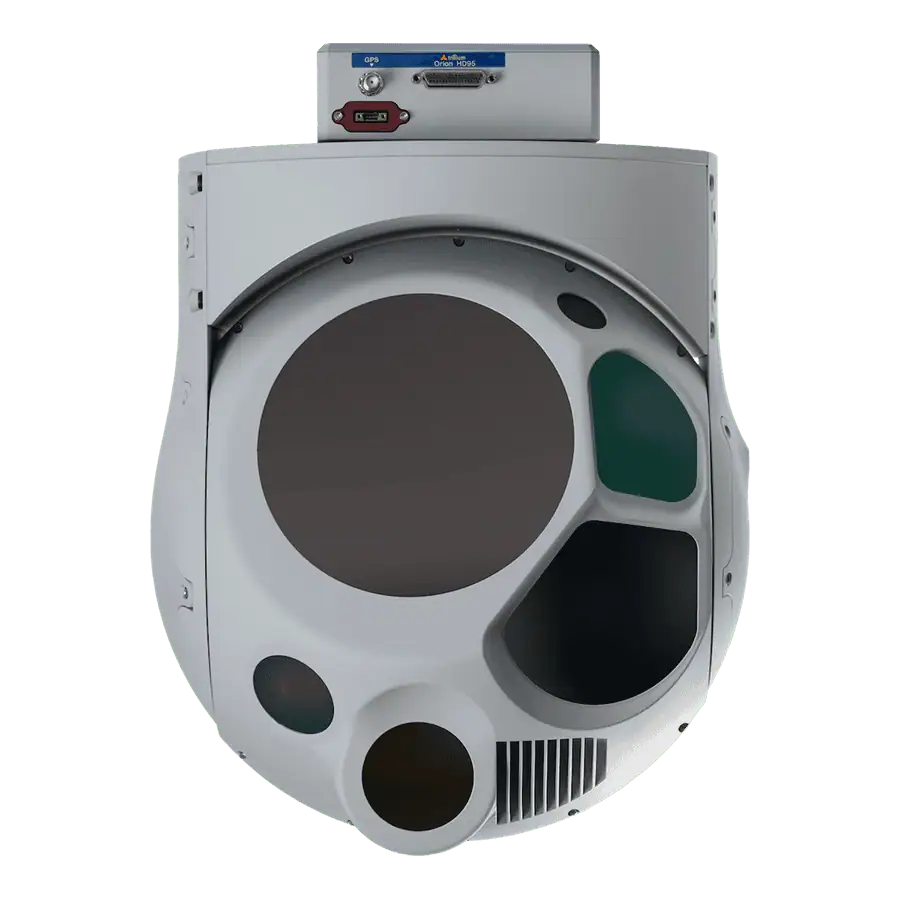

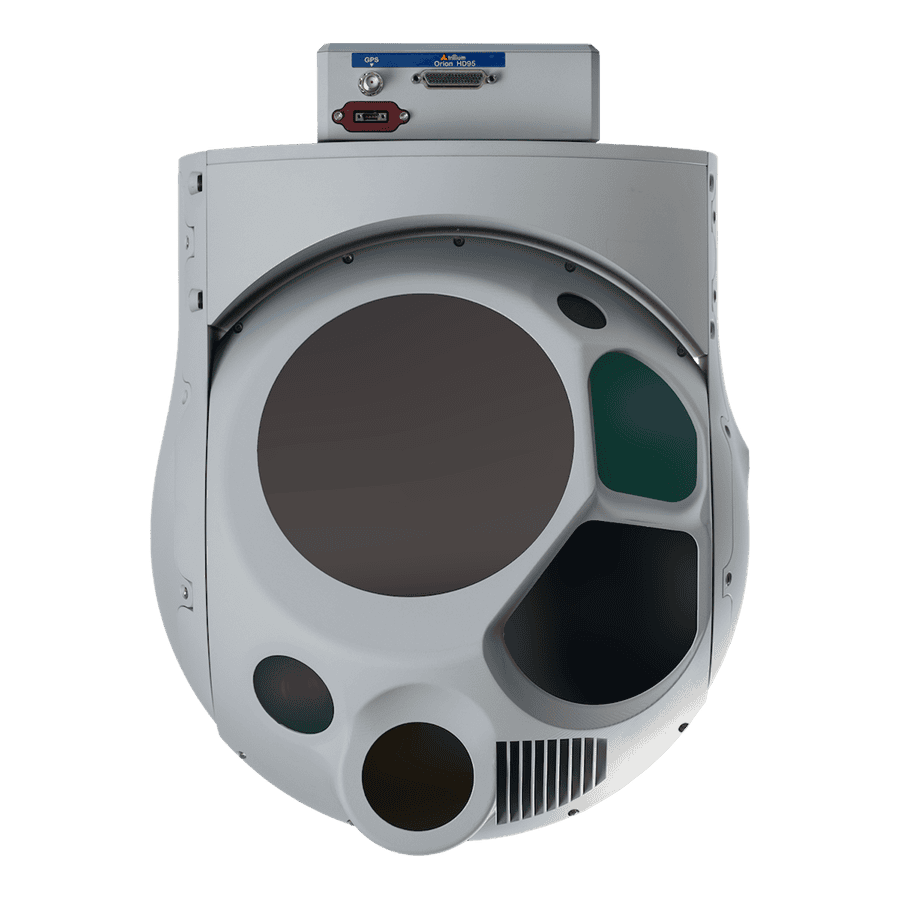

HD95

The HD95 is a SWaP (size, weight, and power)-optimized EO/IR gimbal originally designed to meet the US Army's Future Vertical Lift UAS aerial reconnaissance requirements. Providing high-resolution imagery at significant ranges, the advanced gimbal includes a global shutter Eo camera, a best-in-class 0.9 FOV MWIR thermal camera, and an SWIR camera for see-spot target designation.

The versatile imaging system also incorporates a night vision-compatible laser pointer, a laser rangefinder, and a STANAG 3733-compliant laser target designator.

Dimensions 10 x 10.9”
Weight 7.6 kg
Power Consumption 35W average, 75W average w/ laser firing, 125W peak
Cameras 720p Global Shutter Visible Camera
Cooled MWIR with 30-600mm lens
SWIR Camera
FOV 38.9°–1.5°
18.2°–0.9°
5.7°
Laser Target Designator Class IV 1064 nm
50 mJ/pulse
400μRAD divergence
Laser Range Finder Class 1 1550nm eyesafe
4.5 km max range
Laser Pointer Class IIIB 830 nm
1μRAD divergence
190mW optical power
