Data and Sensor Fusion for Avionics

Sensor fusion is the process of integrating data from multiple sensors to form a coherent and comprehensive view of an environment or system state. In avionics, this typically involves combining inputs such as radar, ADS-B, air data, and inertial measurements to support navigation, tracking, and flight control.

For unmanned platforms, where human pilots are not onboard to visually assess surroundings or interpret multiple sources of data, sensor fusion becomes a key enabler of autonomous flight and operational safety. Fused data ensures that a vehicle’s understanding of its airspace is not only accurate but also timely, which is vital for tasks like collision avoidance, path planning, and adaptive mission control.

Jump to section:

• The Multi-Track Fusion Imperative
• Avionics Subsystems Supported by Sensor Fusion
• Core Technologies Enabling Fusion
• Benefits of Sensor Fusion in UAV Avionics
• Applications in Different UAV Platforms
• Challenges in Implementing Sensor Fusion
• Looking Ahead: The Future of Fusion in Unmanned Flight

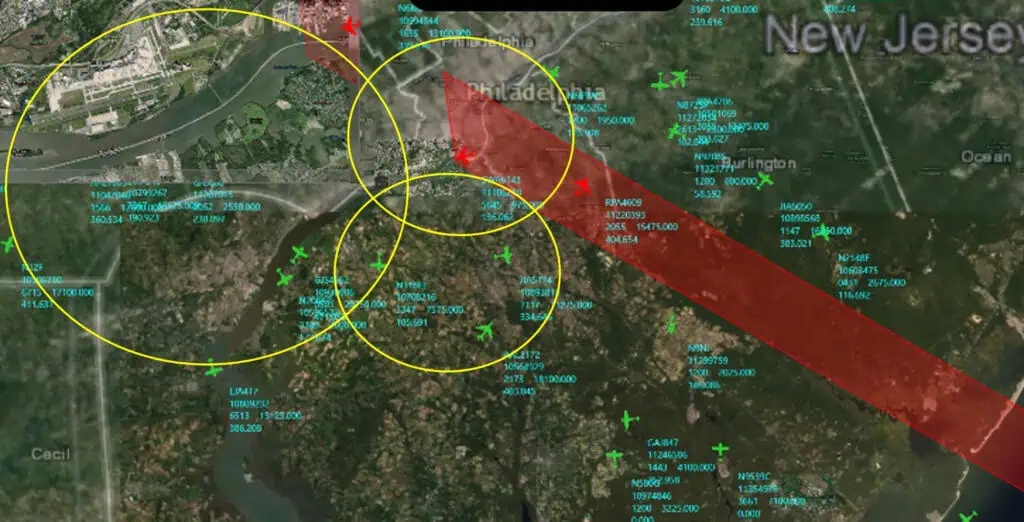

The Multi-Track Fusion Imperative

In scenarios where multiple sensors detect the same target, such as another aircraft, a navigational beacon, or a terrain feature, each sensor generates its track. Without fusion, these multiple tracks for a single object can result in duplicated information, overwhelming operators and software systems alike with cluttered displays and redundant data.

Multi-track fusion addresses this by correlating and consolidating duplicate detections into a single, continuous track. This capability is not only vital for visual clarity in ground control stations and cockpit displays but also reduces computational load in flight computers and ensures downstream systems act on unified, high-confidence information.

In advanced avionics systems, multi-track fusion may support the ingestion and processing of data from over two dozen independent sensor channels. These systems rely on continuous filtering algorithms that maintain track integrity over time, refining position and velocity estimates as new data arrives.

Avionics Subsystems Supported by Sensor Fusion

Sensor fusion acts as a foundational layer that feeds into numerous avionics subsystems. Key integrations include:

• Flight control systems: Sensor fusion enables stable flight dynamics by combining inputs from gyroscopes, accelerometers, GPS, and air data computers. This information supports functions such as attitude control, navigation, and autopilot routines.
• Flight management systems (FMS): By integrating fused data, FMS platforms can more accurately execute flight plans, manage route updates, and adapt to dynamic airspace changes.
• Air data computers (ADCs): While ADCs traditionally aggregate pressure and temperature data, their outputs are often part of a broader fusion framework that enhances altitude and speed measurements.
• Embedded mission computers: These systems often serve as central processing hubs, where fused sensor data is interpreted for tactical or operational decision-making, particularly in surveillance, search and rescue, or combat scenarios.
• ADS-B and traffic data fusion: Automatic Dependent Surveillance-Broadcast data is a vital input for situational awareness. When fused with radar and electro-optical inputs, it strengthens airspace visibility and threat assessment for both crewed and uncrewed aircraft.

Core Technologies Enabling Fusion

Several core technologies underpin effective sensor fusion in avionics:

• Sensor integration architectures: These define how sensors communicate with processing units. Modular, standards-based architectures support flexibility and scalability, which is crucial for adapting to different mission requirements.
• Fusion algorithms: Algorithms for track correlation, filtering (such as Kalman filters), and confidence scoring are at the heart of effective fusion systems. These algorithms assess whether multiple detections refer to the same object, predict future positions, and eliminate noise or outliers.
• Data format compatibility: Systems that output and ingest standardized formats ensure interoperability across platforms and coalition partners.
• Time synchronization: Accurate timestamping across all sensor inputs ensures that fusion processes work with synchronized data, which is crucial for real-time response and accuracy.

Benefits of Sensor Fusion in UAV Avionics

The use of sensor fusion in unmanned aviation provides several key benefits:

• Reduced display clutter: By merging redundant tracks, operators and onboard systems see a cleaner, more manageable view of the operational environment.
• Enhanced situational awareness: Combining multiple data sources offers a richer understanding of position, movement, and surrounding threats or obstacles.
• Increased safety and reliability: Fused data improves the robustness of flight control decisions and reduces the risk of misinterpreting sensor anomalies or faults.
• Optimized flight performance: Accurate environmental and positional data allow for more precise control, smoother navigation, and more efficient use of fuel and power.
• Scalability: Advanced fusion systems support a high number of sensor inputs, which is essential for multi-sensor platforms operating in complex or congested environments.

Applications in Different UAV Platforms

Sensor fusion is leveraged differently depending on the size, purpose, and operational altitude of the UAV:

• Small tactical UAVs: Often used in defense and surveillance, they benefit from lightweight sensor fusion systems that combine electro-optical, infrared, and GPS inputs for localized tracking and mapping.
• Medium-altitude long-endurance (MALE) UAVs: These platforms integrate more advanced radar and ADS-B data with other avionics inputs to manage long-range missions, including border patrol and persistent ISR (intelligence, surveillance, reconnaissance).
• High-altitude UAVs: Operating above commercial airspace, these aircraft rely on highly redundant sensor fusion systems to maintain long-range communications, perform atmospheric sampling, or support satellite link alignment.
• Urban air mobility and drone delivery: In densely populated environments, sensor fusion is crucial for navigating dynamic obstacles, adhering to flight corridors, and integrating with smart city infrastructure.

Challenges in Implementing Sensor Fusion

Despite its benefits, implementing sensor fusion in avionics systems comes with challenges:

• Computational load: Real-time data processing from numerous sensors requires powerful embedded systems that must also meet stringent size, weight, and power (SWaP) constraints.
• Sensor calibration and alignment: Misaligned or poorly calibrated sensors can introduce systematic errors that degrade fusion accuracy.
• Environmental interference: Factors such as weather, terrain, and signal interference can impact sensor reliability, making robust fusion algorithms crucial for mitigating errors.
• Standardization and certification: Achieving interoperability and regulatory compliance, especially for civil UAV operations, requires adherence to international standards and rigorous testing.

Looking Ahead: The Future of Fusion in Unmanned Flight

As unmanned systems continue to evolve, sensor fusion will expand beyond simple track correlation to encompass predictive analytics and artificial intelligence. AI-driven fusion algorithms may one day be able to anticipate the trajectory of other aircraft or environmental changes, enabling proactive rather than reactive navigation.

Moreover, the integration of space-based sensors, 5G communication networks, and edge computing capabilities promises to further enhance the depth and immediacy of sensor fusion systems. With ongoing advances in miniaturization and processing power, even the smallest UAVs will soon benefit from the sophistication previously reserved for manned aircraft and large platforms.

Sensor fusion stands at the forefront of modern avionics innovation, providing unmanned systems with the clarity, precision, and responsiveness they need to operate safely and effectively. By correlating multi-track data from numerous onboard and external sources, sensor fusion not only enhances the quality of information available but also transforms how UAVs interact with their environment.

From reducing display clutter and ensuring accurate flight control to enabling seamless data interoperability and adaptive mission execution, sensor fusion is indispensable for both current and next-generation unmanned aerial vehicle (UAV) platforms. As the skies become more crowded and operational demands increase, the role of robust, scalable, and intelligent fusion technologies will only grow in importance.
