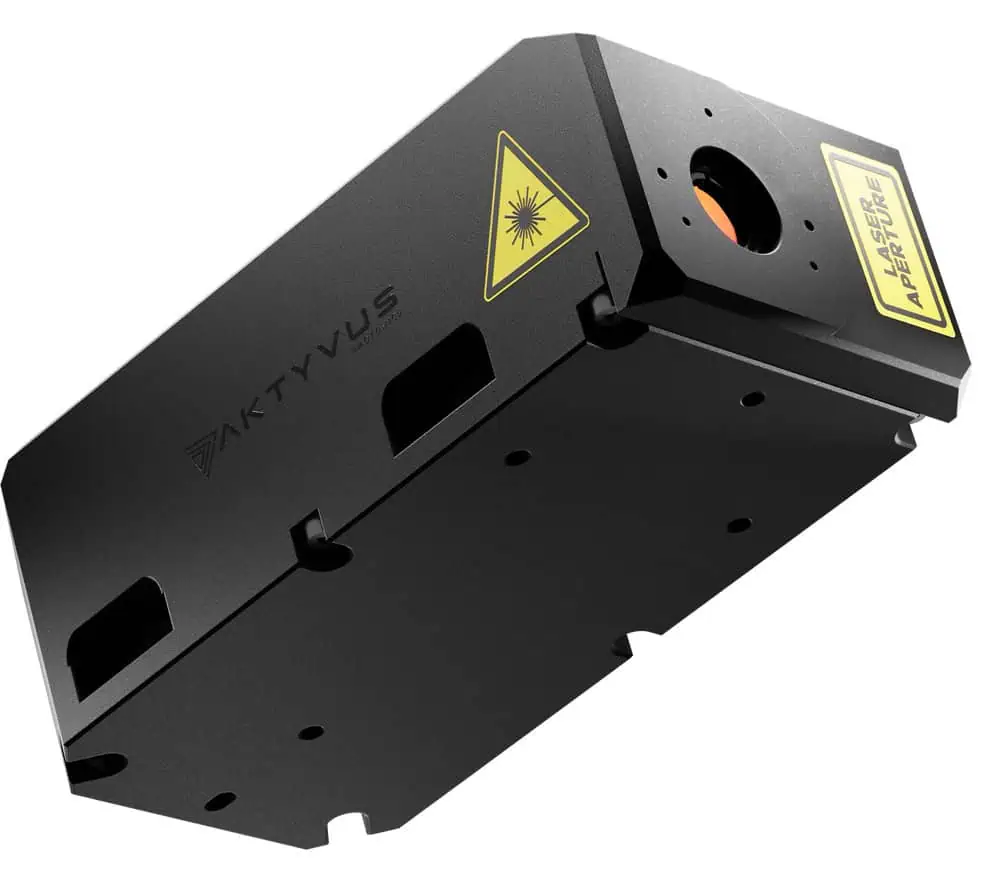

The VISOR-R is a high-energy Q-switched DPSS laser purpose-built for remote sensing in real-world military and defense operations. Delivering pulse energies of up to 90 mJ at 1064 nm from a compact 147 × 75 × 55 mm housing, it combines robustness with field-ready convenience. Encased in a fully IP67-sealed enclosure and compliant with MIL-STD-810 vibration and shock standards, it thrives in severe operational conditions, withstanding dust, impact, sub-zero temperatures.

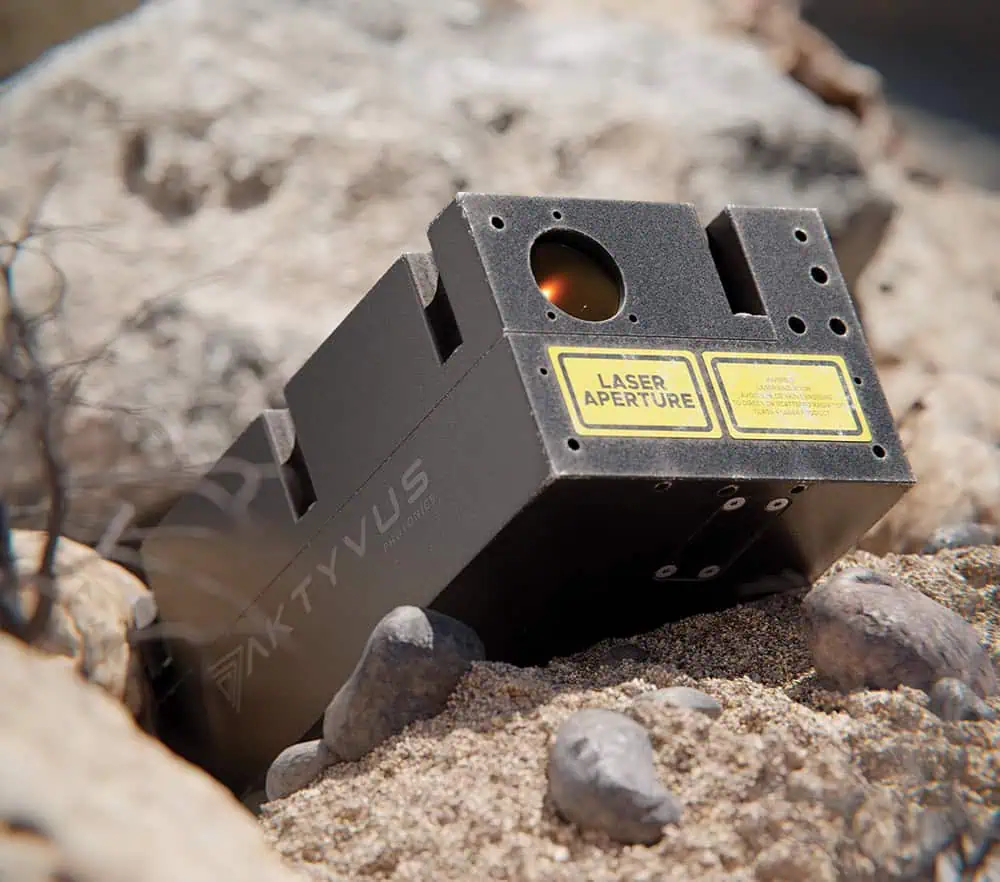

The VISOR-R offers reliable performance for LIBS, LIDAR, PIV, LIF, and target designation. Its minimal-maintenance design ensures stable output with high accuracy. Lightweight yet exceptionally durable, VISOR-R supports precision sensing missions in battlefield, airborne, or remote sensing platforms where resilience is paramount.
Specifications:
| Size: | 152 × 75 × 55 mm |
| Weight: | <1200 grams |
| Wavelength: | 1064 nm |
| Pulse Energy: | 40-90 mJ* |
| Pulse Repetition Rate: | 1 – 40 Hz** |
| Pulse Duration: | 15 ns |
| Beam Profile: | Multimode, rectangular |
| Beam Divergence (Full Angle): | < 5 mrad |
| Beam Size: | 6x6 mm* |
| Cooling: | Air, Conductive |
| Power Supply Requirement: | 15- 24 VDC |
| Operating Temperature: | +10...+40°C*** |
| IP Rating: | IP67 |
| Shock and Vibration Compliance: | MIL-STD-810 |
