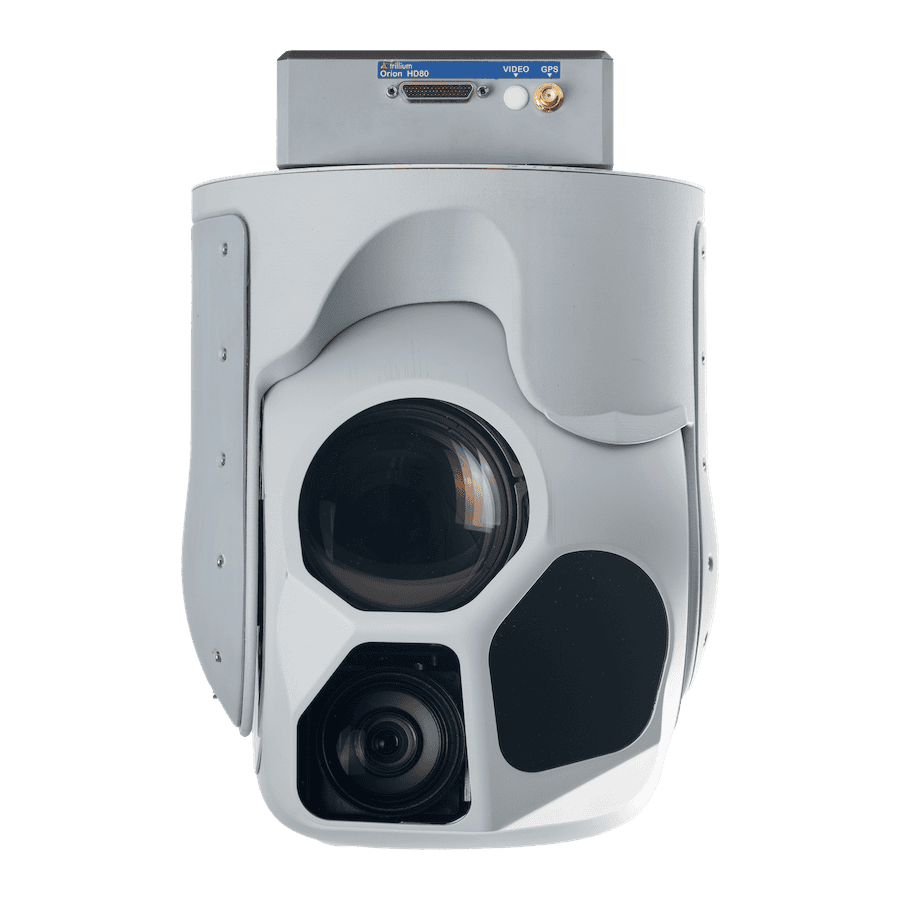

HD80 Drone Camera Gimbal
The HD80 is a powerful drone gimbal with best-in-class stability and a robust housing with environmental sealing. Delivering 720p HD digital H.264- and H.265-compliant video output, it is available in a dual EO camera configuration or with MWIR and LWIR thermal imaging options.
The onboard GPS-aided INS is co-located with the cameras and features accuracy of down to 0.5 degrees, allowing the gimbal to provide real-time geopointing and geolocation for high-precision targeting. Advanced embedded video processing features include scene tracking and target tracking. The gimbal can be controlled via Ethernet or serial, and video can be output via Ethernet or analog interface.
| HD80-VV-510 | HD80-LV-CZ-36X | HD80-MV-36X | HD80-MV-600 | |
| Dimensions (D x H) | 8 x 10.9” | 8 x 10.9” | 8 x 10.9” | 8 x 10.9” |
| Weight | 4.27 kg | 3.85 kg | 4.55 kg | 4.9 kg |
| Power Consumption | 25W average, 100W peak | 25W average, 100W peak | 25W average, 100W peak | 25W average, 100W peak |
| Cameras |
Global Shutter Visible Global Shutter Spotter |
Global Shutter Visible LWIR 640 with 15-75mm continuous zoom |
Global Shutter Visible Cooled MWIR with 25-375mm continuous zoom |
Global Shutter Visible Cooled MWIR with 30-600mm continuous zoom |
| FOV |
59.2° – 1.8° 0.4° |
38.9° – 1.5° 29° - 5.9° |
38.9° – 1.5° 21.7° - 1.5° |
54° – 4.9° 18.2° - 0.9° |
| Export | BIS-controlled | BIS-controlled | ITAR-controlled | ITAR-controlled |
