UAV Propulsion, Autopilots, Servos, Parachutes, Electric Turbofans, Fuel Sensors, Inertial Navigation Systems, Fuel Cells and Gimbal Solutions

UAV Propulsion Tech is a US company that markets UAV technology from Germany, Austria, Estonia, Canada, United Kingdom, India, Singapore, Finland and Sweden into the U.S. Unmanned Aerial Vehicle market.

Companies represented include Volz (Servos), Hirth (Propulsion Systems including Starter/Generators), MicroPilot (Autopilots), DST Control (gyro-stabilized EO/IR gimbals and thermal imagers), Skygraphics (Rescue/Recovery Chutes), Reventec (Capacitive level sensors, ultrasonic flow sensors, engine sensors), Neva Aerospace (Electric Turbofans), Aeron Systems (Inertial Navigation Systems), HES Energy Systems (Fuel Cells), Eli (pneumatic launchers, parachute release mechanisms), Senop (Hyperspectral UAV Imaging Cameras) and ePropelled (UAV Starter Generators). These solutions include consumer off the shelf (COTs) and custom solutions. These products are proven solutions that are flying on several high end global UAV platforms.

DST Control

Gyro stabilized EO/IR gimbal systems and lightweight thermal imagers for UAVs

Located in Linköping, Sweden, DST CONTROL supplies light-weight, high performance gyro-stabilized electro-optical systems with both EO and IR capabilities, and small light-weight thermal imagers.

OTUS Gyro-stabilized Sensor Systems

OTUS gyro-stabilized electro-optical micro-gimbals are optimized for use in small & medium sized unmanned vehicles and small manned aircraft, featuring a day-light camera and/or an un-cooled infrared camera combined with a laser range finder. OTUS is one of the smallest and lightest gimbals on the market, yet provides performance & functions typically only found in much larger units.

The two axis OTUS U135, L170 and L205 gimbals reach a new level of stabilization performance thanks to purpose-built high-bandwidth torque motors implementing active vibration attenuation. The all new four axis OTUS U-250 gimbal achieves even greater stabilization due to a combination of purpose-built high-bandwidth torque motors and geared motors.

All electronics required for the advanced digital control fits within the unit shell of each gimbal. The user only has to connect an external power supply, a video monitor and a joystick, to have the system up and running. A three dimensional micro-mechanical IMU and a laser range finder mounted directly on the optical bench, allows for advanced features like geo-location and geo-positioning, provided an external heading source is connected to the gimbal. Each gimbal features a powerful digital servo controller, which is even capable of providing enough computational power to drive optional features like vehicle control and navigation.

OTUS provides unique optional functions such as geo-localization, automatic video tracking and video recording, with everything integrated within the gimbal. The OTUS gimbals have no export restrictions, nor ITAR. As a trusted & established supplier of components and know-how for the unmanned vehicle industry for the last 20 years, DST has been involved in several national and international unmanned aerial vehicle projects.

SAITIS Thermal Imagers

SAITIS-640 is an uncooled microbolometer LWIR camera (amorphous silicon, spectral band 8-14 μm) with 640×480 pixels resolution. Unique features for the SAITIS-640 is its low weight and size (from 27mm x 27mm x 26mm) but also the minimum power requirements (1W).  The SAITIS-640 can be equipped with a wide range of optics and has maximum exportability even in full frame rate.

More: DST Control

Hirth

2-stroke Propulsion Systems; Starter/Generator

Located in Benningen, Germany, Hirth is a leading supplier of reliable 2-stroke engines for sport aviation, ultra-light, hover craft, water pumps and UAV applications.

In business for over 80 years, the considerable experience Hirth has gained producing engines for the sport aviation market has made them a key choice for customers looking for COTS or custom UAV engine solutions.

Hirth supplies engines for a wide range of UAV platforms, including the Northrop Grumman BAT, Denel Seeker II, Rheinmetall KZO, EMT Luna, CybAero APID60, Indra Pelicano, DroneTech AV-1 Albatross, Ruag Ranger, Robot Aviation Aerobot, IDS SD-150 Hero, and Saab Skeldar.

Hirth’s engines utilize a wide range of advanced technologies to ensure they meet the demanding requirements of UAV applications.

These technologies include advanced fuel injection (iPower); integration of lightweight/efficient starter/generators; advanced engine management systems; gear and belt drive reduction systems; and advanced engine mount solutions.

Closely working with its supply base, Hirth can supply complete turnkey propulsion modules including engine mount, generator and propeller.

Advantages of Hirth’s 2-stroke aircraft engines:

• ISO 9001 registered engineering/production facility.
• Broad 2-stroke application experience with air cooled and water cooled engines developed for air, land and sea applications.
• Nikasil cylinders, hyper eutectic pistons and chrom moly crankshafts for improved durability to achieve higher TBO’s.
• Sport aviation and defense unmanned aerial vehicle experience.
• COTS, modified COTS and clean sheet engine solution options.
• Located in the heart of Stuttgart so Hirth has access to high tech suppliers that support the German auto industry.
• Manufacturer/designer of complete propulsion systems including: starter/generator, reduction drive, propeller, engine mount, throttle servo, silencer, system break-in & qualification.
• Over 1 million 2-stroke engines produced.
• Special helicopter propulsion solutions.

More: Hirth 2-Stroke Engines

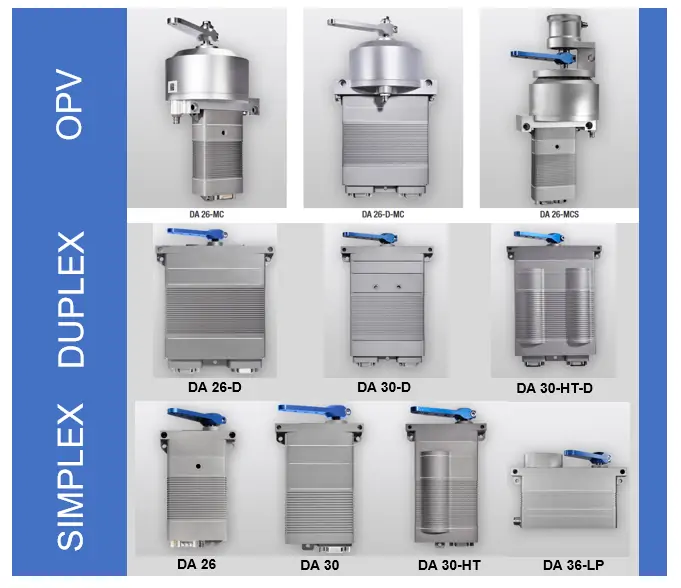

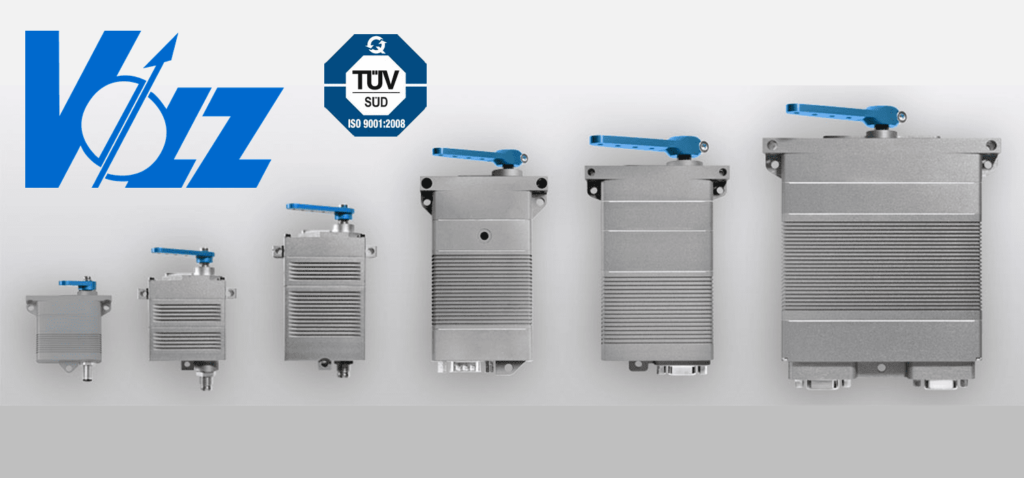

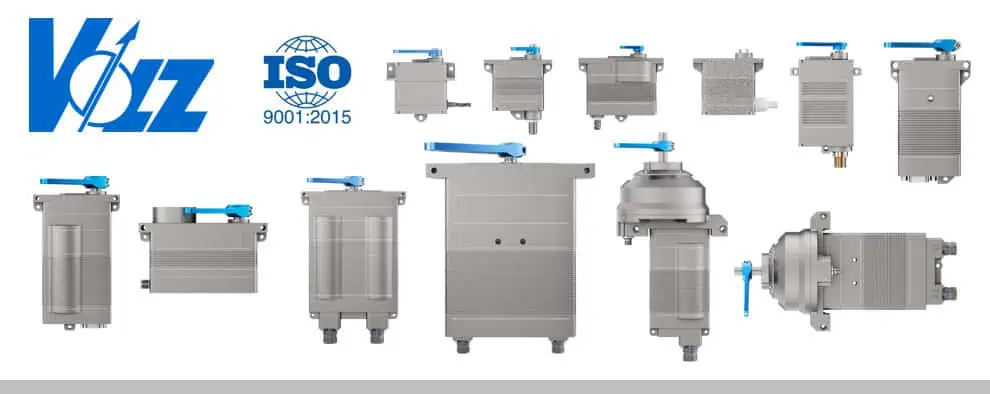

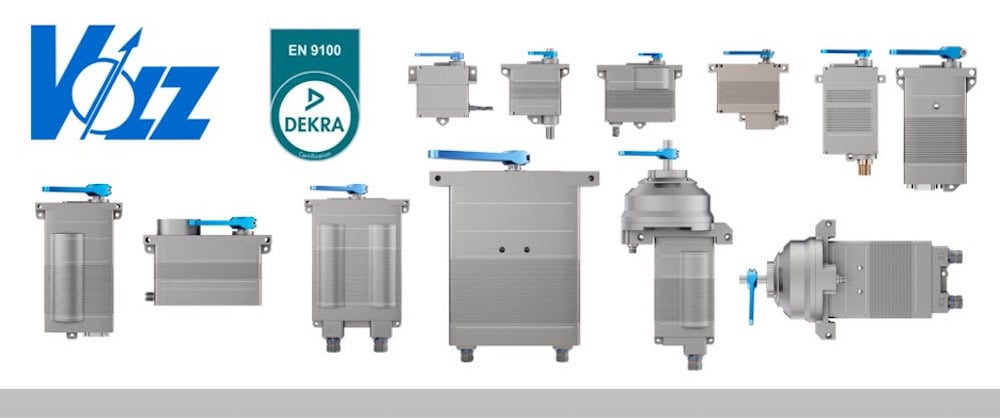

Volz Actuators

High Performance Servo Actuators

Volz produces high-performance servo actuators for industrial and aerospace applications, with several COTS solutions and the ability to develop custom solutions.

Volz are flying on several global UAV platforms including the Lockheed Martin Fury 1500, Northrop Grumman BAT, AAI Corp Aerosonde Mk4.7, Aeronautics Orbiter, EADS Cassidian DO-DT target drones, and Schiebel Camcopter S-100.

Actuators are available with number of high-end optional features including brushless motors, contactless sensor, position feedback and clutch mechanisms, providing a high-reliability solution. Submersible solutions are also available, proven to 100m/300ft or 10bar/145psi. All hardware has traceability which can be difficult to obtain from high volume hobby RC servos. A redundant variant of the DA26 servo is available, designed for extreme depth and pressure conditions down to 2000m/6600ft.

Key Features of Volz Actuators:

• CNC machined aluminum actuator case.
• IP67 standard for water/dust intrusion protection.
• Multi-purpose lug mounts for variable servo fixation.
• Integrated microprocessor controlled PC boards.
• Fully programmable by the customer.
• Redundant servo solutions.

More: Volz Servos Acuators

Skygraphics

Rescue/Recovery Parachutes for UAVS

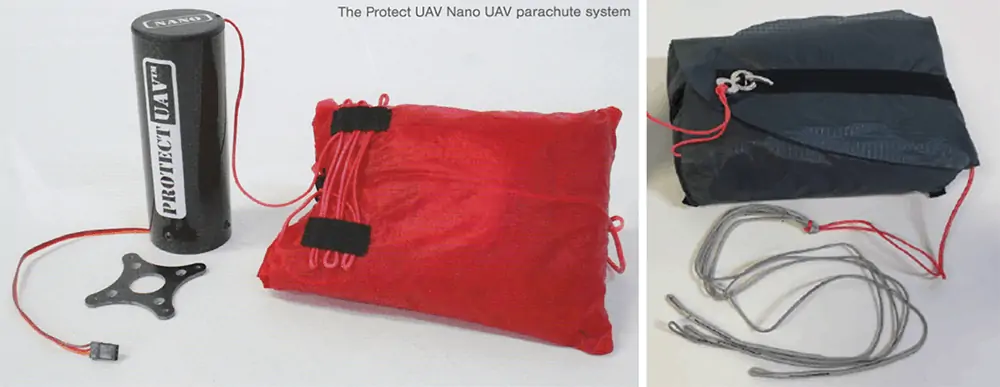

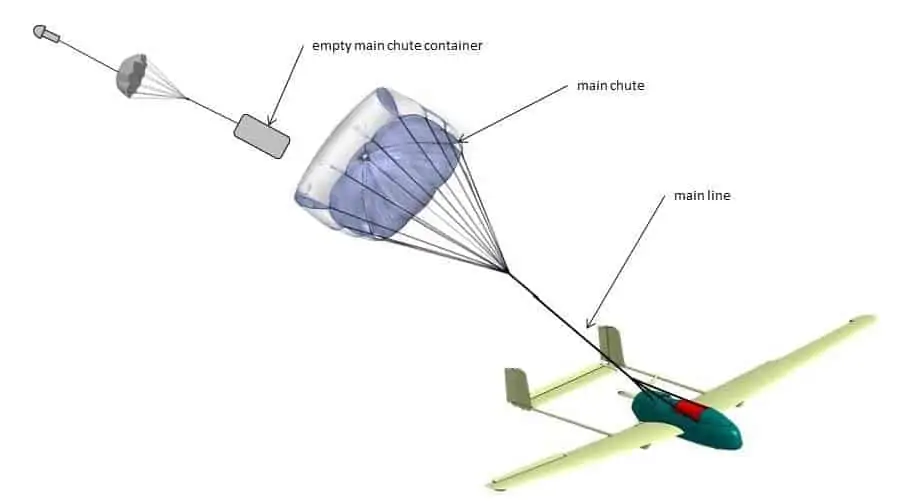

Skygraphics provides rescue/recovery parachute solutions for UAVs. The ‘Protect UAV’ parachute system is typically lighter and smaller than other systems on the market, and features a cord cutter solution that releases the parachute once the air vehicle has landed to minimize damage due to high wind. ProtectUAV also can offer the “Nano” multicopter solution in various sizes for MTOW’s up to 25kg.

Key Advantages of the Skygraphics Protect UAV Parachute System:

• High speed-range for initial phase of deployment: 60 bis 220km/h tested, extension feasible.
• Moderate G-load throughout total deployment-range due to configurable slider system: standard <6g.
• Quick stabilization after deployment.
• Low tendency of oscillation.
• Extreme low weight and dimensions resulting in low effect on payload: standard 1.5-2.0kg with 4-6.5 liter volume.
• Standard sizes for MTOW of 45 to 100kg, extension of MTOW easily feasible.
• Scalable to individual requirements via custom-built computational configuration tool.
• Re-useable: 10+ deployments possible.
• Development and production in accordance to aeronautical engineering regulations.
• Verification of required parameters through special measuring equipment and video documentation during airdrop-tests.
• Low adaptation and development efforts while in design phase to consider specific requirements

Watch the video:

More: Skygraphics Rescue/Recovery Parachutes

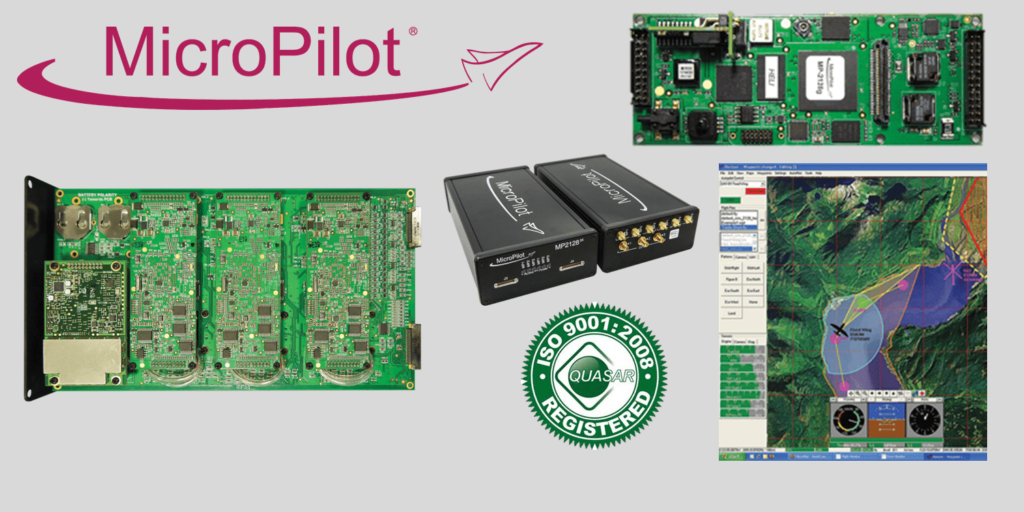

MicroPilot

Autopilots for helicopters, fixed wing and multi-rotor UAVs

MicroPilot is located in Stony Mountain, Canada (just outside of Winipeg) and has been in business since 1994 supplying high end autopilots for the global UAV market. MicroPilot currently services over 850 clients in over 70 countries representing both small and large UAV manufacturers (commercial and defense) and research organizations.  MicroPilot offers a family of lightweight UAV autopilots that fly fixed-wing, transitional, helicopter, and multi-rotor UAVs.

Some of MicroPilot’s autopilots’ popular features include:

• Airspeed and altitude hold
• Turn coordination
• GPS navigation
• Vertical takeoff and landing (VTOL)
• Autonomous operation from launch to recovery

Seamless Upgrade

MicroPilot has a range of autopilots from the single-use autopilot (MP2x28xp) all the way up to the powerful VTOL autopilot (MP2128HELI), providing a seamless upgrade path. No other autopilot manufacturer offers this high degree of adaptable technology and range of autopilot options. Once Micropilot’s customers learn how to work with one of MicroPilot’s autopilots, they are equipped to use them all. This makes MicroPilot the single-vendor solution for autopilot hardware, software, and accessory needs. MicroPilot’s line of autopilots allows its customers to grow and adapt at a fraction of the cost offered by many other autopilot competitors. This allows MicroPilot’s customers to get in the air faster without having to fund their own team to develop their own custom autopilot.

More: MicroPilot UAV Autopilots

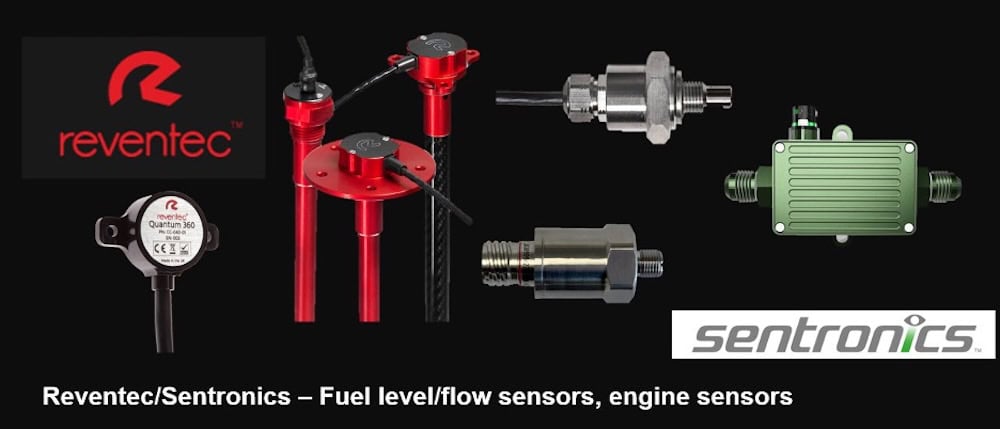

Reventec

Liquid Level Sensors and Fuel Flow Sensors
for Unmanned Vehicles

Reventec is an internationally recognized mechanical and electronic design consultancy that provides a range of sensors for the aerospace and defense markets. Their wide range of design expertise, particularly in the development of products for use in harsh environments, makes their products ideal for the demanding requirements of unmanned vehicles.

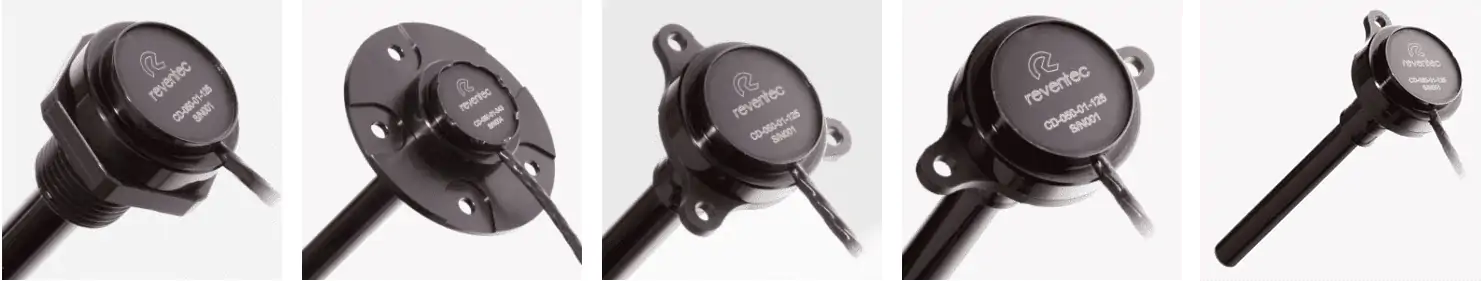

Liquid Level Sensors

Reventec’s world-leading capacitive liquid level sensing technology provides precise and stable level readings even under the harshest of environmental conditions, making them ideal for fuel, oil, water, and coolant level measurements in UAVs, UGVs and other unmanned vehicles.

The EcoSense range of solid-state capacitive sensors is capable of continuous level measurement in all common liquid types. The modular sensor can be customised for length and allows for a wide range of mounting options with the use of a custom or stock mounting adaptor.

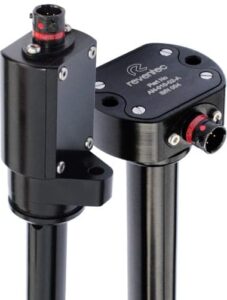

ProSense carbon capacitive level sensors are proven in harsh environment applications and custom designed to your requirements, making them ideal for low and mid volume production runs as well as one-off prototypes.

The sensors are available with integrated or remote electronics for high temperature or confined envelope applications.

Neva Aerospace

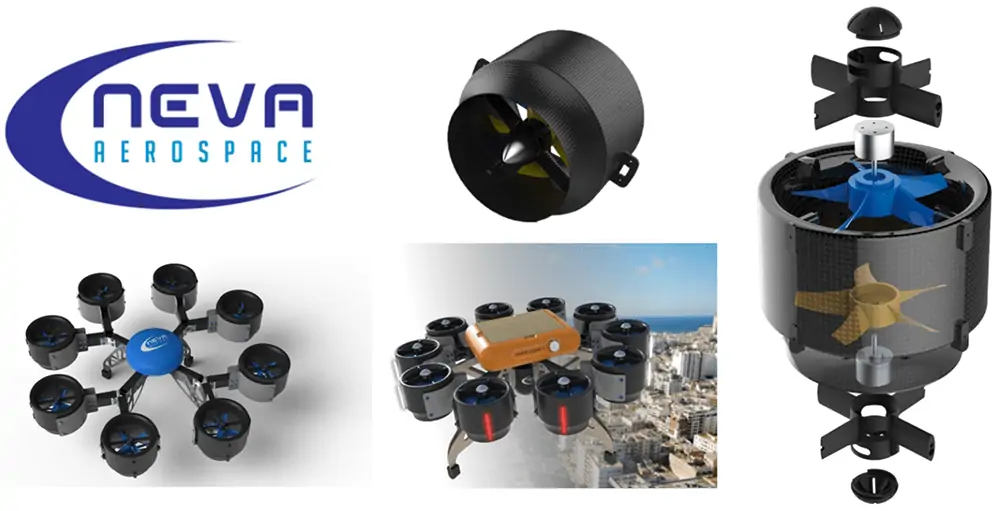

Electric Turbofan Propulsion for UAVs and Drones

Neva Aerospace is a leading developer of technologies for unmanned air vehicles (UAVs) and other electric aviation platforms. Their uniquely housed electric turbofan (ETF) design, optimized for static thrust and V/STOL (vertical/short takeoff and landing) aircraft, provides high efficiency and increased safety compared to uncaged rotor blades, and creates new possibilities for the development of the next generation of unmanned aerial systems.

Neva’s Athena A turbines feature a combination of light weight and superior stability and yaw control. UAV designers can benefit from a wide range of options for multiple turbines to be used and controlled in synch, with increased scope for redundancy. Athena A turbines are available in single-stage (clockwise or counter-clockwise) and two-stage (counter-rotating) versions, with maximum thrust of 2.0kgf and 2.5kgf respectively.

Typical applications for unmanned aircraft include:

• Bespoke applications for medium sized UAS/UAVs
• Bespoke heavy-payload, high-safety UAS/UAVs
• Security and defense
• Electric aviation for high-efficiency VTOL and slow-speed linear flight.

More: Neva Aerospace

Eli Airborne Solutions

Pneumatic UAV Launcher and Parachute Release System

Eli Airborne Solutions is a leading manufacturer of UAV/UAS solutions for the military and commercial sectors. Eli prides itself on being at the forefront of the latest technological innovations and the company’s equipment is utilized worldwide.

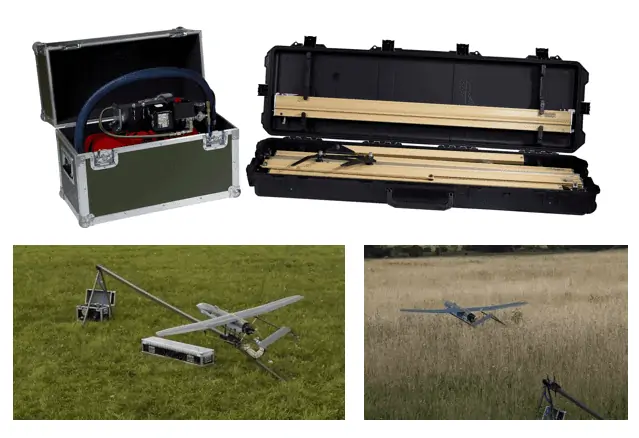

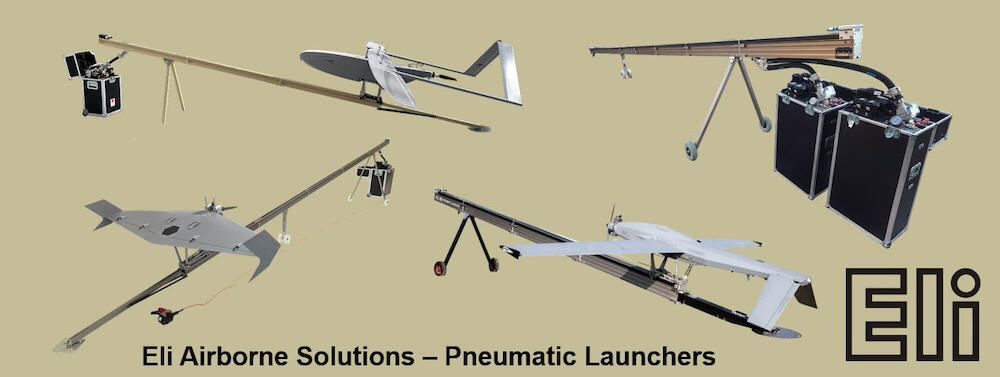

Pneumatic UAV Catapult Launcher

Eli’s pneumatic UAV catapult launcher has been designed to accelerate unmanned aircraft with a MTOW of up to 45 kg and launch them at speeds up to 25m/s. The lightweight, battery-powered launcher can be quickly and easily assembled in minutes and breaks down into two custom rugged cases for maximum portability. Eli can design custom carriage rods to accommodate customers’ particular UAV requirements.

UAV Parachute Release System

In harsh weather conditions, parachute canopies may remain filled with air after landing, dragging and potentially damaging UAVs. Eli’s patented UAV parachute release system provides an effective and reliable solution for this problem, immediately disconnecting the aircraft from the parachute upon impact with the ground. The lightweight, easy to operate device is highly reliable as it is a light-weight mechanical solution with no electronic parts.

The UAV Parachute Release System measures just 80mm in length and 17mm diameter, with a total weight of 50g, and is designed for UAVs of up to 50kg. Eli can design custom release systems according to specific needs.

More: Eli Airborne Solutions

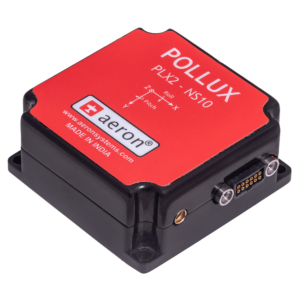

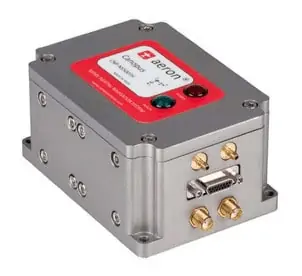

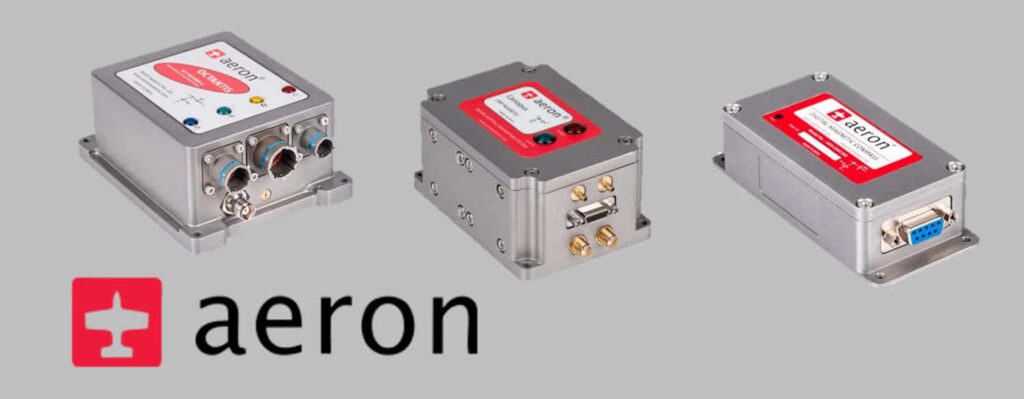

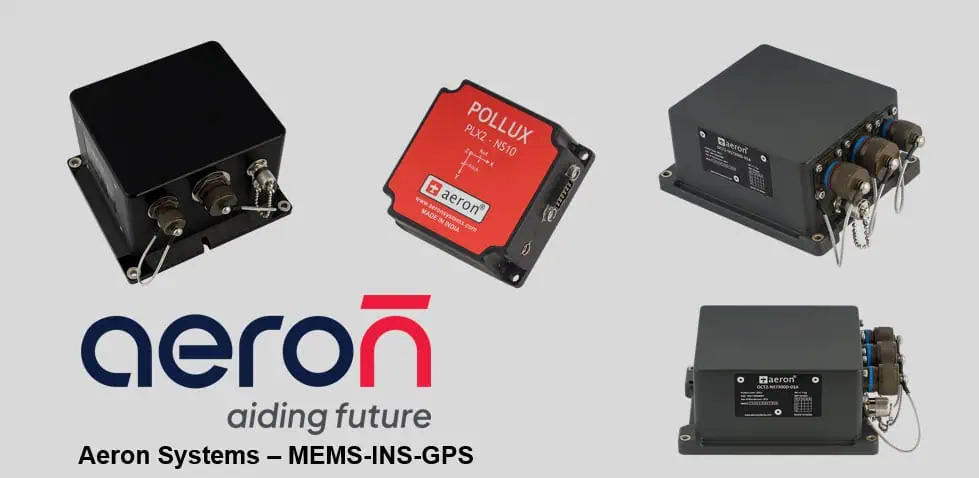

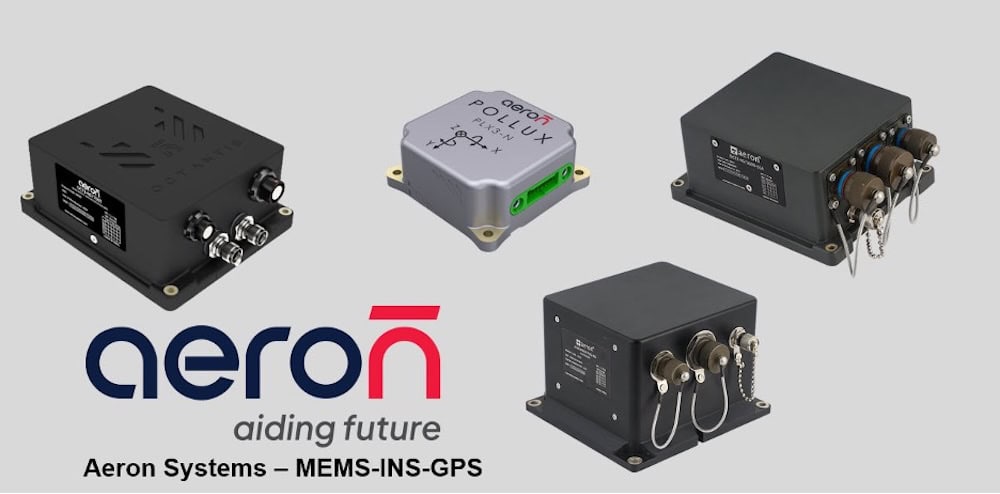

More: Aeron Systems

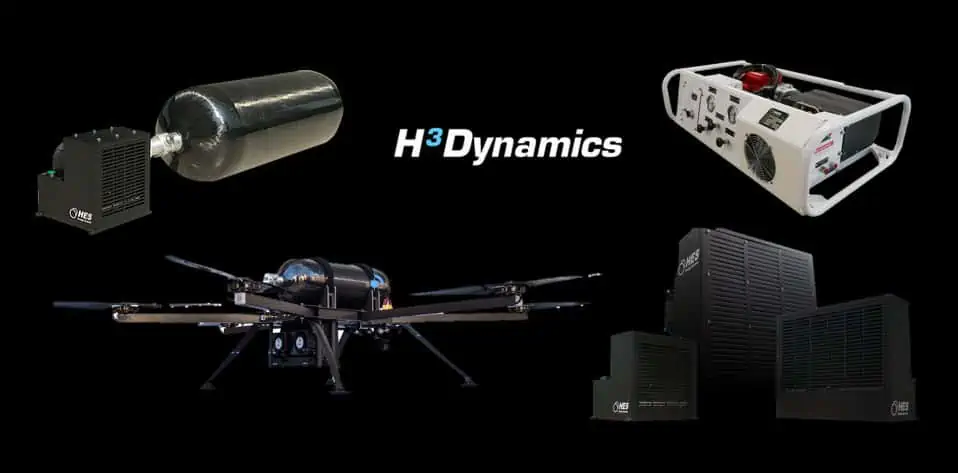

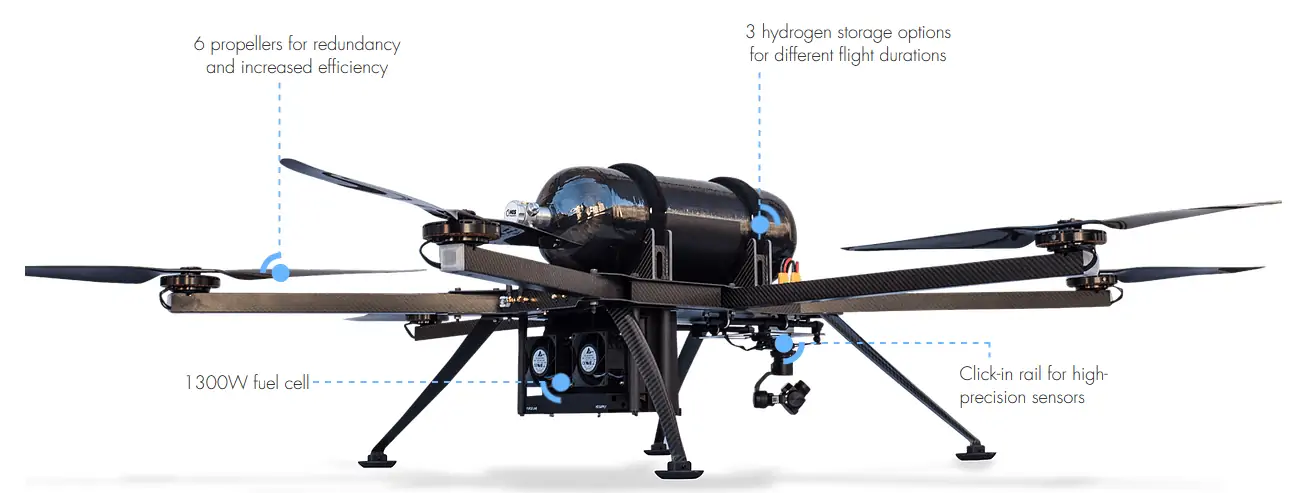

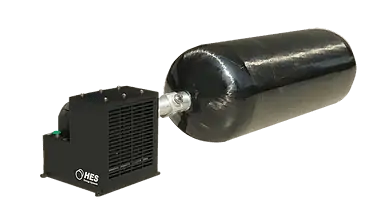

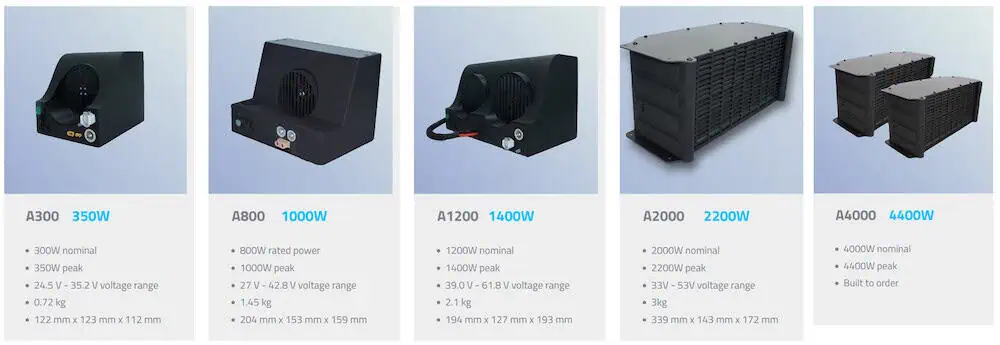

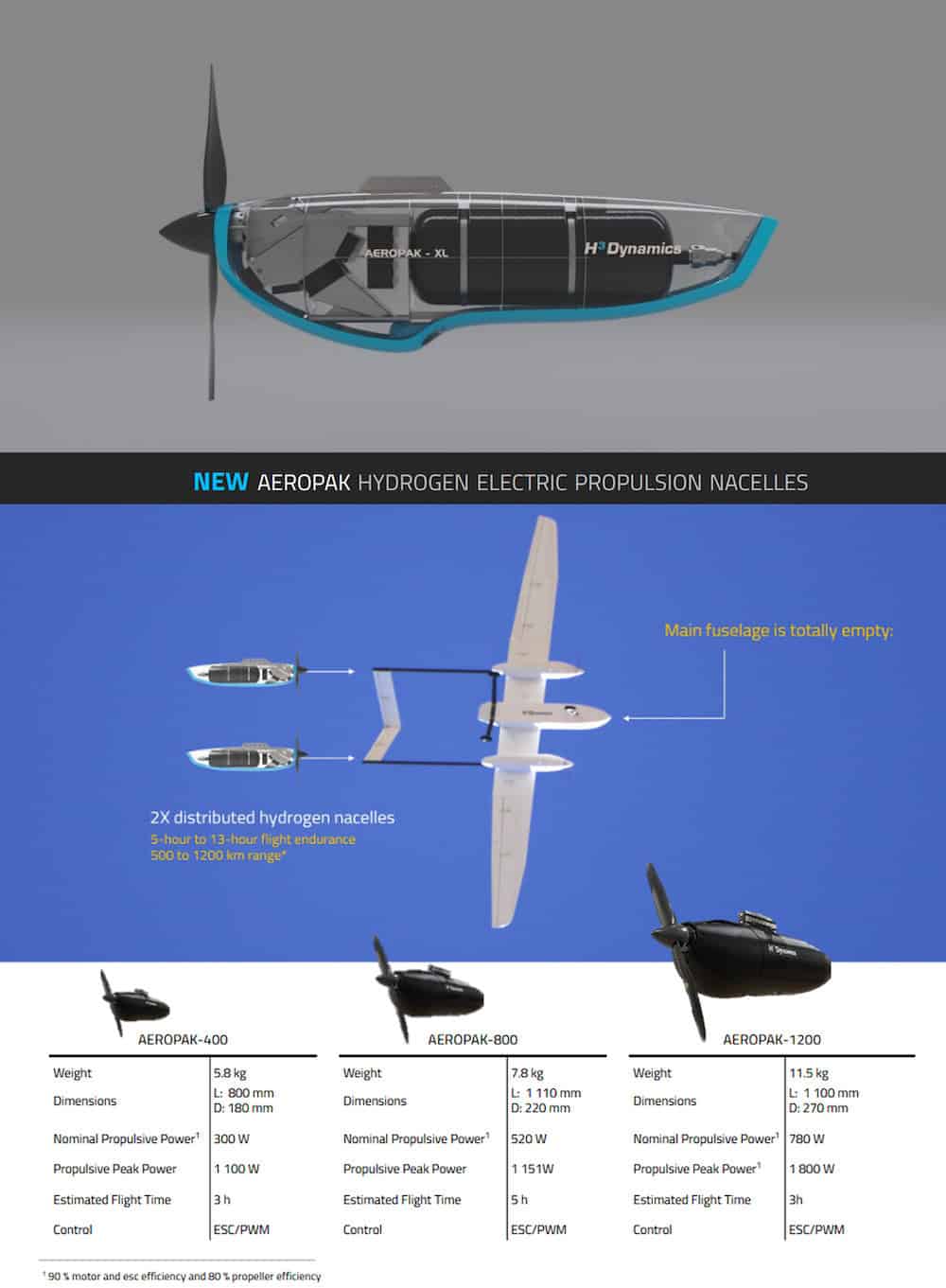

AEROSTAK: World’s smallest & lightest fuel cell stack

AEROSTAK is a complete power device that includes a PEM Fuel Cell stack, aerospace-grade control electronics, resistant-to-shock casings with integrated air cooling fans, and LiPo-compatible hybrid electronic cards.

HES Energy Systems can design and manufacture ultralight fuel cell stacks ranging from 10W to 2kW but also offer the following standard sizes and power configurations:

More: HES Energy Systems

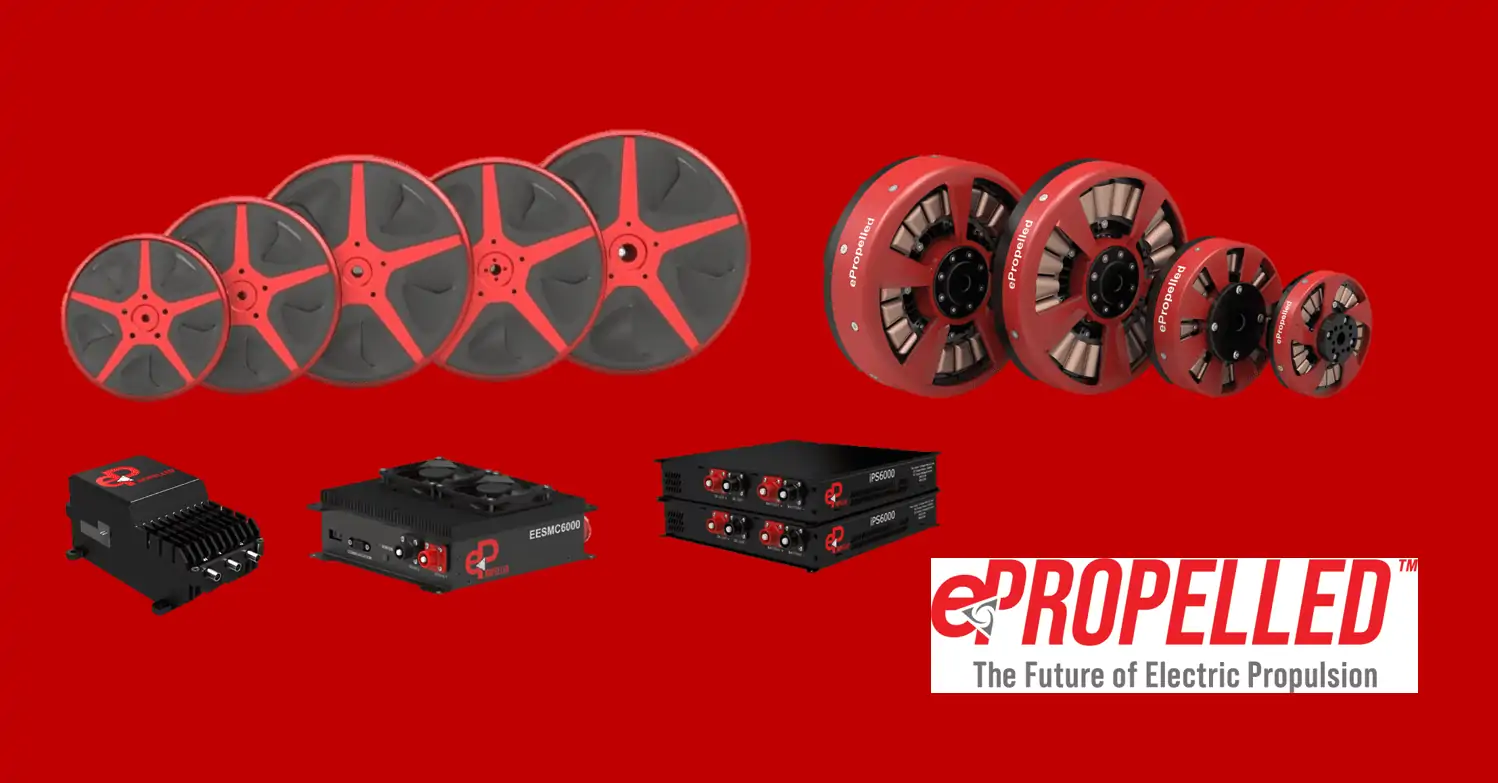

ePropelled

Starter Generators for UAVs and Drones

ePropelled is a leading innovator in magnetic engineering for UAV, aviation, and aerospace applications. Their patented electronic magnetic gearing technology produces improved efficiency and propulsion at various torque and speed levels, providing a boost in performance in addition to lowering weight.

ePropelled’s UAV Starter Generators feature a lightweight and compact design, combining high power density with high efficiency. They are available in the following output ranges:

• 500W
• 1 to 3 kW
• 4 kW
• 5 to 6 kW

The UAV Starter Generators address the challenge of cooling with an active air cooling system that allows them to operate in temperatures in excess of 200°C. The unique motor systems deliver increased performance for UAVs in parameters such as flight duration, payload, operating ceiling and range.

More: ePropelled UAV Starter Generators

Senop

Hyperspectral Imaging Solutions for UAVs and Drones

Senop is a developer of advanced hyperspectral imaging solutions for UAV applications including precision agriculture, scientific research and forestry.

HCS-2 Hyperspectral Camera
Senop’s next-generation HCS-2 is a VNIR (400-1000 nm) spectral range camera suitable for both fixed-wing and multirotor UAV platforms. The frame-based snap shot device, with a 1MP resolution and up to 149 frames/sec, provides true spectral data in each pixel with no interpolation.

The HCS-2 allows users to program and select up to a thousand individual spectral bands. An open API allows developers to create their own custom software for specific applications.

Learn more: Senop – Hyperspectral UAV Imaging Solutions
