INS-BU

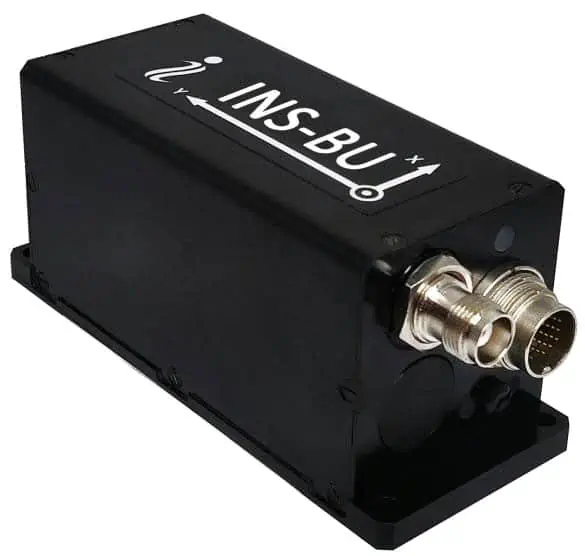

The INS-BU is an industrial-grade GNSS-aided inertial navigation system featuring an advanced single-antenna multi-constellation GNSS receiver from u-blox, as well as three-axis precision accelerometers, gyroscopes and fluxgate magnetometers. It can accept a wide variety of additional aiding data from sources such as Doppler Velocity Logs, odometers, wind sensors and external magnetic compasses.

The sensor provides high-accuracy position, velocity, heading, pitch and roll data for both static and dynamic applications. It can also output AT_ITINS messages for the Cobham Aviator UAV 200 SATCOM terminal, as well as NMEA messages for Pixhawk drone flight controllers.

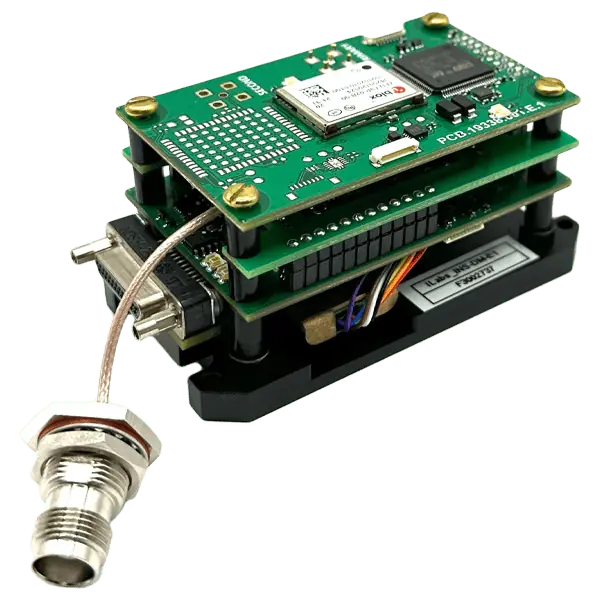

The INS-BU is ideal for use with a wide range of unmanned systems, including UAVs, UGVs (unmanned ground vehicles) and land vehicles, and USVs (uncrewed surface vessels). It is available in enclosed or OEM board-level versions.

Specifications:

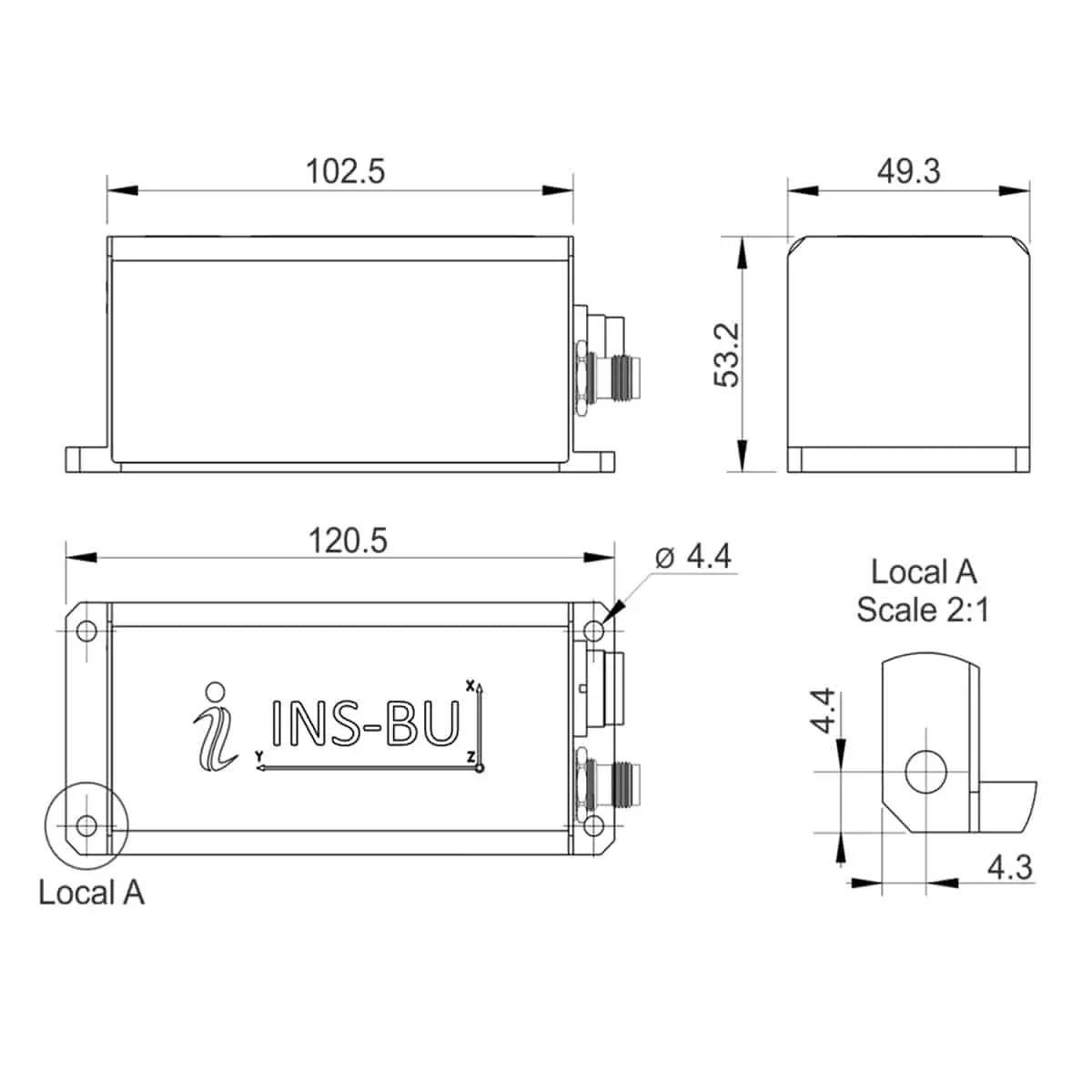

Dimensions 120.5 x 53.2 x 49.3 mm

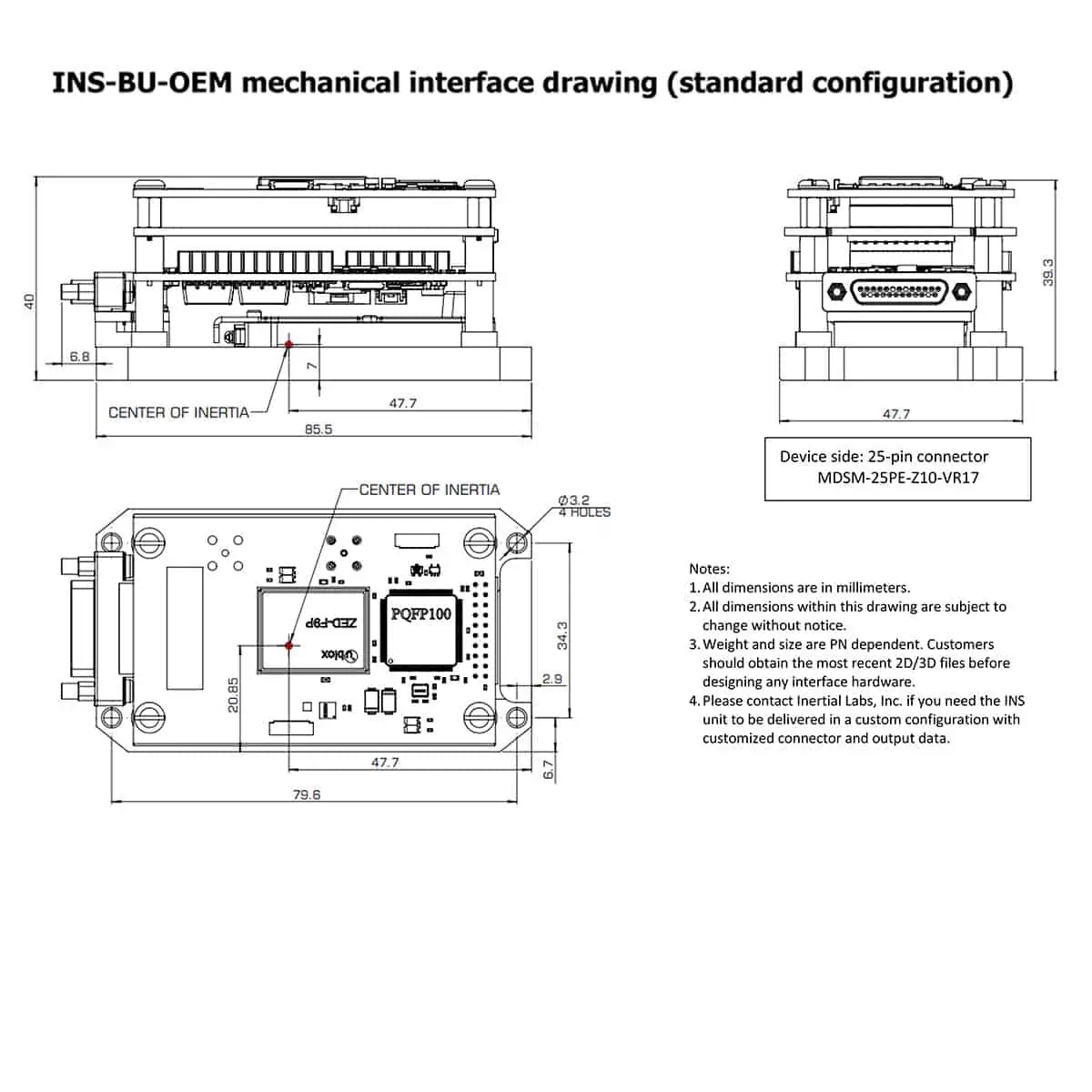

85.5 x 47.7 x 39.3 mm OEM
Weight 320g
174g OEM
Power 9-34 VDC, 5W (6W with datalogger)
Heading Accuracy 0.6° static
0.3° dynamic
Position Accuracy 0.5cm (PPK)
1cm (RTK)
60cm (SBAS)
Pitch & Roll Accuracy 0.05° dynamic
0.08° static
GNSS Constellations BDS, GAL, GLO, GPS, QZSS
GNSS Corrections PPK, RTK, SBAS
