Discover advanced drone accelerometer technology designed to enhance stability, navigation, and data precision in unmanned systems. These accelerometers are essential for accurate data acquisition and reliable movement tracking, enabling drones to respond to environmental and operational demands with accuracy and durability. From industrial-grade accelerometers to specialized accelerometer sensors for various drone applications, explore a range of devices tailored for high-performance drone use, including rugged environments. Understand how accelerometers work and their critical role in drone monitoring and control.
Accelerometers are essential components of drone, robotics and unmanned systems, enabling precise measurement of acceleration forces and motion dynamics. The data they provide is critical for stabilisation, navigation, and control, ensuring optimal flight performance and high-accuracy movement and positioning.
Accelerometers designed for drone and robotics applications are typically compact and lightweight in order to meet the stringent low-SWaP (Size, Weight, and Power) requirements of the use cases, and may also need to be ruggedized and hermetically sealed to ensure durability in harsh conditions.
An accelerometer is a sensor that measures acceleration forces acting on an object. These forces may include static forces, such as gravity, or dynamic forces, such as motion or vibration. In the context of drones and unmanned systems, accelerometers monitor changes in velocity and orientation, providing real-time data to the autopilot during flight.
Accelerometers in drones are crucial for maintaining stability, adjusting propulsion systems, and supporting autonomous functions like obstacle avoidance and waypoint navigation. They may also be integrated into inertial navigation systems (INS) or inertial measurement units (IMUs), working alongside gyroscopes and magnetometers to deliver comprehensive motion sensing and positional awareness information.
How Do Accelerometers Work?

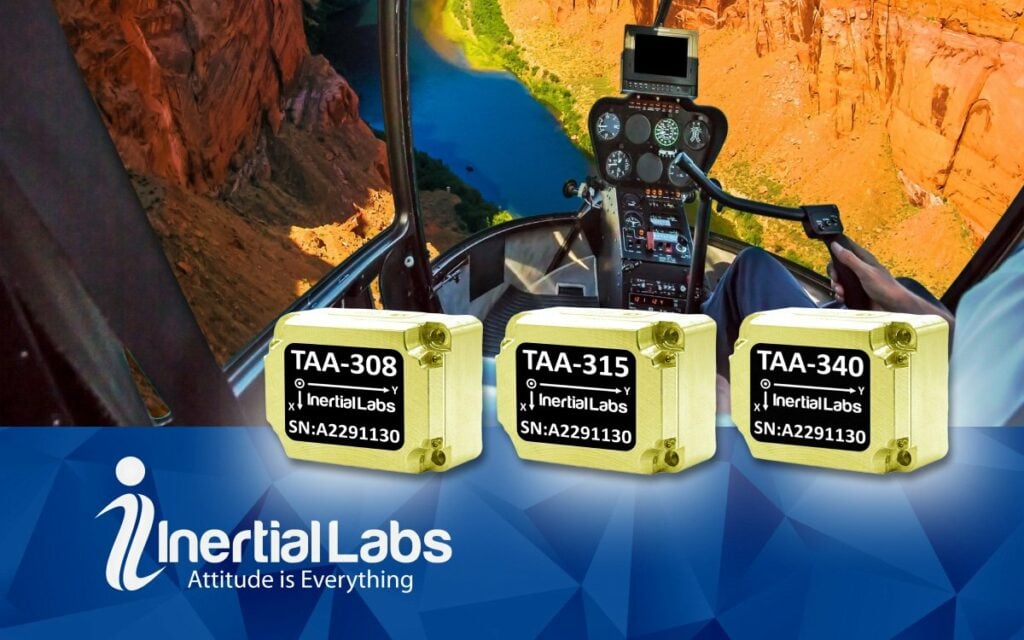

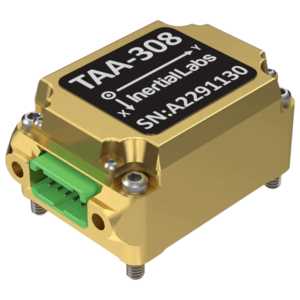

Three Axis Accelerometers by Inertial Labs
Accelerometers detect acceleration by measuring changes in mass displacement or stress within the sensor. When an accelerometer experiences motion or a change in velocity, internal mechanisms register the force applied and convert it into an electrical signal. This signal is then processed and used to calculate the rate of acceleration and the direction of movement.
Most modern drone accelerometers rely on Micro-Electro-Mechanical Systems (MEMS) technology, which miniaturises the sensing elements into compact chips. These MEMS-based sensors use capacitive, piezoelectric, or piezoresistive technologies to detect changes in acceleration. The output data can include measurements across one, two, or three axes, providing UAVs with precise control over their flight dynamics and positioning.
Accelerometer Types
Accelerometer types include a range of different designs and sensing mechanisms. Some of the most commonly used include:
Mechanical Accelerometers
Mechanical accelerometers are among the earliest designs, using springs and masses to measure acceleration. While not commonly used in modern UAVs and robotics due to their size and weight, mechanical accelerometers paved the way for advancements in other technologies.
Quartz Accelerometers
Quartz-based accelerometers use piezoelectric quartz crystals to measure acceleration forces. These sensors offer high levels of stability and reliability, especially in applications requiring long-term accuracy. However, they tend to be bulkier than MEMS accelerometers, making them less suitable for low-SWaP UAV designs.
MEMS Accelerometers
MEMS accelerometers are the most commonly-encountered type in the drone and robotics markets due to their miniature size, low power consumption, and excellent performance. They rely on microfabricated structures to measure acceleration, offering high sensitivity and seamless integration into UAV subsystems. MEMS technology is also cost-effective, making it ideal for both commercial and industrial applications.
Navigation, Tactical, Inertial & Industrial Grade
Accelerometers may be classified into a number of grades based on performance:
Industrial Grade: Designed for general-purpose applications, these accelerometers are rugged, reliable, and suitable for commercial drones performing tasks like surveying, agriculture, and delivery.
Inertial Grade: Inertial-grade accelerometers are highly precise and used in UAVs requiring accurate motion tracking for mapping, reconnaissance, or military missions.
Tactical Grade: These accelerometers strike a balance between performance and cost, supporting advanced navigation and targeting in tactical UAVs.
Navigation Grade: The most accurate of all, navigation-grade accelerometers are used in high-performance systems requiring pinpoint precision, such as long-range military drones and guided munitions.

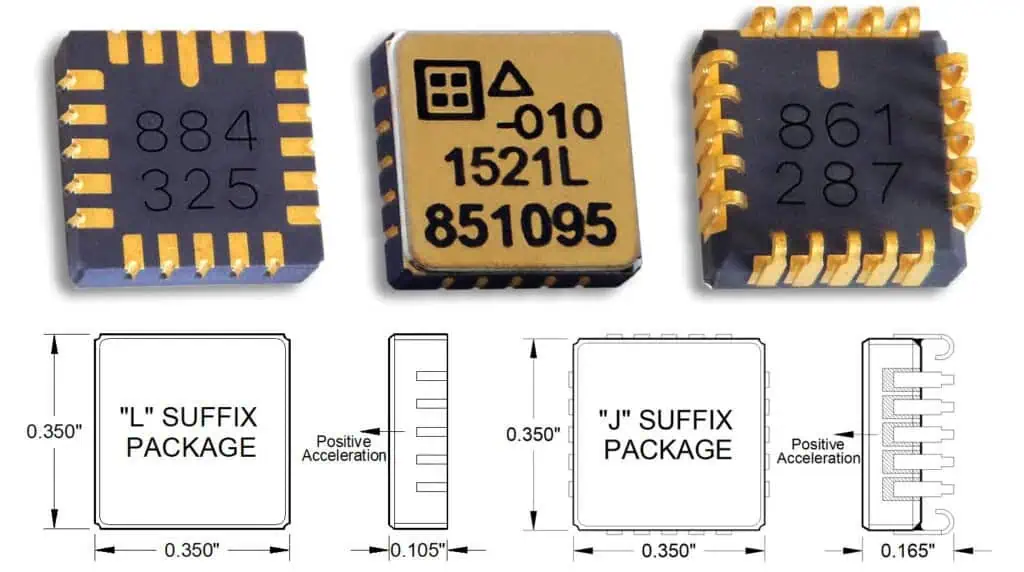

Industrial-Grade Surface Mount MEMS DC Accelerometer by Silicon Designs
Accelerometer Sensor Technologies
A number of different technologies are used to enable accelerometers to measure the forces acting upon them. The most common ones include:
Capacitive Accelerometers
Capacitive accelerometers measure changes in capacitance between stationary and moving plates when subjected to acceleration forces. MEMS accelerometers often utilize this technology due to its high sensitivity and accuracy, making it suitable for UAV applications requiring real-time data acquisition.
Piezoelectric Accelerometers
Piezoelectric accelerometers rely on piezoelectric materials that generate an electrical charge when subjected to stress or strain. These accelerometers are ideal for applications requiring rugged durability and are commonly used in UAVs operating in high-vibration or extreme environments.
Piezoresistive Accelerometers
Piezoresistive accelerometers measure resistance changes in materials under strain, offering high accuracy and the ability to withstand large forces. They are frequently used in UAV applications requiring robust performance, such as industrial inspection or military reconnaissance.
Drone Accelerometer Applications
Accelerometers support a range of essential system tasks in drones and robotics, including:
Stabilization and Control

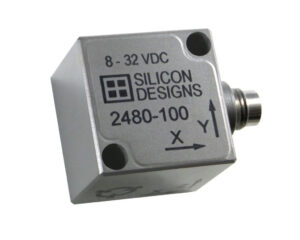

Hermetically sealed drone accelerometer by Silicon Designs
Accelerometers are vital for maintaining flight stability in drones, especially when operating in dynamic or unpredictable environments. By continuously monitoring acceleration forces and providing real-time data to onboard flight control systems, accelerometers help UAVs adjust to external disturbances such as wind, turbulence, or sudden changes in payload distribution. This in turn allows for precise adjustments to propulsion systems, ensuring smooth manoeuvres, steady hover capabilities, and seamless transitions during take-off and landing.
Autonomous Navigation
Accelerometers is one of the main components that enable autonomous navigation for drones, enabling them to carry out complex missions with minimal human intervention. The sensors provide essential data on change of velocity and orientation, supporting features such as waypoint tracking, obstacle avoidance, and adaptive flight path planning. Combined with other sensors like gyroscopes and GPS modules, accelerometers allow drones to estimate their position and motion with high accuracy. This ensures that UAVs can navigate even in cluttered or unpredictable environments, such as urban landscapes or remote wilderness areas.
IMUs and INS
Accelerometers are fundamental components of Inertial Measurement Units (IMUs) and Inertial Navigation Systems (INS), which provide comprehensive motion sensing and navigation capabilities for drones. In an IMU, accelerometers work alongside gyroscopes to measure linear and angular motion, delivering precise data that supports flight stability and directional control. In an INS, accelerometer data is combined with advanced algorithms to track a drone’s position and orientation without relying solely on GPS signals.
