MEMS Accelerometers

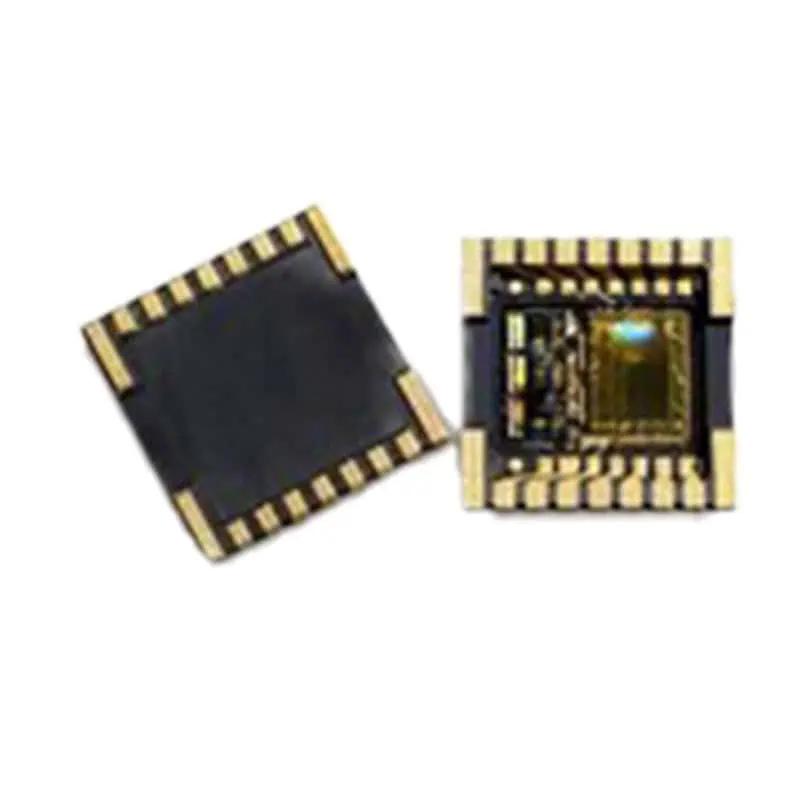

Micro Magic's cost-effective MEMS accelerometers provide high-precision linear acceleration measurement, critical for stabilization and control of drones and robotic vehicles. The product range includes ceramic packages with SPI interfaces, and fully enclosed units with analog or serial digital outputs.
Specifications:
| ACM-100 | ACM-200 | ACM-300 | ACM-1900 | |
| Dimensions: | 60 x 59 x 29 mm | 10 x 10 x 3.5 mm | ||
| Weight: | 180g | 1g | ||
| Voltage Input: | 9-36V | 3.3V | ||
| Range: | ±1/2/4/8/16/32/40g | 5 - 50g | ||
| Zero Bias Stability: | 1.5 – 22 mg | 0.06 – 1 mg | ||
| Bias Temp Coefficient: | 0.1 – 1.5 mg/oC | 0.05 – 0.3 mg/oC | ||
| Bandwidth: | 0 – 400 Hz | 100 Hz | ||
| Output Interface: | RS232/485/422/TTL | 4-20mA, 0-20mA optional | 0-5V, 0-10V optional | SPI |
