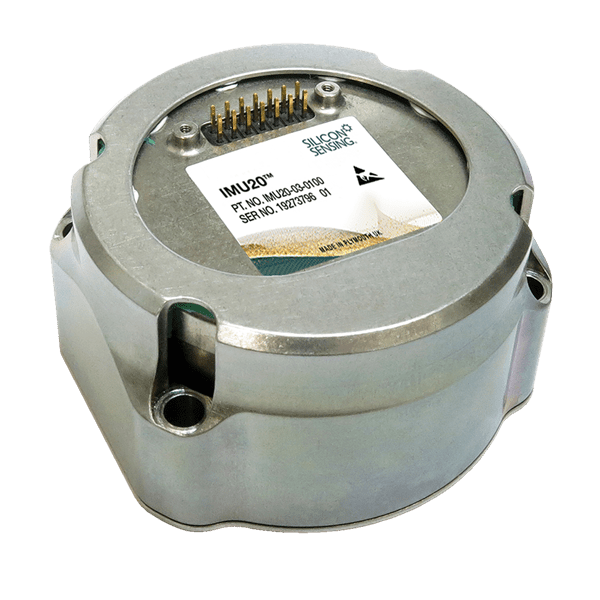

IMU20 Industrial Grade MEMS IMU

Industrial Grade MEMS IMU

Visit Website Contact

Designed with space applications in mind, the IMU20 has excellent dynamic range and is suitable for the highest impact and vibration environments.
IMU20 is a new mid-range highly-ruggedised precision IMU, non-ITAR and optimised for challenging environmental conditions. It's a viable alternative to more costly ‘FOG-grade’ IMUs, particularly in markets such as satellite launch vehicles and similar exacting motion sensing applications.

Designed specifically to meet the growing demand from high-end commercial and industrial market applications for a medium grade non-ITAR IMU, IMU20 utilises Silicon Sensing’s class leading MEMS inertial sensors integrated and calibrated using an in-house state-of-the-art test facility.

Dimensions 59 x 58 x 36 mm
Dynamic Range ±498°/s, ±30g
Bias Instability 2.5°/hr, 0.5mg
Bias over Temperature ±50°/hr, ±3.3mg
Current Consumption 750mA (at 5V)
Supply Voltage 4.75 – 5.25V
Baud Rate 460,800
