2260 Small Footprint MEMS DC Industrial Accelerometer
The 2260 1-axis MEMS DC accelerometer is SDI's smallest and lowest mass industrial module designed for use in tight spaces or applications demanding industrial performance in a lightweight package. Reliable and rugged, the 2260 is suitable for a wide variety of low-SWaP drone and robotics applications requiring high reliability, low noise and long-term stability.
The 2210's simple 4-wire connection provides easy DAQ integration in single-ended and differential modes. Onboard voltage regulation and an internal voltage reference eliminate the need for precision power supplies while integrated amplifiers and low impedance analog outputs support up to 2000 feet of cable.
Specifications:

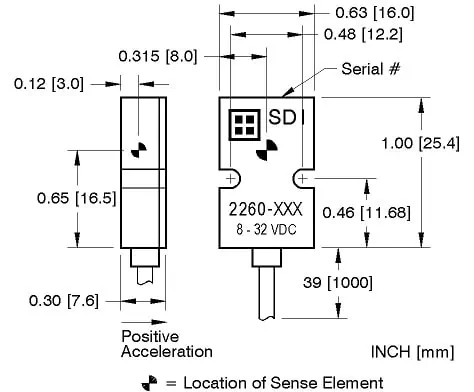

| Dimensions | 1 x 0.63 x 0.3” |
| Weight | 6g |
| Power | 8 – 32 VDC |
| G-Range Options | ±2, 5, 10, 25, 50, 100, 200, 400g |
| Bias Calibration Error (%) | 0.25 typ., 0.6 max |
| Bias Calibration Error (mV) | 25 typ., 60 max |
| Bias Temperature Shift | -200 to +200 PPM/oC |
| Scale Factor Calibration Error (%) | 0.5 typ., 1.25 max |
| Scale Factor Temperature Shift | -200 to +200 PPM/oC |

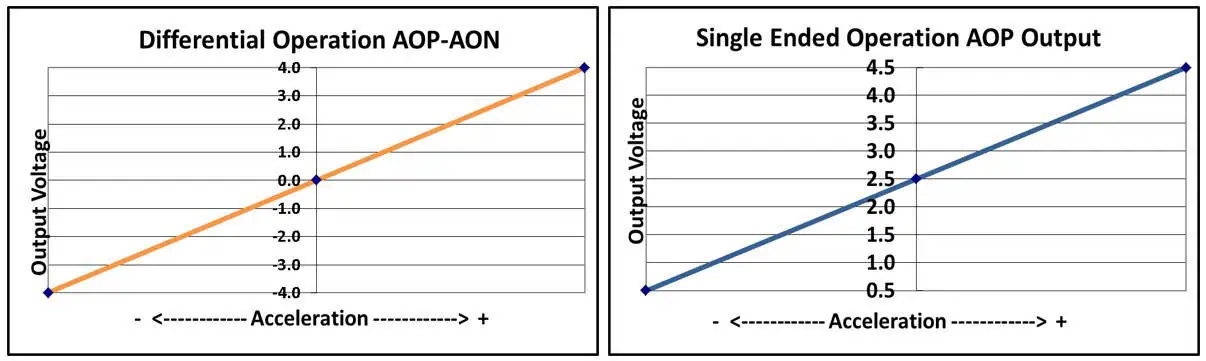

| Analog Output | ±4 VDC Differential / +0.5 to +4.5 VDC Single Ended |
