INS Systems for Unmanned Vehicles

Inertial Guidance Systems for Drones, UAVs, UGVs

Due to their self-reliance, inertial navigation systems are extremely well-suited to the field of unmanned systems, widely used on Unmanned Aerial Vehicles (UAV) Unmanned Surface Vessels (USV) and Unmanned Ground Vehicles (UGV). Inertial guidance systems can be utilised in harsh environments, are not susceptible to jamming, and emit no significantly detectable radiation.

Unmanned vehicles such as drones, UAVs, USV, UGV incorporating INS systems are utilised in a wide range of applications including defense and security, aerial mapping and survey, and search and rescue.

EMCORE-FOG-IMU--Inertial-Navigation-System

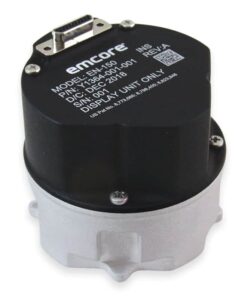

EMCORE FOG-based Inertial Navigation System

How Inertial Navigation Systems Operate

Many methods of navigation, including piloting, radio navigation and celestial navigation, rely on external objects or sources of information such as landmarks, celestial objects, satellites or transmitters. Inertial navigation is a self-referential method by which a system may track its own position, orientation and velocity (once given initial values for these parameters) without the need for such external references.

If the acceleration of an object is known, it is possible to use mathematical integration to calculate the velocity. Thus, accelerometers are required for inertial navigation. The orientation of the system in space also needs to be known. This can be kept track of using gyroscopes, which measure angular rate (change of angular velocity). Inertial navigation systems can also make use of magnetometers, which measure the strength and direction of the Earth’s magnetic field and use this to calculate the system yaw as well as estimate its heading.

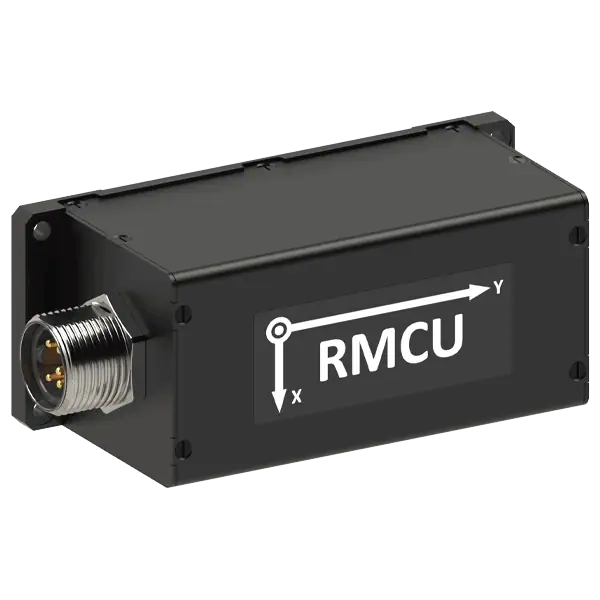

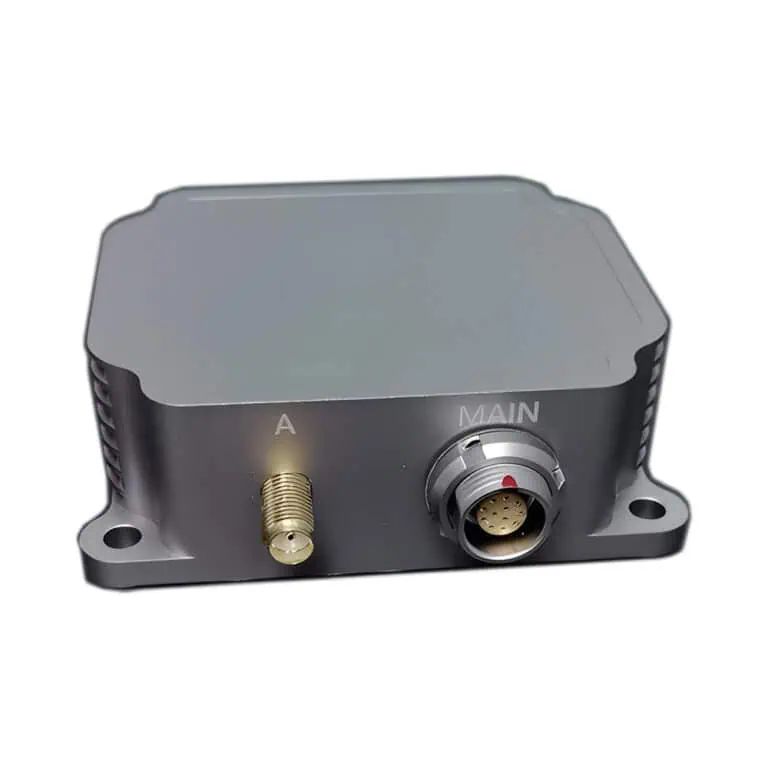

IMU INS Systems

Individual inertial sensors can only measure along a single axis, so multiple sensors are grouped together into an inertial measurement unit (IMU). A three-dimensional IMU will consist of three accelerometers, mounted orthogonally to each other, and three gyroscopes, also mounted orthogonally. It may also incorporate magnetometers, although not all IMUs do.

A standalone IMU produces no navigation outputs, just the acceleration, angular rate and magnetic measurements. IMU INS combine an IMU with a navigation computer that processes the sensor outputs to continuously calculate the position, orientation and velocity of the system.

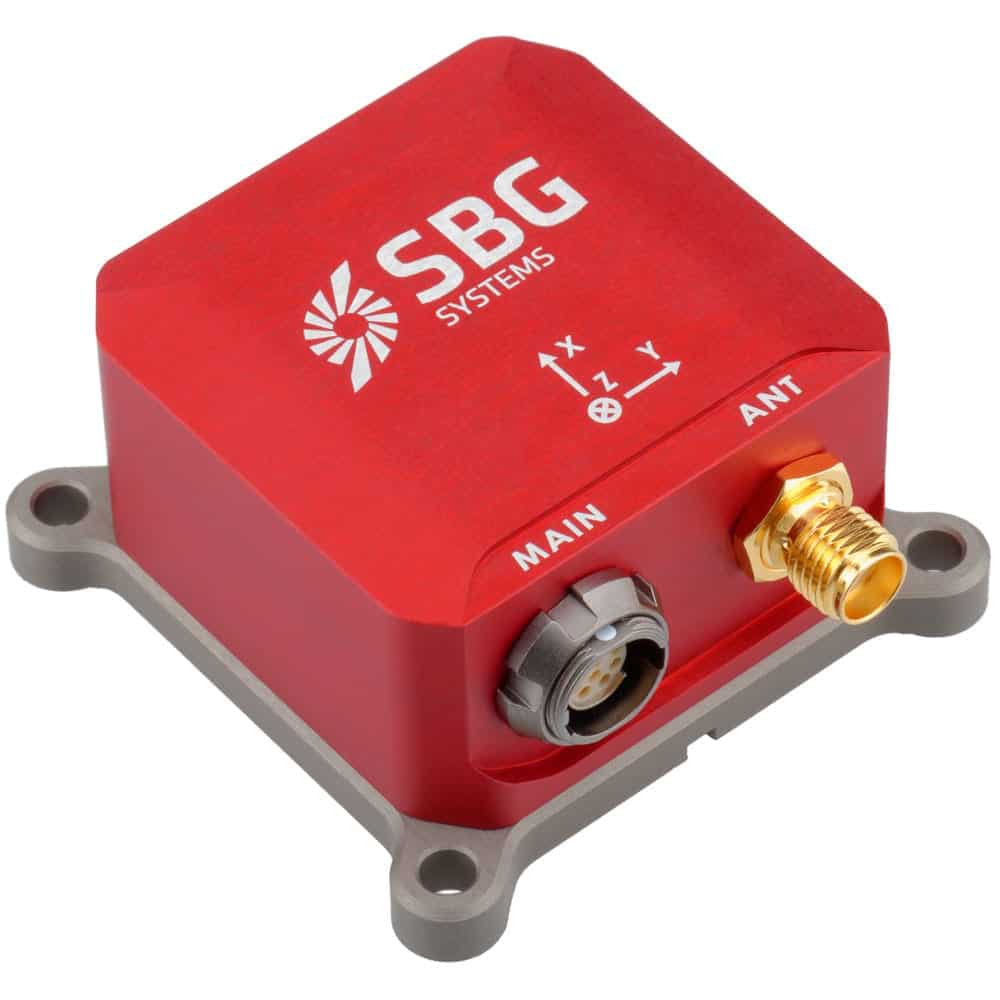

SBG Systems Ellipse-N Inertial Navigation System — SBG Systems Inertial Navigation System (INS) with integrated L1 GNSS receiver

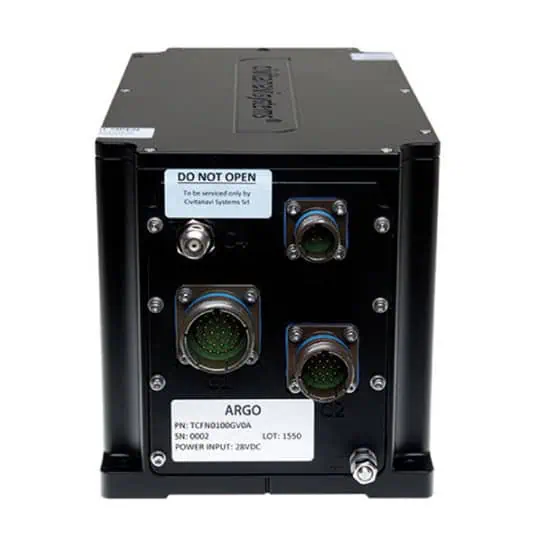

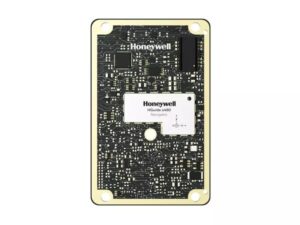

MEMS INS & FOG INS

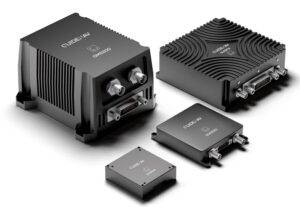

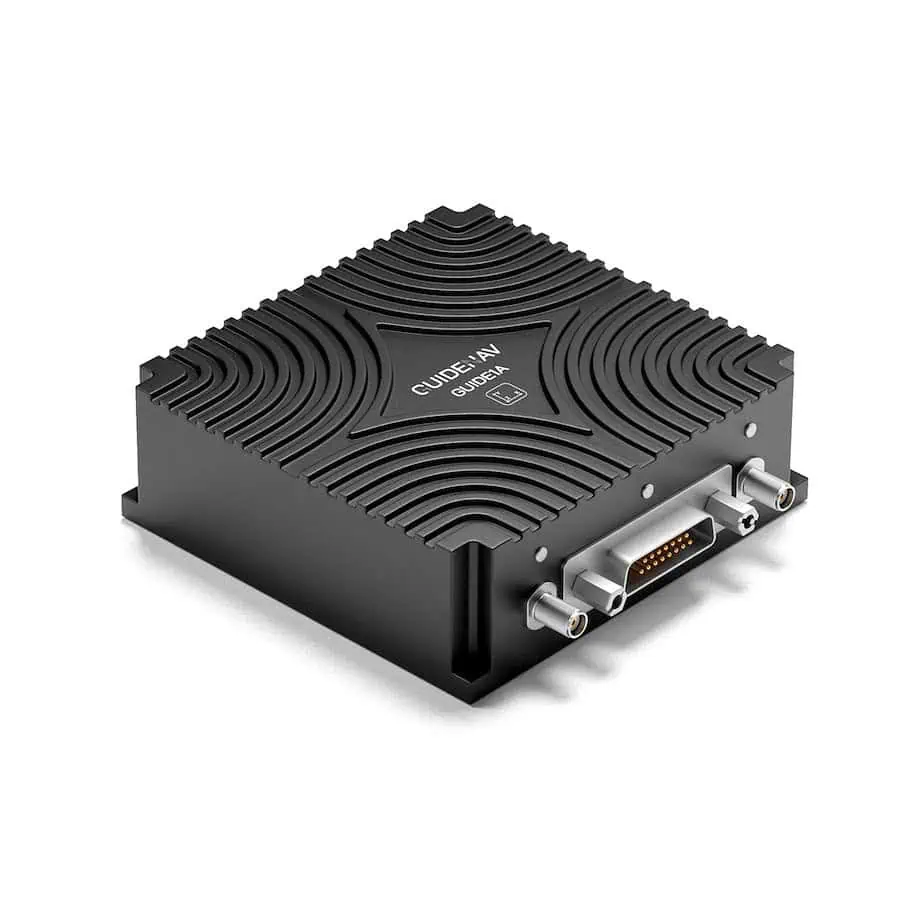

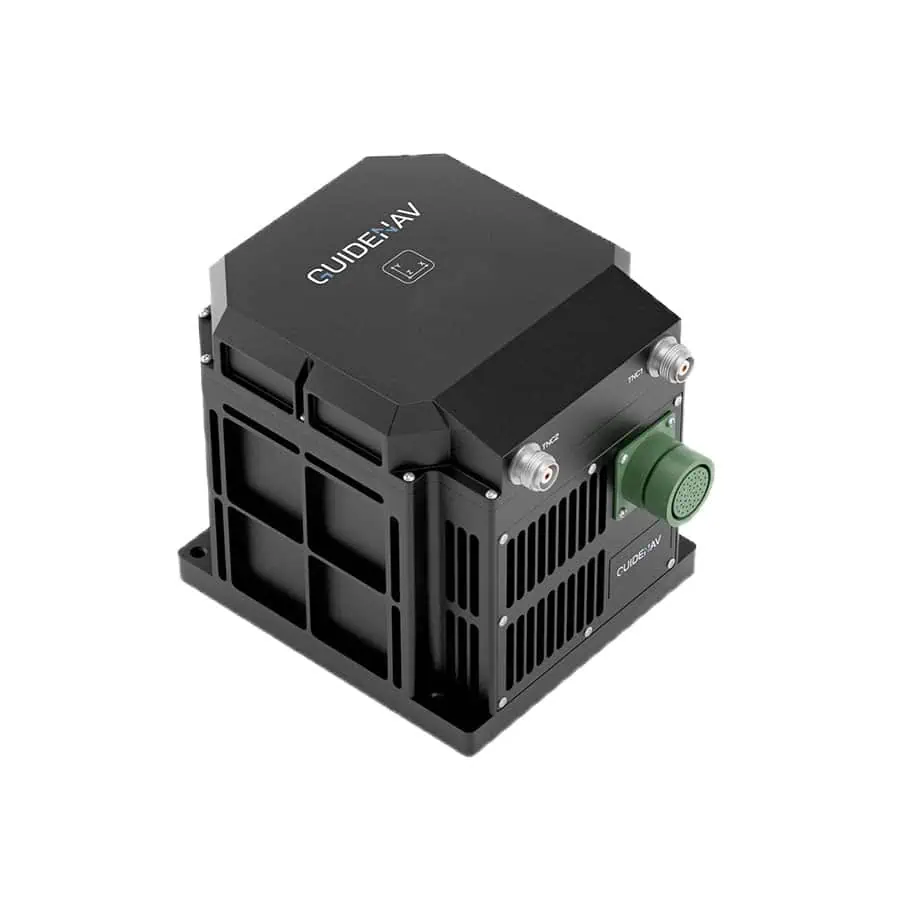

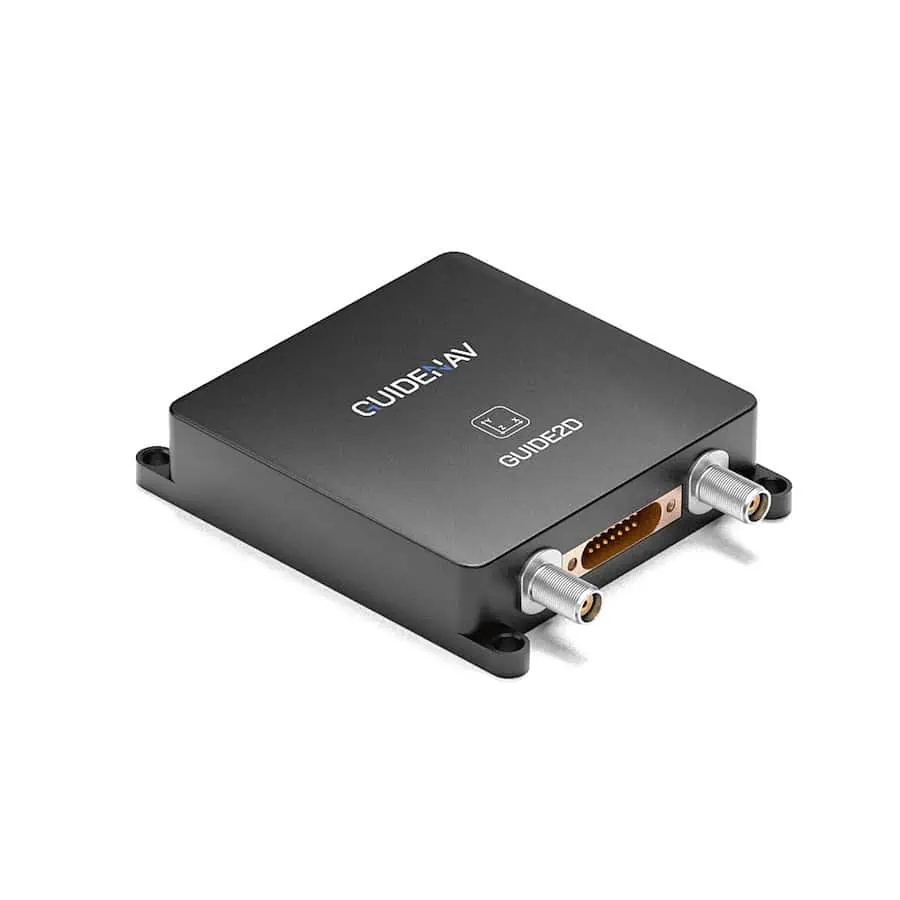

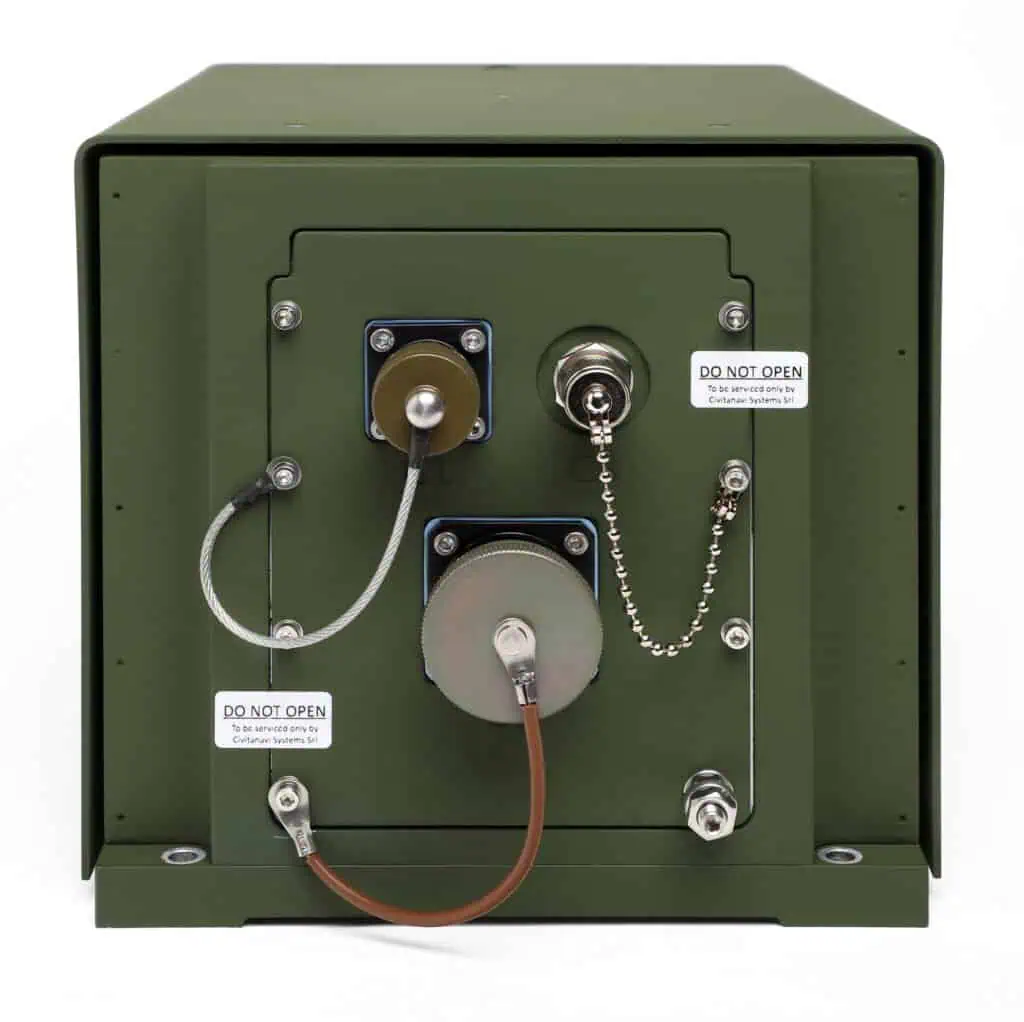

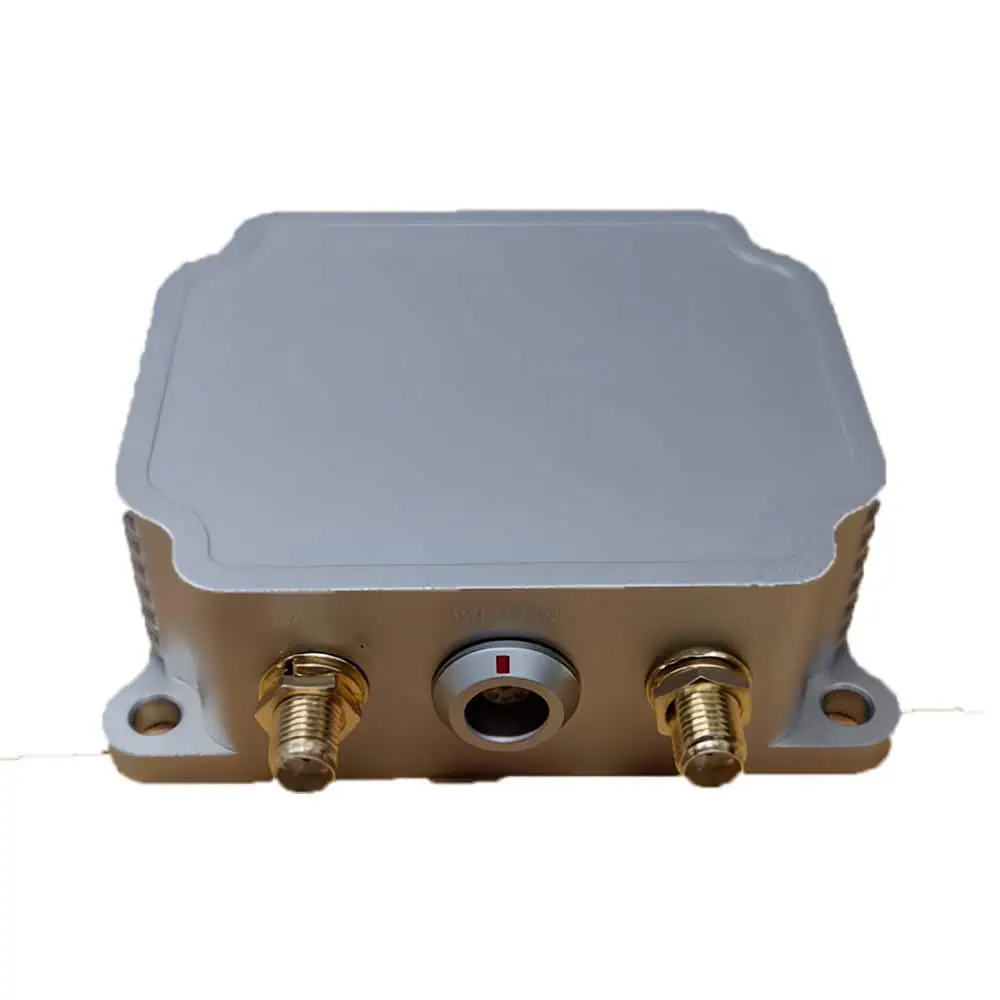

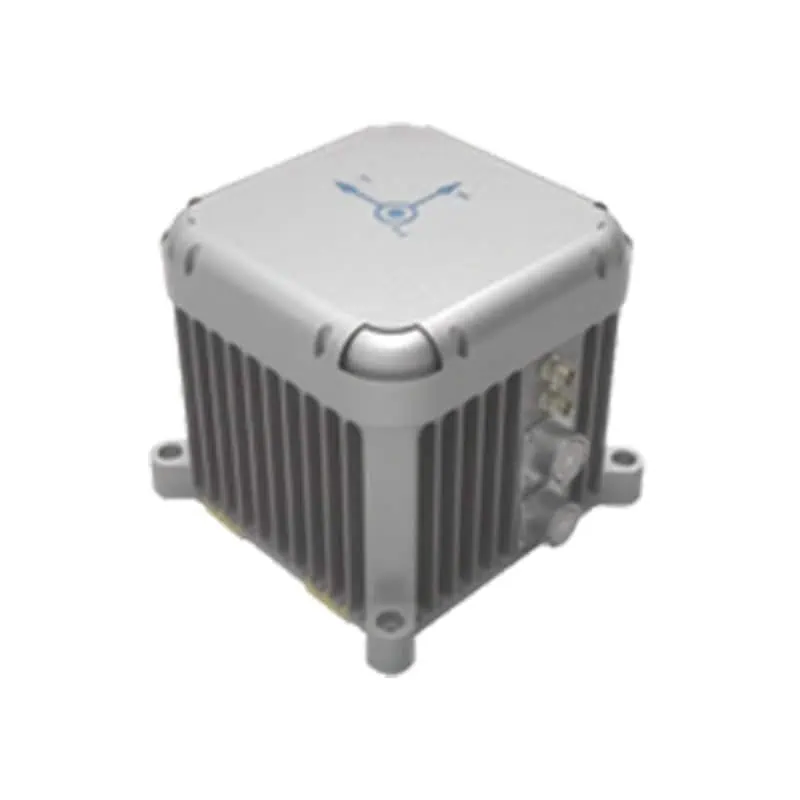

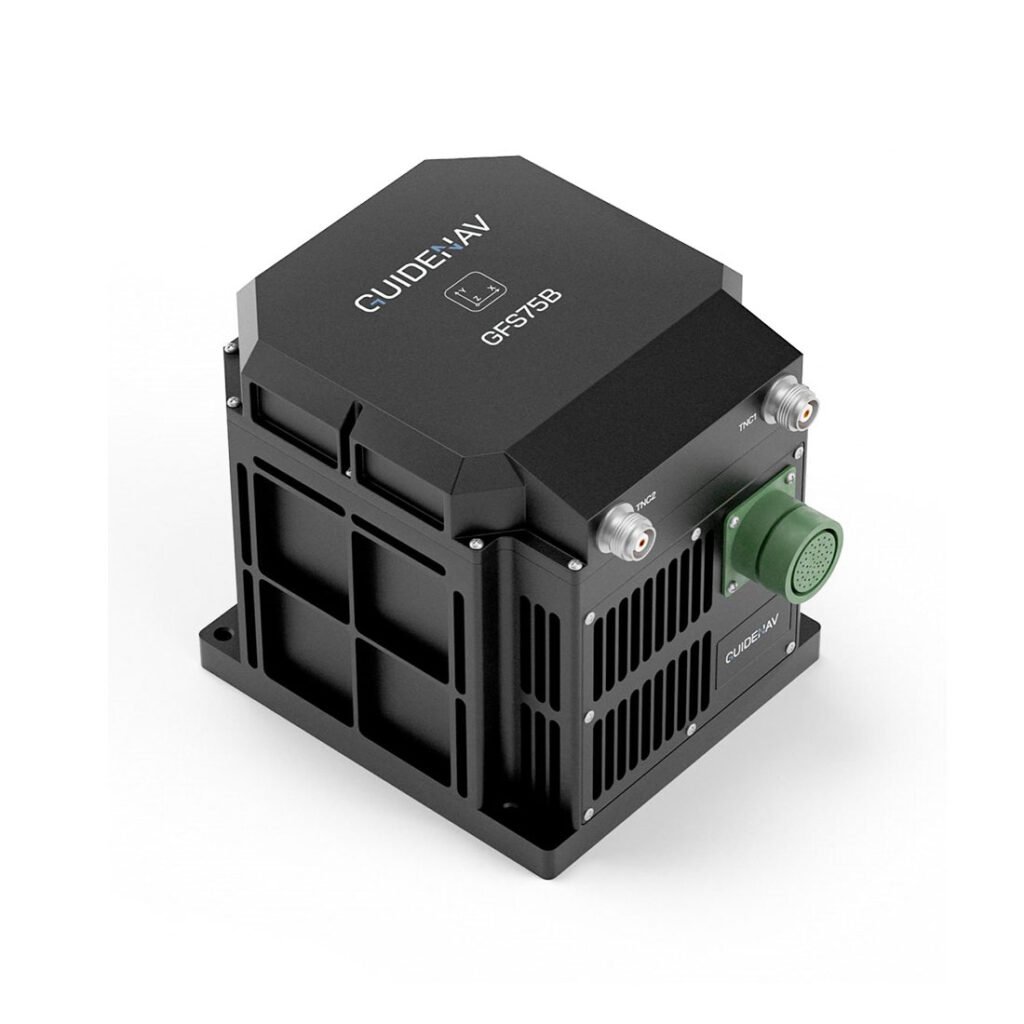

The inertial sensors in an INS will typically be constructed using either MEMS (microelectromechanical systems) or FOG (fiber optic gyro technology). As a general rule, MEMS INS will be smaller, lighter and lower-cost, whereas FOG INS provide higher performance but can be larger, heavier and more costly.

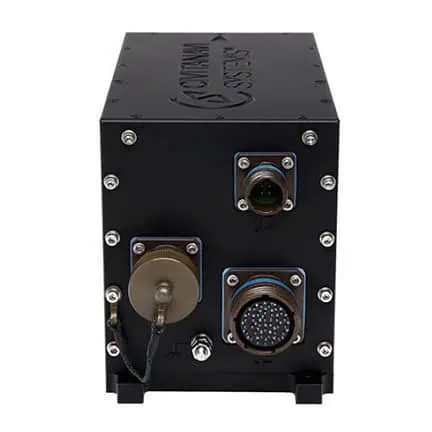

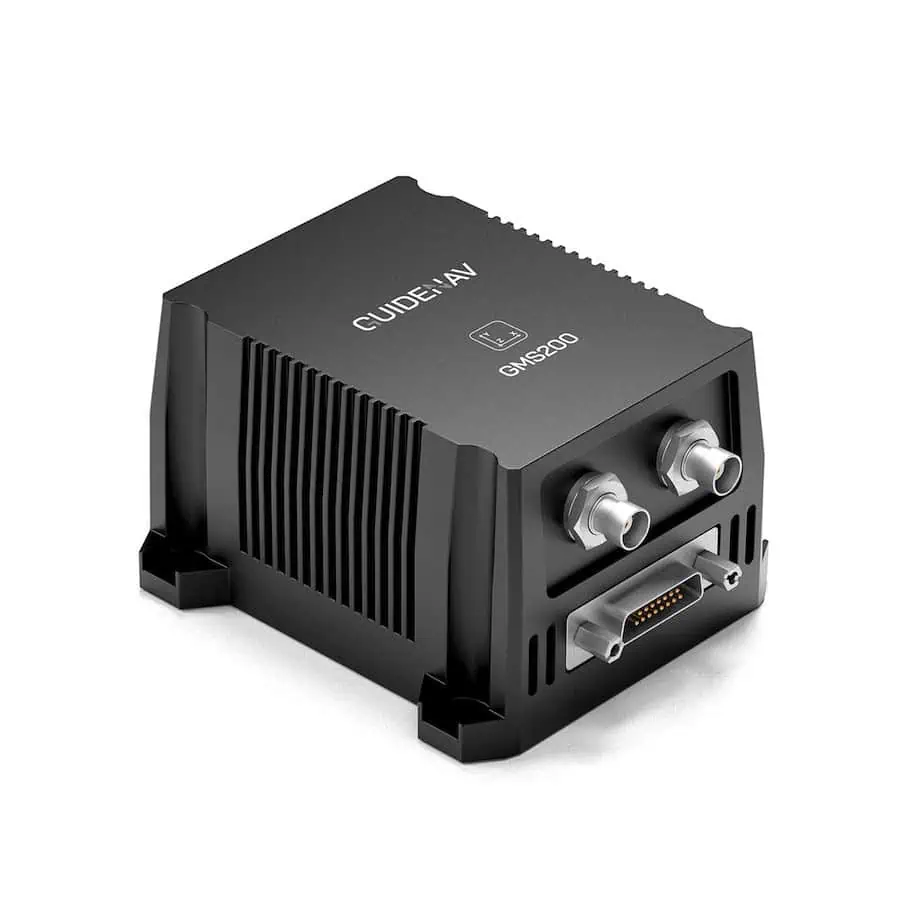

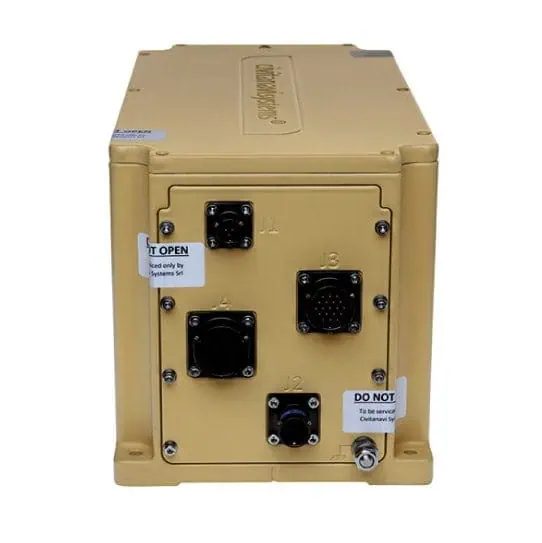

Embedded GPS Inertial Navigation System

VectorNav VN-300 INS Inertial Navigation System

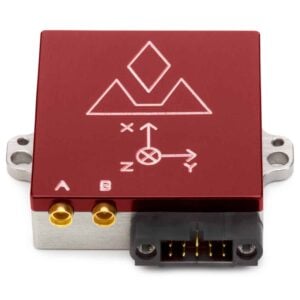

VectorNav VN-300 Dual GNSS INS Inertial Navigation System

Small errors in the measured acceleration can, over time, be compounded into larger errors in system-calculated velocity and position. To provide the system with greater accuracy, drone INS may be combined with another source of information such as a GPS, or, under conditions where GPS navigation may be unreliable or unavailable, a computer vision processing unit.

The ability of the IMU to measure rapid changes in linear acceleration and angular velocity is thus combined with the extra information from the second system to form a more accurate estimation of the UAV’s navigational parameters.

Combining INS and GPS Data

A GNSS-INS navigation system that hybridises inertial navigation with GPS or computer vision will use an algorithm that fuses together the multiple sources of information. One of the most common algorithms is the Kalman filter.

The Kalman filter continuously tracks and updates estimates of the UAV’s position, using the computed errors to improve future estimates. If one of the alternative sources of information is computed to be more accurate than the INS, it can be used to help correct the overall drone position estimate.
