The INS-DU is an industrial-grade GNSS-aided MEMS inertial navigation system featuring an advanced dual-antenna multi-constellation GNSS receiver from u-blox, as well as three-axis precision accelerometers, gyroscopes and fluxgate magnetometers. It can accept a wide variety of additional aiding data from sources such as Doppler Velocity Logs, odometers, wind sensors and external magnetic compasses.
The sensor provides high-accuracy position, velocity, heading, pitch and roll data for both static and dynamic applications. It can also output AT_ITINS messages for the Cobham Aviator UAV 200 SATCOM terminal, as well as NMEA messages for Pixhawk drone flight controllers.

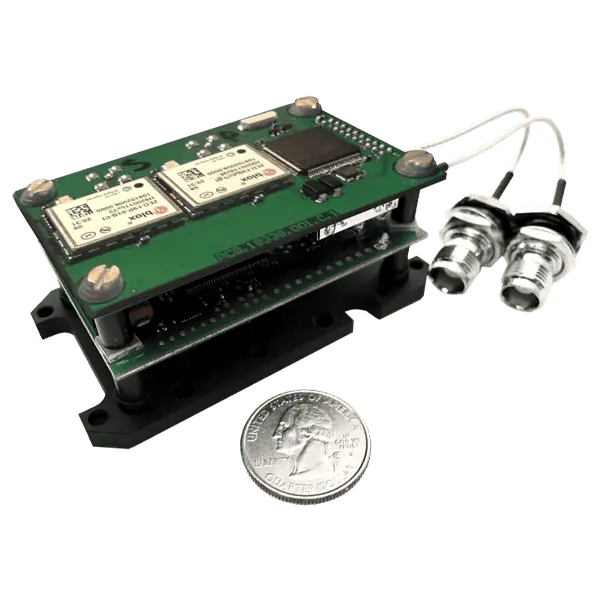

The INS-DU is ideal for use with a wide range of unmanned systems, including UAVs, UGVs (unmanned ground vehicles) and land vehicles, and USVs (uncrewed surface vessels). It is available in enclosed or OEM board-level versions.
Specifications:
| Dimensions |

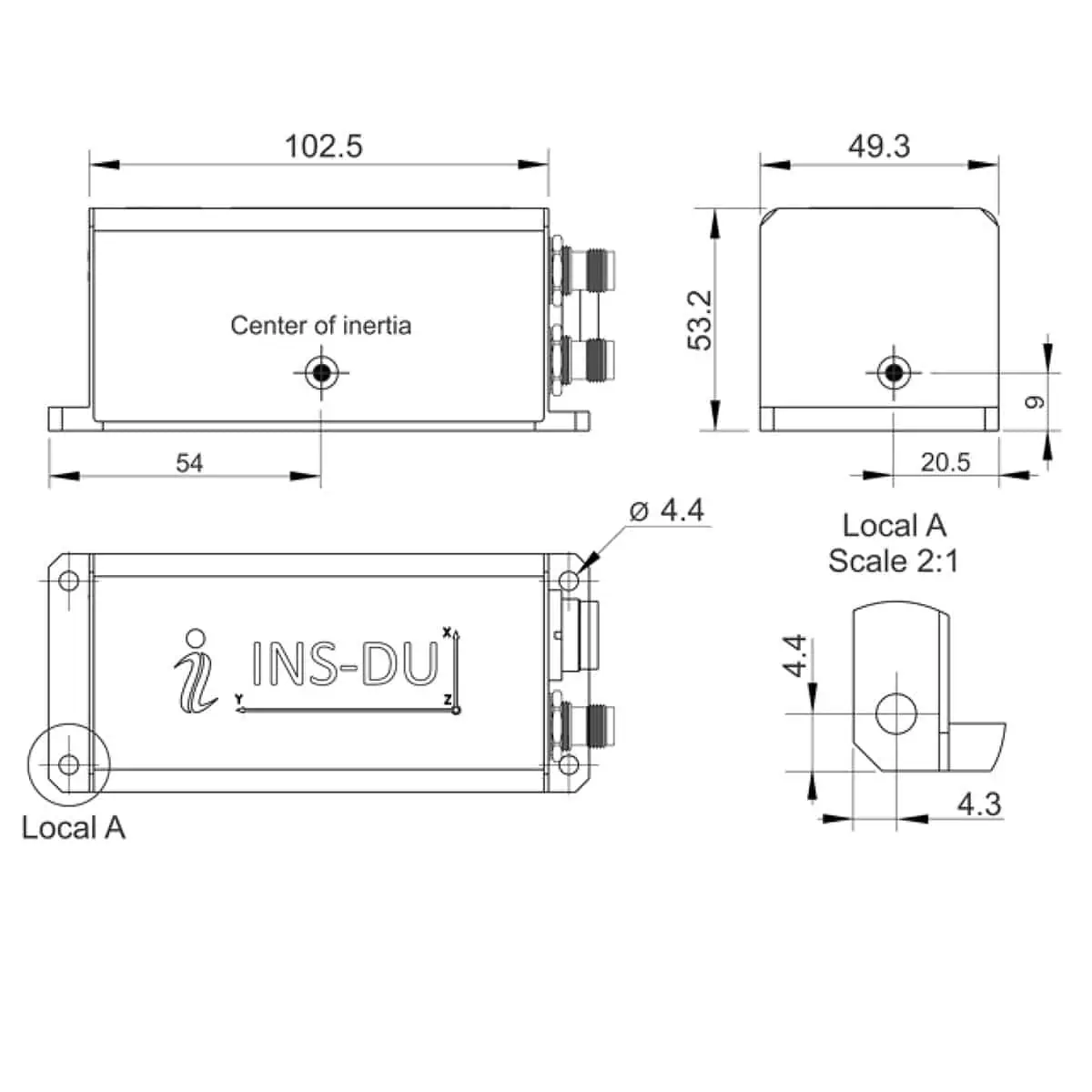

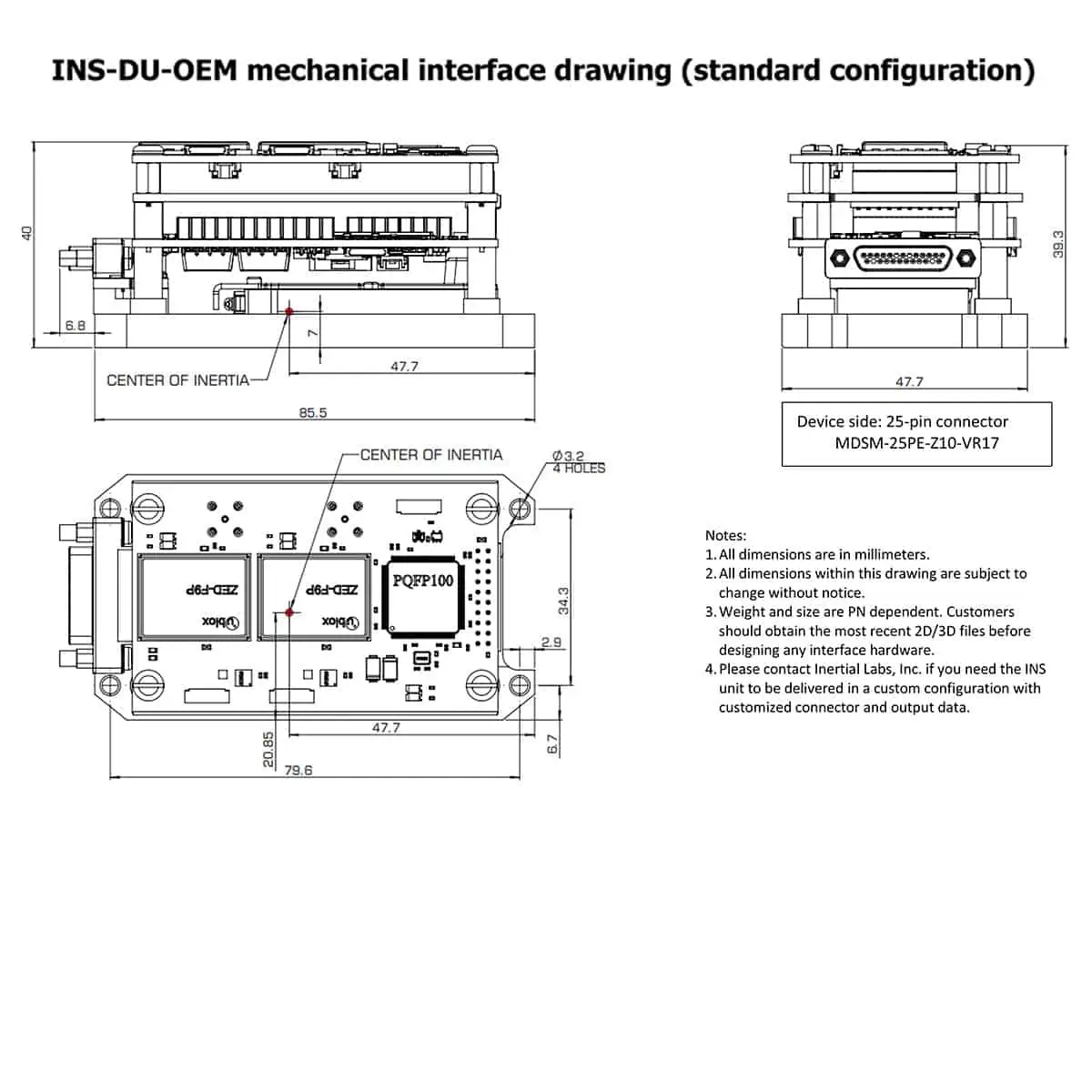

120 x 50 x 53 mm 85.5 x 47.7 x 39.3 mm OEM |
| Weight |
320g 174g OEM |
| Power | 9-34 VDC, 5W (6W with datalogger) |
| Heading Accuracy |
0.2° (2m baseline) 0.4° (1m baseline) |
| Position Accuracy |
0.5cm (PPK) 1cm (RTK) 60cm (SBAS) |
| Pitch & Roll Accuracy |
0.05° dynamic 0.08° static |
| GNSS Constellations | BDS, GAL, GLO, GPS, QZSS |
| GNSS Corrections | PPK, RTK, SBAS |
