WOM3 Weapons orientation module (WOM) with real-time movement tracking

Weapons orientation module (WOM) with real-time movement tracking

Visit Website Send Message

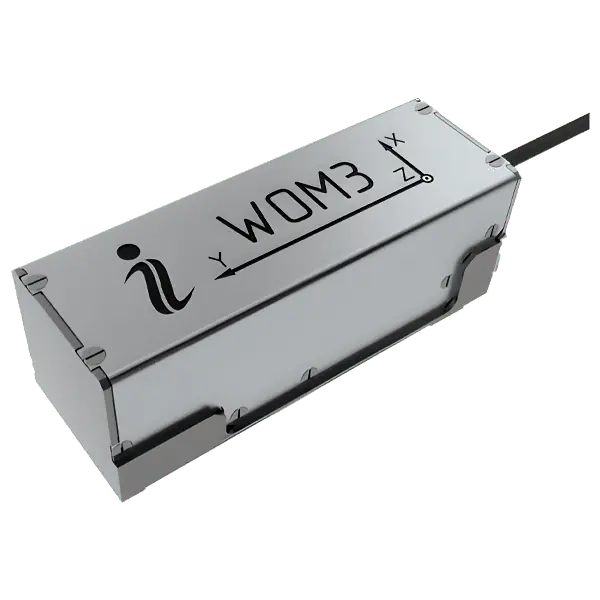

The WOM3 weapons orientation module uses three-axis gyroscopes, accelerometers, and magnetometers to provide real-time tracking of both fast and slow movement. It has been designed to work with a variety of weapons platforms, from small arms to towed artillery, with specific functions to suit each particular system.

The unit calibrates against soft- and hard-iron interference, and can adjust its algorithms to ensure accurate output even under long-term magnetic disturbances. WOM3 is IP67-rated and has been tested to MIL-STD-810F, MIL-STD-461D and DO-160D standards.

Output Signals Azimuth (deflection), Pitch & Roll (elevation), Accelerations, Angular Rates
Azimuth Accuracy 3 mils, RMS
Pitch & Roll Accuracy 1.7 mils, RMS
Vibration MIL-STD-810G, DO-160
Shock 1500 g, 0.1 ms
Size (mm) 90 x 27 x 26
Weight (gram) 84
Applications Weapon Aiming Systems, Fire Control Systems, Weapon Orientation Tracking
