Two & Three Axis Gyroscopes (TAG)
Specifications:

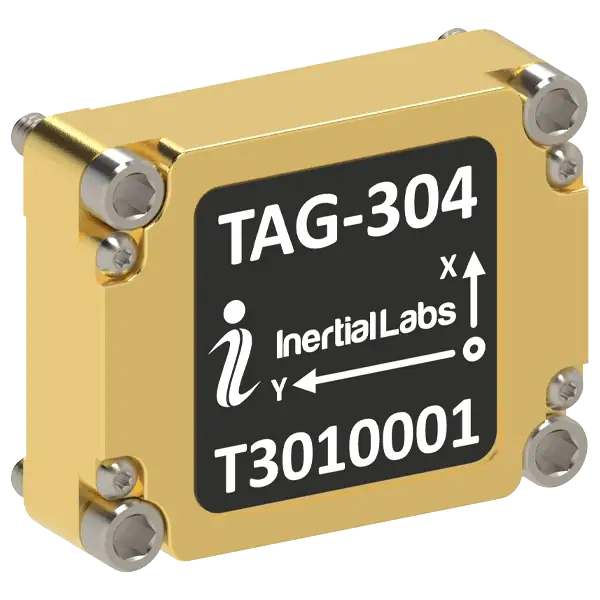

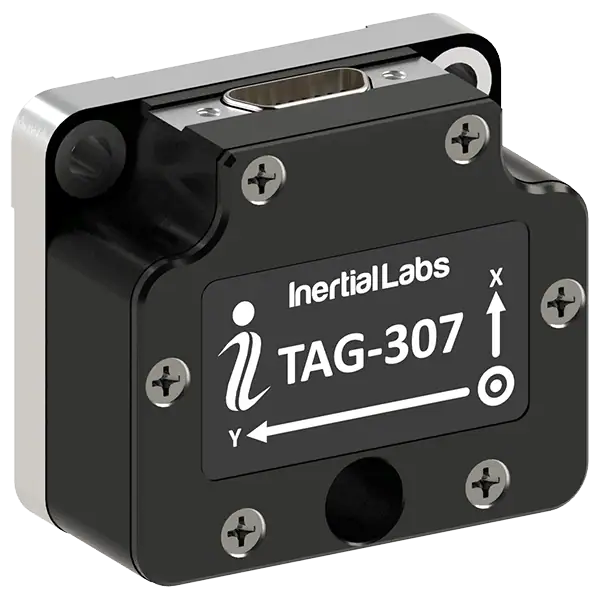

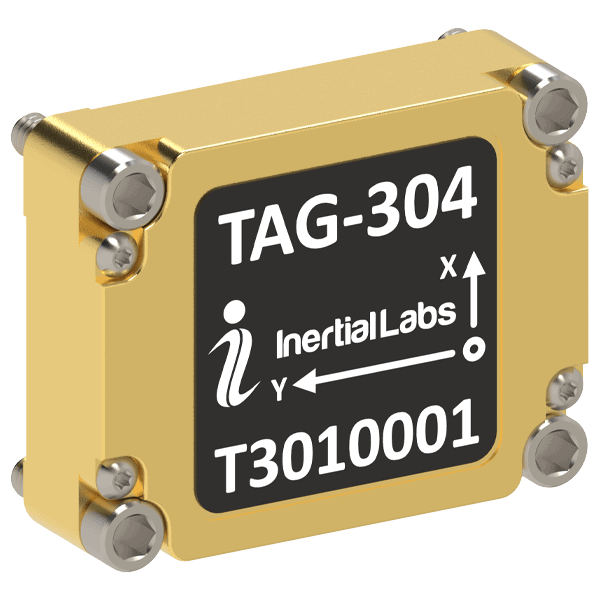

The TAG-207, TAG-307 and TAG-304 are tactical-grade two- and three-axis MEMS gyroscopes featuring low SWaP, noise and latency as well as a wide bandwidth. They are designed for stabilization and pointing applications such as antenna platforms and EO/IR gimbals for UAVs and unmanned systems.
The ITAR-free TAG gyros are engineered to withstand the harshest environments, with no moving parts and tested to MIL-STD-810 levels of shock and vibration. They are factory-calibrated over the entire operation temperature range, and precision-machined to ensure extremely low non-orthogonality and misalignment between sensitive elements.
| TAG-207 | TAG-307 | TAG-304 | |
| Number of Axes | Two | Three | Three |
| Measurement Range | ±450 deg/sec | ±450 deg/sec | ±2000 deg/sec |
| Data Update Rate | 4000 Hz | 4000 Hz | 4000 Hz |
| Bias in-run Stability | 0.45º/hour (Allan Variance, RMS) | 0.45º/hour (Allan Variance, RMS) | 2º/hour (Allan Variance, RMS) |
| Noise (ARW) | 0.06º/√hour | 0.06º/√hour | 0.2º/√hour |
| Size (mm) | 39 x 45 x 22 | 39 x 45 x 22 | 19.5 x 15.2 x 5.5 |
| Weight (gram) | 70 | 70 | 10 |
| Applications | Anti-Roll Systems, Computer Pointing Devices, Optical Image Stabilization | Three Dimensional Optical Image Stabilization, Virtual Reality | Guidance & Navigation, Electro-Optical Systems, Gimbals, Line-Of-Sight and Pan & Tilt Platforms Stabilization & Pointing |
