LORD Microstrain is a leading manufacturer of innovative miniature inertial sensors for a wide variety of unmanned systems (UAVs, UGVs) and robotics applications in both the defense and commercial sectors. In addition to our off-the-shelf sensors, we can also help you develop custom OEM sensing solutions to meet your every need, offering expert guidance on every stage from concept through to production.

Inertial Sensing Solutions

Our advanced inertial sensors measure a variety of parameters, including: orientation (pitch, roll, yaw or azimuth), linear acceleration and angular rate, on either a single or dual axis inclination. The minimal weight and size allows for efficient integration into existing unmanned platforms without compromising the performance of the system. Advanced data gathering and estimation filtering algorithms provide the system with precise control and stabilization.

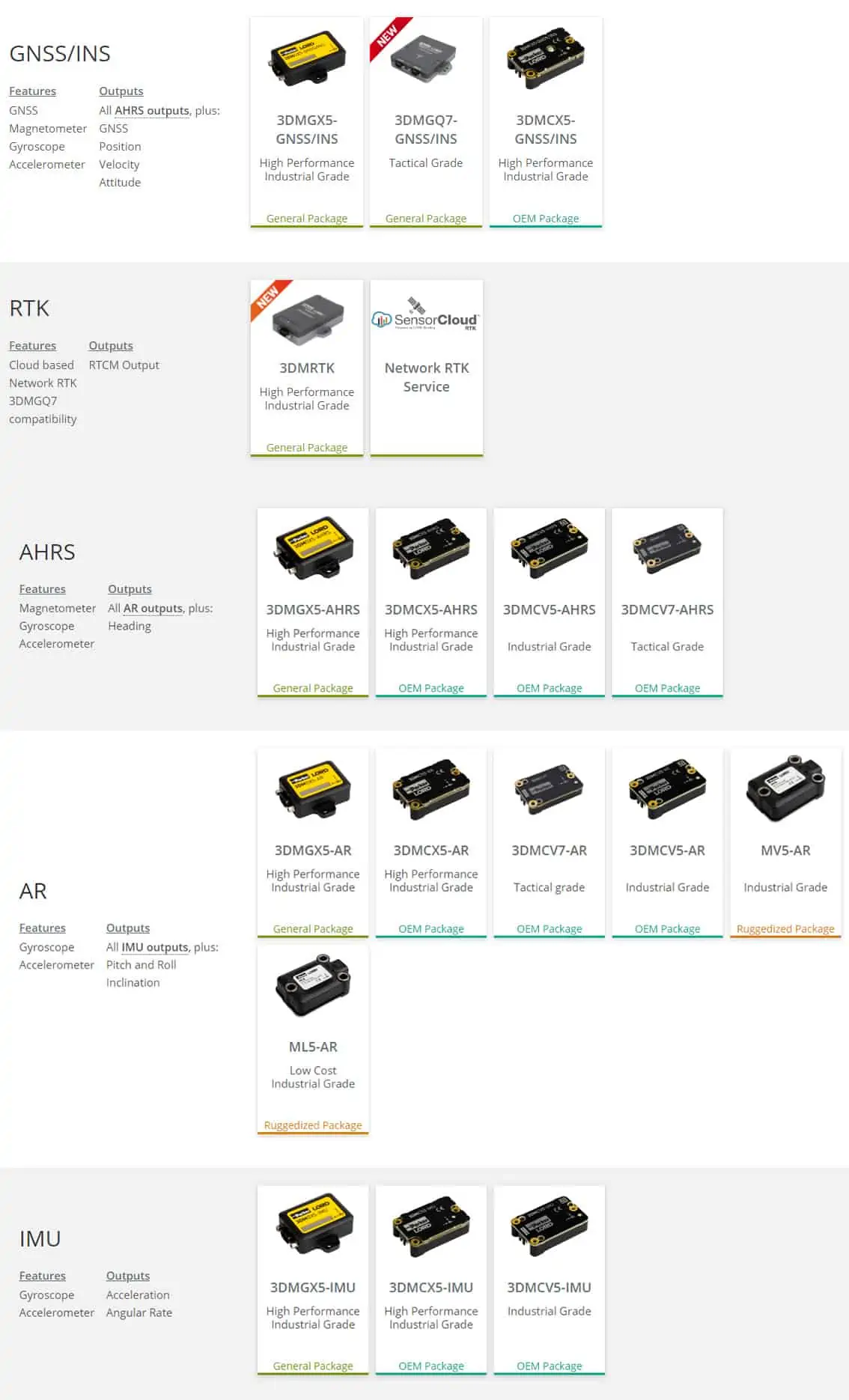

LORD Microstrain Miniature Inertial Sensors

Vertical Inertial Measurement Unit (IMU)

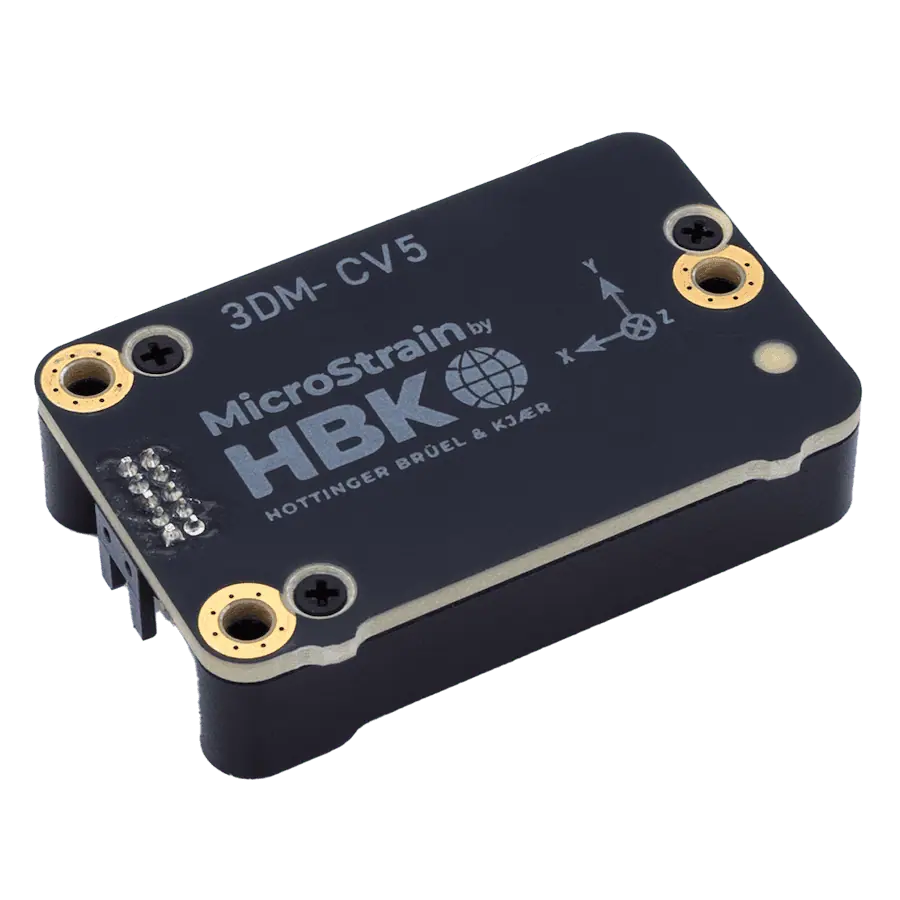

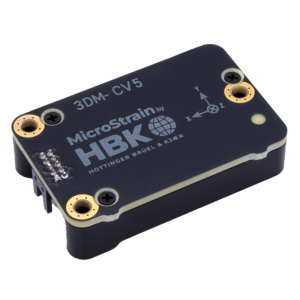

3DM-CV5-10 – miniature industrial-grade IMU

3DM-CV5-10 Inertial Measurement Unit (IMU)The 3DM-CV5-10 Vertical Measurement Unit is our smallest, lightest and highest performance IMU in its class. The industrial-grade board-level unit incorporates a triaxial accelerometer, gyroscope, and temperature sensors to provide an optimal measurement combination that is mathematically aligned to an orthogonal coordinate system for superior accuracy. IMU outputs include acceleration, angular rate, delta theta and delta velocity.

Each unit is fully calibrated and temperature-compensated. A comprehensive and fully backwards-compatible communication protocol, common to many of our product families, allows easy OEM integration and development of custom interfaces.

Specifications:

Accelerometer Gyroscope
Measurement range ±8g (standard), ±2g, ±4g (optional) ±500°/sec (standard),
±250°, ±1000°/sec (optional)
Resolution 0.05 mg (+/- 8g) 0.003°/sec (500 dps)
Bias instability ±0.04mg 8°/hr
Noise density 100 µg/√Hz 100 µg/√Hz

Attitude and Heading Reference System (AHRS)

3DM-CV5-25 – miniature, industrial-grade AHRS

3DM-CV5-25 Attitude and Heading Reference System (AHRS)The 3DM-CV5-25 is a complete Attitude and Heading Reference System (AHRS) solution that provides IMU outputs (acceleration, angular rate, magnetic field, ambient pressure, delta theta, delta velocity) as well as a wide variety of computed outputs. A state-of-the-art Extended Kalman Filter run by dual on-board processors delivers high-accuracy dynamic attitude estimates.

The 3DM-CV5-25 is the smallest and lightest industrial AHRS with Adaptive Kalman Filter available. All sensors are fully temperature-compensated and calibrated over the operating temperature range.

Specifications:

Accelerometer Gyroscope Magnetometer
Measurement range ±8g (standard), ±2g, ±4g, ±20g, ±40g  (optional) ±500°/sec (standard),
±250°, ±1000°/sec (optional)
±2.5 Gauss
Resolution 0.05 mg (+/- 8g) <0.003°/sec (500 dps)
Bias instability ±0.04mg 8°/hr
Noise density 100 µg/√Hz 0.0075°/sec/√Hz (300°/sec) 100 µGauss/√Hz

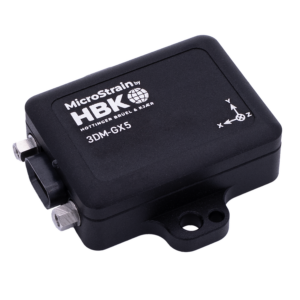

3DM-GX5-25 – AHRS with integrated magnetometers

3DM-GX5-25 Attitude and Heading Reference System (AHRS)The 3DM-GX5-25 is our high-performance industrial-grade Attitude and Heading Reference System that provides the same outputs as the 3DM-CV5-25 but with greater stability and lower noise density.

Automatic magnetometer calibration and anomaly rejection eliminate the need for field calibration, saving time as well as effort and allowing for quick and easy system integration. The unit also automatically compensates for noise and vibration, making it ideal for the harsh environments of unmanned vehicle operations.

Specifications:

Accelerometer Gyroscope Magnetometer
Measurement range ±8g (standard), ±2g, ±4g, ±20g, ±40g  (optional) ±300°/sec (standard),
±75, ±150, ±900°/sec (optional)
±2.5 Gauss
Resolution <0.1 mg <0.003°/sec
Bias instability ±0.04mg 8°/hr
Noise density 25µg/√Hz (2g) 0.005°/sec/√Hz (300dps) 100 µGauss/√Hz

Vertical Reference Unit (VRU)

3DM-GX5-15 – high-performance industrial-grade IMU and VRU

3DM-GX5-15 Vertical Reference Unit (VRU)The 3DM-GX5-15 Vertical Reference Unit uses a triaxial accelerometer, triaxial gyroscope, temperature sensors, and pressure altimeter to provide both IMU outputs (acceleration, angular rate, ambient pressure, delta theta, delta velocity) as well as a wide variety of computed outputs. A state-of-the-art Extended Kalman Filter run by dual on-board processors delivers high-accuracy dynamic attitude estimates.

User-defined sensor-to-vehicle frame transformation allows for easy integration into any unmanned systems application, and bias tracking, error estimation and adaptive noise modelling allow the user to fine-tune to specific conditions.

Specifications:

Accelerometer Gyroscope
Measurement range ±8g (standard), ±2g, ±4g, ±20g, ±40g   (optional) ±300°/sec (standard),
±75, ±150, ±900°/sec (optional)
Resolution 0.02 mg (+/- 8g) 0.003°/sec (300 dps)
Bias instability ±0.04mg 8°/hr
Noise density 25 µg/√Hz 0.005°/sec/√Hz (300°/sec)

GNSS-Aided Inertial Navigation System (INS)

3DM-GX5-45 – miniature, industrial-grade GNSS-INS

3DM-GX5-45 GNSS-Aided Inertial Navigation SystemThe 3DM-GX5-45 is a complete high-performance GNSS-aided navigation solution with a multi-constellation receiver that is compatible with GPS, GLONASS, BeiDou, and Galileo satellite constellations.

The state-of-the-art auto-adaptive estimation filter algorithm produces highly accurate computed pitch, roll, yaw, heading, position, velocity, and GNSS outputs under highly dynamic conditions. The blended GNSS and INS outputs provide high-accuracy position estimation for a variety of unmanned systems.

Specifications:

Accelerometer Gyroscope Magnetometer
Measurement range ±8g (standard), ±2g, ±4g, ±20g, ±40g  (optional) ±300°/sec (standard),
±75, ±150, ±900°/sec (optional)
±2.5 Gauss
Resolution <0.1 mg <0.003°/sec
Bias instability ±0.04mg 8°/hr
Noise density 25µg/√Hz (2g) 0.005°/sec/√Hz (300dps) 100 µGauss/√Hz

Inertial Sensing Applications

High-Performance, Miniature Inertial Sensor Solutions for UAVs

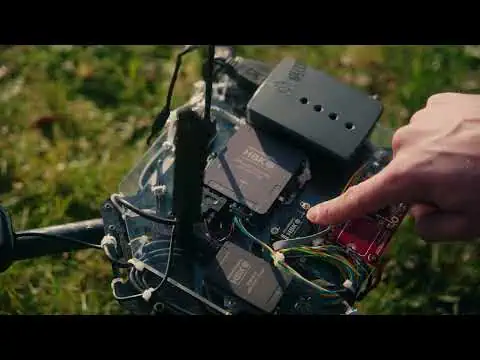

Inertial Sensor Solutions for UAVs

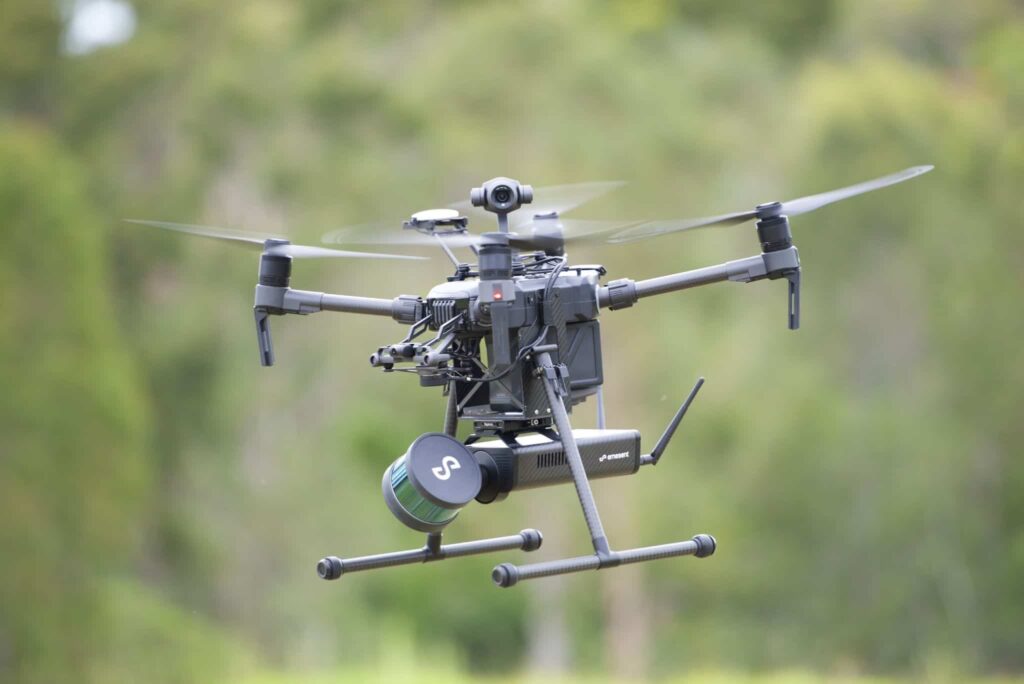

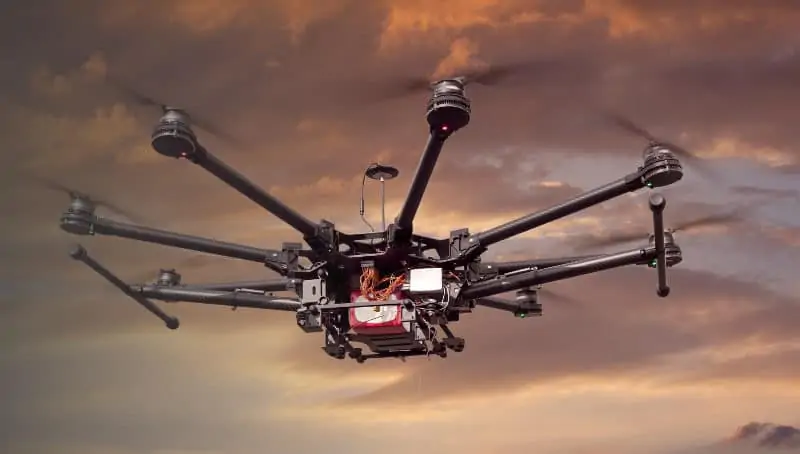

Unmanned aerial vehicles (UAVs) often have extremely demanding operating requirements, relying on precise and accurate sensor data. Meeting these requirements can mean compromising on size or weight. Our inertial sensing systems provide the high performance needed to meet UAV operating requirements with low SWaP (size, weight and power) profiles.

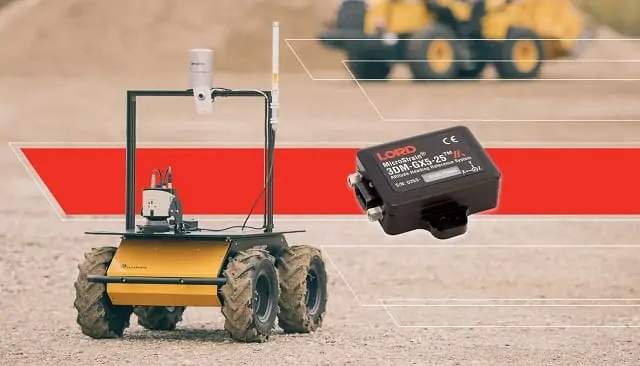

Inertial Sensors for Unmanned Ground Vehicles

Inertial Sensors for Unmanned Ground Vehicles

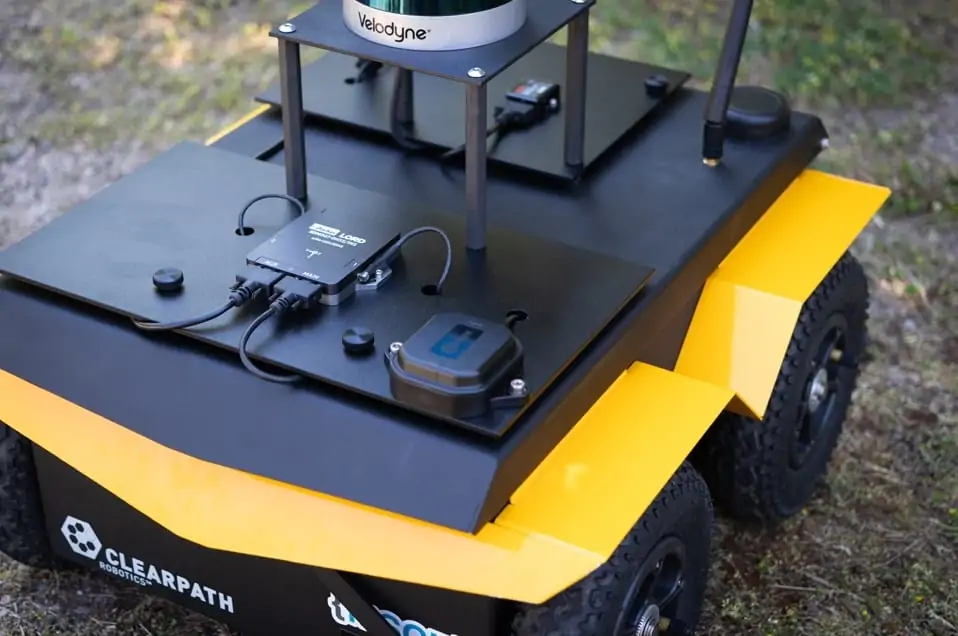

Unmanned ground vehicles (UGVs) must be capable of operating autonomously in environments that are different to but no less challenging than those of UAVs.

Navigation techniques are required that can reliably traverse undefined and difficult terrain, and our inertial sensing systems can provide GPS and inertial measurements in one integrated solution. Their small footprint also allows UGV manufacturers to meet the challenge of producing smaller, lighter, faster and more responsive vehicles.
