Compact INS & GPSDome
Specifications:
Performance Comparison:

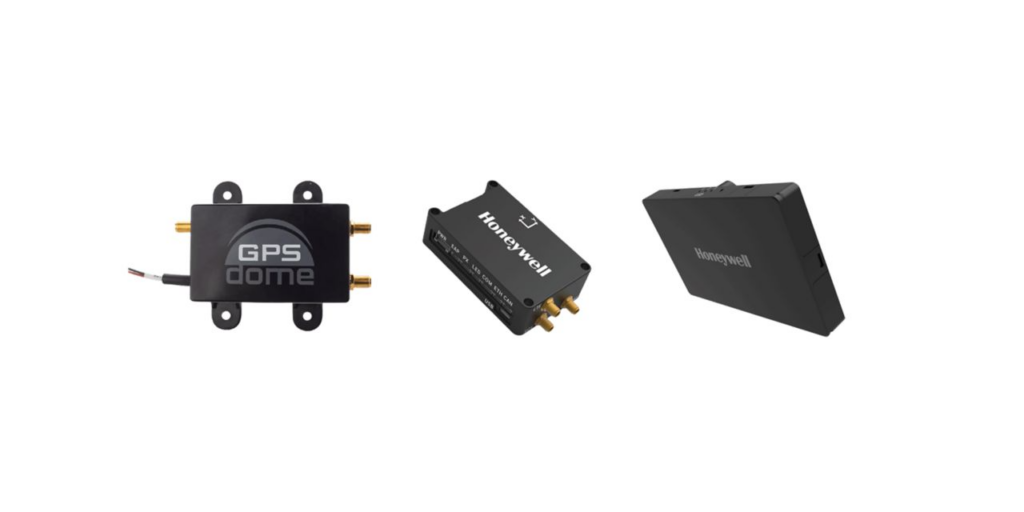

Honeywell's alternative navigation suite for UAVs combines the Compact Inertial Navigation System with the GPSdome anti-jammer to ensure reliable drone navigation during GNSS outages, in environments such as urban canyons, and during deliberate attacks such as GPS jamming and spoofing.

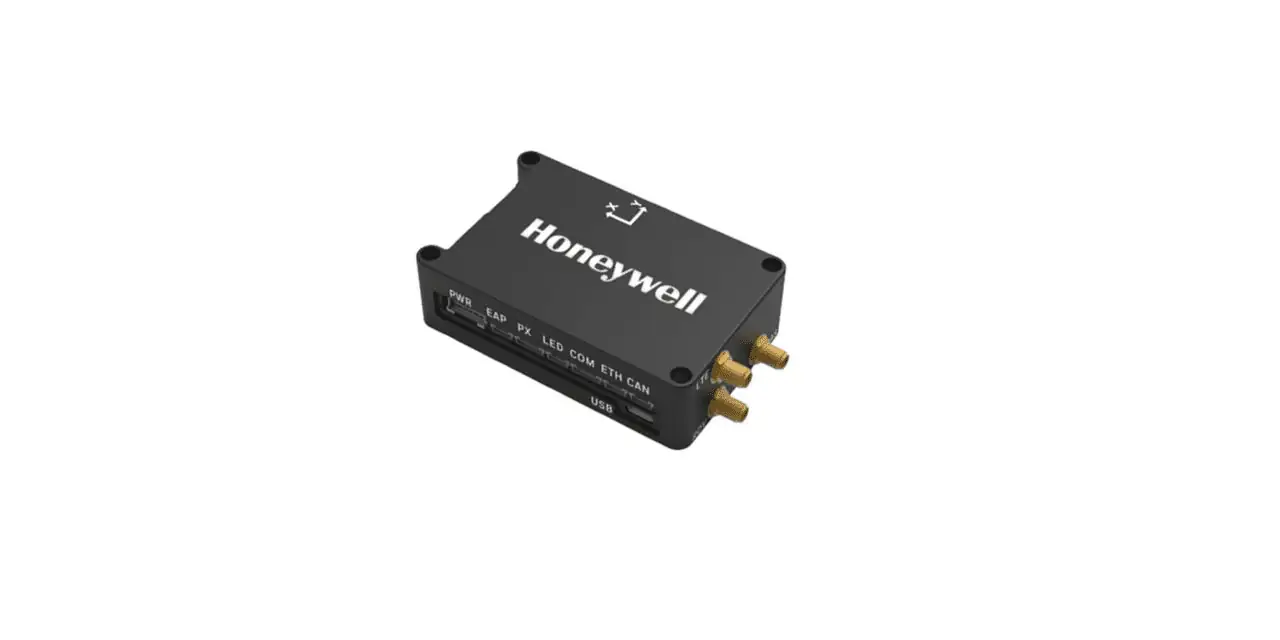

The tactical-grade Compact INS provides highly accurate navigation in a low-SWaP package, enabling safe operations for a wide variety of drone platforms. Accuracy can be refined down to centimeter-level with RTK corrections received via a 4G LTE modem.
The Compact INS can be seamlessly integrated with the Pixhawk 2.1 Cube autopilot line as well as the ArduPilot Mission Planner GUI.
| Dimensions |
96 x 60 x 28 mm (without damping platform) 100 x 67 x 13 mm (with damping platform) |
| Weight |
115g (without damping platform) 137g (with damping platform) |
| Power Consumption | 3W nominal, 5W with LTE connectivity |
| Supply Voltage | 4.5 – 5.5 VDC |
| GNSS Constellations |
GPS L1C/A, L2C GLONASS L1OF, L2OF Galileo E1B/C E5b BeiDou B1I B2I QZSS L1C/A L1S L2C SBAS L1C/A |
| Pixhawk 2.1 | Compact INS | Compact INS + RTK | |
| Position Error (m) | 2.5 | 2.5 | 0.03/0.015 |
| Velocity Error (m/s) | 0.11 | 0.04 | 0.02 |
| Attitude (deg) | 0.2 | 0.04 | 0.025 |
| Heading (deg) | 2.5 | 0.28 | 0.15 |
|
Drift after 10s (m) (GNSS outage with no aiding) |
8.0 | 0.9 | 0.35 |
|
Drift after 30s (m) (GNSS outage with no aiding) |
250 | 5.0 | 2.6 |
|
Drift after 60s (m) (GNSS outage with no aiding) |
900 | 22.0 | 13.0 |
