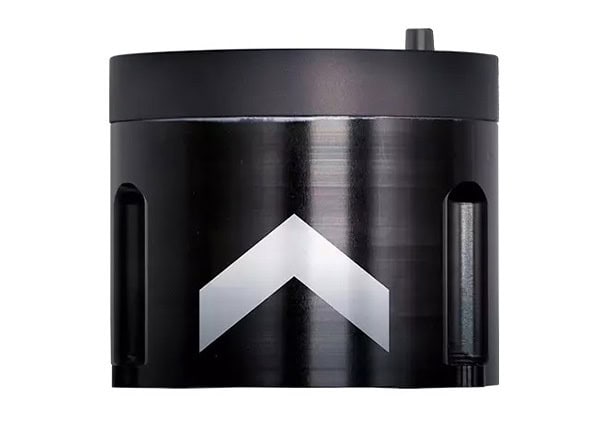

UmiX Series is Exail’s family of ultra-compact Inertial Measurement Units (IMU) developed for demanding UAV, stabilization, targeting, and navigation applications in both civilian and defense environments. Built around Exail’s north-seeking Fiber-Optic Gyroscope (FOG) technology and vibrating quartz accelerometers, the systems deliver highly stable inertial performance in GNSS-denied and high-dynamic operating conditions. Designed for flight control, dead reckoning, image geo-referencing, target designation, missile alignment, and payload stabilization, the UmiX Series combines compact size with navigation-grade accuracy and robust motion sensing capabilities.
Engineered with fully solid-state architecture and plug-and-play integration, the UmiX Series incorporates three precision FOG gyroscopes and three iXal-S vibrating beam accelerometers developed in-house by Exail. The ITAR-free systems provide ultra-low latency, high bandwidth, and stable operation for EO/IR gimbals, LiDAR payloads, designation lasers, and airborne sensor platforms. Available in both civilian and military-oriented variants, the IMUs offer tactical and short-term navigation-grade performance while supporting high-speed maneuvering and stabilization requirements across airborne and ground-based applications.
Specifications:
| Parameter | UmiX 40-5DU FOG | UmiX 40-5MG FOG | UmiX 40-5DU Accelerometer | UmiX 40-5MG Accelerometer |
| Dynamic: | ±490°/s max | ±2000°/s max | ±30 g | ±100 g |
| Angular random walk: | 8 m°/√h | 8 m°/√h | - | - |
| Bandwidth: | 5 kHz | 5 kHz | - | - |
| Bias instability: | 10 m°/h 1σ | 10 m°/h 1σ | 10 µg 1σ | 10 µg 1σ |
| Bias thermal residual: | 50 m°/h 1σ | 50 m°/h 1σ | 250 µg 1σ | 250 µg 1σ |
| Scale factor thermal residual: | 40 ppm 1σ | 40 ppm 1σ | 40 ppm 1σ | 40 ppm 1σ |
| Rectification: | - | - | 50 µg/g² 1σ | 50 µg/g² 1σ |
