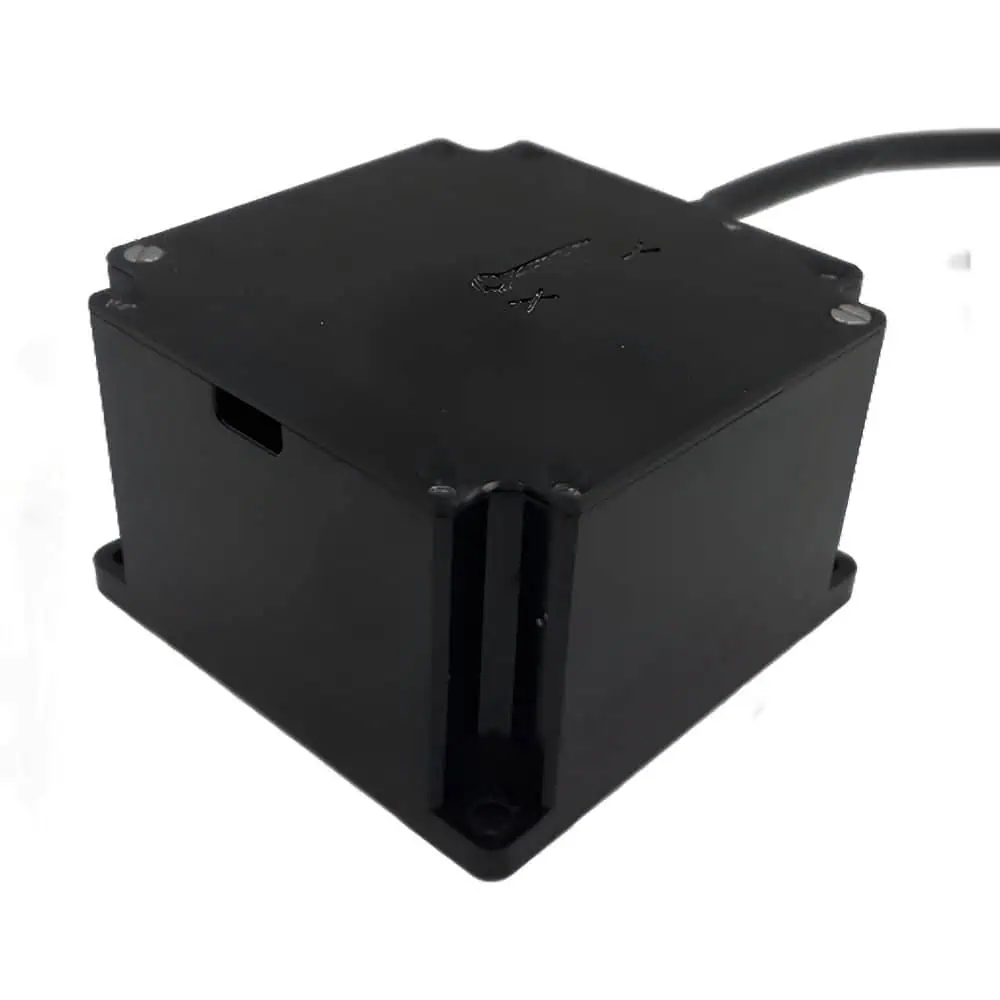

Dual-Axis Fiber Optic Gyroscopes
Micro-Magic's dual-axis FOG gyroscope products offer robust angular velocity outputs and enhanced precision in robust IP67-rated enclosures with RS-422 digital output. They are ideal for drone and unmanned systems orientation and stability applications, as well as for integration into higher-order systems such as IMUs and INS.
Specifications:
| GF2X64-A/B | GF2X70-A/B | |
| Dimensions: | 64 x 60 x 42 mm | 70 x 70 x 43 mm |
| Weight: | 300g | 360 g |
| Dynamic Range: | ±500o/s | ±500o/s |
| Zero Bias Stability: | 0.1 – 0.5o/hr | 0.1 – 0.2o/hr |
| Zero Bias Repeatability: | 0.1 – 0.5o/hr | 0.1 – 0.2o/hr |
| ARW: | 0.05o/√hr | 0.02o/√hr |
