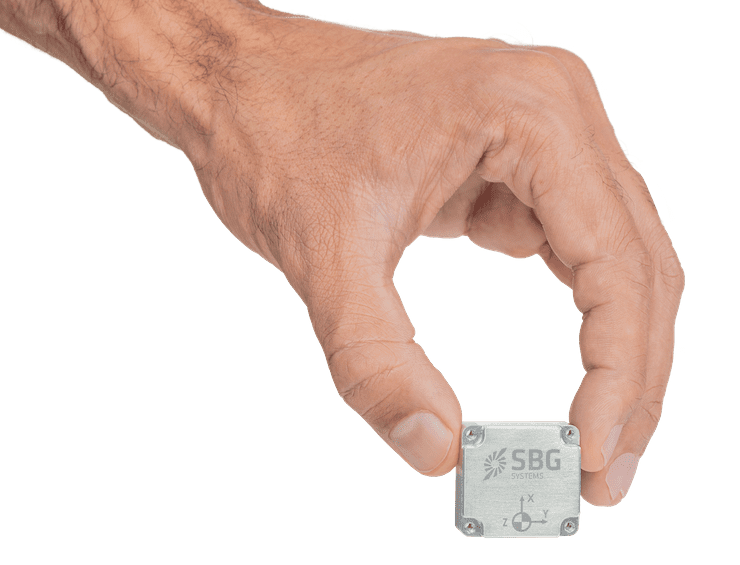

Pulse-40 IMU

Pulse-40 is a tactical-grade IMU that offers unmatched performance in harsh conditions in a miniaturized size for applications where precision and robustness matter in all conditions. The IMU is perfect for high-frequency and highly vibrating environments thanks to its ultra-low noise gyroscopes and high-precision accelerometers with very low Vibration Rectification Error (MIL-STD-810G tested).

SBG Systems’ production processes and calibration ensures consistency and repeatable behavior.

Pulse-40 brings tactical-grade sensing to your system without compromise on SWaP-C.

Specifications:

Dimensions: 30 x 28 x 13.3 mm
Weight: 12 g
Power Consumption: 0.3W @ 5V
Gyroscope Measurement Range: ± 490°/s (standard) ± 2000°/s (high range version)
Accelerometer Measurement Range: ±40 g
Bandwidth: 480 Hz
Gyroscope Random Walk: 0.08°/√h
Accelerometer Random Walk: 35 µg/√h
Gyroscope Bias Instability: 0.8°/h
Accelerometer Bias Instability: 6 µg
