State-Of-The-Art Fixed-Wing UAS for Real-Time Tactical ISR
GOR UAS Battle-proven fixed-wing UAS for real-time tactical ISR

Battle-proven fixed-wing UAS for real-time tactical ISR

Visit Website Contact

Airlogix’ GOR UAS is a battle-proven fixed-wing drone platform that has been specially designed to deliver real-time long-range ISR (intelligence, surveillance and reconnaissance) capabilities under highly challenging conditions. Providing mission endurances of up to 4 hours and ranges of up to 260 kilometers, it features fully electric propulsion for reduced thermal and acoustic signatures.

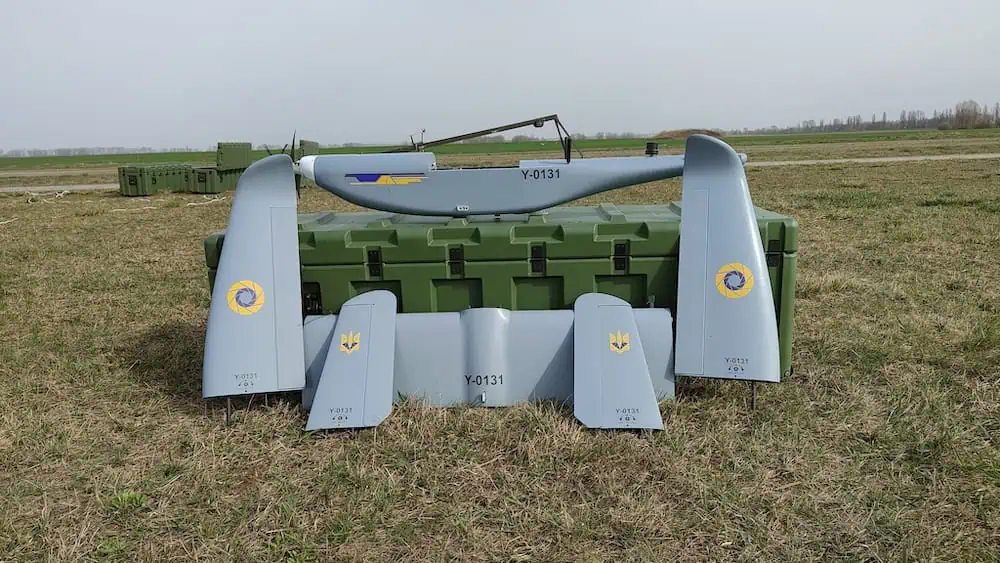

Gor tactical UAS

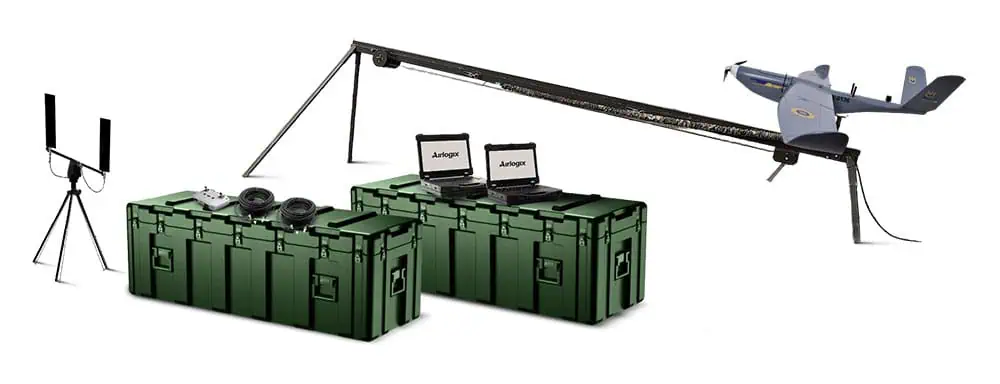

The catapult-launched platform can be completely assembled with minimal training in under a minute, and can be fully prepared for deployment in just ten minutes. It can be equipped with one of three different EO or EO/IR camera gimbals from NextVision, making it suited to a wide range of daytime and nighttime operations.

The tactical GOR UAS features a robust communications system that utilizes eight preset channels and is FHSS (frequency hopping spread spectrum)-capable, providing enhanced security and resilience against interference and jamming. It also includes a backup system that runs simultaneously, as well as a backup navigation system for GPS-denied conditions such as jamming attacks.


Wingspan 2.6 m
MTOW 11.3 kg
Endurance Up to 4 hours
Flight Distance Up to 260 km
Max Altitude 3500 m
Data Transmission Range Up to 40 km
Max Speed 30 m/s (108 km/h)
Operational Temperature Range -20 to +50oC

Payload Choices:

raptor camera payloadRaptor nighthawk camera payloadNightHawk 2 x80 camera payloadX80
640 grams 250 grams 145 grams
40x optical and 2x digital zoom 20x optical and 2x digital zoom 40x optical and 2x digital zoom
1280 x 720 640 x 480 1280 x 720
