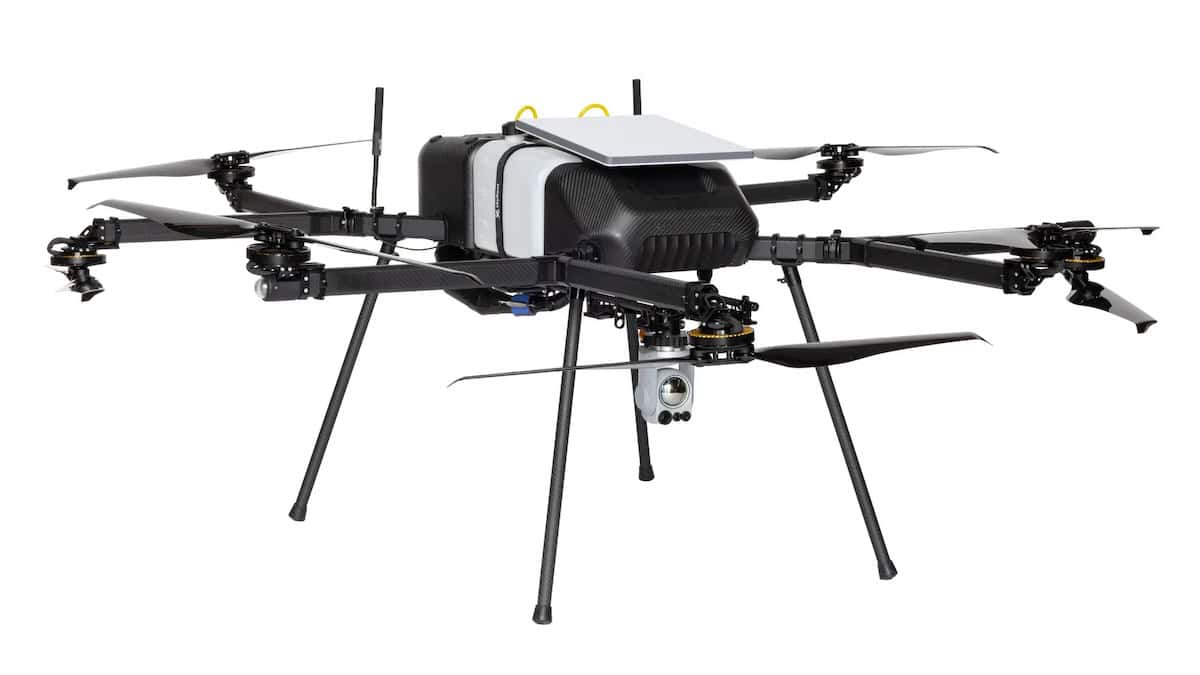

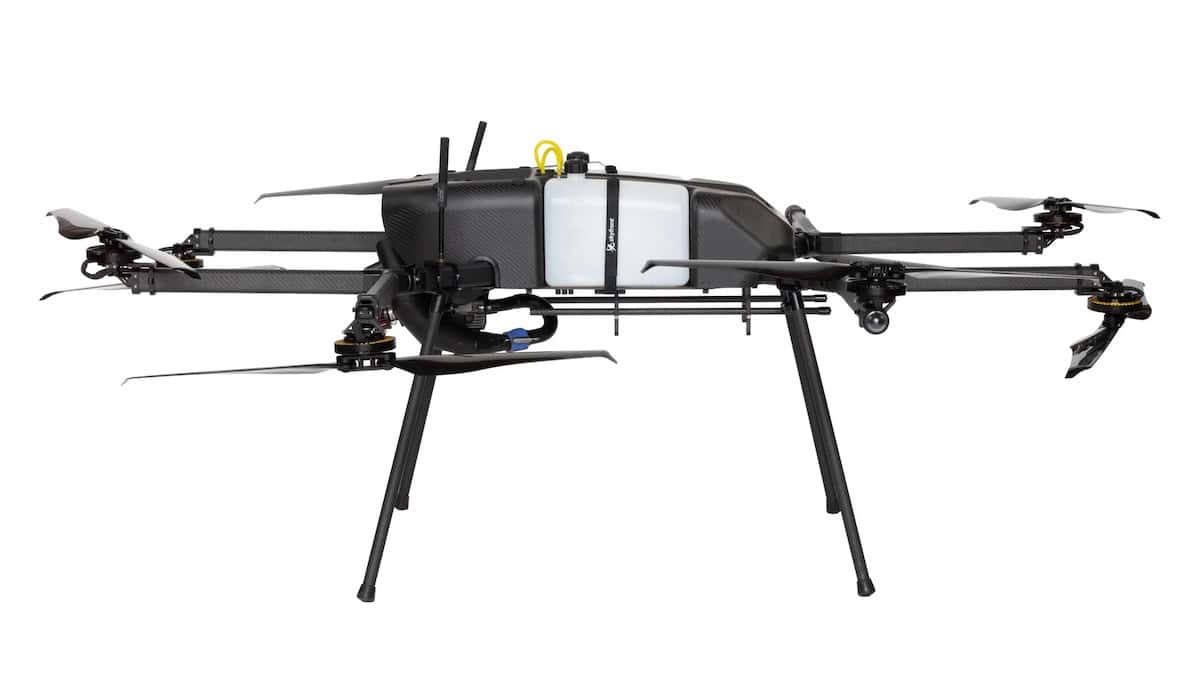

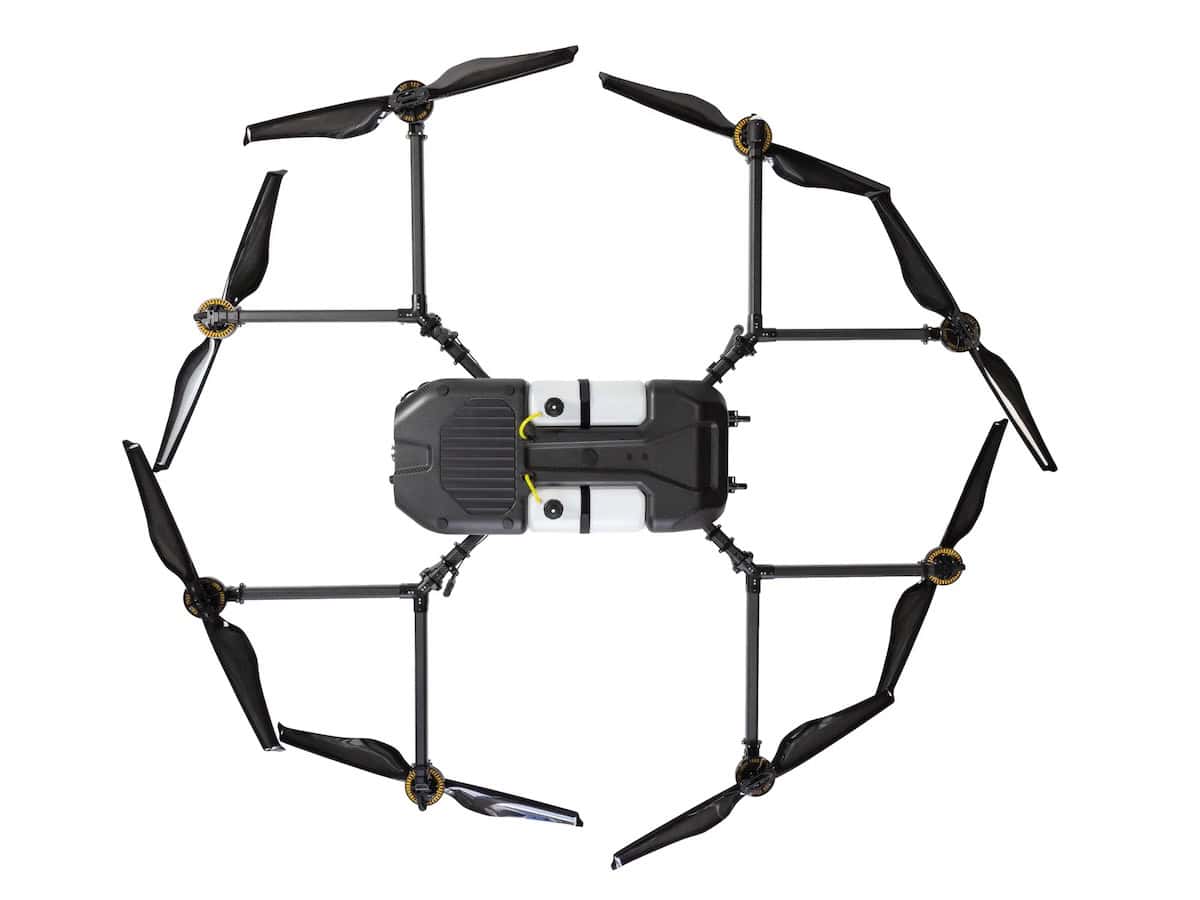

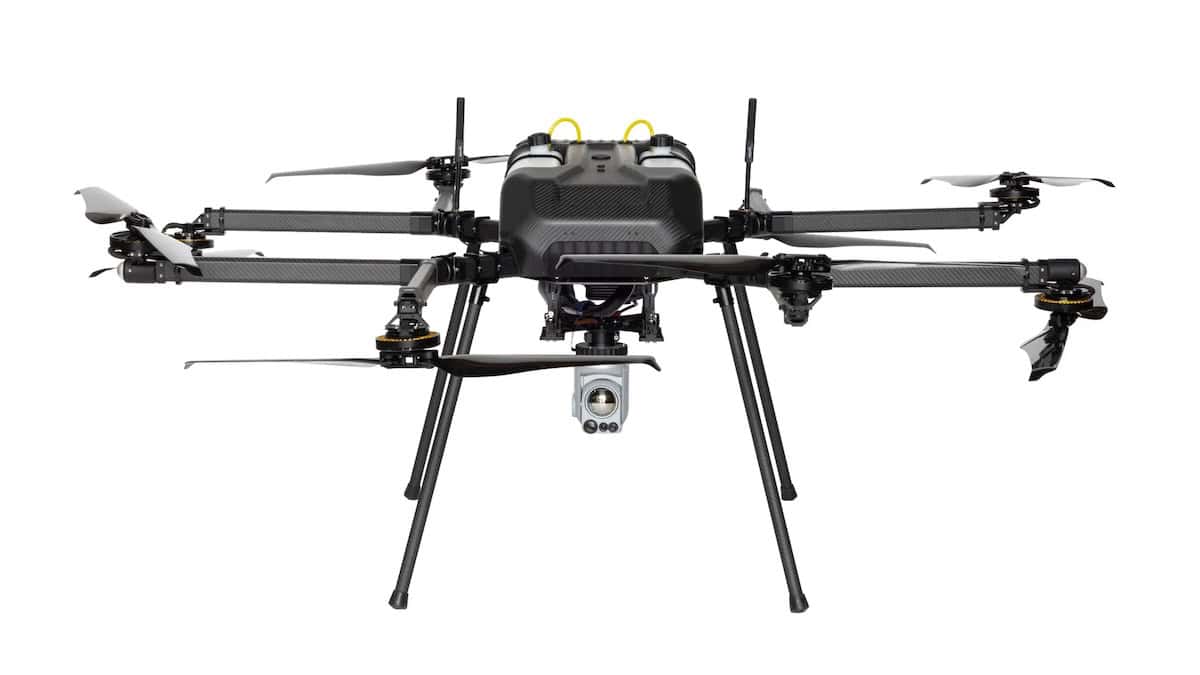

Skyfront’s Perimeter 8 is a revolutionary octocopter drone platform that utilizes a proprietary fuel-injected hybrid gas-electric powertrain to deliver an unparalleled combination of payload capacity and endurance. Capable of carrying up to 10 kg for up to one hour and 5 kg for 2-3 hours, it enables you to get more done in a single flight.
The rapidly-deployable hybrid drone can be unboxed, assembled and airborne in less than 5 minutes. The two-stroke engine features automatic starting and stopping, requiring only refueling before you can fly just as simply as a regular multirotor.
The highly customizable aircraft’s modular payload bay can carry more than 5 kg of equipment, allowing it to be equipped for virtually any mission. Options include:
- EO/IR imaging gimbals from Trillium, Octopus, Workswell and Nextvision
- High-definition mapping and surveying cameras from Sony and Phase One
- LiDAR scanners from Riegl, Yellowscan and RedTail
- Magnetometers from Skyfront, Geometrics, and Sensys
- Multispectral and hyperspectral imagers from MicaSense, Specim and
- HySpex
Skyfront also provides a number of robust and reliable long-range communications options, including Starlink and MIMO radios from Silvus Technologies. The company can also integrate a wide range of third-party radios upon customer request.
The Perimeter 8 long range drone can also be equipped with sophisticated GPS and communications anti-jamming technology that allows it to operate in contested environments and withstand jamming and spoofing attacks.
Specifications:
| Perimeter 8+ | Perimeter 8 | |
| Tip-to-Tip Length: |
Arms removed: 2 x 2.66 ft (0.6 x 0.81 m)
Ready to fly: 6.5 x 6.25 ft (2 x 1.9 m) |
Arms removed: 2 x 2.66 ft (0.6 x 0.81 m)
Ready to fly: 6.5 x 6.25 ft (2 x 1.9 m) |
| Min Height: |
14.5" (0.37 m)
(height customizable to fit payload) |
14.5" (0.37 m)
(height customizable to fit payload) |
| MTOW: | 57 lbs (26 kg) | 51 lbs (23 kg) |
| Max Payload: | 22 lb. (10 kg) for 1 hour (MTOW will exceed 25 kg) |
17 lb. (7.5 kg) for 1 hour |
| Max Endurance: | 5+ hours @ no payload 3 hours @ 11 lb. (5 kg) 2 hours @ 17 lb. (7.5 kg) 1 hours @ 22 lb. (10 kg) |
5 hours @ no payload 3 hours @ 8.8 lb. (4 kg) 2 hours @ 11 lb. (5 kg) 1 hours @ 17 lb. (7.5 kg) |
| Max Range: | 134 miles (216 km) | 110 miles (177 km) |
| Speed: | 44 mph (70 km/hr) abs. max 22 mph (35 km/hr) cruise ground |
36 mph (57 km/hr) abs. max 22 mph (35 km/hr) cruise ground |
| Max Density Altitude: | 13,000 ft (4,000 m) | 9,000 ft (2,700 m) |
