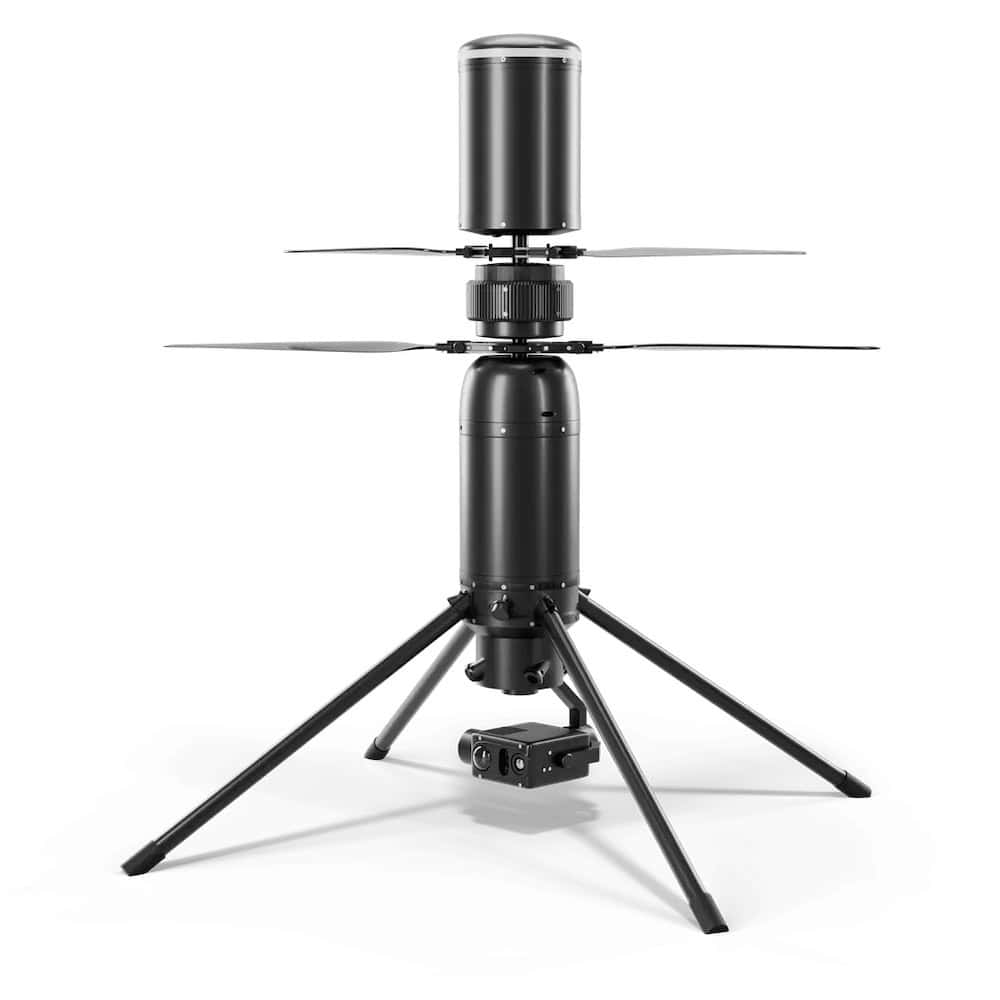

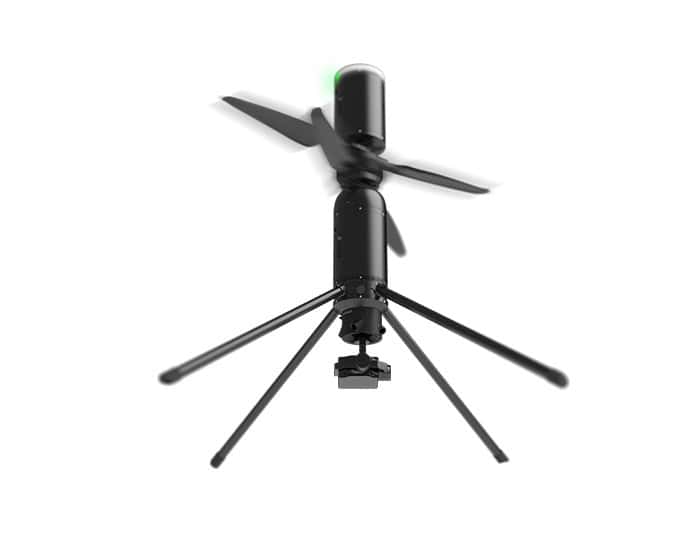

The SPARTAN is a rugged coaxial UAS engineered for demanding public safety, industrial, and military operations. Building on the proven NX30 platform, SPARTAN integrates a refined aerodynamic profile with a high-performance coaxial rotor system, delivering superior endurance, speed, range, and payload flexibility in a compact cylindrical form factor. Designed for operational environments where portability, reliability, and weather resilience are mission-critical, it offers advanced performance for remote missions well beyond visual line of sight (BVLOS).
Capable of carrying payloads up to 6.9 kg (15.3 lbs), SPARTAN features a modular payload interface for seamless sensor swaps and mission-specific integration. FAA-compliant strobe and RGB status lighting ensure night operation readiness, while the IP54-rated enclosure shields internal components from rain, snow, and debris. With a maximum observed altitude of 14,600 feet and endurance exceeding 70 minutes in ideal configurations, Spartan extends operational reach for tactical surveillance, rapid-response logistics, and ISR missions in challenging, austere environments.
Specifications:
| Dimensions (L x D): | 771 x 147 mm (30.4 x 5.8 in) |
| Weight: | 2.7 kg (5.95 lbs) – no battery or payload |
| MTOW: | 13.6 kg (30 lbs) |
| Payload Capacity: |
One battery: 6.9 kg (15.3 lbs) Dual battery: 3.9 kg (8.7 lbs) |
| Flight Endurance: |
One battery: 20 minutes with max payload Dual battery: 65+ minutes with no payload (50 min. w/ 7.5 lbs. payload) |
| Max Speed: |
Manual: 60+ mph (27 m/s) Auto: 40 mph (18 m/s) |
| Max Altitude: | 5000 m (14,600 ft) |
| Data Link: | Standard configuration 2.4 GHz |
