Khronos

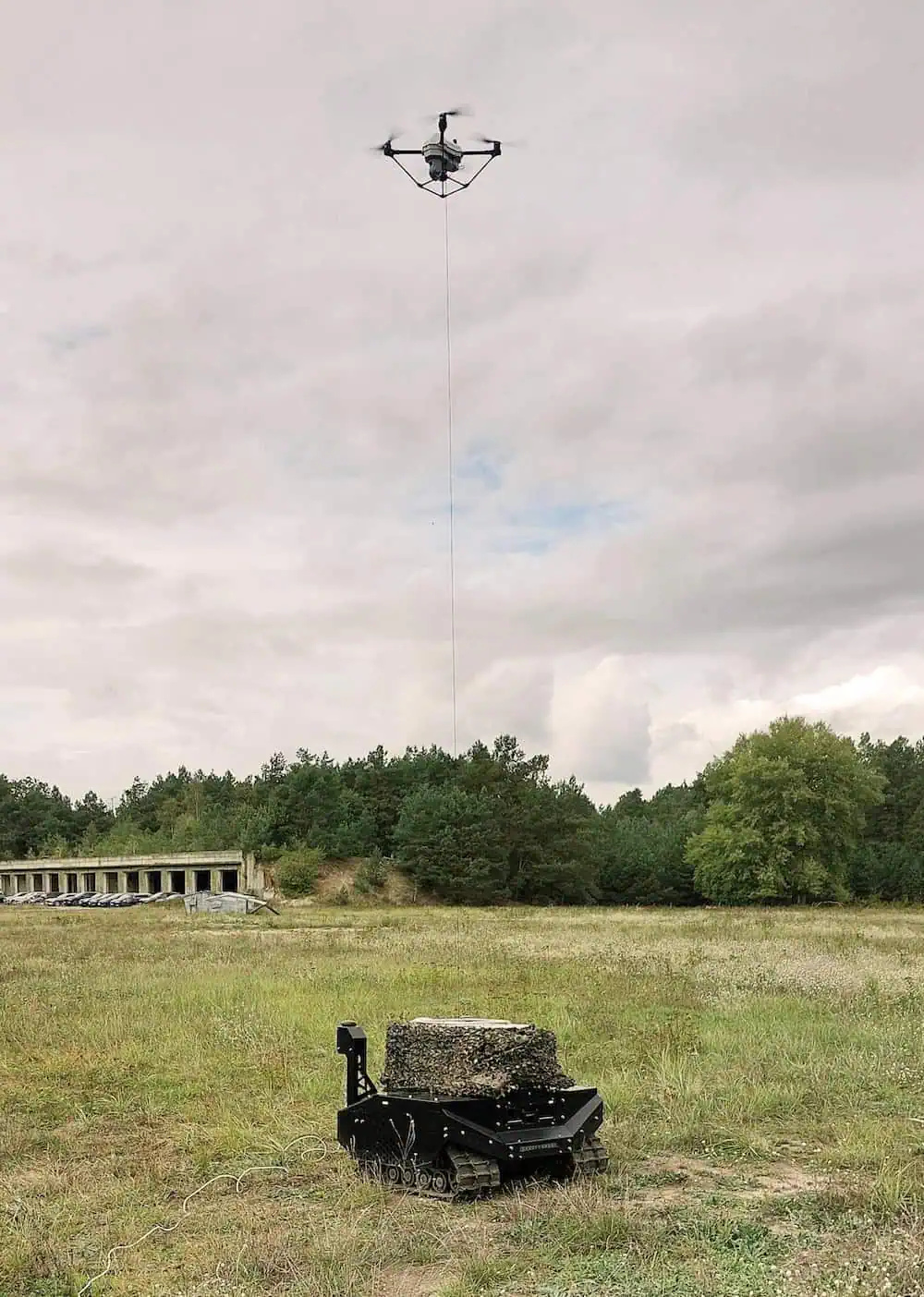

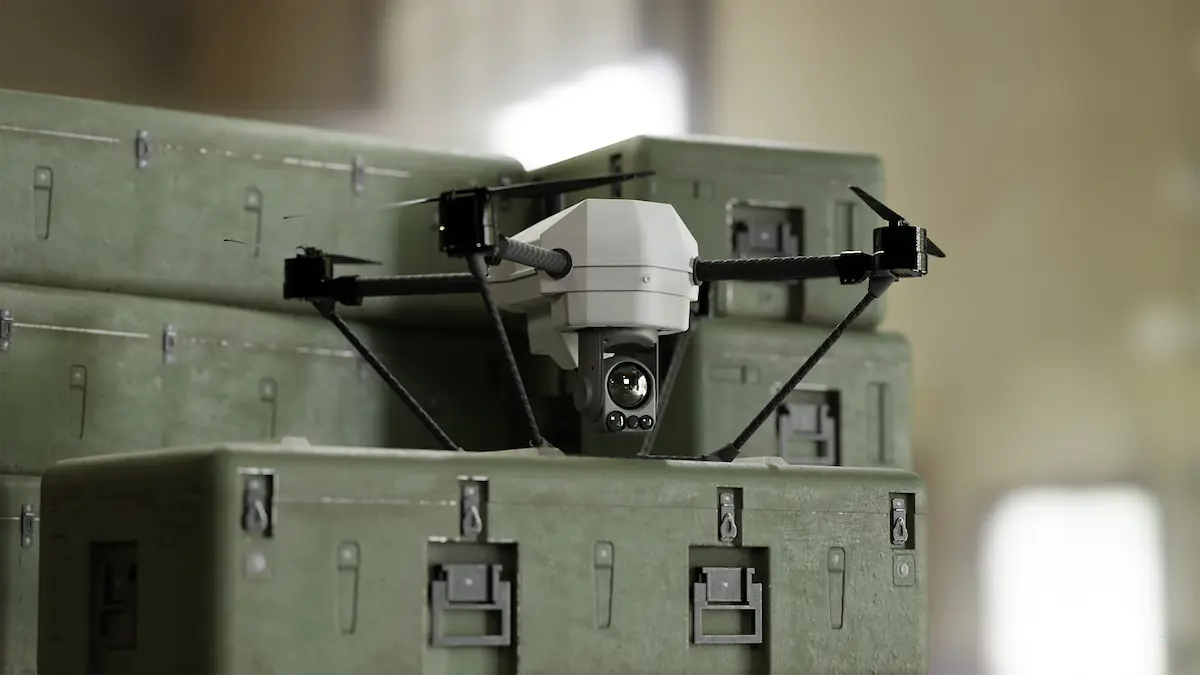

Khronos is an all-in-one drone-in-a-box system that is designed for both fixed and mobile applications and is easily mounted on a wide range of vehicles. Pairing an advanced quadcopter with a rugged IP54-rated and shock-resistant base station, it provides instant aerial intelligence of the surrounding area, and can be deployed without leaving the vehicle.

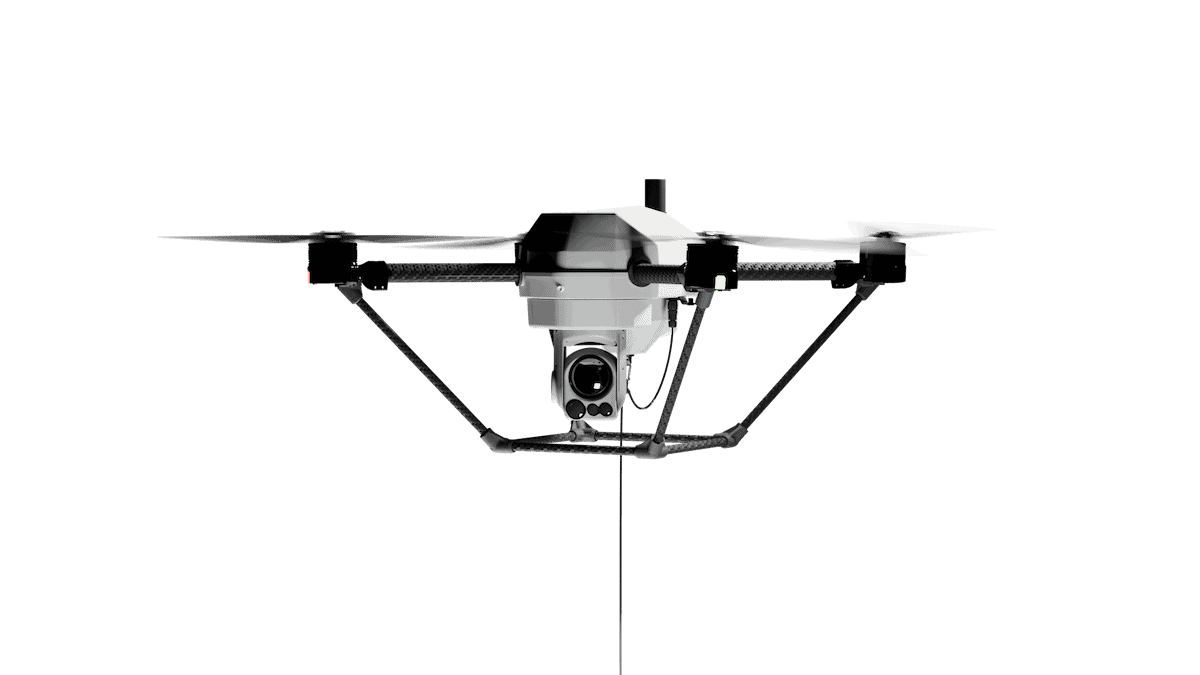

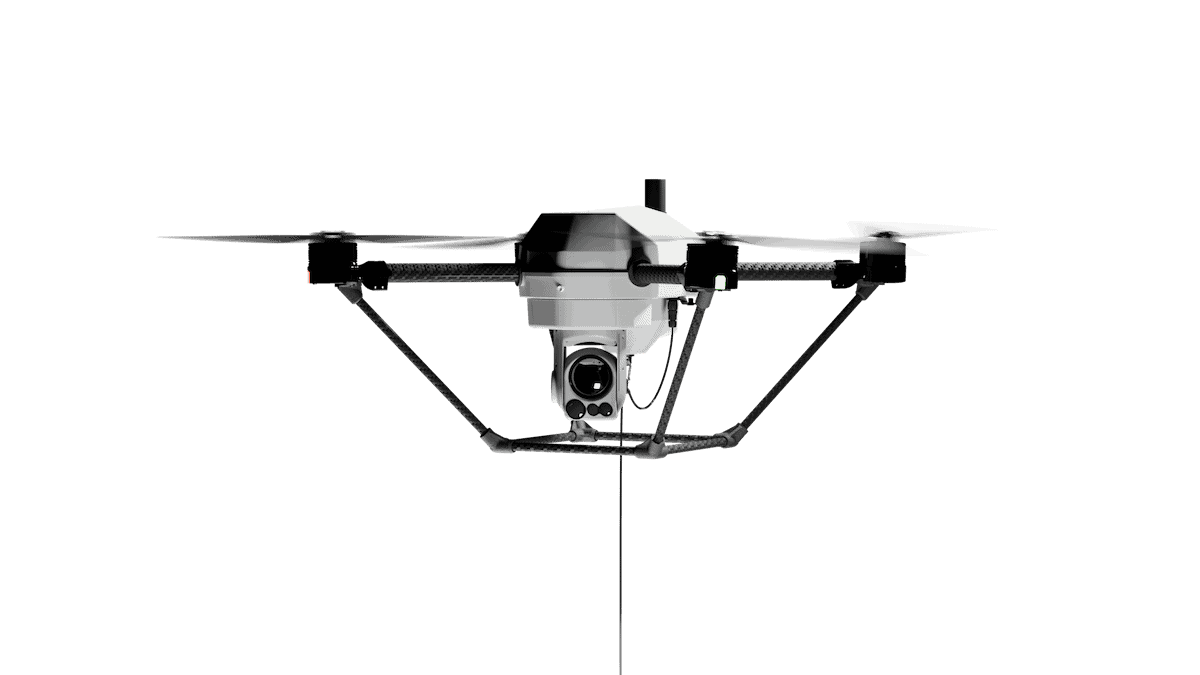

The tethered drone provides up to 24 hours of persistent operation, with a tether height of up to 60 metres that gives the system a 10 km radius for target identification and tracking. The UAV can be launched and airborne in under two minutes.
Khronos can be equipped with a choice of two ISR payloads:
- NextVision Raptor - NDAA-compliant gimbal with 80x zoom day sensor and best-in-class IR sensor
- NextVision DragonEye - stabilized EO/IR gimbal weighing just 115g
| Dimensions |
Unfolded drone 100 x 100 x 52 cm (39 x 39 x 20") Station 950 x 650 x 385 mm (37 x 25 x 15") |
| Weight | Complete system 30.8 kg (66 lbs) max |
| Power Input |
Compatible 110 / 240 VAC Power source 120V - 230V, 50 - 60Hz (generator minimum 2.5 kW) |
| Tether Length | 70m (230 ft) |
| Tether Data Transfer | 100 Mb/s |
| Max Flight Time | 24 hrs |
| Payloads |
Raptor: Day sensor 80x (40x optical + 2x digital) zoom, 1280 x 720 pixels, 25 Hz Night sensor 4x zoom, 1280 x 720 pixels, 9 Hz DragonEye: Day sensor 40x (20x optical + 2x digital) zoom, 1280 x 720 pixels, 9 Hz Night sensor 4x zoom, 640 x 480 pixels, 9 Hz |
