Sensus D12

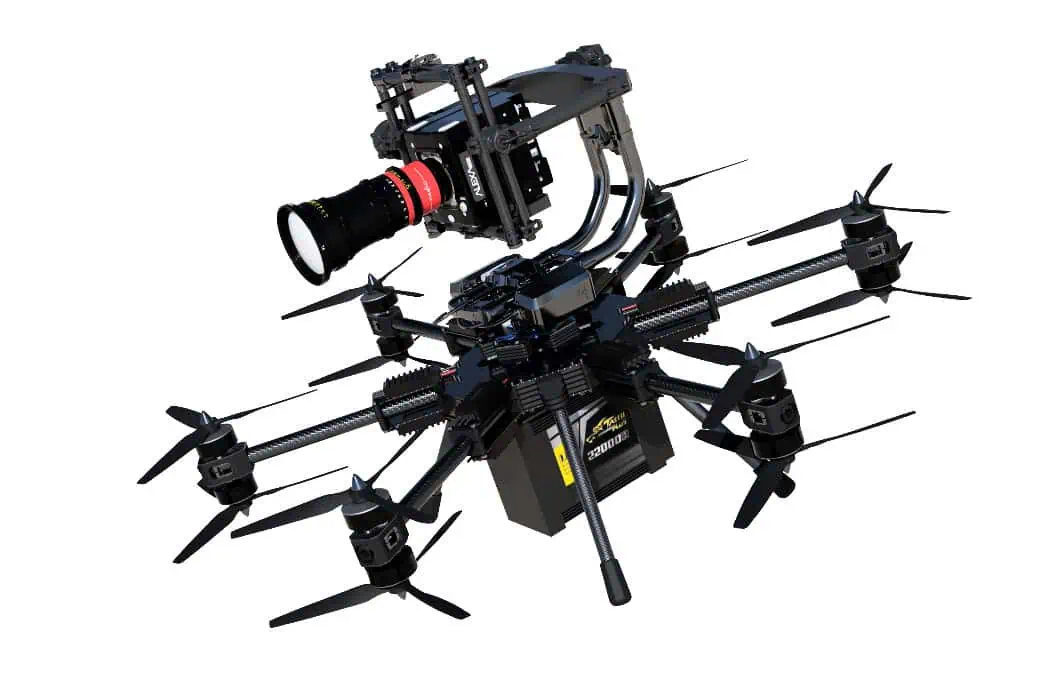

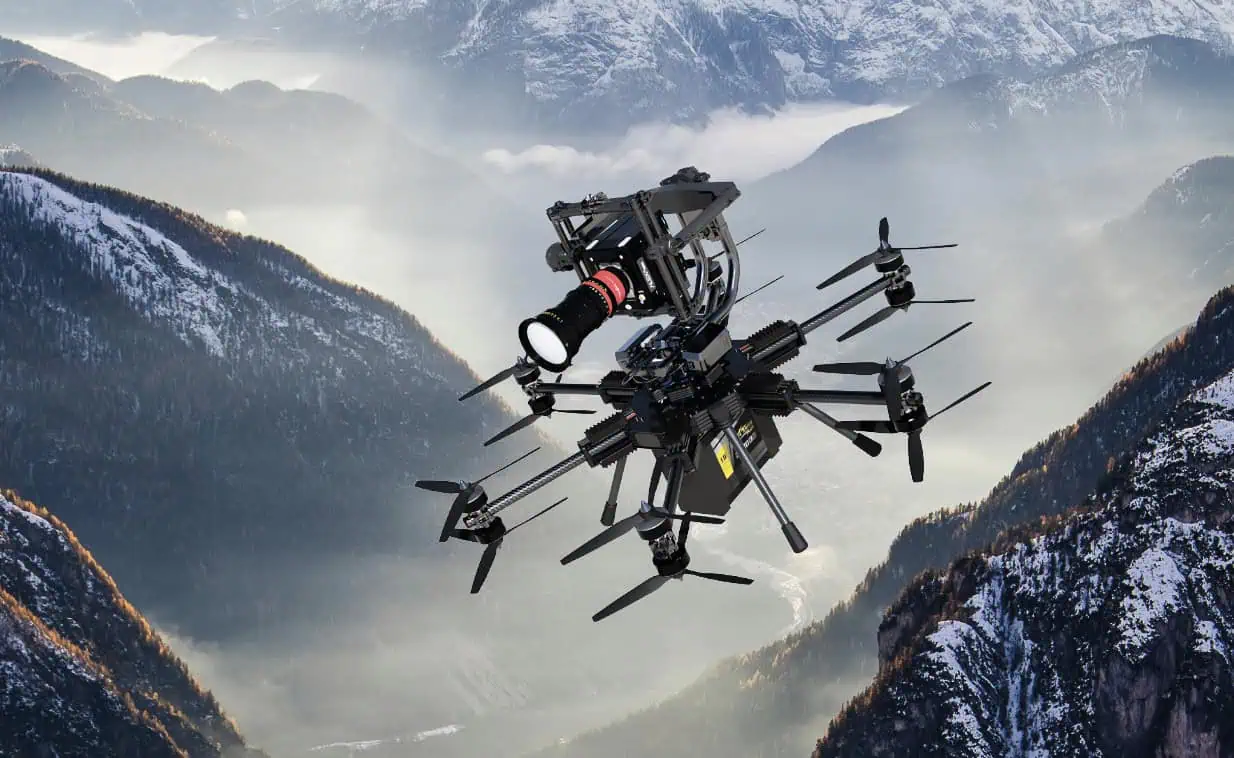

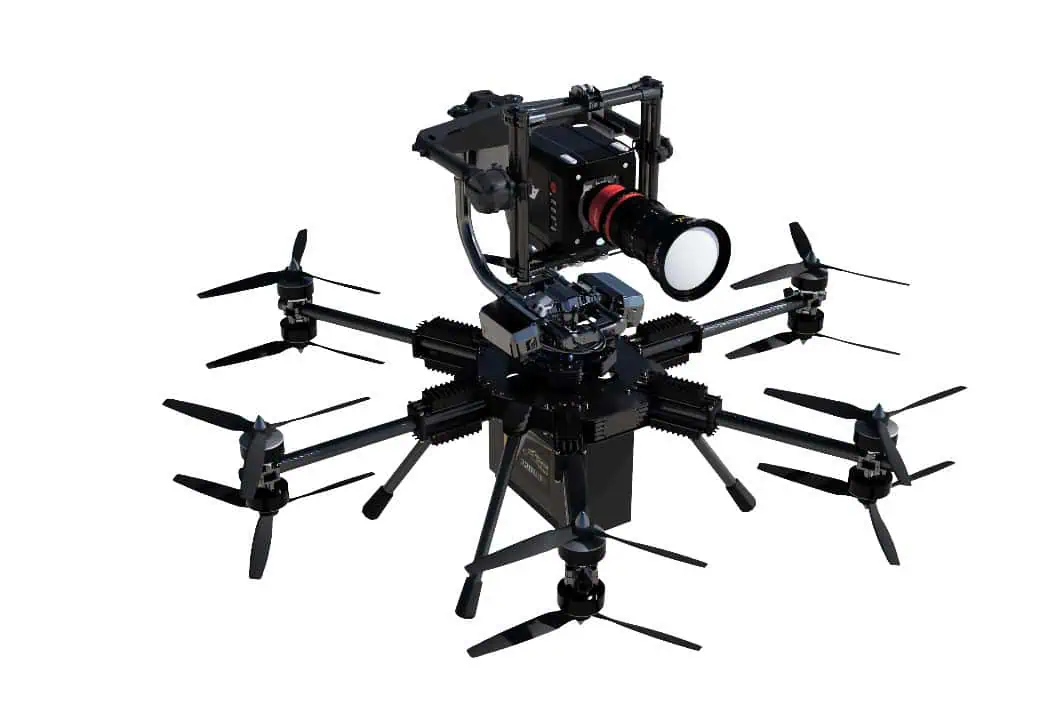

The Sensus D12 is the world's fastest heavy-lift cinematic drone, with a top speed of 150 km/h and a carrying capacity of 20 kg. Built to withstand the demanding requirements of professional filmmaking, it is compatible with gimbals such as the Movi Pro and Ronin 2, and supports high-end cameras such as the RED Helium 8K, ARRI Alexa Mini, and Canon C300.

The rugged system is IP64-rated and can resist winds of up to 80 km/h, ensuring reliable and consistent shots under highly challenging conditions. The UAS also features an industry-leading GNSS receiver and autopilot, as well as built-in obstacle avoidance.

Specifications:

Span: 1300 w/ props
973 mm w/o props
Height: 400 mm w/o payload
MTOW: 50 kg
Payload Capacity: 20 kg
Maximum Flight Time: 20 mins no payload
10 mins with max payload
Range: 40 km
Maximum Speed: 5 m/s ascent
2 m/s descent
42 m/s flight
Maximum Pitch Angle: 45o
Wind Resistance: 22 m/s
IP Rating: IP64
