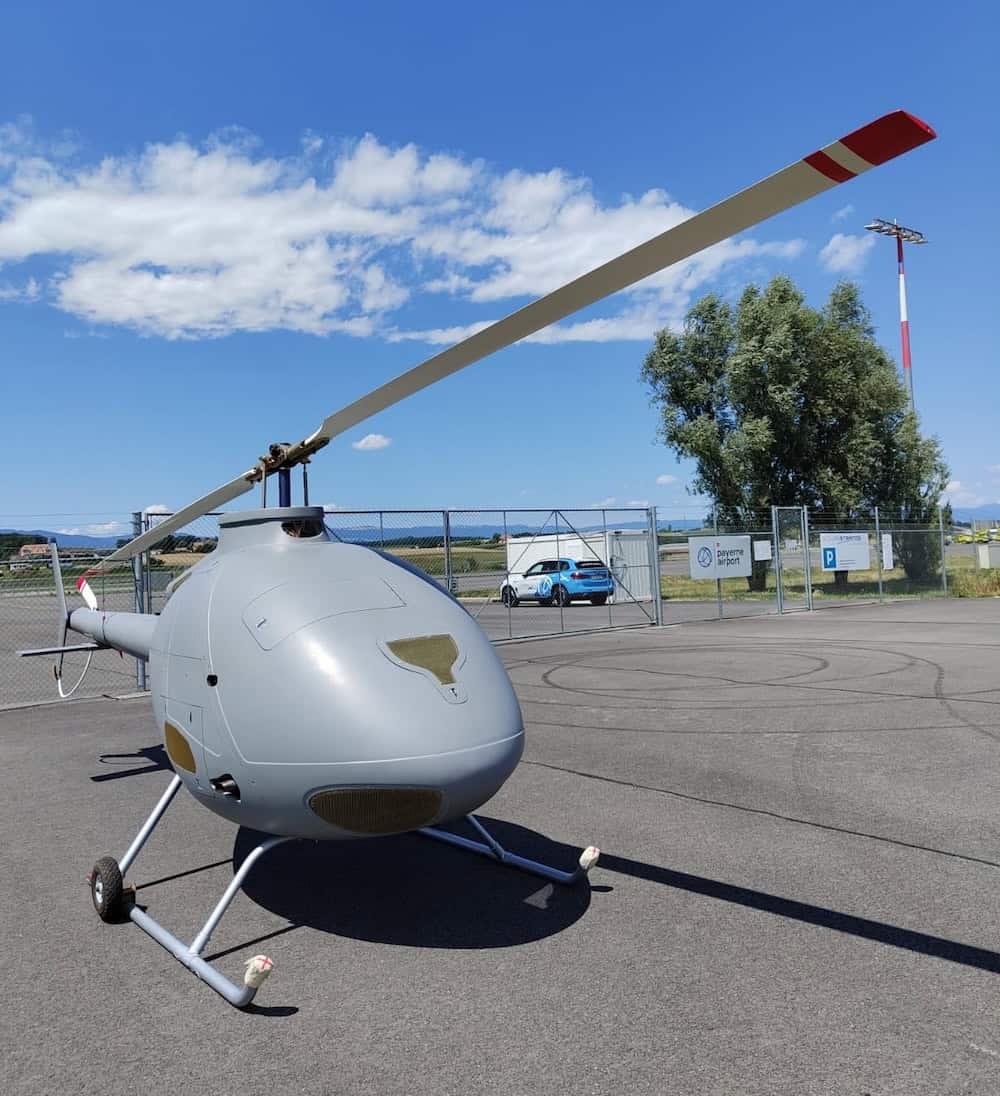

Roze Mobility’s SH-917 is a high-performance autonomy-capable helicopter UAV (unmanned aerial vehicle) platform that offers up to 8 hours of flight endurance and a maximum payload capacity of 250 kg. With a design based around a patented lightweight composite airframe, it features low takeoff weight and excellent fuel efficiency while maintaining a strong structure.
The SH-917 can be equipped to serve a wide range of civilian and defense use cases, and allows virtually any payload to be integrated into the airframe. Possibilities include:
- EO/IR gimbals
- LiDAR scanners
- Cargo storage containers and delivery mechanisms
- Water dispensing & spraying apparatus
- Custom payloads
Based around the 160hp Rotax 912 engine, the SH-917’s propulsion system runs on common gasoline fuels such as Avgas 100LL or E10, with a basic capacity of 160 liters, Additional fuel tanks can be added to boost the UAV’s endurance even further.
Specifications:
| MTOW: | 550 kg |
| Payload Capacity: | 250 kg |
| Average Fuel Consumption: | 22 liters/hr |
| Speed: | 100 kt max @ 100% 90 kt cruise @ 85% |
| IGE Hover Ceiling (ISA): | 5000 ft w/max weight 7500 ft w/50 kg cargo |
| Endurance & Range Performance: | 230 kg cargo: 1 hr / 150 km 190 kg cargo: 3 hr / 450 km 130 kg cargo: 6 hr / 900 km 90 kg cargo: 8 hr / 1200 km |
