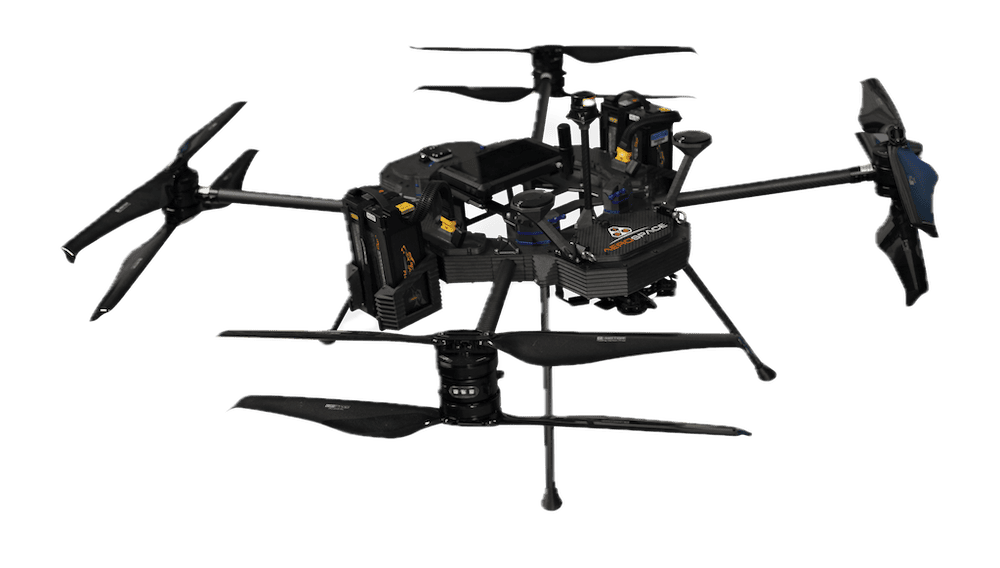

The Sensus L is a versatile heavy-lift multirotor drone designed for flexible multi-mission performance, allowing you to mount up to three large payloads on a central secure mounting area or front and rear rails. With a total capacity of up to 18kg, it is ideal for surveillance, surveying, real-time data fusion, and much more.
The durable UAS is constructed from 3D printed Nylon reinforced with carbon fiber, fiberglass, and Kevlar, and precision-machined parts are held together with aerospace-grade fasteners and materials. The rugged system is IP64-rated and can resist winds of up to 18 m/s.
Sensus L is equipped with a host of navigation and safety features, including an RTK GNSS receiver, a Mode S ADS-B transceiver, navigation lights, and a laser avoidance sensor.
Specifications:
| Sensus L4 | Sensus L8 | |
| Dimensions: | 1100 x 1100 x 440 mm | |
| MTOW: | 24 kg | 38 kg |
| Payload Capacity: | 8 kg | 18 kg |
| Maximum Flight Time: | 55 mins no payload 25 mins with max payload |
50 mins no payload 25 mins with max payload |
| Range: | 82.5 km | 75 km |
| Maximum Speed: | 25 m/s typical | |
| Maximum Pitch Angle: | 45o | |
| Wind Resistance: | 18 m/s | |
| Service Ceiling: | 3500m | |
| IP Rating: | IP54 IP65 upgrade available |
|
