Battlefield-proven UAV platform for ISTAR & cargo delivery

The DeltaQuad Evo Tactical is a battlefield-proven VTOL fixed-wing UAS designed to provide unmatched ISR (intelligence, surveillance and reconnaissance) and logistics capabilities in contested airspaces. Built to exacting military-grade standards with high-quality carbon, kevlar, and fiberglass, it can withstand rain, snow, extremes of temperature, and winds of up to 14 m/s.

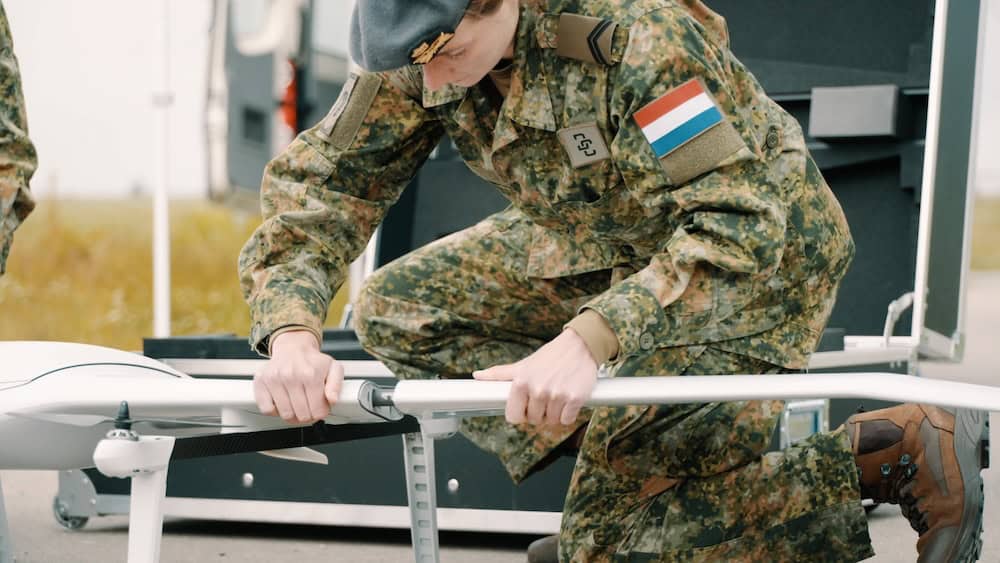

Evo Tactical is capable of full autonomy, allowing a wide variety of complex missions to be carried out with minimal operator intervention, even beyond radio range. The system is easy to unpack and assemble, and can be rapidly set up and deployed in just five minutes. The highly EW-resistant aircraft incorporates a sophisticated CRPA-based anti-jamming GNSS system that can resist up to 7 active GPS jammers, and can also navigate accurately, take off, and land in GPS-denied environments by using inertial and vision-based navigation.

The aircraft automatically extends and retracts the landing gear, making take-off and landing in congested areas easy, and allowing payloads to be installed both inside and underneath the platform. The internal modular payload bay allows users to equip two different sensors for multi-mission versatility, or install an additional battery for extended flight time. It can also be adapted to carry packages of up to 200 x 180 x 90 mm in size.

The ATAK-compatible aircraft's aerial intelligence capabilities include autonomous target tracking, automatic following, high-resolution onboard recording, precise target positioning, Cursor on Target integration, and video-based position correction. It is provided with a MIL-STD toughbook ground controller, and is available with various radio and data link options with the Silvus Streamcaster as standard.

Specifications:
