Unmanned Helicopters & Helicopter Drones

What Are Unmanned Helicopters?

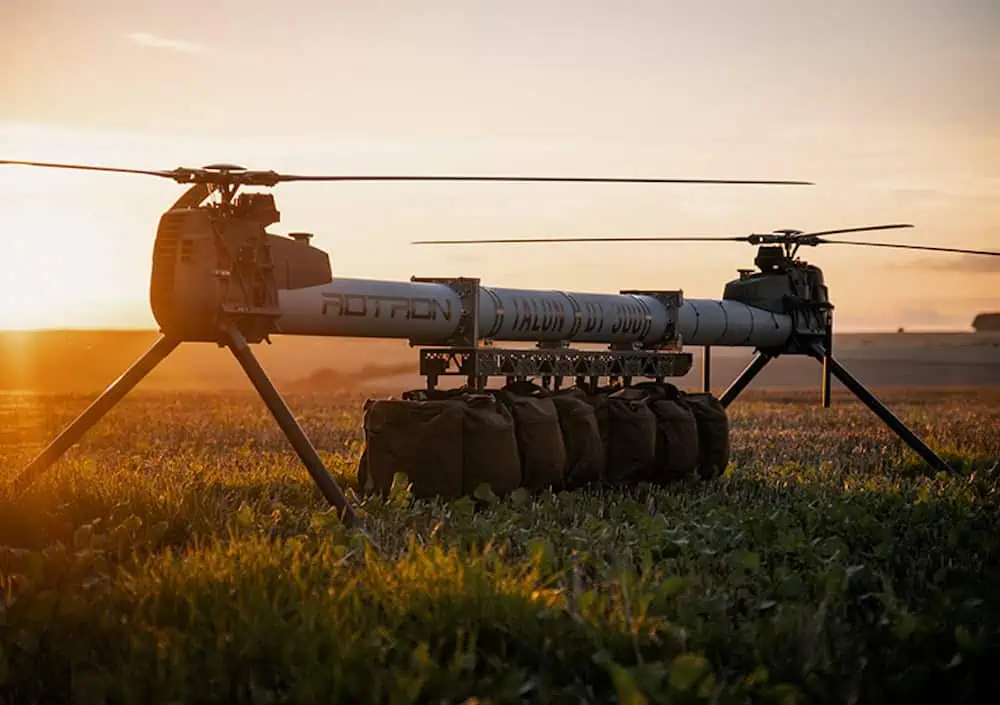

Helicopter drones are unmanned aircraft that operate on the same flight principles as manned helicopters, utilizing spinning rotors to generate lift and thrust. The predominant rotor configuration features a single main rotor complemented by a tail rotor to counteract torque. Alternative designs, such as tandem rotor and tilt rotor UAVs, also exist, employing rotors mounted on rotating engine pods that adjust angles to facilitate vertical lift or forward flight.

These drones can be purpose-built or adapted from existing manned platforms. Some models offer the versatility to switch between piloted and unmanned operations, earning the designation of Optionally Piloted Vehicles (OPVs). This adaptability allows for a broader range of missions and operational flexibility.

Table of contents:

• Helicopter Drone Propulsion Systems
• Commercial Applications for Unmanned Helicopters
• Military and Defense Applications for Unmanned Helicopters
• Unmanned Helicopters Comparison with Other Drone Types
• Technological Advancements
• Challenges and Considerations
• Future Prospects for Helicopter Drones

Helicopter Drone Propulsion Systems

The propulsion mechanisms of helicopter drones vary based on their size and intended use:

• Gasoline or diesel engines: Medium to large rotary-wing UAVs typically utilize internal combustion engines due to their higher energy density compared to batteries, allowing for extended flight durations and heavier payload capacities.


  Galaxy Unmanned Helicopter by Innoflight Technology

• Electric motors: Smaller helicopter drones, including micro and nano UAVs, often rely on electric motors powered by lithium-ion or lithium-polymer batteries. While these provide a quieter operation and lower maintenance, their flight endurance is limited compared to fuel-powered alternatives.
• Fuel cell systems: Some advanced unmanned helicopters incorporate hydrogen fuel cells, which generate electricity through a chemical reaction. Fuel cells offer a higher energy density than batteries, producing fewer emissions than combustion engines while providing longer endurance than purely electric designs.
• Solar power: Some experimental and specialized helicopter drones incorporate solar panels to extend flight time by harnessing renewable energy. While not yet widely used due to the power demands of rotary-wing aircraft, solar-assisted UAVs may play a role in long endurance missions, especially for lightweight designs.

Each propulsion type has tradeoffs in terms of endurance, efficiency, and operational flexibility, making them suitable for different applications across military, commercial, and industrial sectors.

Commercial Applications for Unmanned Helicopters

In the commercial sector, helicopter drones have carved out essential roles across various industries:

• Precision agriculture: Equipped with multispectral sensors, UAVs monitor crop health, optimize irrigation, and manage pests, leading to increased yields and resource efficiency.


  Shadow S3 Unmanned Helicopter by ZIYAN Tech

• Infrastructure inspection: Drones facilitate the inspection of power lines, wind turbines, and pipelines, offering a safer and more cost-effective alternative to manual inspections.
• Emergency response: In disaster-stricken areas, UAVs assess damage, deliver medical supplies, and assist in search and rescue operations, providing rapid situational awareness to first responders.
• Maritime operations: Used for offshore inspections, ship-based reconnaissance, and cargo delivery.
• Environmental monitoring: Ideal for tasks such as wildlife tracking, forest fire monitoring, and atmospheric data collection.
• Construction and surveying: Used in large-scale surveying, site monitoring, and asset management.

Military and Defense Applications for Unmanned Helicopters

Helicopter drones have become indispensable assets in modern military operations:

• Intelligence, surveillance, and reconnaissance (ISR): UAVs conduct persistent surveillance, monitor enemy movements, and gather critical intelligence without risking human lives.
• Tactical resupply: Autonomous helicopters transport supplies to frontline units, ensuring timely delivery of ammunition, food, and medical supplies, thereby enhancing operational sustainability.
• Search and rescue: In hostile or inaccessible environments, UAVs locate and extract injured personnel, significantly improving survival rates.

Unmanned Helicopters Comparison with Other Drone Types

Helicopter Drones vs Fixed-Wing Drones

Helicopter drones offer VTOL capability, precise hovering, and maneuverability in tight spaces, making them ideal for urban operations, surveillance, and cargo delivery. However, they have shorter endurance and require more maintenance due to complex rotor systems.

Velos V3 Helicopter Drone by Velos Rotors

Fixed-wing drones provide longer flight times, higher speeds, and greater efficiency, making them better suited for large-area mapping, reconnaissance, and long-range missions. They require runways or launch systems and cannot hover.

The choice depends on mission needs: helicopter drones for precision tasks, fixed-wing drones for endurance. Hybrid VTOL drones are emerging, combining both advantages.

Helicopter Drones vs Multirotor Drones

Helicopter drones use a single main rotor and tail rotor, providing greater endurance, higher speeds, and heavier payload capacity than multirotor drones. They are ideal for longer missions, cargo transport, and military applications.

Multirotor drones, with four or more rotors, excel in stability, precise hovering, and ease of use, making them preferable for aerial photography, inspections, and short-range operations. However, they have shorter flight times and lower payload capacity.

Helicopter drones suit demanding, long-range tasks, while multirotor drones are best for quick, agile, and close-quarters operations. The choice depends on endurance, maneuverability, and payload needs.

Technological Advancements

Recent developments have propelled helicopter drone capabilities:

• Autonomous flight systems: Advancements in artificial intelligence and machine learning enable UAVs to perform complex tasks autonomously, such as obstacle avoidance and dynamic mission planning.
• Enhanced payload capacities: Innovations in materials and design have increased payload capacities, allowing drones to carry heavier and more diverse equipment, from high resolution sensors to delivery packages.
• Extended flight endurance: Improvements in propulsion and energy storage technologies have led to longer flight times, expanding the operational range and mission duration of helicopter drones.

Challenges and Considerations

Despite their numerous advantages, helicopter drones face challenges:

• Airspace integration: Safely integrating UAVs into crowded airspaces requires robust traffic management systems and clear communication protocols with manned aircraft.
• Security concerns: The potential misuse of drones for malicious purposes necessitates the development of counter-UAS technologies and regulatory measures to mitigate threats.
• Public perception and privacy: Addressing public concerns about privacy invasion and noise pollution is crucial for the widespread acceptance of drone technology.

Future Prospects for Helicopter Drones

The trajectory of helicopter drone technology points toward increased autonomy, efficiency, and broader operational capabilities. Ongoing research and innovation aim to overcome current limitations, paving the way for more sophisticated and reliable UAV systems.

•

  UVH-170 Helicopter Drone by UAVOS Inc.

  AI-driven swarm technology – Advances in artificial intelligence and machine learning are enabling cooperative drone swarms, where multiple helicopter drones work together autonomously. This capability is particularly valuable for military operations, disaster response, and large-scale infrastructure inspections.

• Enhanced rotor efficiency – Innovations in blade aerodynamics, lightweight composite materials, and adaptive rotor designs are improving fuel efficiency and endurance. Future helicopter drones may feature morphing rotor blades that adjust shape mid-flight for optimal performance.
• Hybrid power systems – The integration of electric motors with fuel-based propulsion is emerging as a game-changer, combining the silent operation of electric power with the extended range of combustion engines or hydrogen fuel cells. These hybrid systems will allow for longer flight durations and greater mission flexibility.
• Quantum computing and navigation – While still in its early stages, quantum computing holds the potential to revolutionize UAV navigation, encryption, and real-time data processing. Quantum-enhanced GPS alternatives could allow helicopter drones to navigate with extreme precision in GPS-denied environments, such as urban canyons or conflict zones.

As these advancements continue to evolve, helicopter drones will become more autonomous, efficient, and capable, expanding their role across industries and redefining the possibilities of unmanned aviation.
