SwissDrones is a leading developer and manufacturer of VTOL UAV helicopters that provide superior endurance for long-range inspections, surveillance, and search & rescue missions.

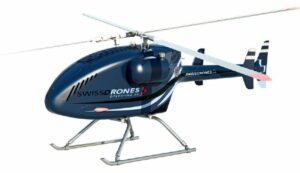

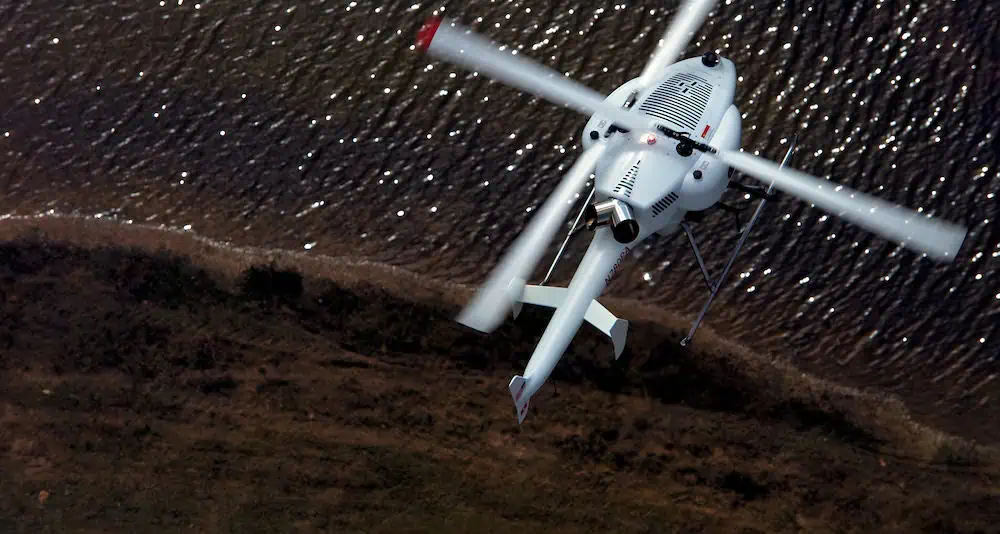

SDO 50 V2 Helicopter UAV

Long-range autonomous helicopter drone for inspections, surveillance, search & rescue, and monitoring

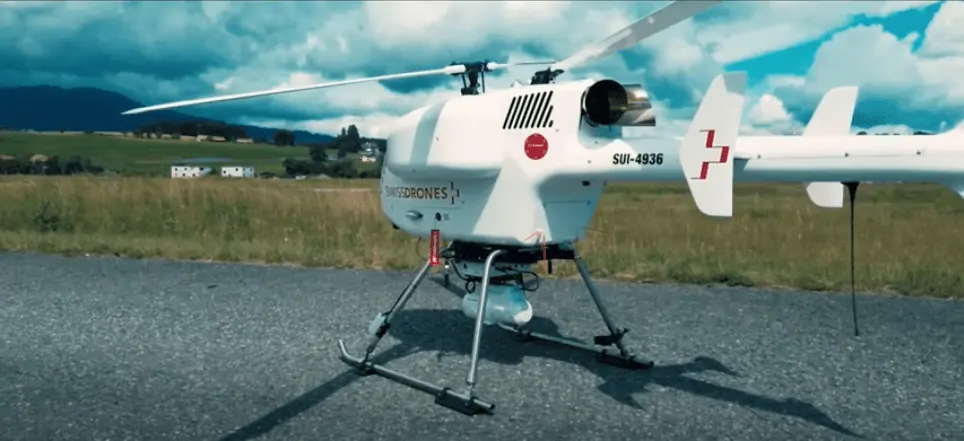

The SDO 50 V2 is a state-of-the-art unmanned helicopter with a flight endurance of over 3 hours and the ability to operate day or night in adverse weather conditions, such as rain, snow and wind speeds of up to 21 knots.

Based around a proprietary Flettner intermeshing double rotor design, the SDO 50 V2 offers enhanced payload capacity and flight stability.

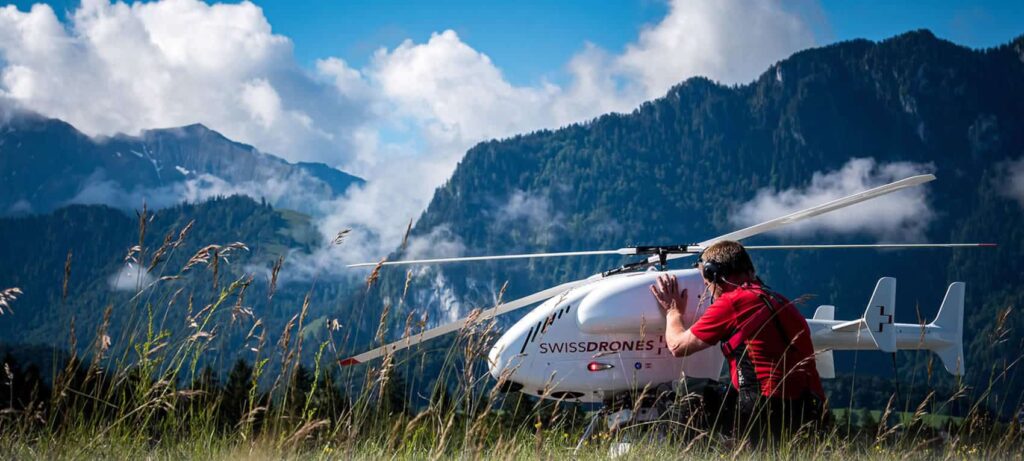

The VTOL (vertical take-off and landing) system is highly cost-effective compared to manned aerial solutions, and requires less training to operate confidently. The rapidly deployable aircraft is transportable by van and can be prepared for flight by a team of two in just 15 minutes.

The SDO 50 V2 UAV is equipped with an advanced autopilot and high-performance GPS receiver and magnetometer, with optional redundant systems. The aircraft’s datalink consists of a primary S-band link and a secondary UHF-band link, with additional LTE/4G capabilities available upon request.

The standard data link range of 40 km of the SDO 50 V2 can be further extended upon demand for longer-range missions.

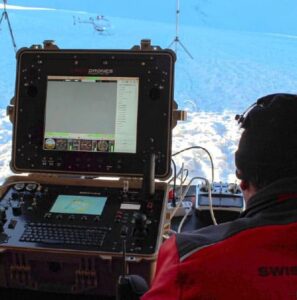

The helicopter UAV is controlled via a rugged portable GCS (ground control station), which features a built-in keyboard, monitor, and 3-axis joysticks.

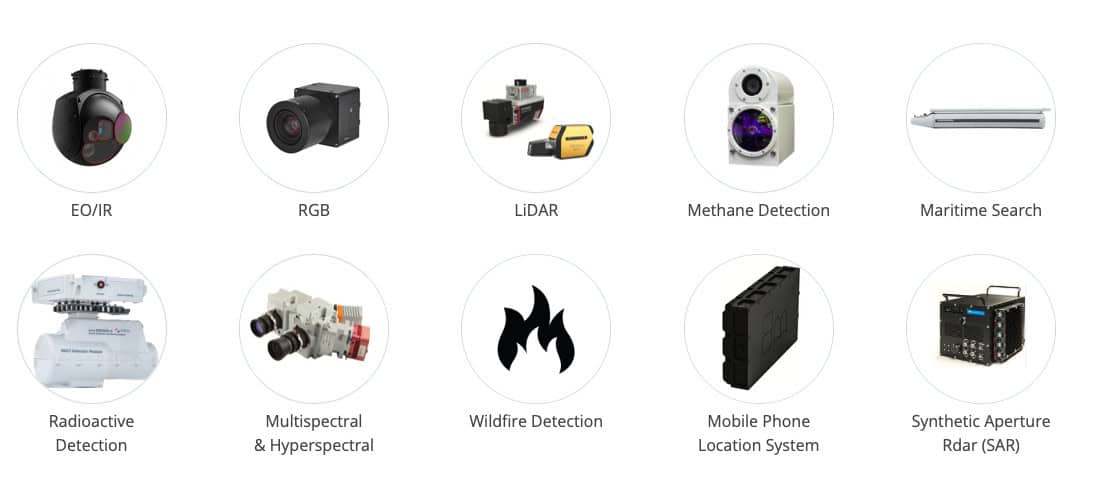

Versatile UAV for multiple (exchangeable) payloads

With its superior carrying capacity, the SDO 50 V2 can carry multiple sensors and payloads for versatile long-range mission capabilities and large flight autonomy. We offer a range of leading sensor solutions as standard.

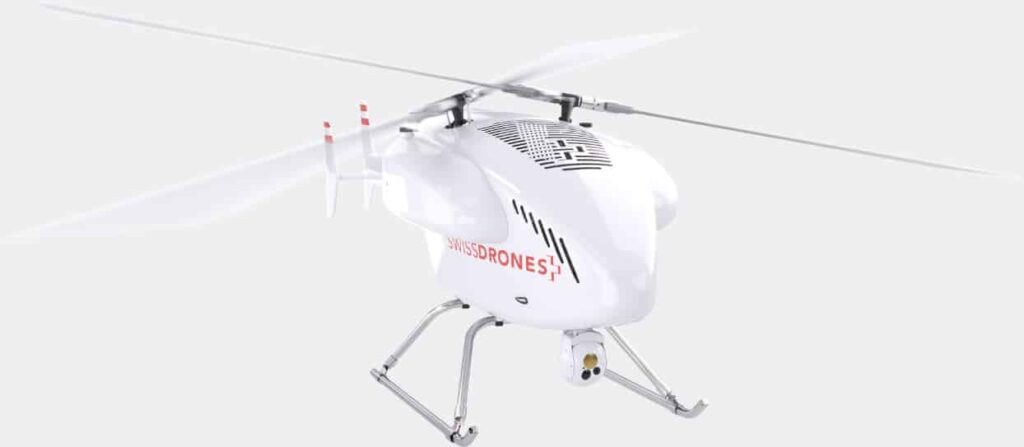

Gyro-stabilized quad-sensor EO/MWIR gimbal with illuminator and laser rangefinder
Long-range LiDAR scanner payload for corridor and area mapping, with integrated IMU/GPS and 50MP camera
Laser methane detector for gas leaks and gas field exploration
Hyperspectral camera – line-scan camera for visible and NIR imagery
Airborne imaging system specially designed for vessel detection in vast stretches of ocean
Radioactive particle detector – ideal for routine monitoring as well as post-incident response

Specifications

Dimensions (L x W x H)	2.32 x 0.7 x 0.92 m
Rotor diameter	2 x 2.82 m
Empty weight	42 kg
Max payload	45 kg (including fuel)
Max flight time	Up to 3.1 hrs
Engine	High-performance turbine (JET A1)
Fuel consumption	Approx. 15 litres/hr
Max fuel capacity	Main tank 13 litres; additional add-on tanks available
Max indicative air speed	20 m/s (72 km/h)
Max service ceiling	10,000 ft (3000 m) AMSL

More information: SwissDrones SDO 50 V2 Helicopter UAV

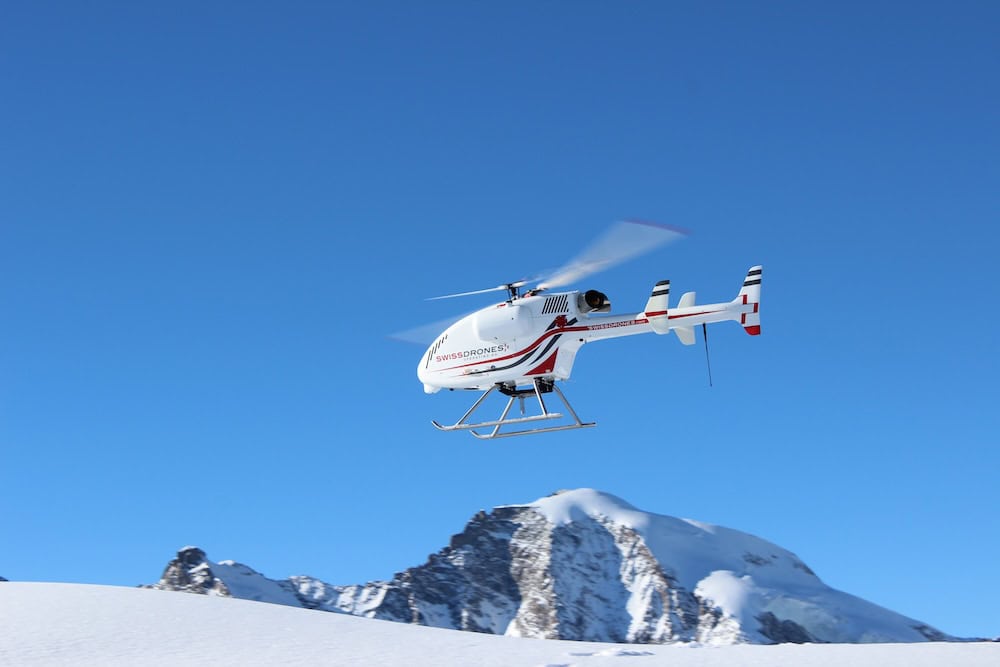

High altitude flights

The SDO 50 V2 has been successfully tested at 11,500 ft AMSL (density altitude) at -10 degree Celsius and windy conditions. During the tests the aircraft has demonstrated its feasibility for flight missions in challenging environments.

Applications

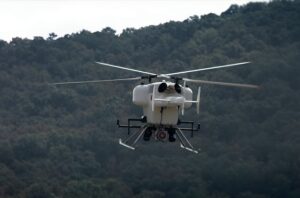

Surveillance
With low-noise emissions and the ability to operate day or night even under adverse weather conditions, the SDO 50 V2 unmanned helicopter is an ideal surveillance platform for emergency response, border control, law enforcement and coastal patrolling. Learn more >

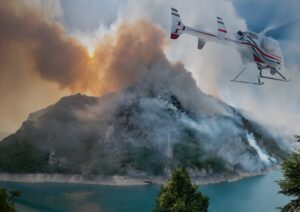

Search & Rescue UAV
The SDO 50 V2 can be used to support search and rescue missions in hazardous or inaccessible areas. The UAV can also be used to deliver emergency gear such as survival kits, medical supplies and life rafts. Learn more >

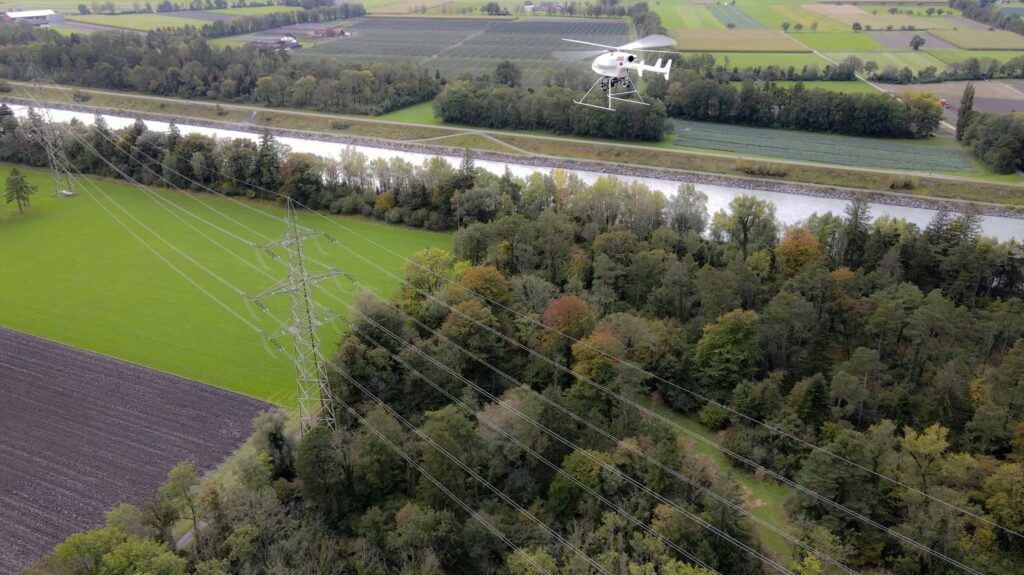

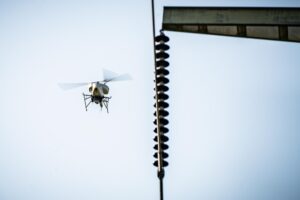

Inspection and Monitoring
The SDO 50 V2 is ideal for a wide range of UAV inspection and monitoring applications, with reliable and efficient aerial data gathering capabilities that can address customer-specific needs for critical infrastructure, environmental monitoring, oil and gas, wildlife monitoring and more.
Learn more >

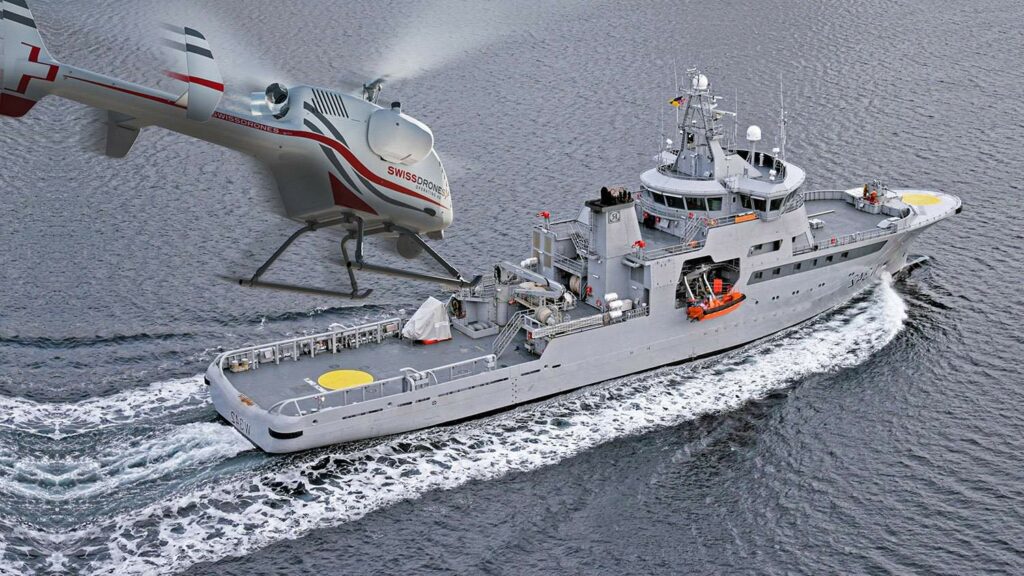

Maritime Drone
Able to take off and land from a small footprint on the deck of a ship, the SDO 50 V2 is a crucial asset for marine and maritime operations.
