Sky Power International explores the differences between two-stroke and Wankel propulsion systems for Unmanned Aerial Vehicles (UAVs), outlining how each engine type supports specific operational and integration requirements across unmanned platforms.

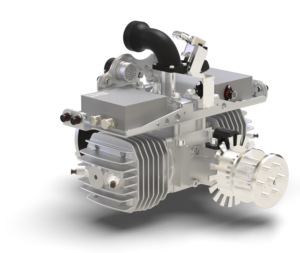

Fig. 1: Sky Power International SP-110 FI TS twostroke engine with fuel injection
Selecting a propulsion system for a UAV directly affects endurance, payload capacity, integration, maintenance requirements, and operating costs. In applications such as tactical operations, long-range missions, and sensor-based reconnaissance, the engine functions as a core system component rather than a secondary subsystem. Two propulsion technologies commonly used in UAVs are the two-stroke piston engine and the Wankel rotary engine, each offering different operational characteristics and system advantages.
Two-stroke engines use a reciprocating piston design with intake, compression, combustion, and exhaust completed within a compact two-stroke cycle. Their relatively simple construction, low component count, and favorable power-to-weight ratio have supported widespread use in UAV platforms where robustness, scalability, and cost efficiency are priorities. The simplified mechanical design can also reduce maintenance complexity and support operation in remote or field-based environments.

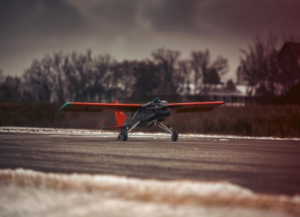

Fig. 2: The Nimkii 42-S standard UAV platform from Sky Canoe in Canada uses a single-cylinder two-stroke SP-55 FI TS ROS engine as the power unit for its transport UAV
A further advantage of two-stroke propulsion is high power output relative to system weight, an important factor in UAVs where weight affects payload capability, range, and flight duration. Sky Power’s SP-110 FI TS fuel-injected two-stroke engine reflects this design approach. Two-stroke engines are also generally less expensive to manufacture and can operate in multiple mounting orientations because they do not require a traditional oil sump.
The limitations of the two-stroke concept include higher fuel consumption, increased vibration levels, and reduced smoothness of operation. In UAVs carrying sensitive ISR or electro-optical payloads, these characteristics can require additional vibration isolation and structural decoupling measures.

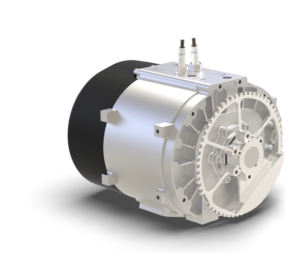

Fig. 3: Sky Power International SP-180 single-disc Wankel engine
Wankel engines use a triangular rotor inside a specially shaped housing rather than reciprocating pistons. This rotary design produces smooth power delivery with lower vibration levels, making the technology suitable for UAVs equipped with optical, electro-optical, and reconnaissance payloads. Reduced vibration can support stable operation of imaging and surveillance systems.
The compact geometry of the Wankel engine also supports installation in UAVs with limited internal space. Sky Power’s SP-180 single-disc Wankel engine is designed for compact integration and smooth operation. Unlike air-cooled two-stroke engines, Wankel engines use water and oil cooling systems, and many models can operate on multiple fuel types including gasoline, JP-8, and Jet A1.
From a systems perspective, two-stroke engines are commonly used where lightweight design, straightforward maintenance, and operational affordability are primary requirements. Wankel engines are typically selected for UAVs requiring low-vibration operation, compact integration, and compatibility with sensitive payload systems. Propulsion selection therefore depends on mission profile, payload requirements, integration constraints, and operational priorities.
