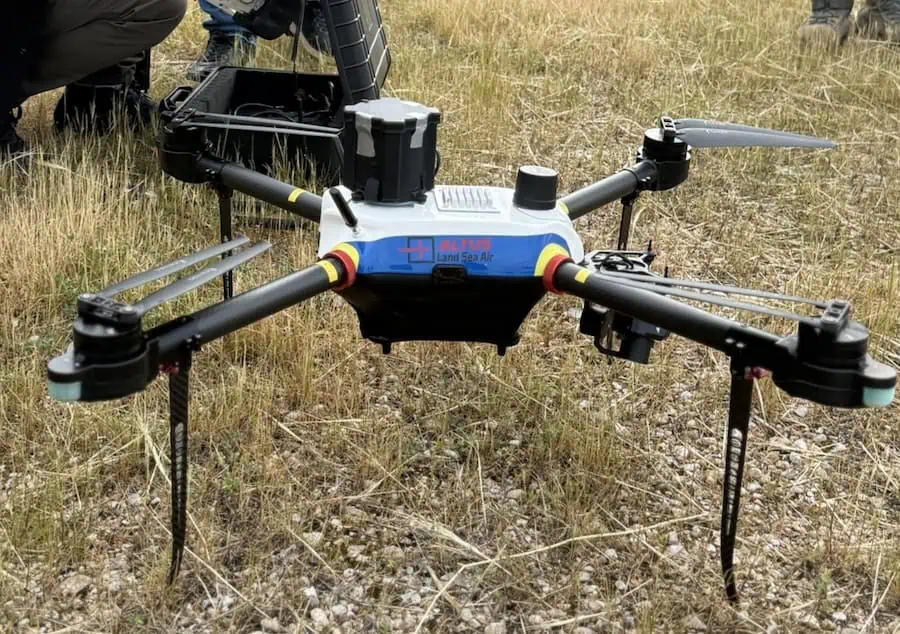

The ATLAS 204 A20 quadcopter UAS is ALTUS LSA's smallest drone platform, designed to require only a small logistical footprint and to be rapidly deployed by a single operator in under 2 minutes. Offering a payload capacity of 2 kg and a mission endurance of up to 45 minutes, it features AES-128 or 256 encrypted communications and redundant safety systems for maximum reliability.
With a reconfigurable payload hub, the versatile UAS can be equipped to undertake a wide range of missions including military ISR, security surveillance, industrial monitoring, and precision agriculture. Designed to IP44 standards with a rugged synthetic and stainless steel construction and enhanced electromagnetic protection, it ensures reliable performance under challenging environmental conditions.
Specifications:
| Dimensions (L x W x H): |
300 x 300 x 380 mm (folded) 650 x 650 x 380 mm (deployed) |
| Max Payload Capacity: | 2 kg |
| MTOW: | 6.5 kg |
| Endurance: | 35 – 45 mins at max payload (depending on configuration) |
| Telemetry & Video Range: | 15 km RF LOS |
| Flight Ceiling: | 9000 ft |
| Communications Frequency: |
915 MHz & 2.4 GHz AES-128 & 256 encryption |
