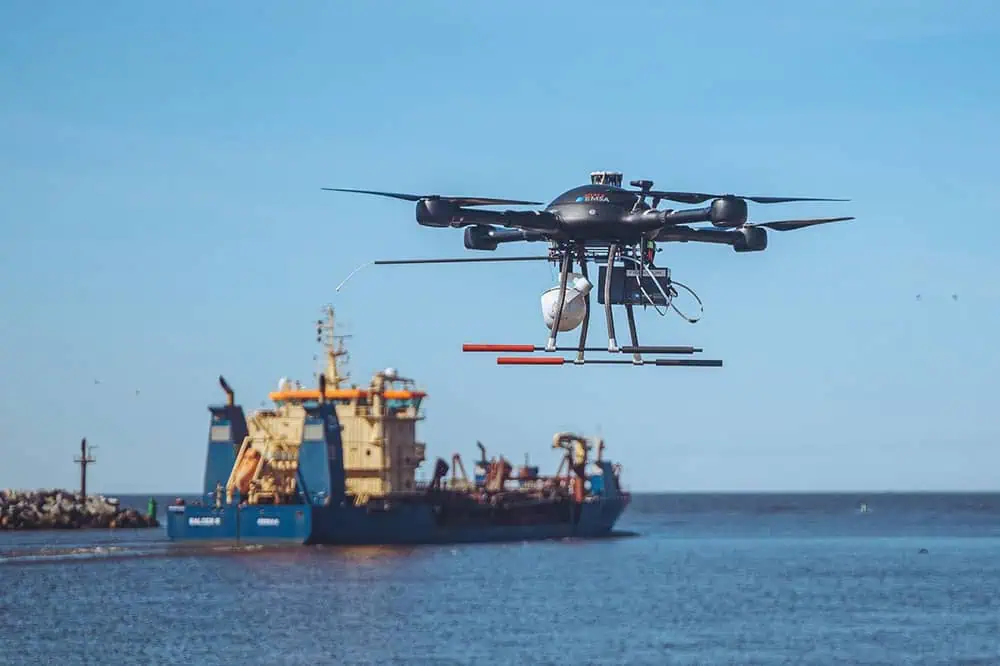

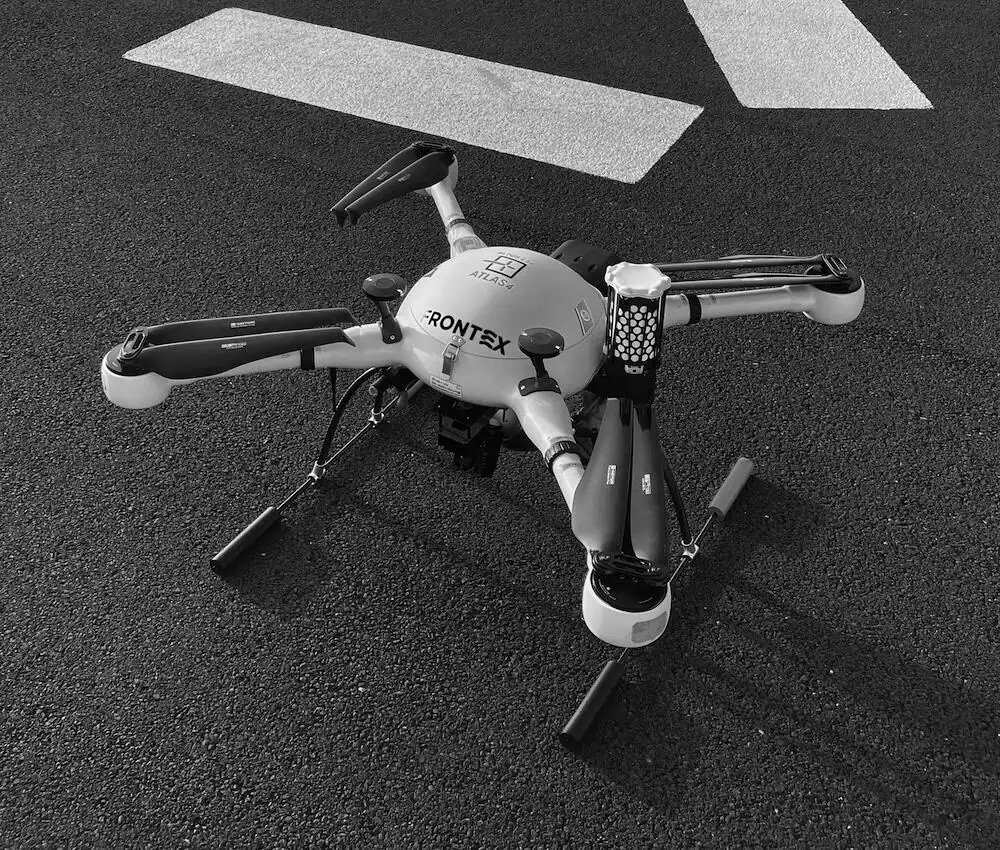

ATLAS 4
The ATLAS 4 is an advanced multirotor UAS designed to provide capabilities that outmatch those of standard quadcopter platforms. With a 6kg carrying capacity, it features a reconfigurable payload hub and is ideal for military ISR, industrial monitoring, and light cargo delivery.
The aircraft is designed to IP43 ingress protection standards, and can be optionally upgraded to IP55. It can withstand winds of up to 10 m/s (Beaufort 5) and is equipped with AES- 128 and 256 encrypted communications.
Specifications:
| Dimensions (L x W x H): |
460 x 460 x 490 mm (folded) 810 x 810 x 490 mm (deployed) |
| Max Payload Capacity: | 6 kg |
| MTOW: | 15.2 kg |
| Endurance: | 60 – 84 mins (depending on configuration) |
| Telemetry & Video Range: | 25 - 30 km LOS |
| Flight Ceiling: | 9000 ft |
| Communications Frequency: |
2.4 GHz AES-128 & 256 encryption |
| Max Speed: | 18 m/s (65 km/h) |
