Fixed-wing mapping drones are UAV platforms designed to capture high-accuracy geospatial data across large areas with greater endurance and coverage than multirotor aircraft. Used for land surveying, precision agriculture, and infrastructure inspection, these systems combine autonomous flight control, advanced navigation technologies, and specialized mapping payloads.
This page features leading fixed-wing mapping UAV manufacturers and VTOL mapping drone suppliers, offering solutions optimized for efficient data acquisition, long-range operations, and survey-grade performance.
Read the Technology Overview
Advanced VTOL & Fixed-Wing UAVs | State-Of-The-Art Technologies for Unmanned & Autonomous Aircraft
Fully Autonomous Multirotor Drones & Hybrid VTOL UAVs With AI Capabilities
Fixed-Wing UAV Systems: Modular VTOL, Long-Range Maritime UAV, Tactical ISR UAS
Dual-Use Unmanned Aircraft for Logistics, Medical Transport, ISR & Tactical Support
Long-Endurance Fixed-Wing & Hybrid VTOL UAVs | UAV Payload Camera Systems | Power Systems
Tactical Hybrid VTOL UAS & Loitering Systems for Multi-Domain Operations
Innovative Turnkey UAS Solutions for Mission-Critical Civilian & Defense Applications
Fixed-Wing Hybrid Drones for Long-Range Medical Package Delivery & Infrastructure Inspections
Customizable, Long-Range Fixed-Wing Drones - Twin-Wing Design Heavy Lifting Drones
Advanced UAV & Unmanned Systems for Challenging Missions in Government, Defence & Commercial Applications
Versatile Fixed-Wing & VTOL Unmanned Aerial Vehicles (UAVs) for Long-Range Civilian, Commercial & Military Applications
Combat-Proven UAS Designed for Mission-Critical & Life-Saving Military Applications
Commercial Drones for Delivery, Surveying, Agriculture, Security & Mapping - Target Drones - UAS GCS
Fixed Wing VTOL UAV for Autonomous Mapping, Surveillance, Inspection and Cargo Applications
Autonomous UAS, Research & Inspection UAVs for Industrial Inspection, Survey & Mapping
If you design, build or supply Fixed-Wing Mapping Drones, create a profile to showcase your capabilities and connect with visitors who have an active requirement for your solutions.
Fixed-wing mapping drones represent a specialized class of Unmanned Aerial Vehicles (UAVs) engineered to gather high-fidelity geospatial data across expansive areas with maximum aerodynamic efficiency. Unlike multirotor platforms that depend on continuous powered lift, a fixed-wing aerial mapping drone utilizes its fixed airframe geometry to generate lift passively as it moves forward. This fundamental aerodynamic difference allows for significantly extended flight times, higher cruise velocities, and unparalleled area coverage per deployment. These characteristics make fixed-wing platforms key for large-scale surveying, environmental monitoring, precision agriculture, asset management, and defense intelligence operations.

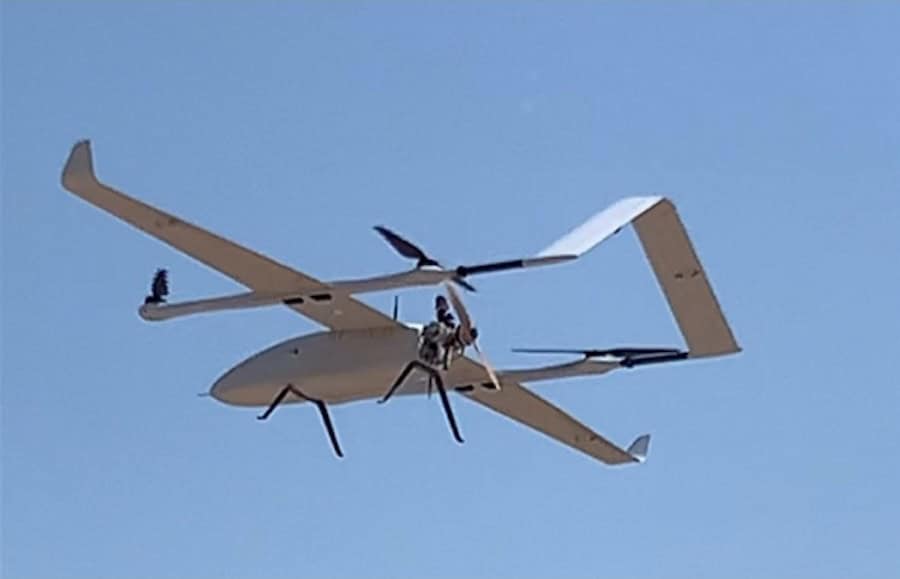

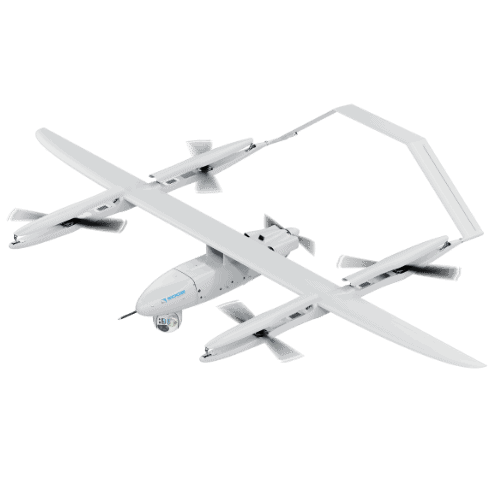

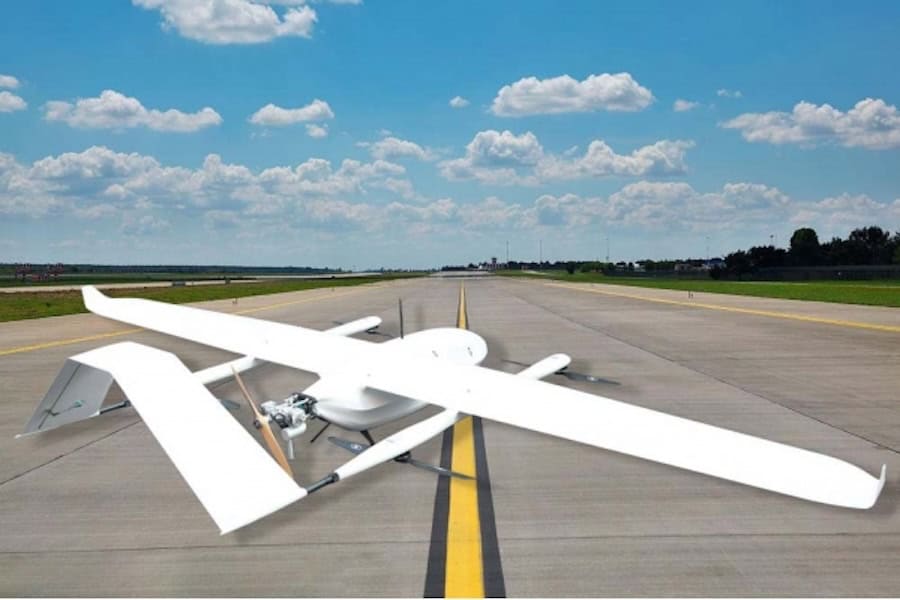

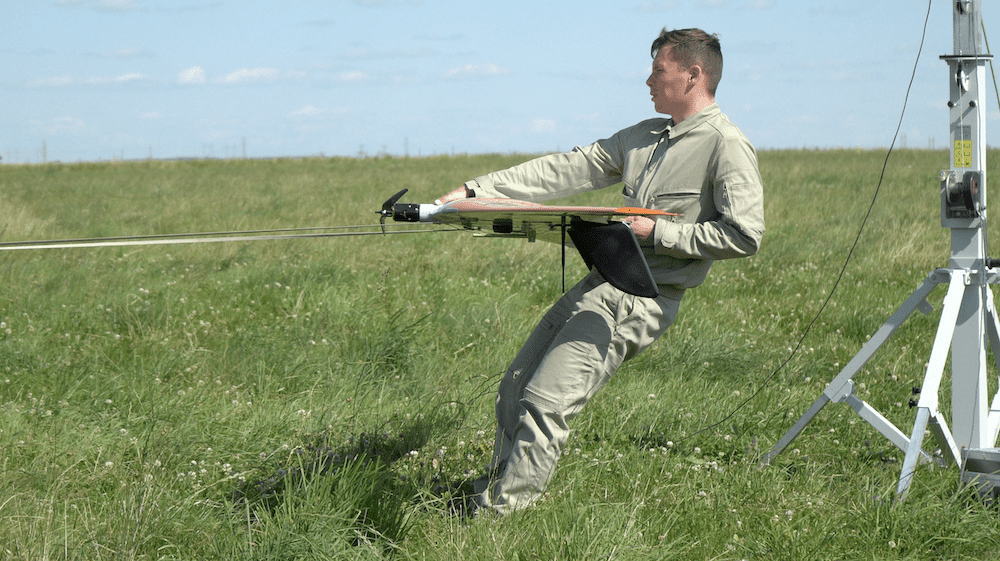

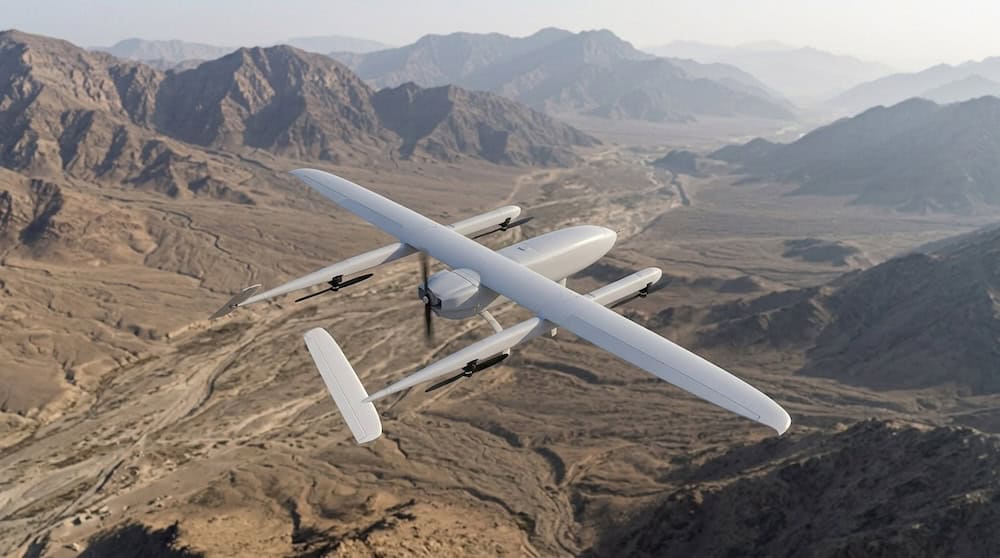

Modern fixed-wing mapping UAV platforms integrate autonomous flight control architectures, multi-constellation navigation networks, calibrated high-resolution sensors, and advanced photogrammetry pipelines. Specialized configurations such as VTOL mapping drones incorporate a hybrid architecture that integrates dedicated lift rotors to remove the need for pneumatic launch equipment or expansive clear zones for landing. Whether mapping vast agricultural acreage or generating rapid terrain intelligence for tactical deployment, these advanced aircraft provide engineering professionals with a precise balance of endurance, accuracy, and operational flexibility.
Engineering firms and surveyors leverage fixed-wing platforms to generate high-density orthomosaics, digital terrain models, contour maps, and GIS layers for civil engineering, infrastructure planning, and cadastral surveying. Throughout the asset lifecycle, these mapping drones provide stakeholders with highly repeatable site surveys, volumetric calculations for earthworks, progress tracking, and accurate baseline data for building digital twins. Project managers use these regular updates to verify that work on the ground matches the original engineering designs exactly.
Agribusinesses deploy fixed-wing systems to monitor crop health, assess drainage and irrigation efficiency, detect nutrient stress, and optimize input distribution across thousands of hectares in a single day. Collecting data at this scale enables large-scale farming operations to spot localized issues early, protecting yields while lowering chemical costs.
Pipelines, rail networks, and high-voltage transmission lines span vast distances. Fixed-wing platforms map these corridors continuously, capturing high-resolution imagery and structural data without interrupting utility operations or requiring dangerous manual inspections.
Government and research institutions use fixed-wing platforms to track coastal erosion, monitor wetland degradation, map wildlife migration patterns, and study ecosystem shifts over macro-geographical areas. In forestry, these same systems assist in calculating canopy closure, estimating biomass, planning harvest sectors, inventorying timber volume, and mapping wildfire burn scars.
Fixed-wing UAVs handle the unique challenges of marine environments, mapping shorelines, tracking sand dynamic shifts, assessing coral health, and monitoring offshore infrastructure installations. The extended flight radius is crucial here, allowing the aircraft to cover open water and complex coastal zones that are difficult to reach by boat.
Following extreme weather, seismic events, or industrial accidents, rapid geospatial intelligence is vital. Fixed-wing mapping drones deploy quickly to assess damage, map passable routes, and deliver situational awareness to emergency response commanders. In military settings, defense forces utilize these same mapping capabilities for tactical terrain analysis, route reconnaissance, mission rehearsal modeling, and battlespace visualization.
Selecting the optimal payload suite is critical for maximizing data fidelity and matching the specific requirements of the geospatial mission.
| Sensor Category | Core Operational Function | Primary Industry Applications |
| RGB Mapping Cameras | High-resolution, full-frame imaging featuring mechanical shutters to completely mitigate motion blur. Processes into survey-grade orthomosaics and 3D point clouds. | Cadastral surveying, civil engineering, construction progress tracking, and infrastructure planning. |
| Multispectral Cameras | Captures discrete wavebands beyond visible light, specifically focused on the red-edge and near-infrared (NIR) spectrums. | Agriculture, precision farming, crop health indexing (NDVI), and macro environmental stress analysis. |
| Hyperspectral Cameras | Records narrow, contiguous spectral bands across a broad spectrum to identify precise chemical signatures of target objects. | Advanced geological mineral mapping, precise vegetative species identification, and environmental science research. |
| Thermal Imaging Systems | Long-wave infrared (LWIR) sensors calibrated to track exact surface temperature differentials across large areas. | Pipeline leak detection, geothermal surveys, target tracking, and disaster-recovery search and rescue. |

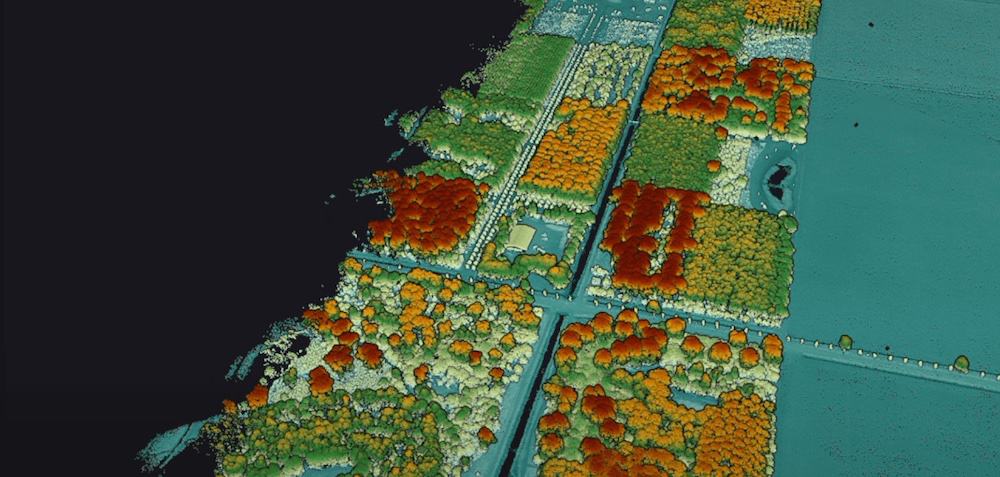

| LiDAR Sensors for 3D Mapping | Active laser scanners emitting pulse arrays that bounce back to establish precise spatial positioning, effectively cutting through dense ground cover. | Forestry canopy assessment, structural volume calculations, and digital elevation modeling (DEM) in dense vegetation. |
| Synthetic Aperture Radar (SAR) | Active microwave imaging systems designed to render terrain data independently of cloud cover, smoke, fog, or variable illumination. | All-weather defense ISR, tactical maritime surveillance, and emergency macro-damage mapping. |
Industrial mapping airframes balance aerodynamic lift, structural durability, and internal volume. The selected architecture dictates payload capacity, crosswind limits, and cruise efficiency.

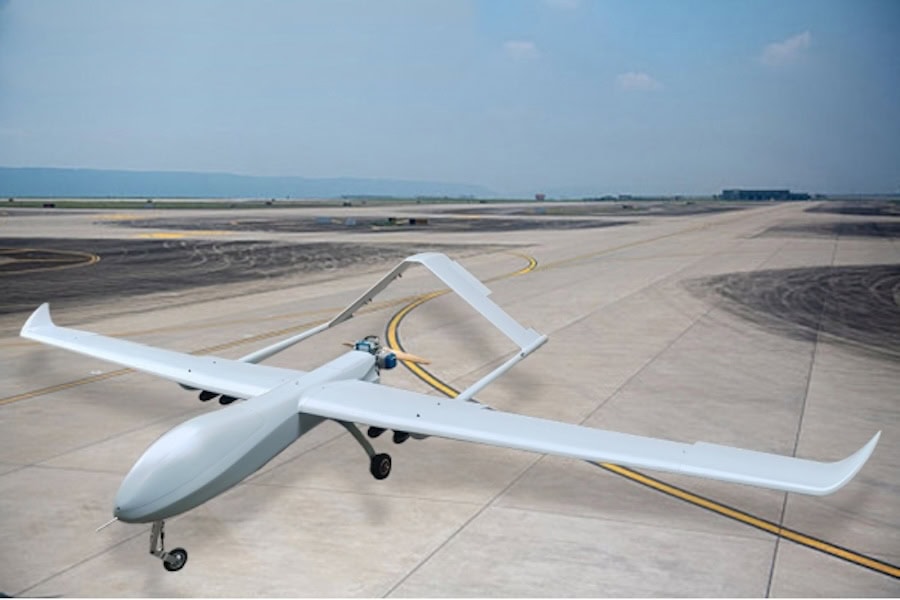

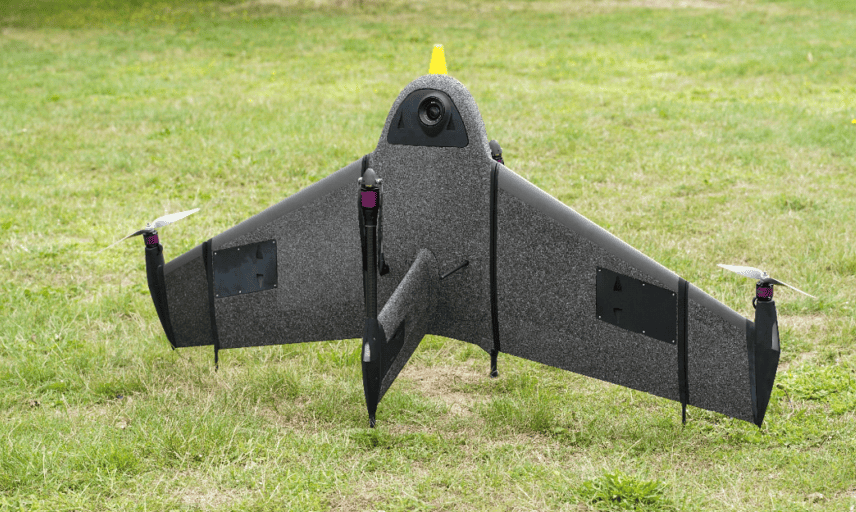

Conventional layouts feature a distinct fuselage and tail assembly, providing excellent stability and predictable handling in turbulent air. Conversely, flying-wing designs eliminate the tail entirely to maximize aerodynamic efficiency and structural simplicity, resulting in a durable, low-drag platform.
Modern platforms employ a strategic mix of materials. Expanded Polypropylene (EPP) foam carbon-reinforced structures offer impact resilience and field repairability for rugged environments. High-performance composite platforms, utilizing carbon fiber and Kevlar layups, provide the torsional rigidity and weatherproofing required for high-wind, heavy-payload commercial operations.
Aspect ratio, airfoil selection, and wing loading directly affect flight stability. Mapping platforms prioritize high-aspect-ratio wings to reduce induced drag and damp out high-frequency atmospheric turbulence, ensuring stable sensor pointing and consistent image overlap.

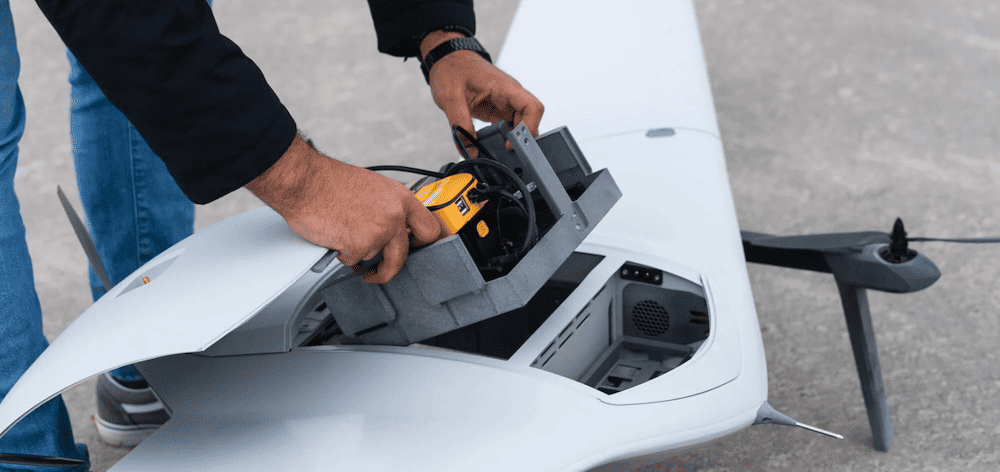

Internal bay architecture must isolate delicate optical and sensor components from high-frequency propulsion vibrations. Electromagnetic shielding is critical to prevent interference between high-draw payload components, internal flight controllers, and telemetry transceivers.

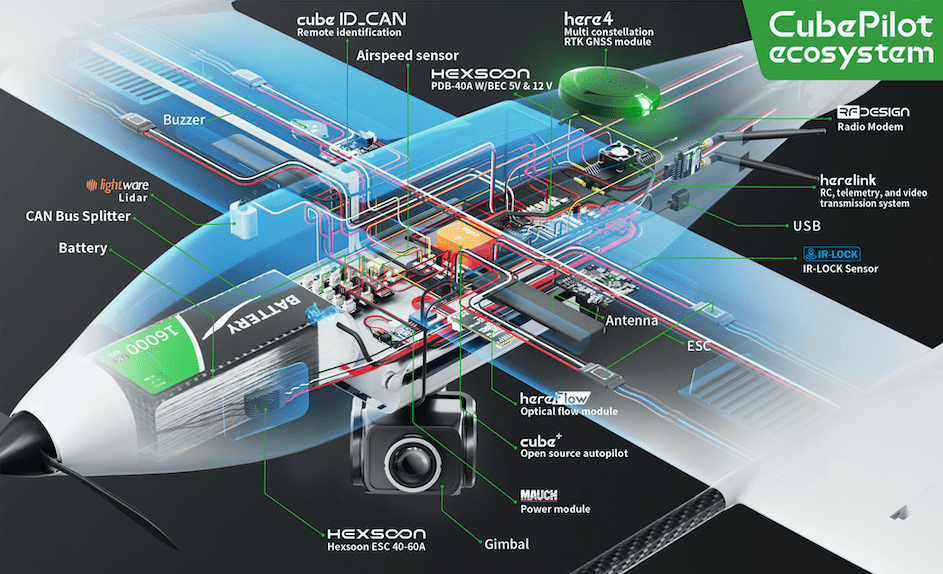

The core operational reliability of industrial mapping platforms depends heavily on a deeply integrated suite of avionics, positioning hardware, and adaptive navigation routines.
These interconnected subsystems collectively ensure that the aircraft functions as an accurate, deterministic data acquisition laboratory throughout the flight profile.
Recent technological convergence is shifting fixed-wing platforms from passive, sequential data loggers into reactive, intelligent aerial assets.
These foundational advancements in computing density and alternative navigation ensure that large-scale geospatial intelligence collection remains resilient under increasingly hostile or complex field conditions.
