Fixed-Wing Hybrid VTOL UAVs - Electric & Petrol - for Endurance Operations
Tango VTOL UAV Long-range tactical UAV with multiple propulsion system options
Tango VTOL UAV

Long-range tactical UAV with multiple propulsion system options

Visit Website Contact
Saved
Save
Tango VTOL UAV

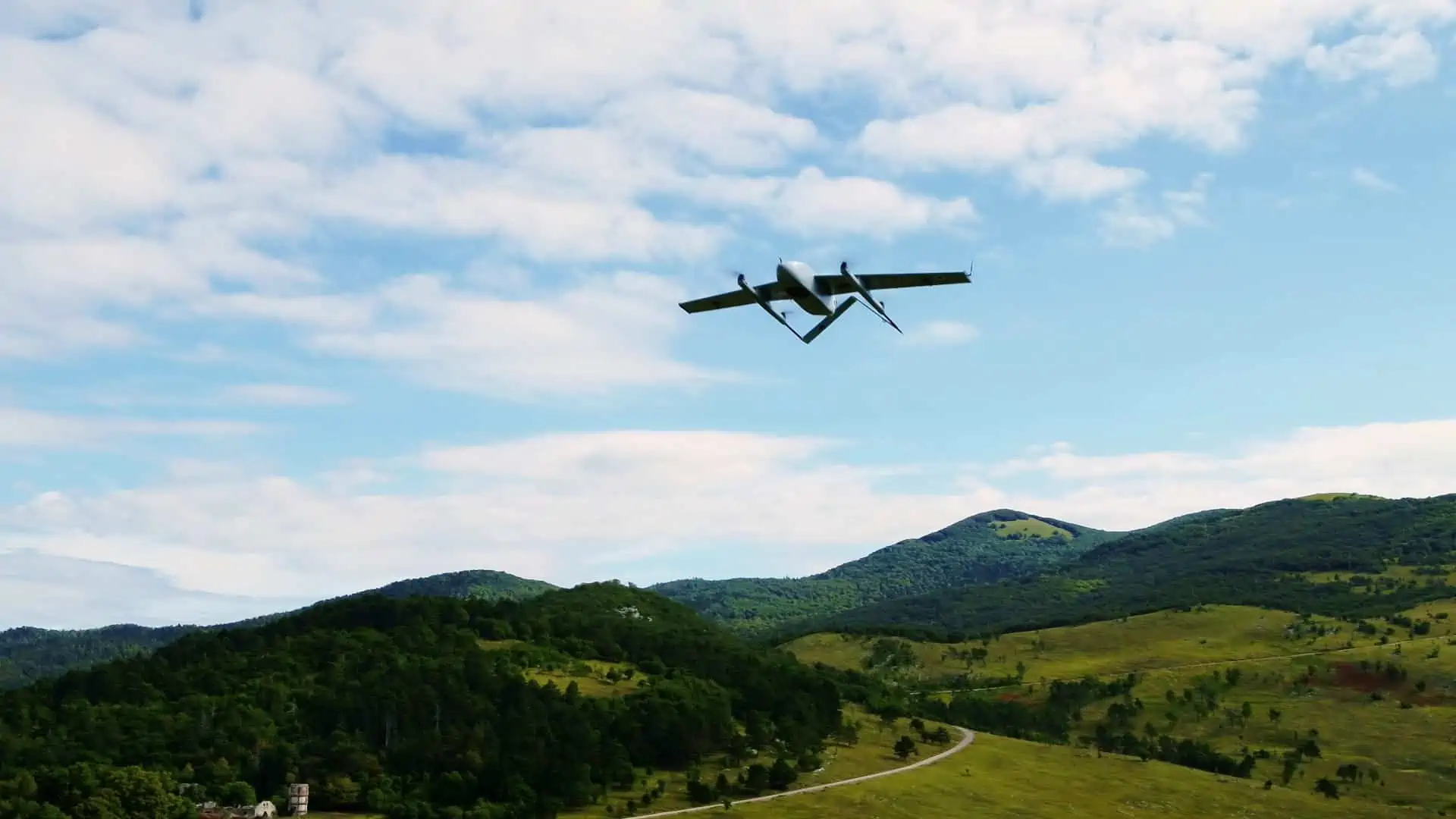

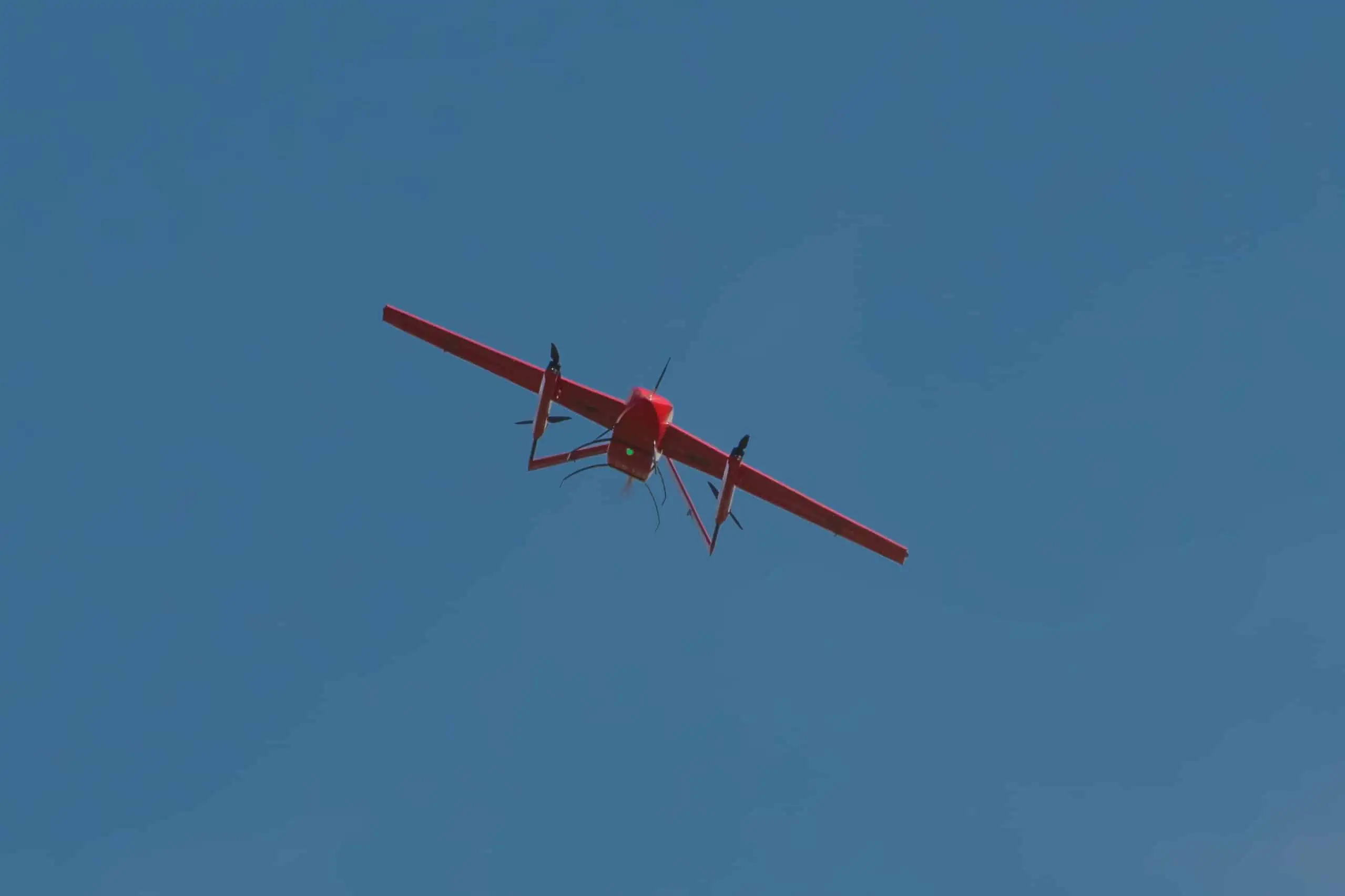

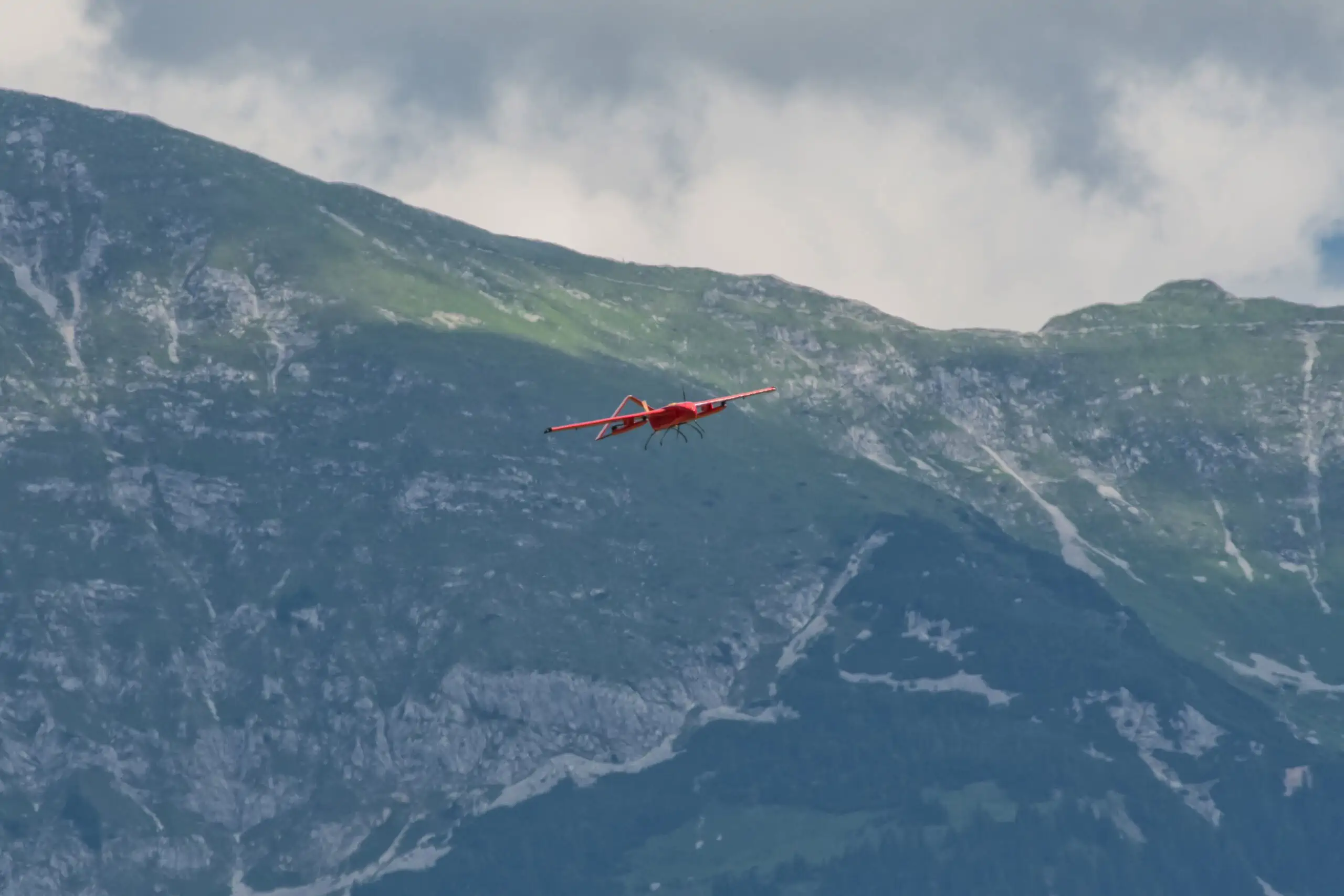

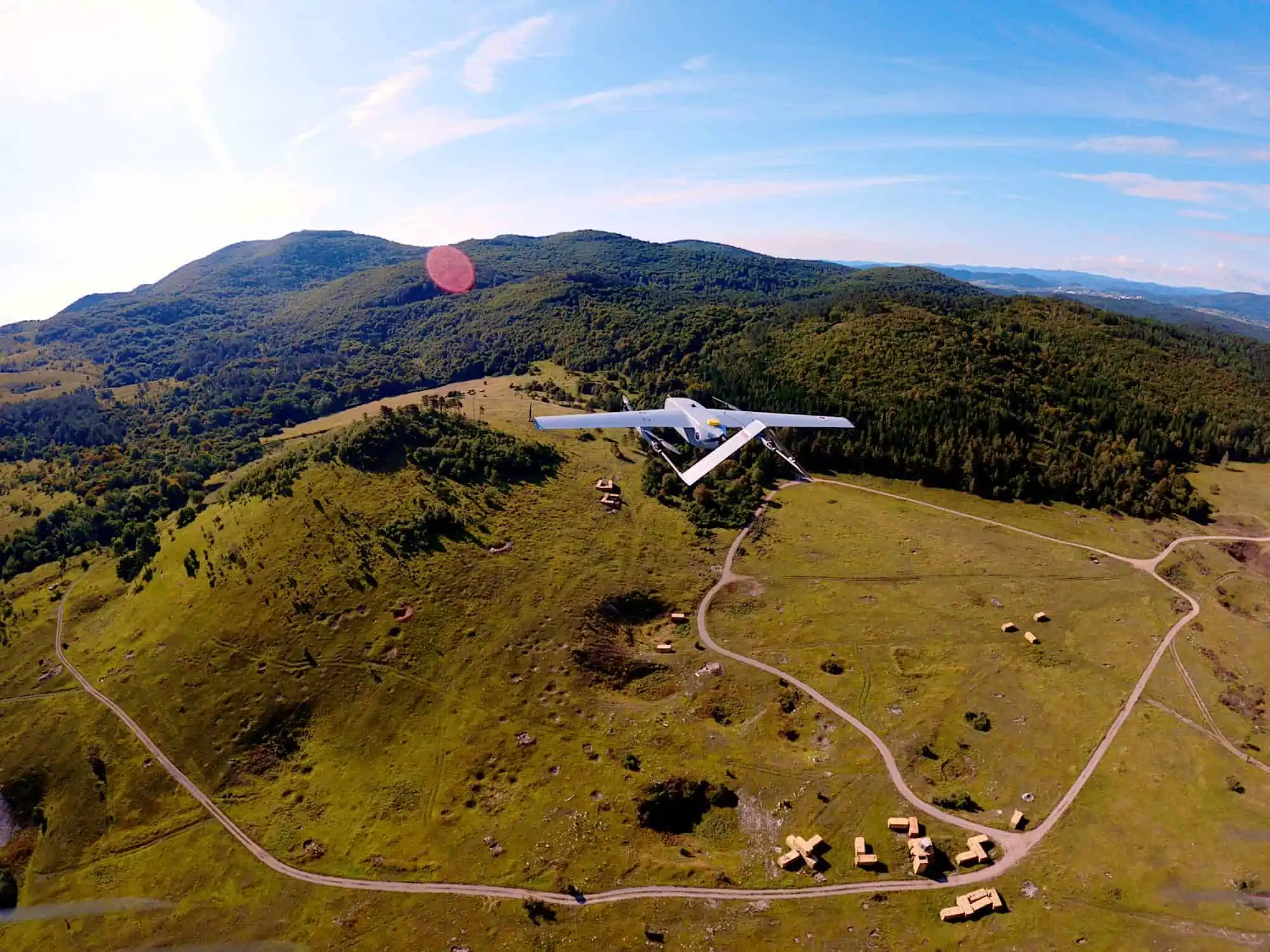

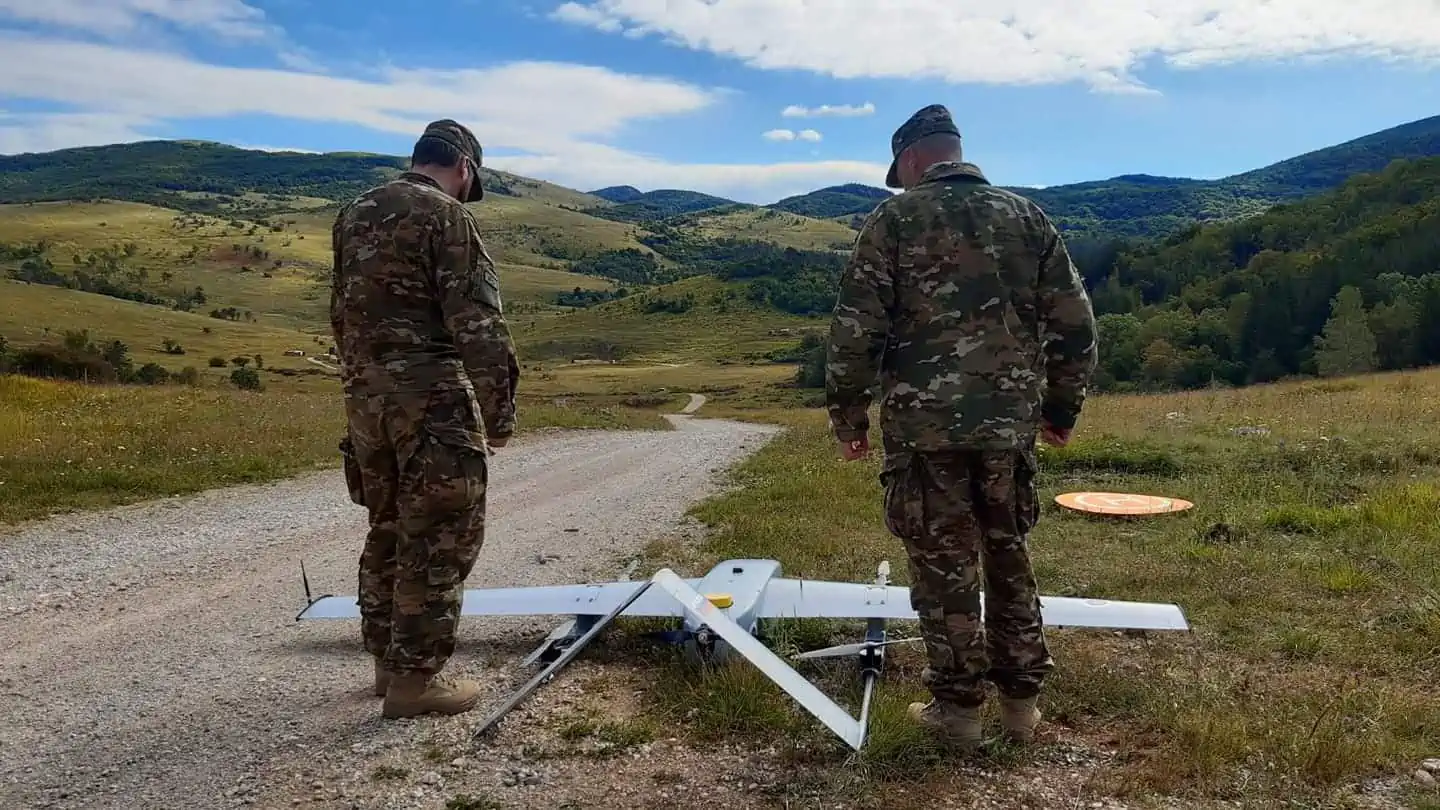

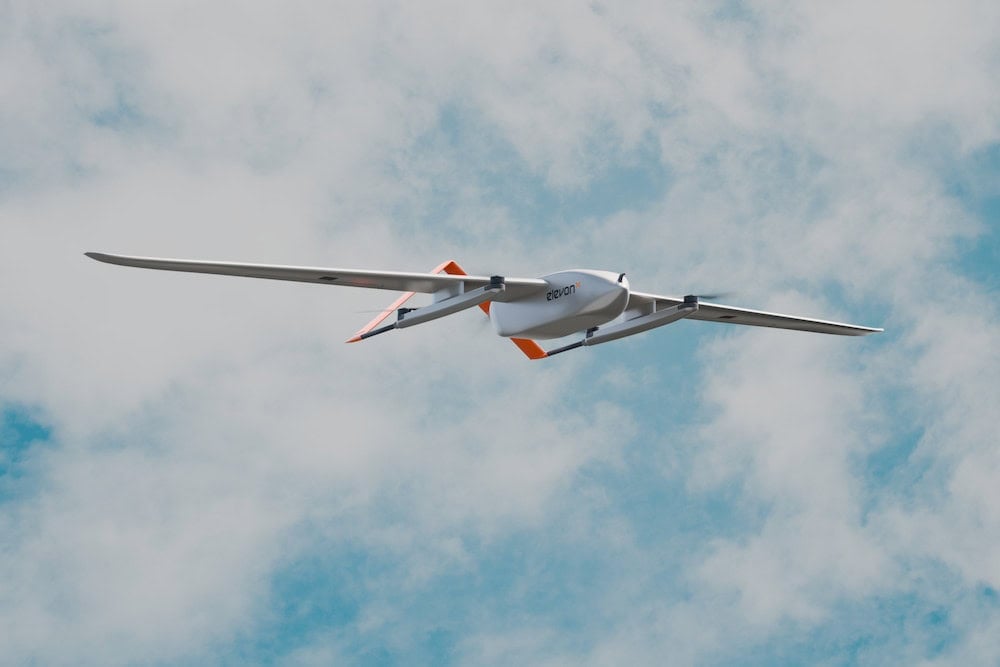

Tango is a versatile fixed-wing VTOL UAV that can be equipped with a range of propulsion options, including fully electric power, internal combustion engine, or hydrogen fuel cells. Available in two different variants for up to 5 or 10 kg of carrying capacity, the versatile platform is ideal for long-range military and surveillance applications, cargo delivery, search and rescue, scientific research and more.

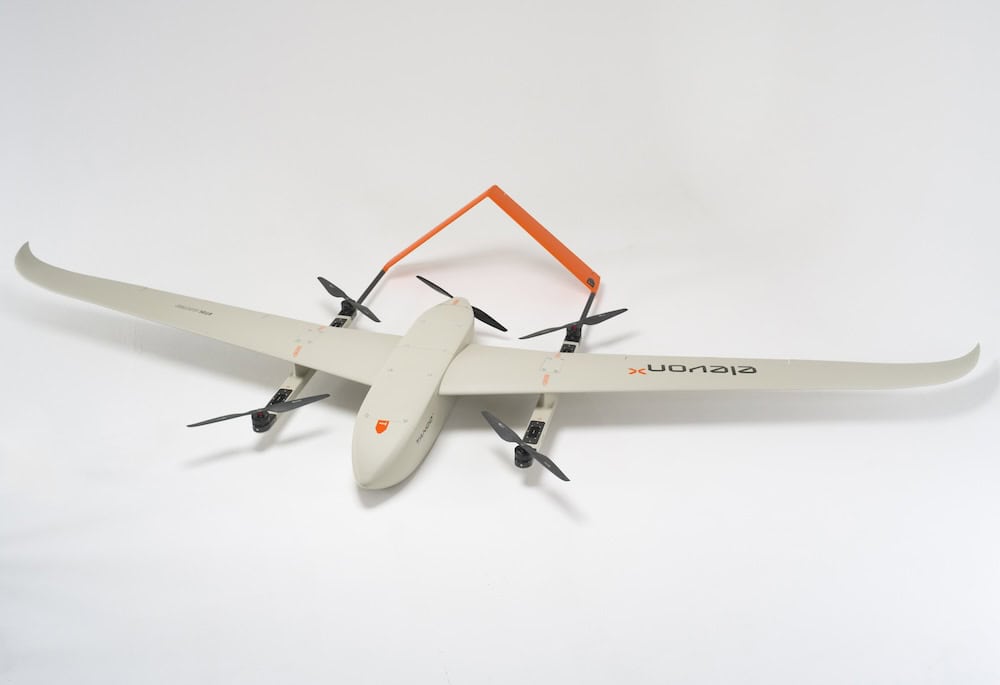

The platform is available in a specialized maritime variant that features IP55-rated rotors and the ability to land on water. It can also be equipped to survive highly challenging environments such as CBRN. A specialized cargo release system can also be fitted to the aircraft for precision air-drop or delivery of packages either with or without a parachute.

With a generous modular payload bay, Tango can be equipped with your own sensors, or fitted with one or more of the standard integrations provided by ElevonX, including:

  • PhaseOne P5 128MP medium format professional mapping camera
  • Sony ILX-LR1 61MP full-frame mapping camera
  • Micasense RedEdge/Altum Multispectral gimbal
  • NextVision cameras
  • YellowScan & RIEGL VUX LiDAR scanners



Specifications:

  Tango 3.0 Tango 4.4
Wingspan: 3m 4.4m
Payload: Up to 5 kg Up to 10 kg
Flight Time: Up to 3 hrs
(with lightweight payloads)
Up to 5 hrs
(with lightweight payloads)
MTOW: 21.5 kg 29 kg
Cruise Speed: Up to 22 m/s Up to 24 m/s
Wind Tolerance: Up to 8 m/s during takeoff/landing
Up to 17 m/s in flight
Max Altitude: 3000m
Optional 6500m
Video & Control Range: Up to 70 km
