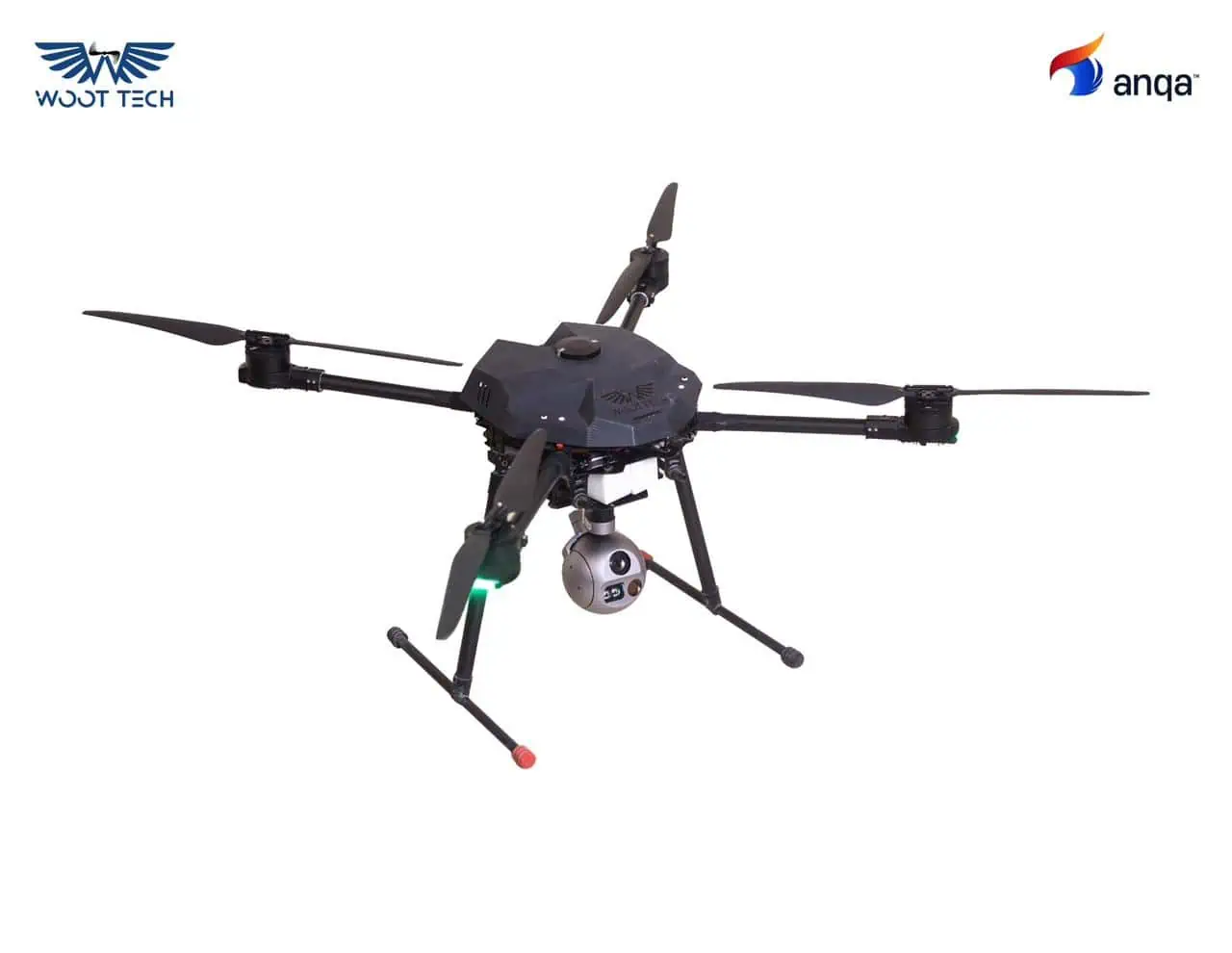

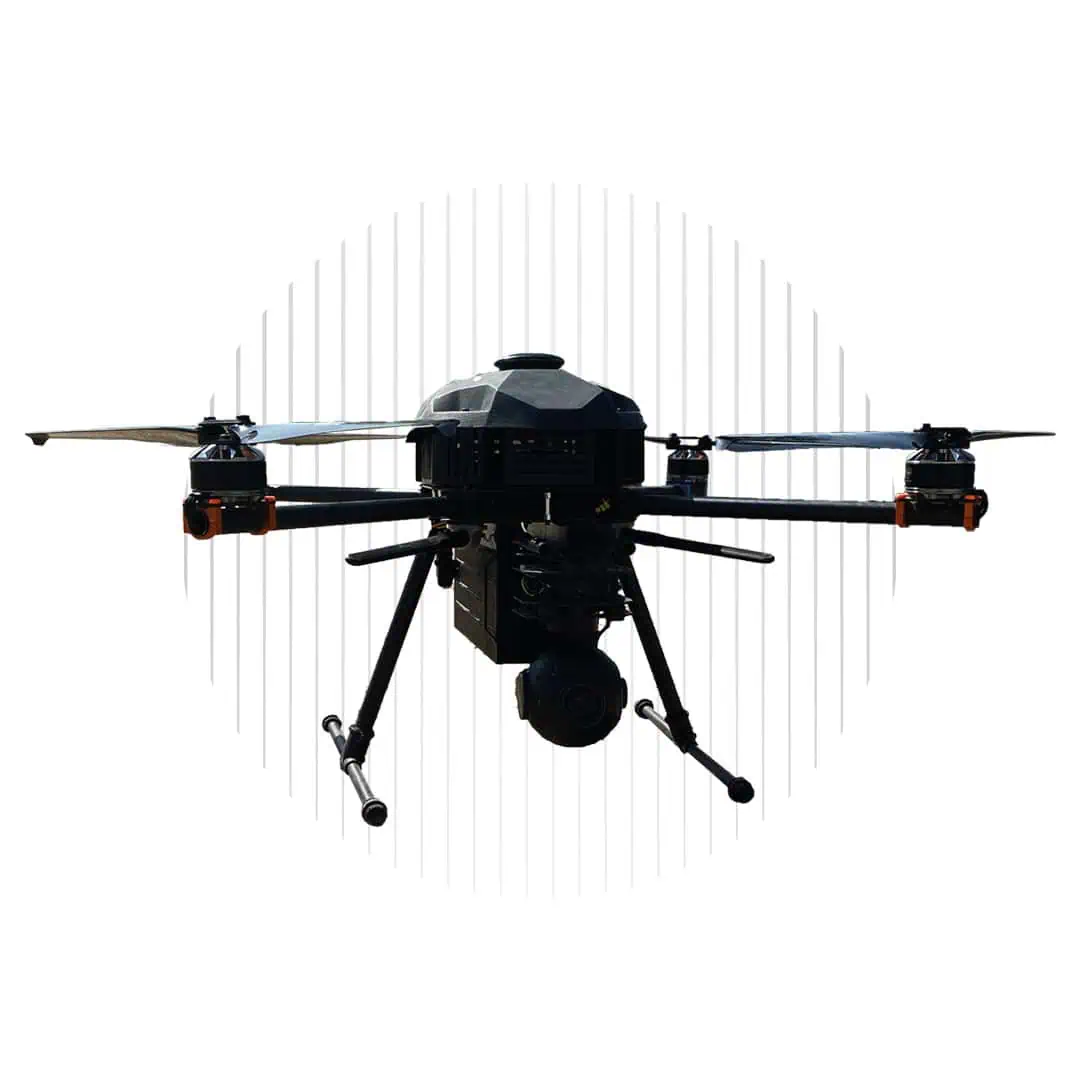

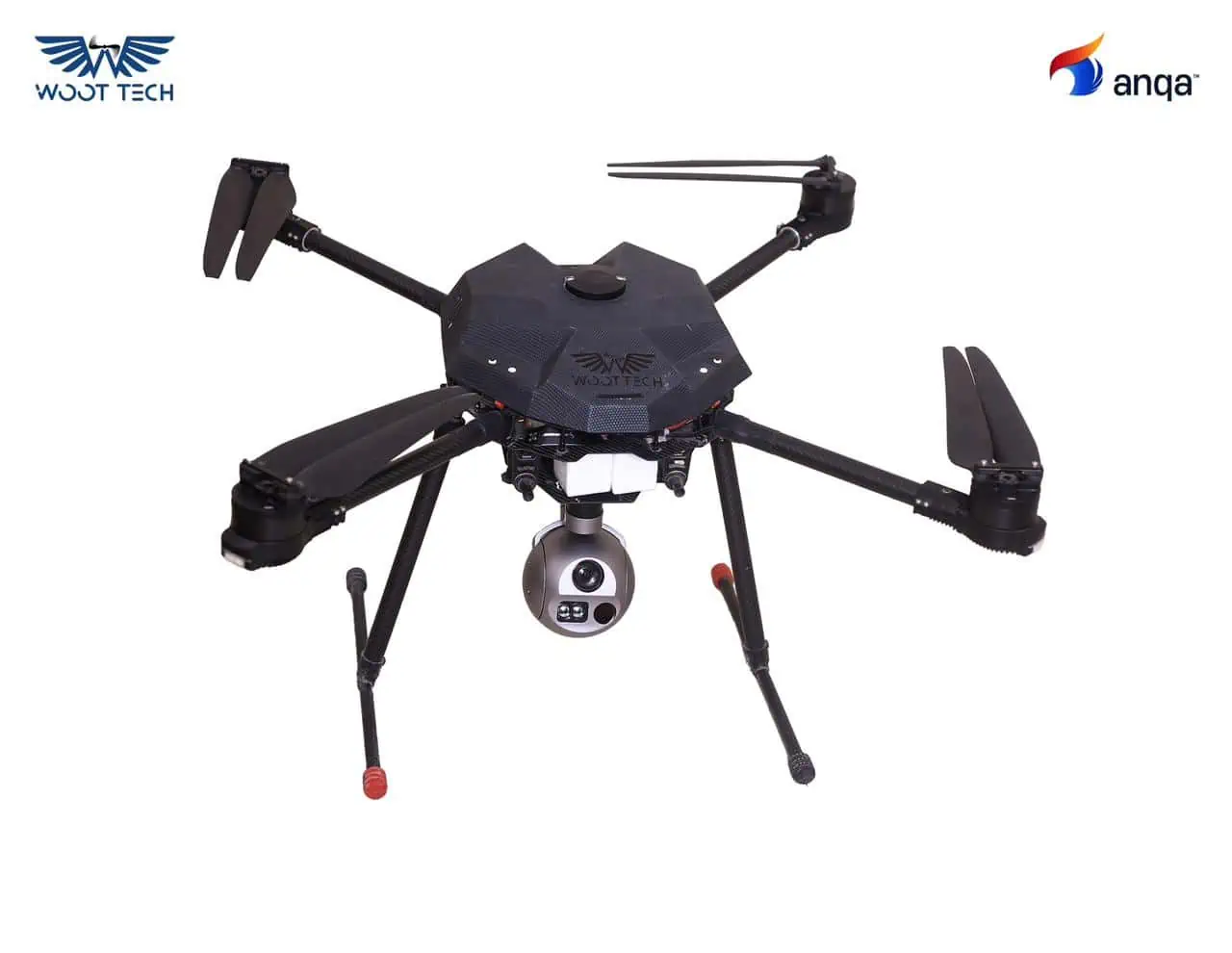

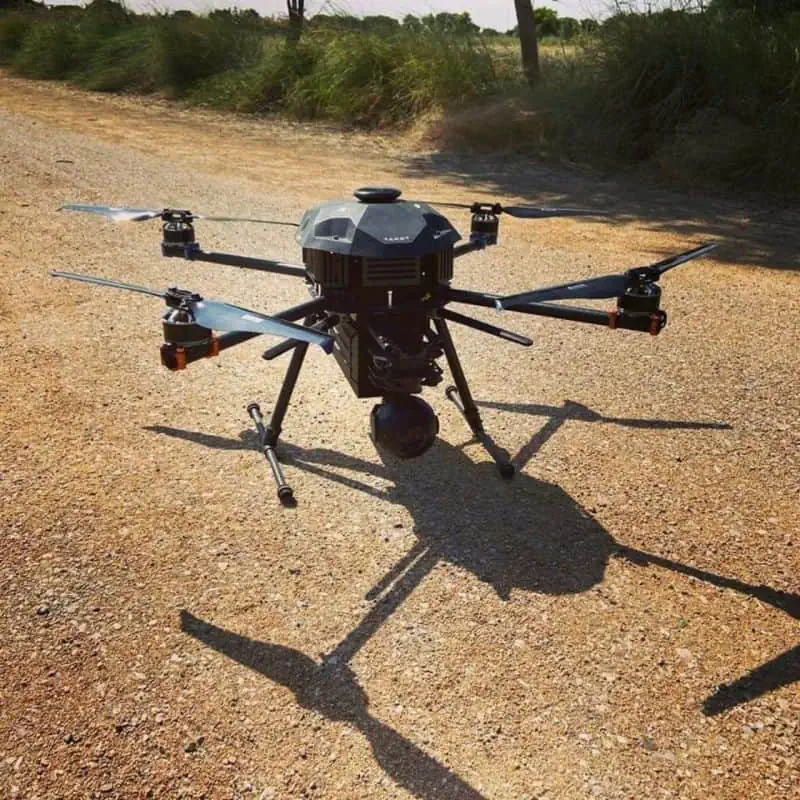

SkyInspector
SkyInspector is a high-performance and high-reliability quadcopter drone platform designed for industrial inspection and security surveillance. Featuring a convenient foldable design for easy transport and deployment, it can achieve up to 60 minutes of flight with superior stability even in heavy wind conditions. All data is sent over a secure video and command link.
Payload options include:
- Sony photogrammetric cameras
- EO/IR system (EO 1080p 30x zoom, thermal
)
- Multispectral camera
- LiDAR scanner
Specifications:
| Max Flight Endurance | 60 mins (no load), 52 min (EO/IR camera), 35 min (5kg payload) |
| Max Speed | 55 km/h |
| Max Payload Capacity | 5 kg |
| Max Flight Range | 30 km |
| Max Altitude | 1000 ft |
| Video Transmission Range | Up to 40 km |
| Wind Speed Conditions | 30 km/hr max |
| Wheelbase | 1000mm |
| Propeller size | 600mm |
| Battery | 1.5 kWh |
