The PD-2 unmanned aerial system is a successor of the combat-proven PD-1 UAS.
PD-2 UAS – a ready-to-fly versatile modular solution designed for the execution of various missions in a wide geographic range and approved by militaries for militaries.
It is a trouble-free aggregate with a 5000 m service ceiling, and 10 hours average endurance. LiDAR, IMSI catcher, SAR radar, radio repeater, – these and more different payloads are compatible with PD-2 UAS.
Extended maximum payload weight: 500 W onboard generator and considerable payload compartment give the opportunity to use up to 19 kg payloads.
Versatility is a key. The PD-2 UAV is capable of changing airframe configuration on-the-go wherever you are within 15 minutes with no tools required.
Vertical takeoff and landing configuration (8+ hour endurance, takeoff & land from any location)

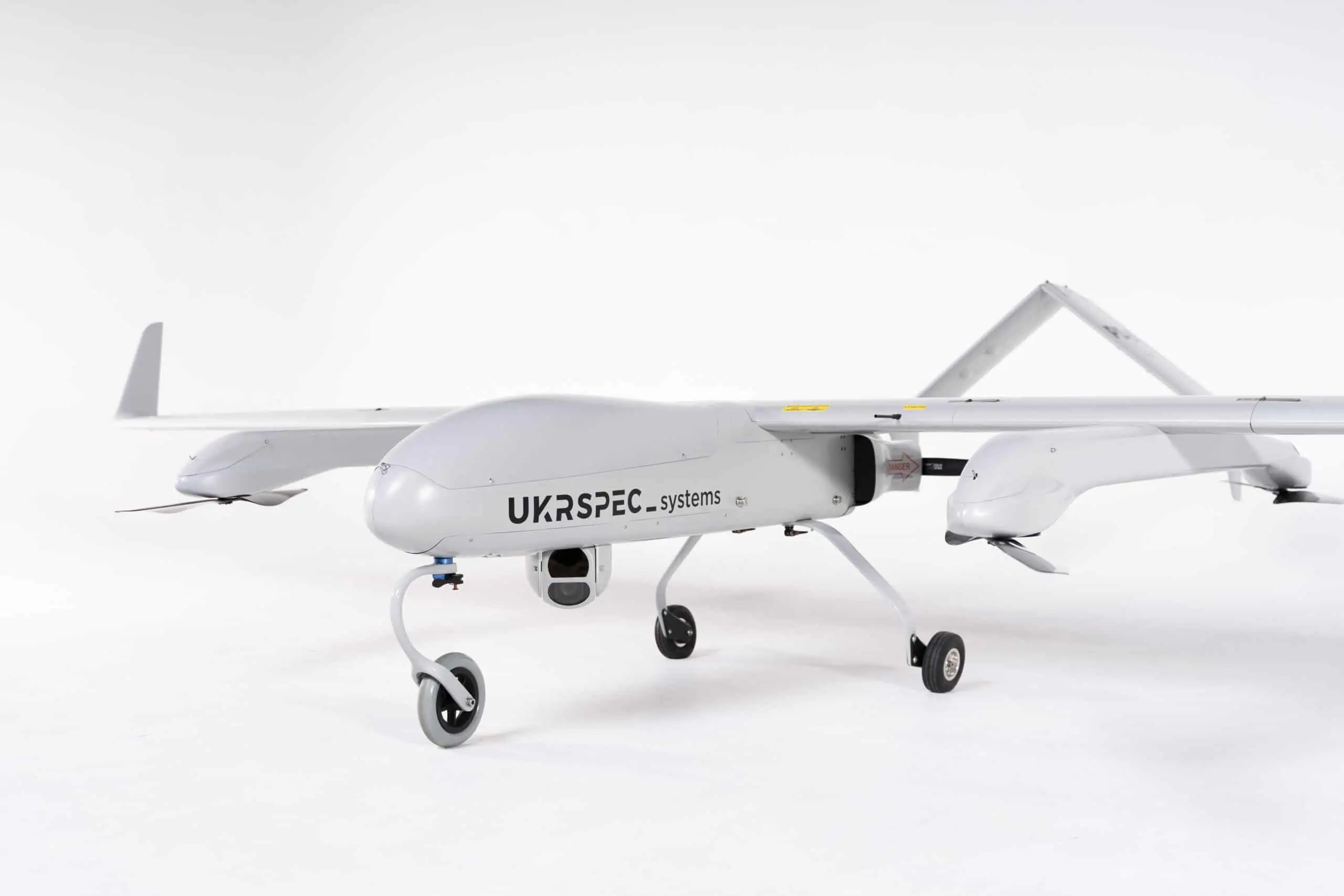

Fixed-wing with landing gear (10+ hour endurance, takeoff and land using a runway)
Charge batteries during the flight: onboard generator automatically recharges all the batteries of the UAV during the flight (both onboard and VTOL).
The new ground control station supports two datalinks: main and backup with a 220+ km communication range.
The PD-2 UAS is capable of operating in harsh weather conditions from -25 °C to +50 °C, despite the rain, fog, wind, or mist.
 VTOL |
 Fixed-wing with landing gear |
|
| Datalink connection | 180+ km | 180+ km |
| Wingspan | 5m | 4m |
| MTOW | 55 kg | 45 kg |
| Payload Capacity | 11 kg | 19 kg |
| Endurance | 8+ hrs | 10+ hrs |
| Max Altitude | 4500 m | 4700 m |
| Takeoff & Landing | From any location | With runway |
