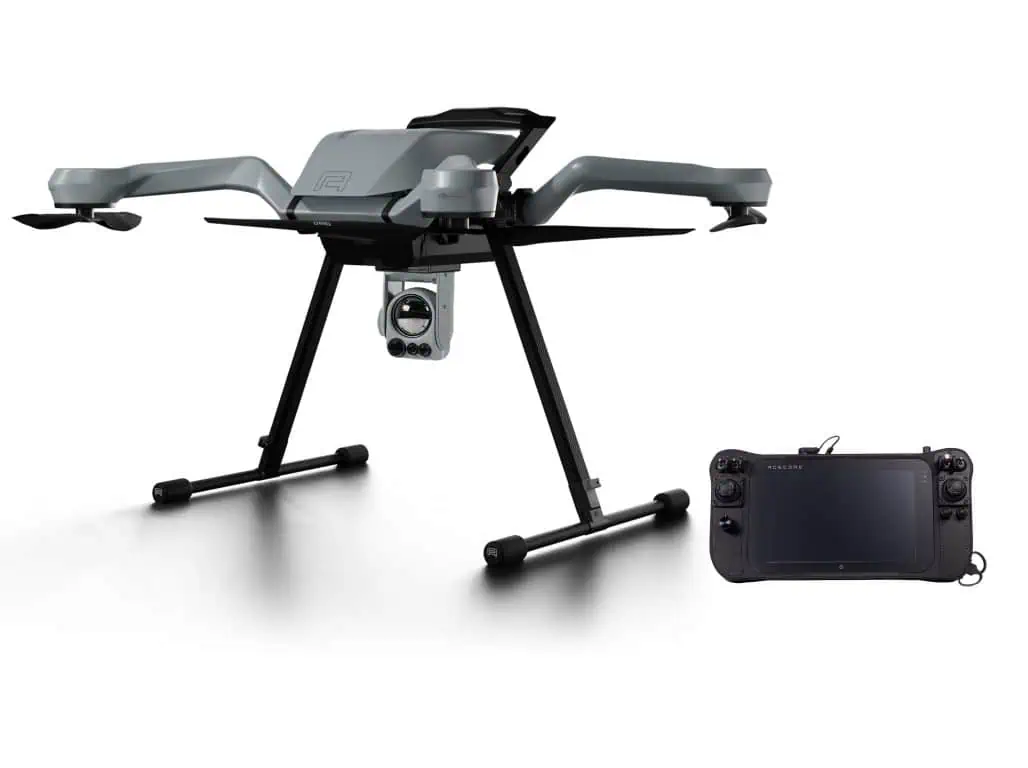

The Zoe M4 is a rugged quadcopter drone specifically designed for military, security and emergency response applications. Based on the proven Zoe platform, it provides a reliable and rapidly-deployable overwatch capability with minimal logistical footprint, and is ideal for acquiring timely and secure ISR (intelligence, surveillance and reconnaissance) data.
The NDAA-compliant quadcopter is equipped with the state-of-the-art NextVision Raptor X80 EO/IR, delivering stabilized daytime and night-time imagery with 80x zoom and a resolution of 1280×720. The complete UAS package also includes Acecore’s MIL-STD-810G-rated Signav Ultra handheld GCS, which can be equipped with a range of tactical radio options including the Persistent Systems MPU5, Silvus Streamcaster, and Doodle Labs Smart Radio.
Specifications:
Frame Dimensions (L x W x H) | 693 x 682 x 480 mm |
Diameter w/ Propellers | 1310 mm |
Ground Clearance to Propeller | 315 mm |
Weight |
Empty 4.2 kg (9.26 lbs) MTOW 10.5 kg (23.15 lbs) |
Max Payload | 5 kg (11 lbs) |
Battery Voltage | 22.2V (6S) nominal |
Max Current | 55A continuous |
GNSS |
L1, L2, E5 BeiDou, Galileo, GLONASS, GPS, QZSS |
Flight Endurance |
Max 47 mins Approx. 30 mins w/ 2.5 kg payload & 2x17A battery packs |
Speed |
91 km/h max horizontal 5 m/s typical ascent 4 m/s typical descent |
Max Wind Speed | 29 knots (14.9 m/s) continuous |
Radio Options |
Doodle Labs Smart Radio 900, 1626 - 2510, 5800 MHz Silvus Streamcaster 900 - 928, 1350 - 5975 MHz Persistent Systems MPU5 1350 - 6000 MHz |
