Professional Heavy-Lift Multirotor Drones, Hexacopters and Quadcopters for Film-Making, Surveying and Inspections

Acecore Technologies Visit Website

Acecore Technologies is a leading developer of state-of the-art professional unmanned aerial solutions for a wide range of professional markets. Our innovative, durable VTOL drones, drone gimbals and tether system are ideal for taking drone broadcasting, cinema, inspection, security and surveying applications to the next level.

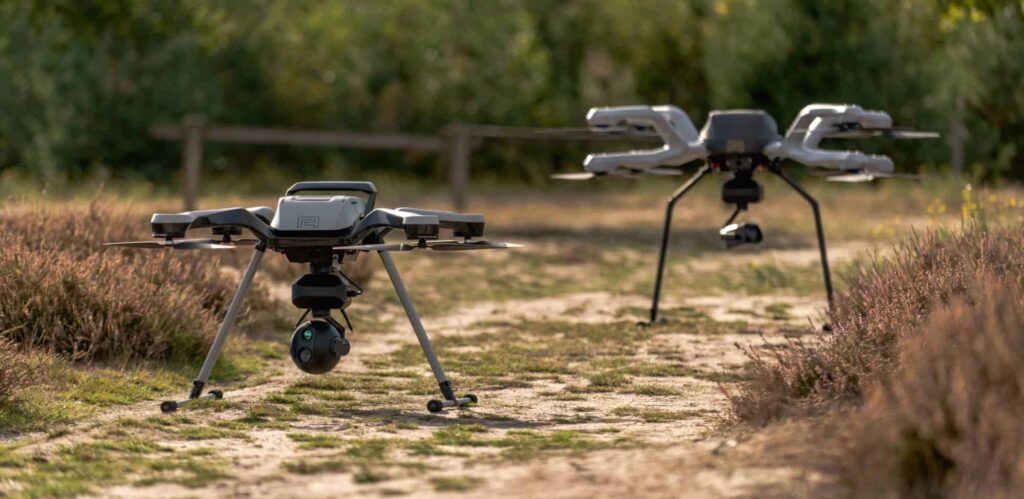

Acecore professional VTOL drones

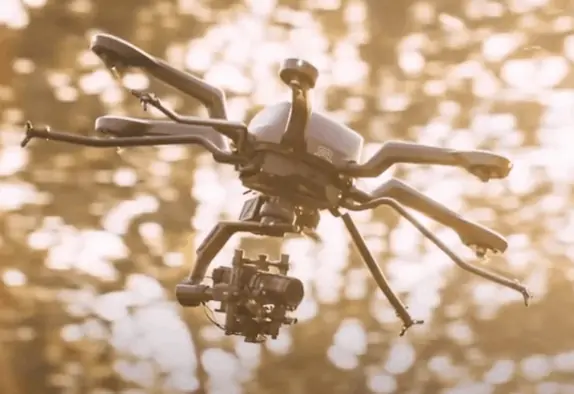

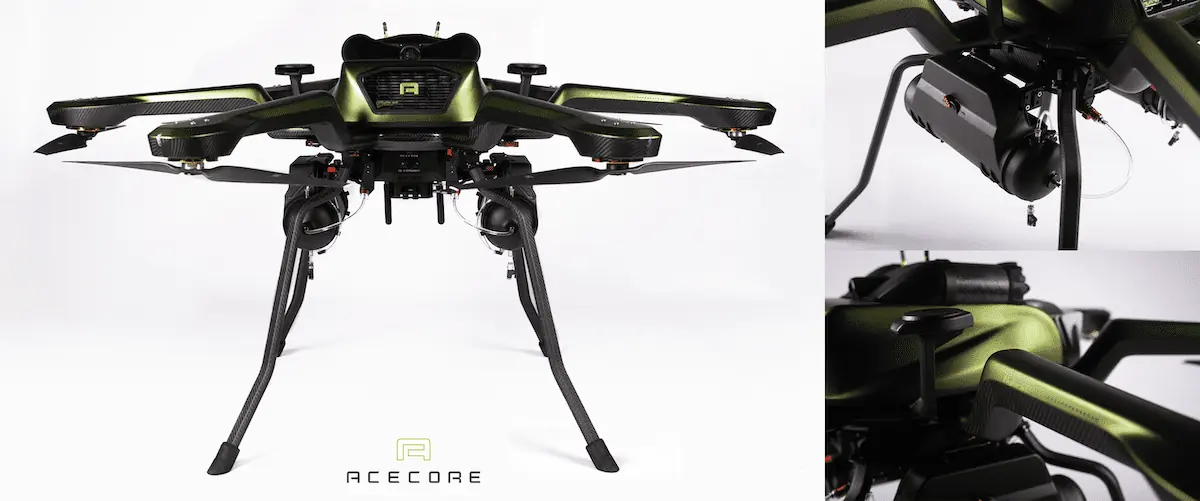

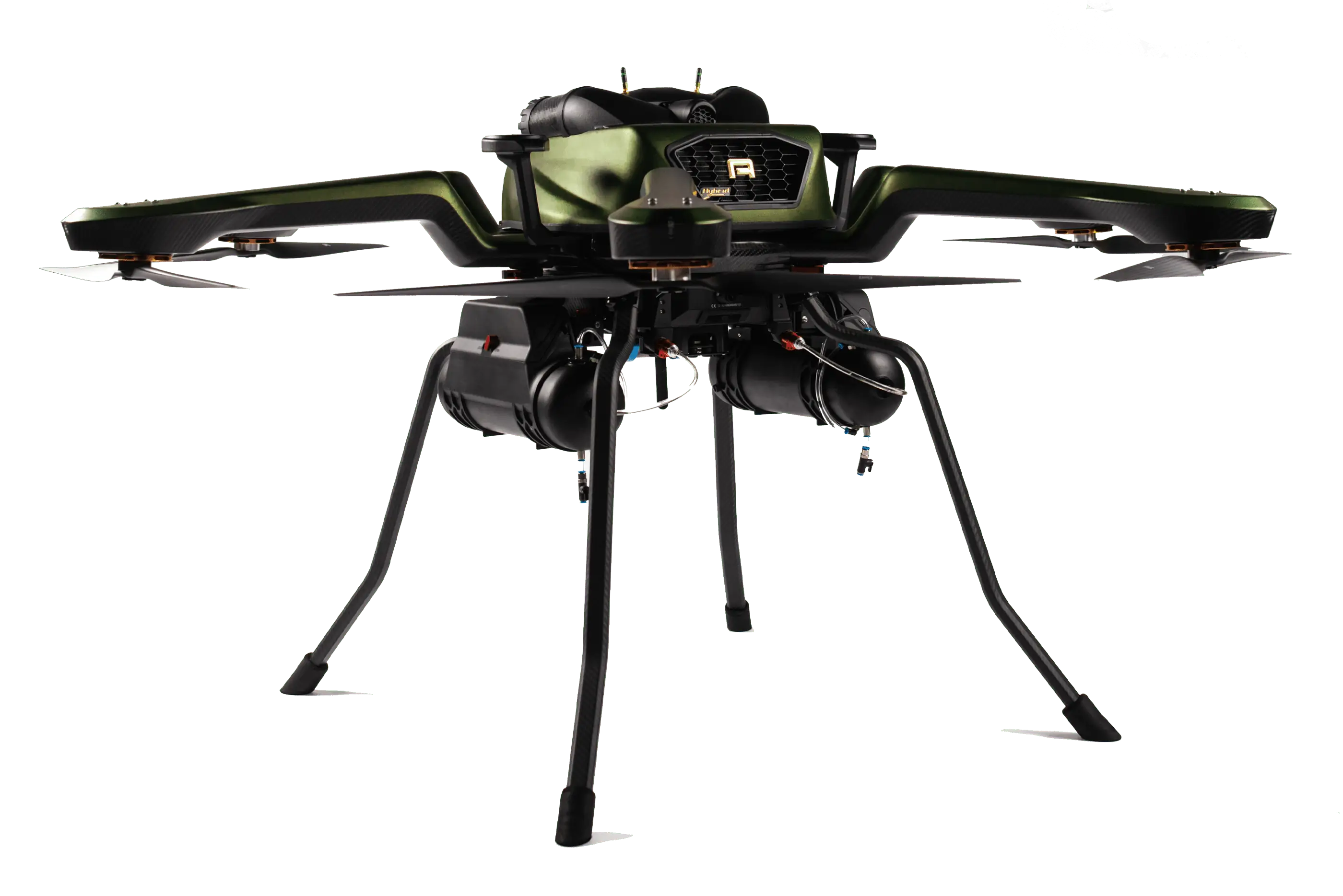

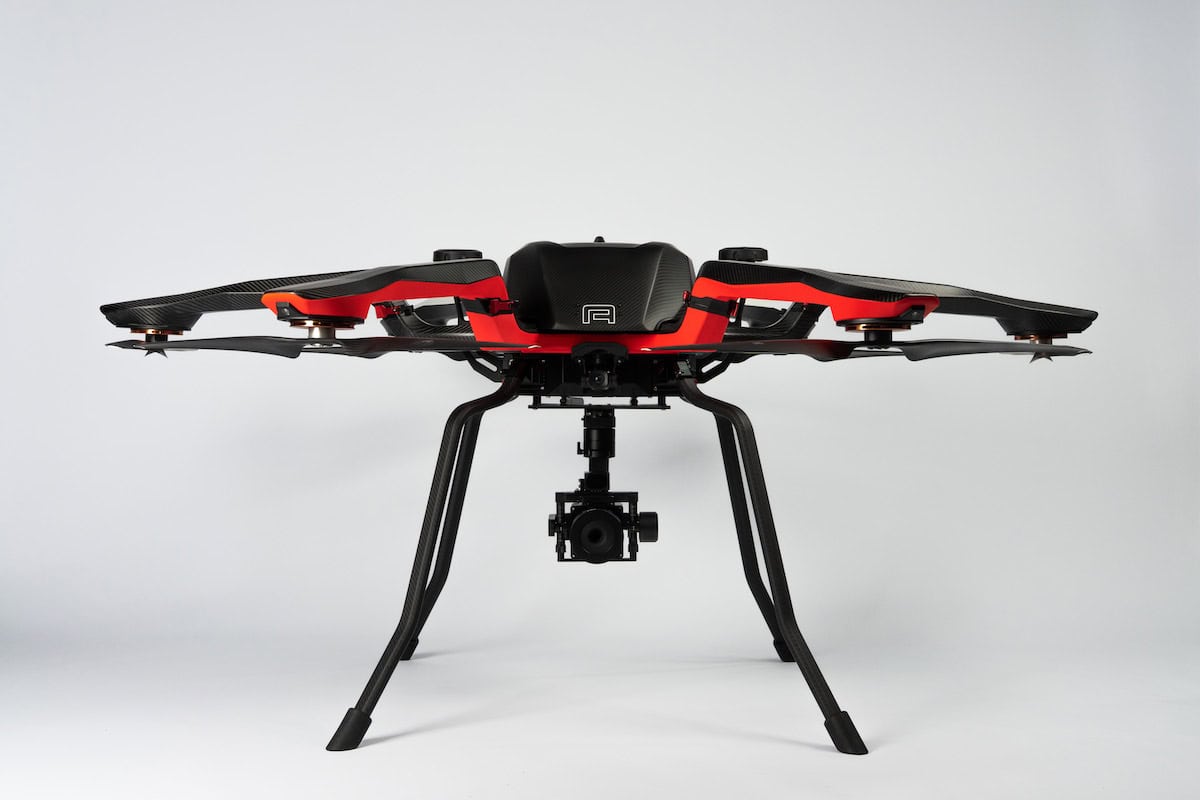

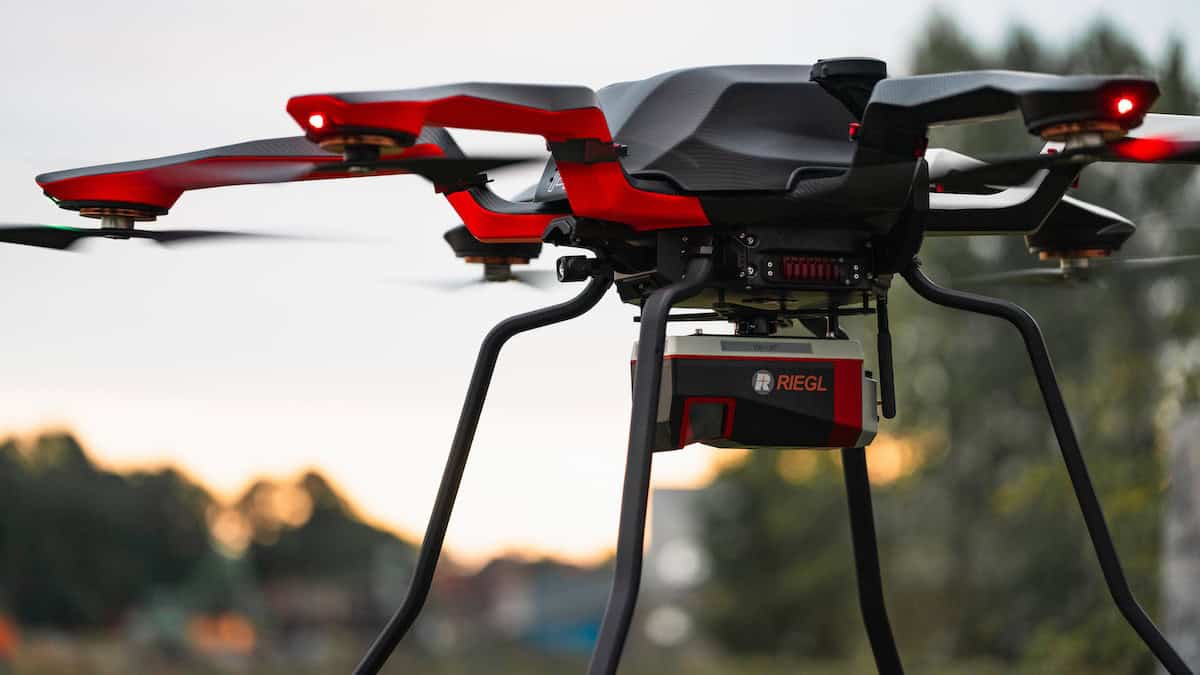

Noa – hexacopter weatherproof drone

Long endurance and heavy lift drone

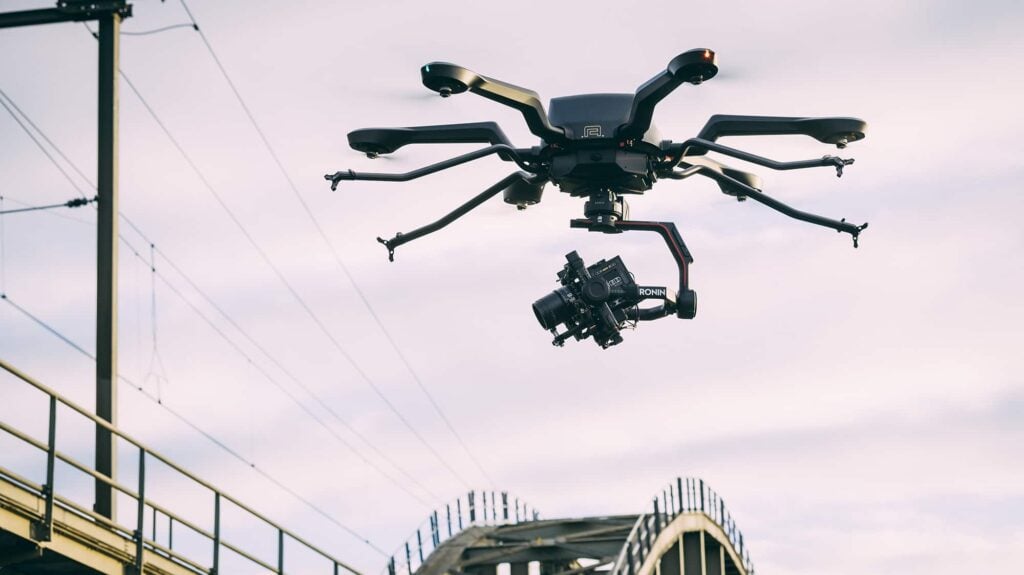

Noa – weatherproof hexacopter drone

Noa is a powerful heavy-lift hexacopter drone designed for experienced pilots looking to expand beyond the capabilities of their current systems. Ideal for aerial cinematography, LiDAR scanning and 3D mapping, Noa features a payload capacity of 20kg, with flight times of up to an hour.

With a modular payload quick release system and flexible battery options, professional users can balance payload and battery weight, providing optimal flight efficiency for specific missions. Advanced avionics and flight safety features include an ADS-B-ready transponder, an AES128 encrypted radio link, and a triple-redundant autopilot.

Noa – heavy lift hexacopter drone

Noa’s rugged, robust carbon fiber construction makes it highly resistant to impact and allows it to fly even under extreme weather conditions. The drone’s six aerodynamic booms can be quickly and easily removed and reconnected, providing improved portability and toolless setup.

Specifications:

Frame Dimensions (LxWxH) 1680 x 1680 x 840 mm
Diameter with rotors 2330 mm
Maximum takeoff weight 36.9 kg / 81.18 lbs (a <25kg / <55lbs MTOW version is available)
Maximum payload weight 20 kg / 44 lbs
Maximum flight time 60 mins
Weatherproof hexacopter drone

Neo – multirotor professional  drone

Powerful heavy-lift drone for professional film-making, security & industrial inspection

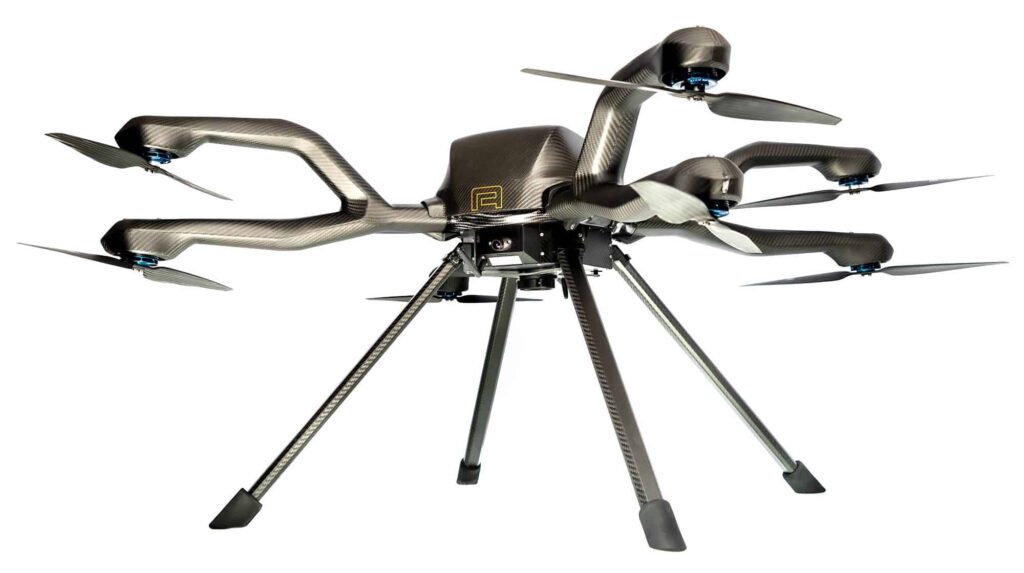

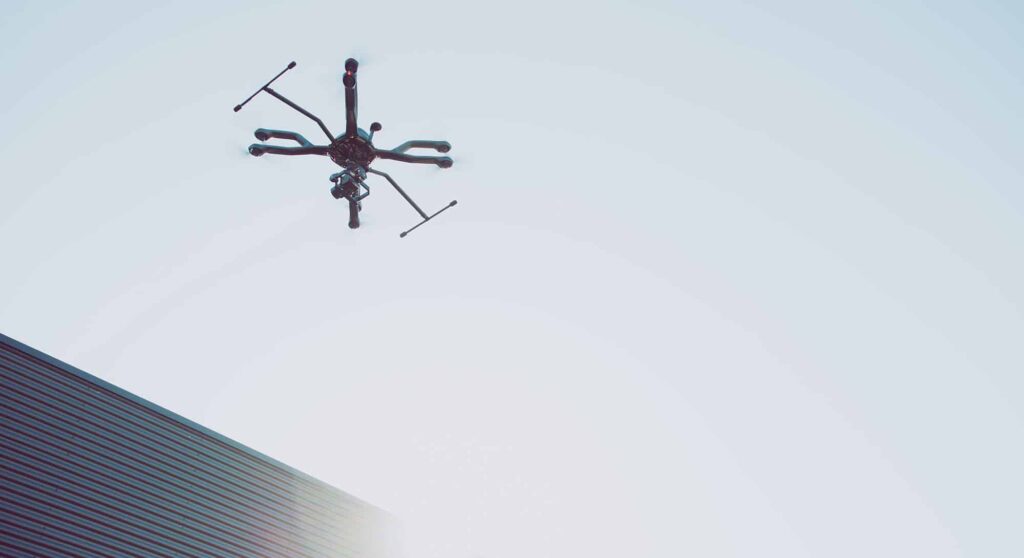

Acecore Neo Heavy Lift Drone

Neo is an advanced heavy-lift multirotor drone powered by eight motors, designed to easily handle bulky cameras and heavy payloads for professional drone applications such as film-making, aerial surveying, SAR, security and inspections.

This adaptable and versatile multirotor drone features a modular Cube autopilot and Futaba radio controller. In addition, the George base station can be used to expand on the standard Futaba/ FrSky remote.

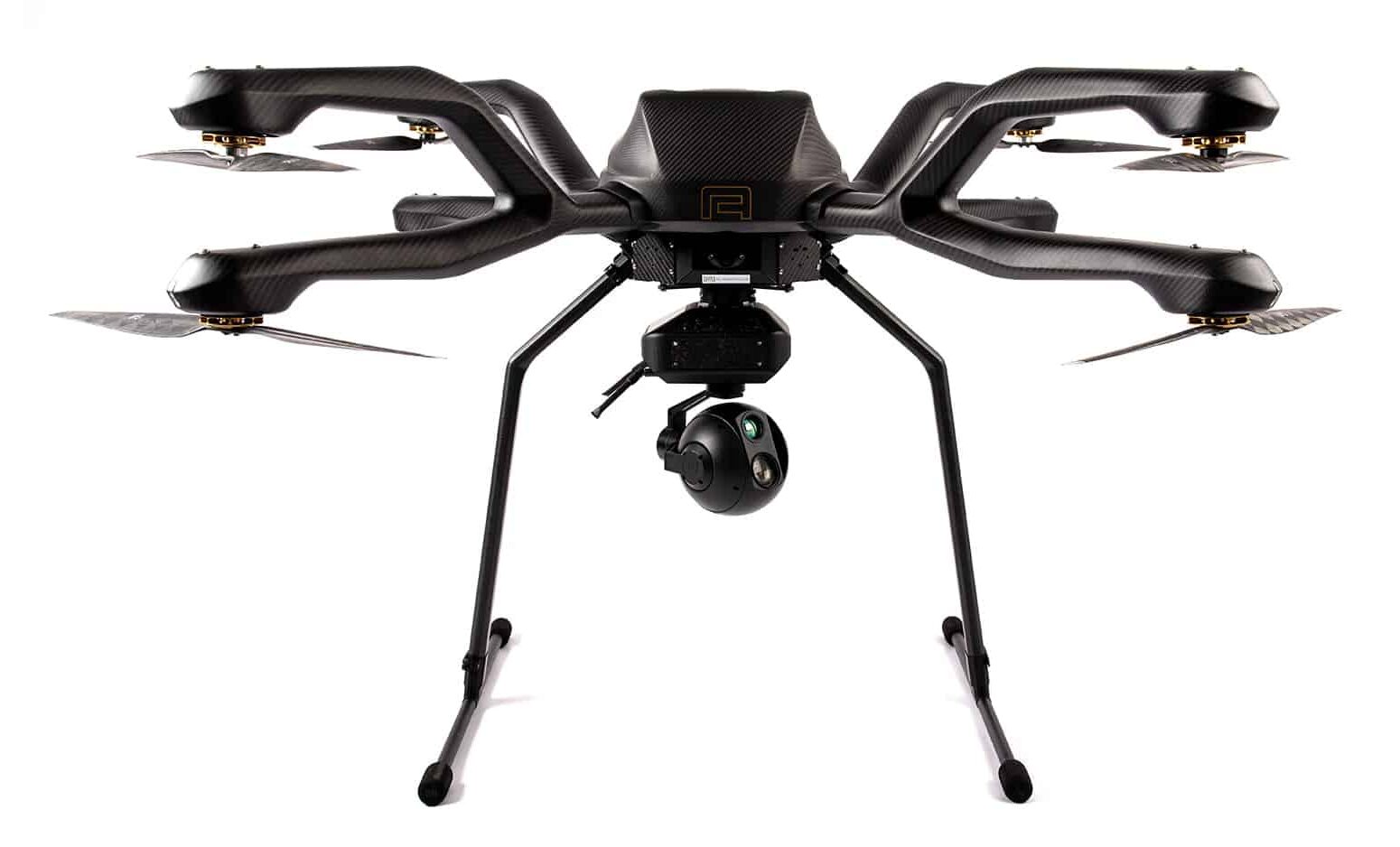

Neo professional multirotor drone

Neo’s state-of-the-art engineered carbon fibre body and weatherproof drone design, coupled with a heavy payload capacity of 9 kg (19.8 lbs), make it a rugged, never-fail solution for even the toughest missions.

Specifications:

Frame Dimensions (LxWxH) 1107 x 1107 x 635 mm
Diameter with rotors 1605 mm
Maximum takeoff weight 19 kg/ 41.89 lbs
Maximum payload weight 9 kg/ 19.84 lbs
Maximum flight time 23 mins

Acecore Industrial Neo Heavy Lift Drone

Acecore Zoe Professional Drone

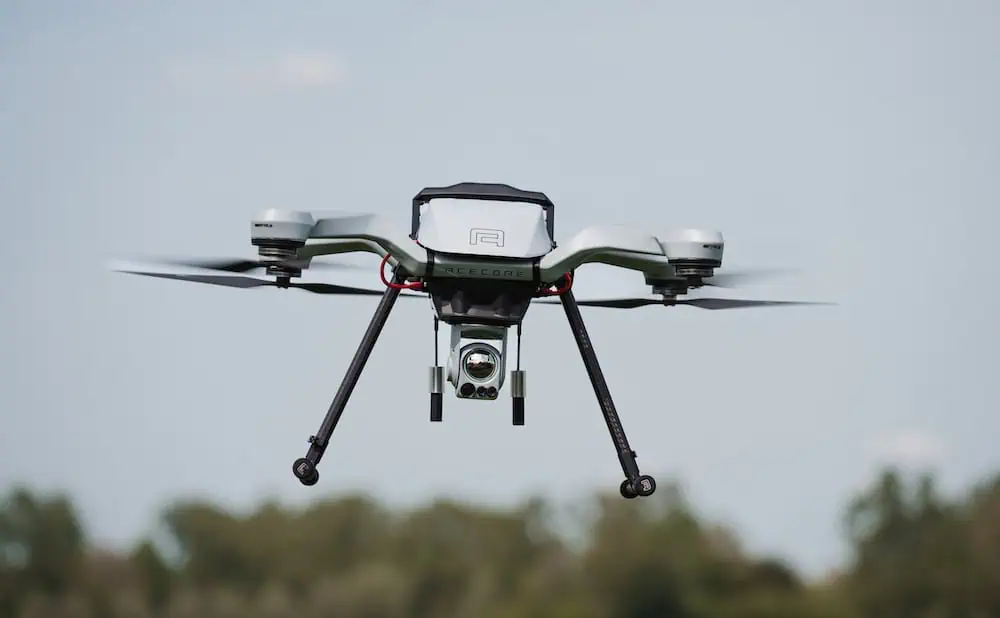

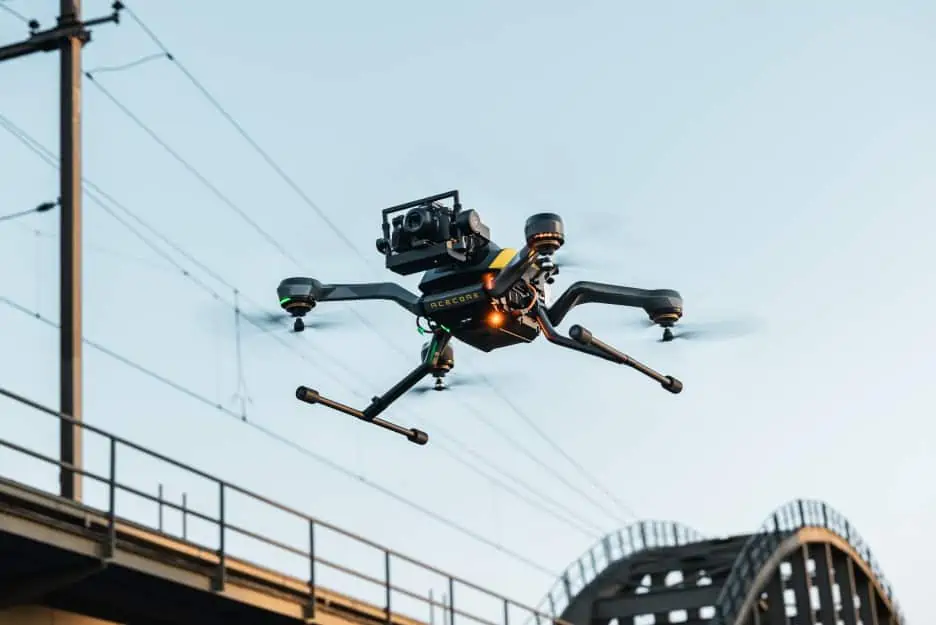

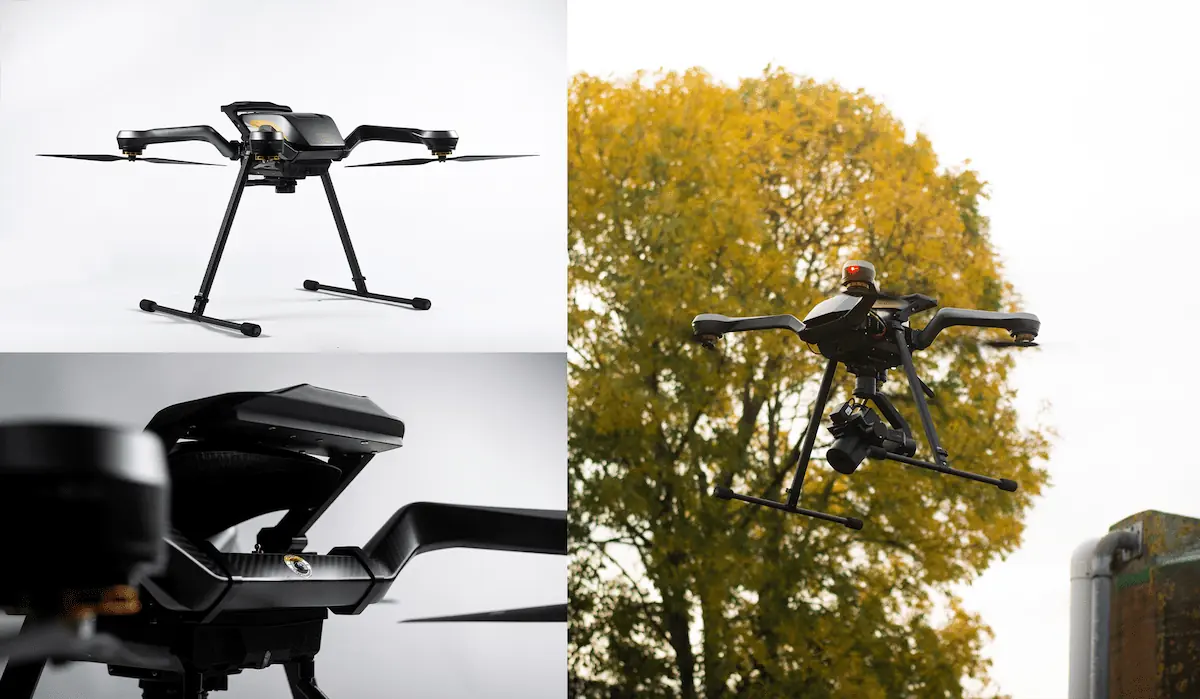

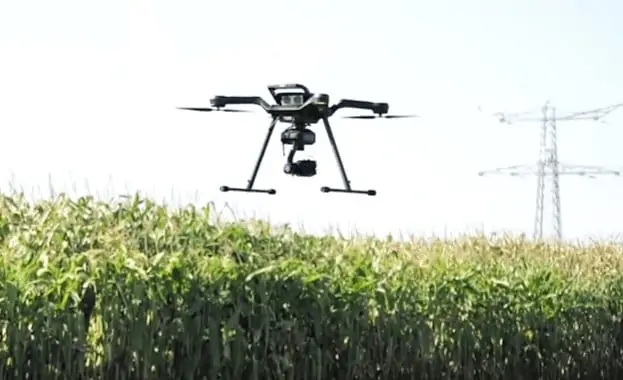

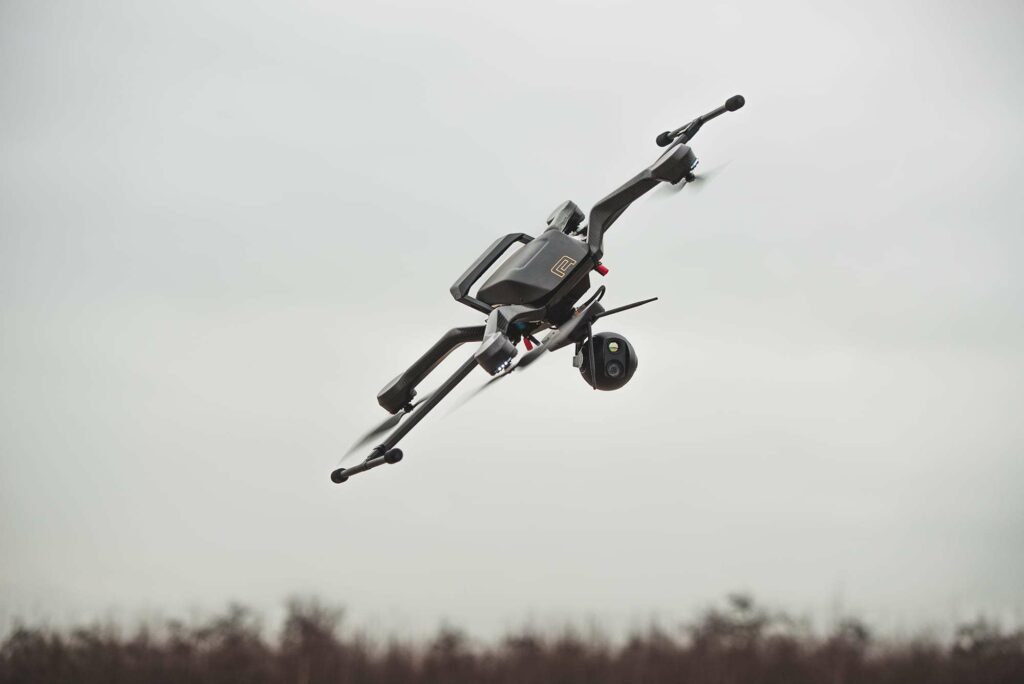

Zoe – quadcopter portable drone

Compact, foldable portable drone for commercial applications

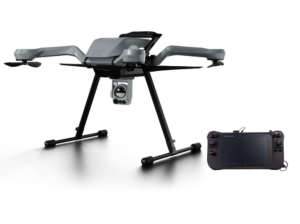

Zoe – portable quadcopter drone

Zoe is a highly portable drone quadcopter with a foldable design for easy transportation and deployment. With a maximum payload capacity of 6.5kg and flight times of up to 40 minutes, it can field a variety of payloads for maximum mission flexibility.

The rugged quadcopter all-weather waterproof construction, and tough carbon fibre design, make Zoe a highly dependable system, even in winds of up to 35 knots.

Zoe portable quadcopter VTOL drone

A triple redundancy autopilot option provides even greater reliability for autonomous missions, and an auto-deploy parachute system facilitates safe operation even in the rare event of a critical failure. The George base station can be used to expand on the standard Futaba/ FrSky remote.

Zoe is an ideal choice for Search & Rescue missions, emergency response, aerial inspections and surveying.

Specifications:

Frame Dimensions (LxWxH) 700 x 700 x 495mm
700 x 300 x 270mm (folded)
Diameter with rotors 1310 mm
Maximum takeoff weight 11.95 kg / 26.35 lbs
Maximum payload weight 6.5 kg/ 14.33 lbs
Maximum flight time 40 mins

Acecore Quadcopter Zoe

Acecore aerial surveying drone

George – modular drone controller base

Drone ground control base station

Drone controller base station

George is a modular base station that allows drone pilots to expand the functionality of the standard FrSky controllers, with up to three FPV displays or other modules. Capable of powering the drone controller and attachments through multiple flights, George provides a highly convenient way to control the drone and its payloads from one setup, doing away with the need for multiple drone controllers and inefficient switching.

With a lightweight carbon fibre construction and modular quick-release attachment system, George provides an ideal way to seamlessly transition from piloting to camera and payload operation and back with ease, facilitating a wide range of commercial and professional drone missions.

Modular drone GCS
Modular drone controller base
Drone ground control base station

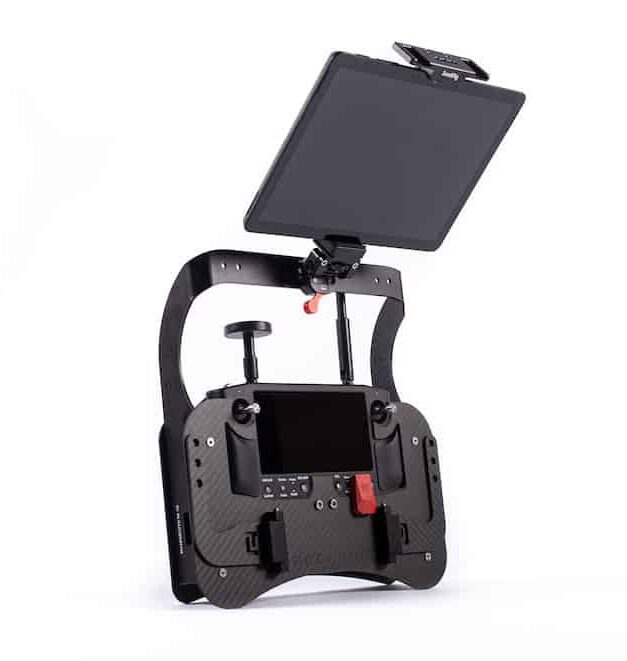

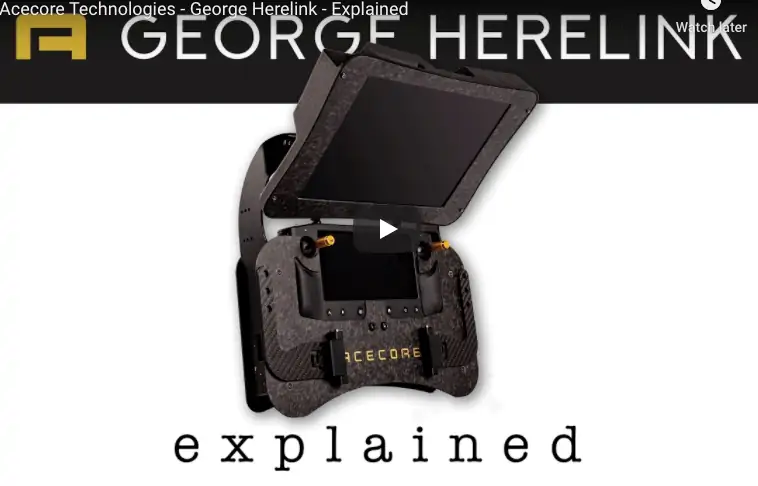

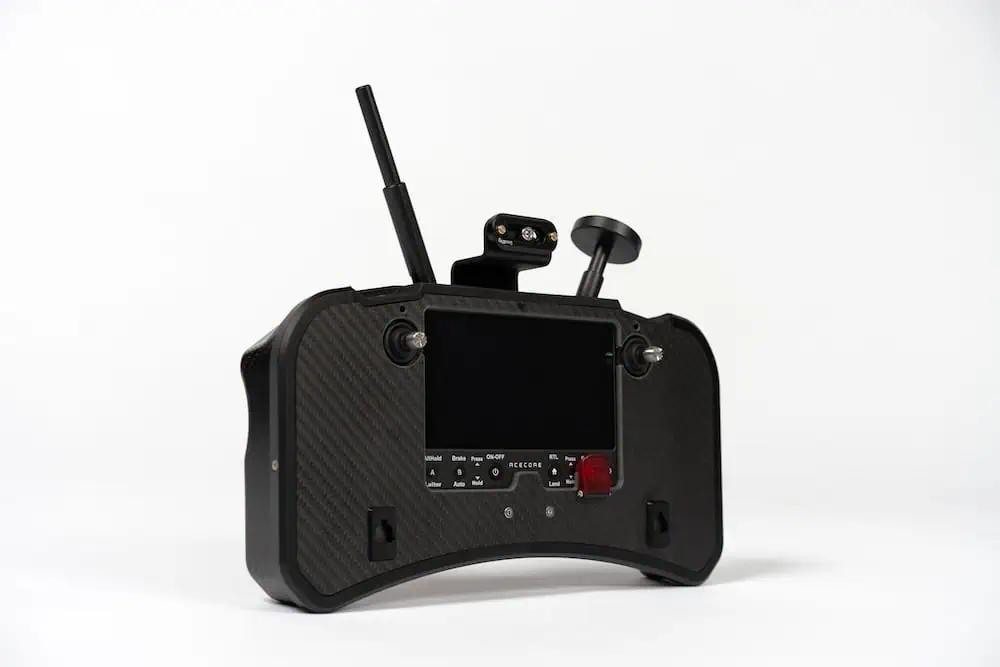

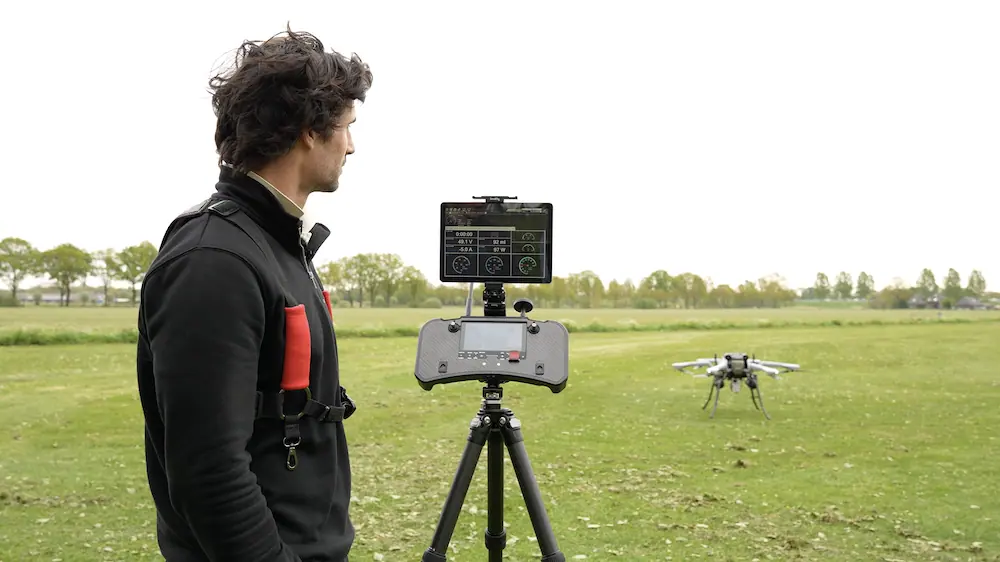

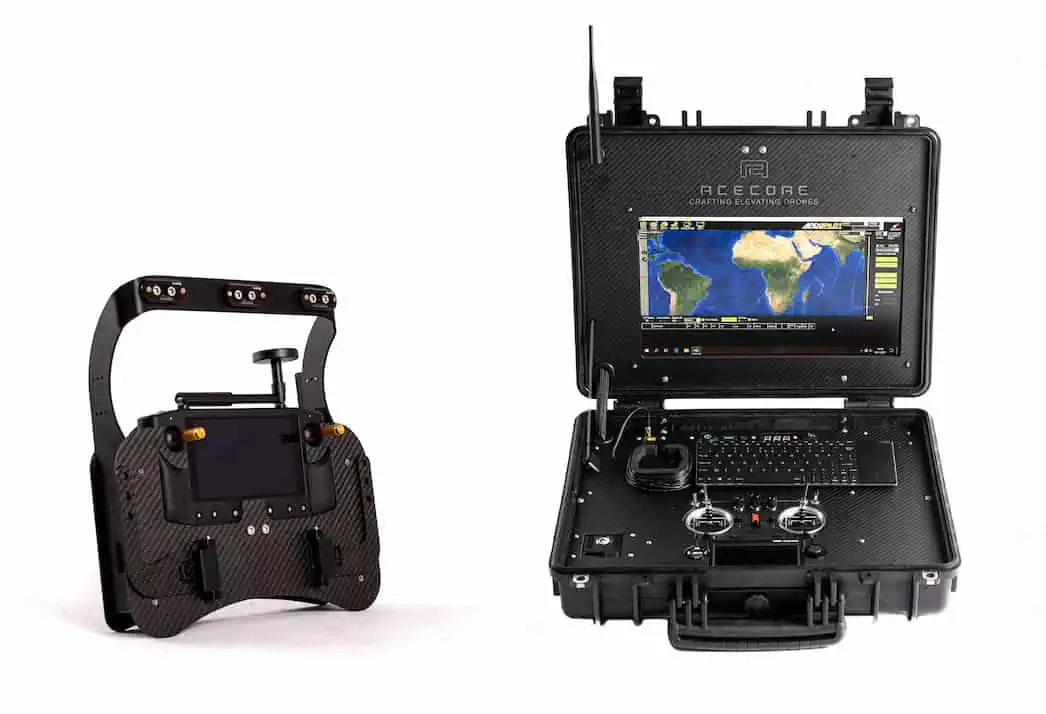

George Herelink – drone ground control station

Drone controller with enhanced battery life and detachable tablet

Hex Herelink - drone ground control station

The George Herelink is a drone ground control station featuring enhanced battery life and designed for the needs of mapping and surveying as well as security and emergency response drone pilots. Constructed from forged carbon fiber for a lightweight yet strong construction, the George Herelink can last for several days of work without recharging.

The system includes an integrated, detachable Surface Go tablet with pre-installed mission planner software, providing simple single-operator workflows. Users can easily generate flight paths for autonomous mapping flights, and seamlessly switch between FPV footage and payload camera footage on the same device. Both video feed and drone control have a range of up to 16 km.

Hex Herelink - drone controller
Hex Herelink - drone GCS

Gary – 3-axis drone camera gimbal

Gyro-stabilized EO/IR camera gimbal

Acecore Gary Drone Gimbal Camera

Gary is a dual-sensor EO/IR three-axis gyro-stabilized drone gimbal for detection and identification of people and objects at long range. The 30x optical zoom daylight sensor will pick out targets up to 4000m away, while the IR sensor allows drones to continue critical missions even after dark.

The high-performance payload is ideal for providing stable, vibration-free imagery for applications such as security, search & rescue and wildlife monitoring.

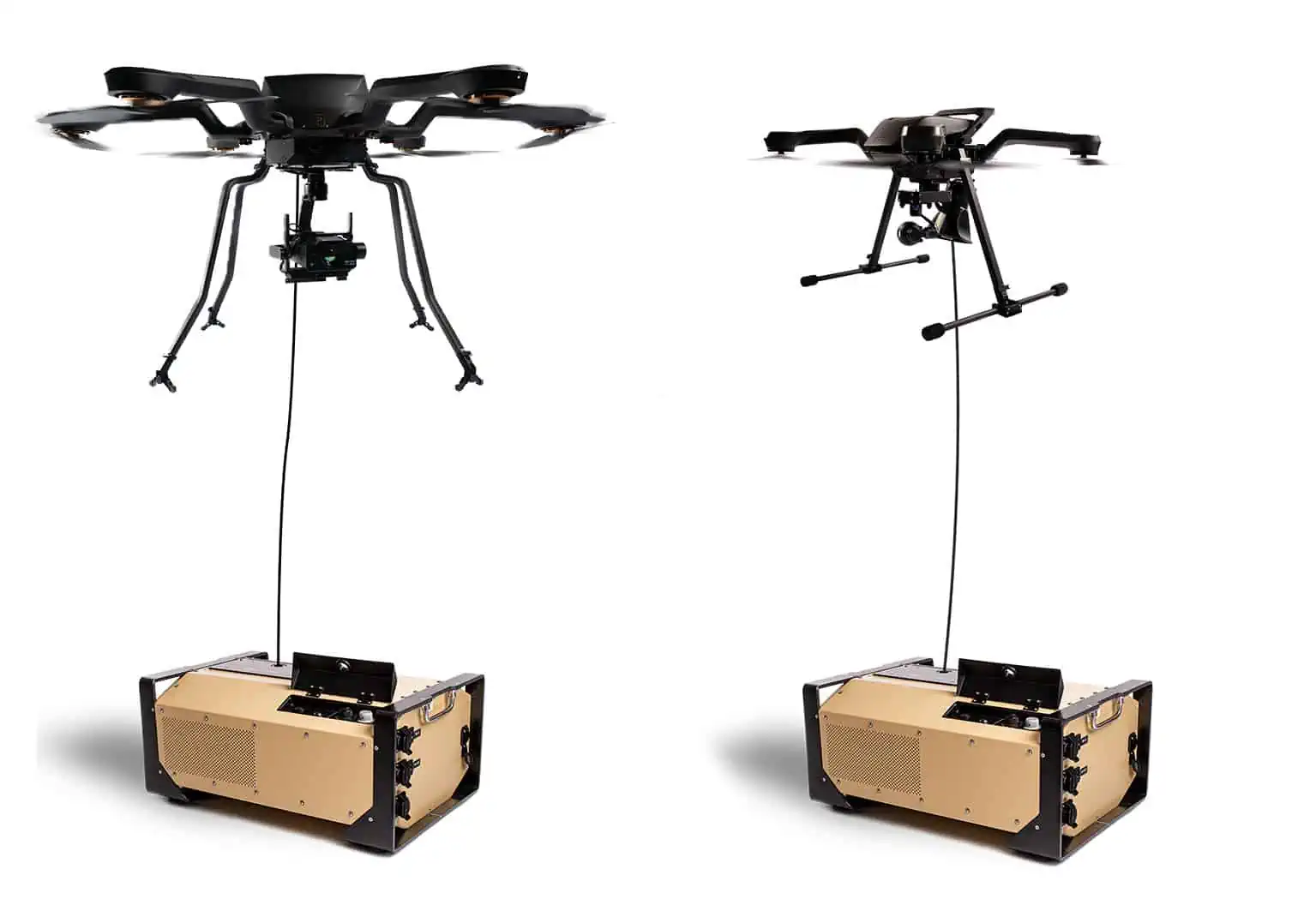

Drone Tether System

Unlimited endurance for secured tethered drone operations

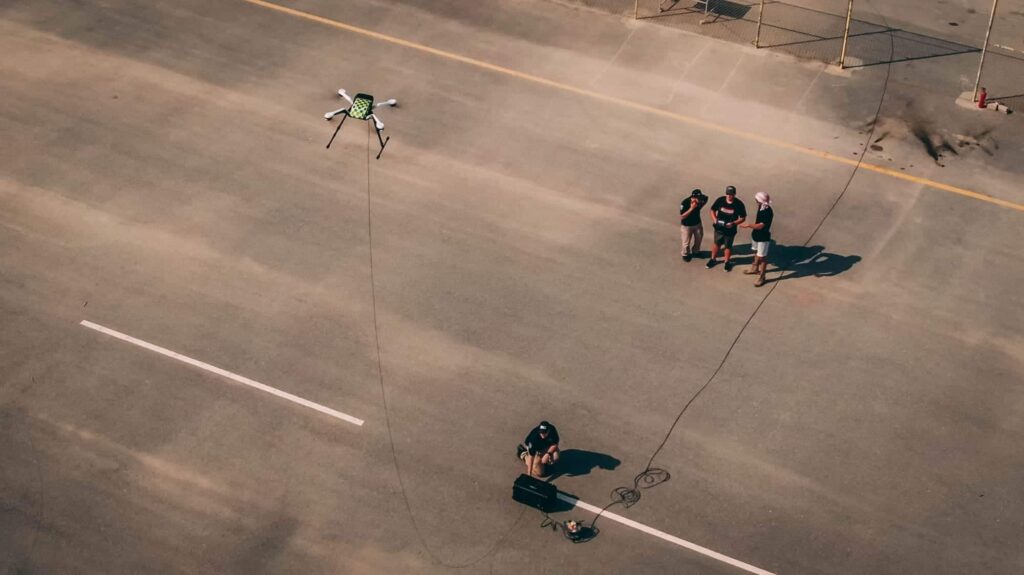

Acecore Drone Tether System

The drone Tether System enables long-duration missions for both our Neo and Zoe professional drone systems. The rugged Kevlar-core tether delivers continuous power with redundant backup as well as unjammable communications, high-speed data transfer and superior quality live imagery.

Unlimited hovering, with the ability to perform agile manoeuvres, and the swappable payloads on both Neo and Zoe open up a variety of persistent mission options for applications such as crowd control, traffic management, surveillance and post-disaster communications.

Persistent Drone Tether

Specifications:

Dimensions 680 x 380 x 360 mm
Weight 28 kg
Power input 220-250 VAC
Tether length 60m
Max uninterrupted flight time 10 hours

Learn more: Drone Tether System

Commercial Drone Applications

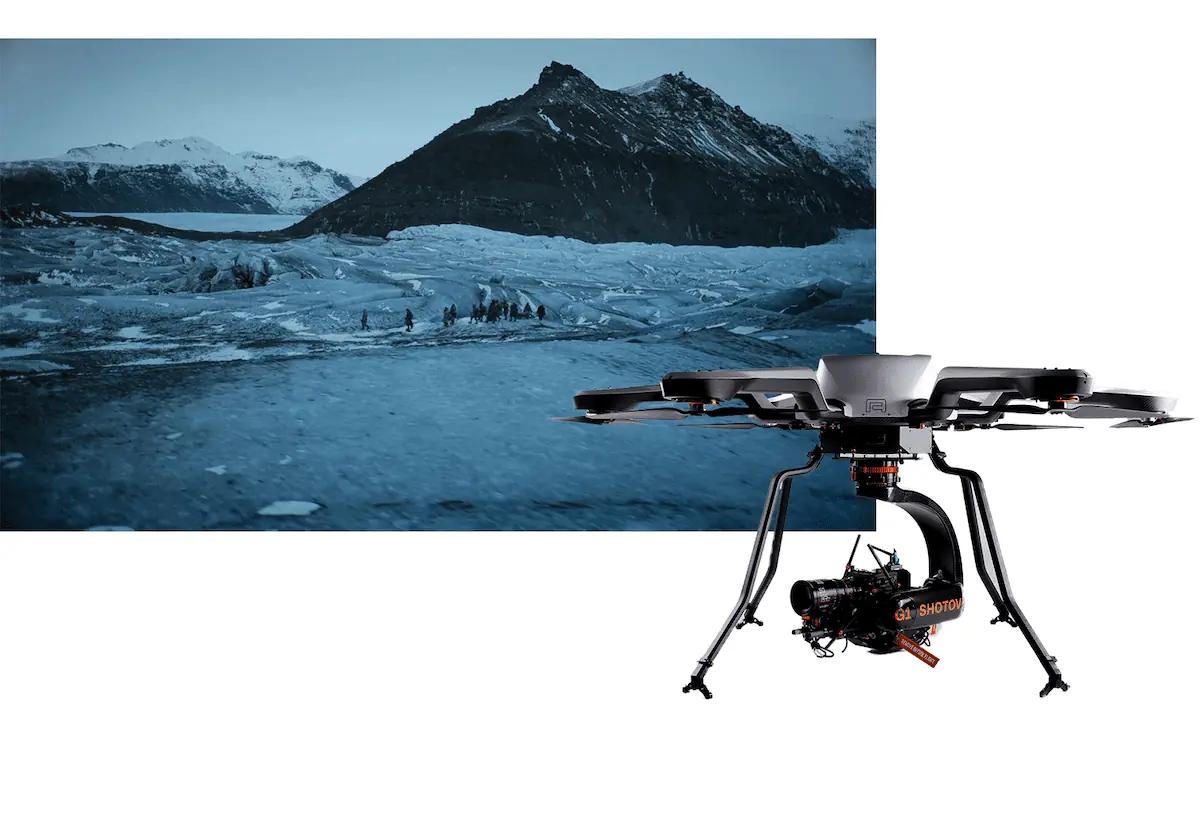

Cinematography & Broadcasting

Both our professional drone platforms, coupled with a wide range of cameras and imaging payloads, are ideal solutions for the needs of film-makers and live broadcasters. With all-weather capabilities, our equipment can be replied upon to provide smooth, high-quality shots.

Acecore drone for cinematography and broadcasting

Industrial Inspections

Using our professional drone solutions for your industrial inspection needs saves time, money and manpower; as well as decreasing risk. With quicker set-up times and unlimited viewing angles, drone inspections provide huge efficiency advantages over traditional manned methods.

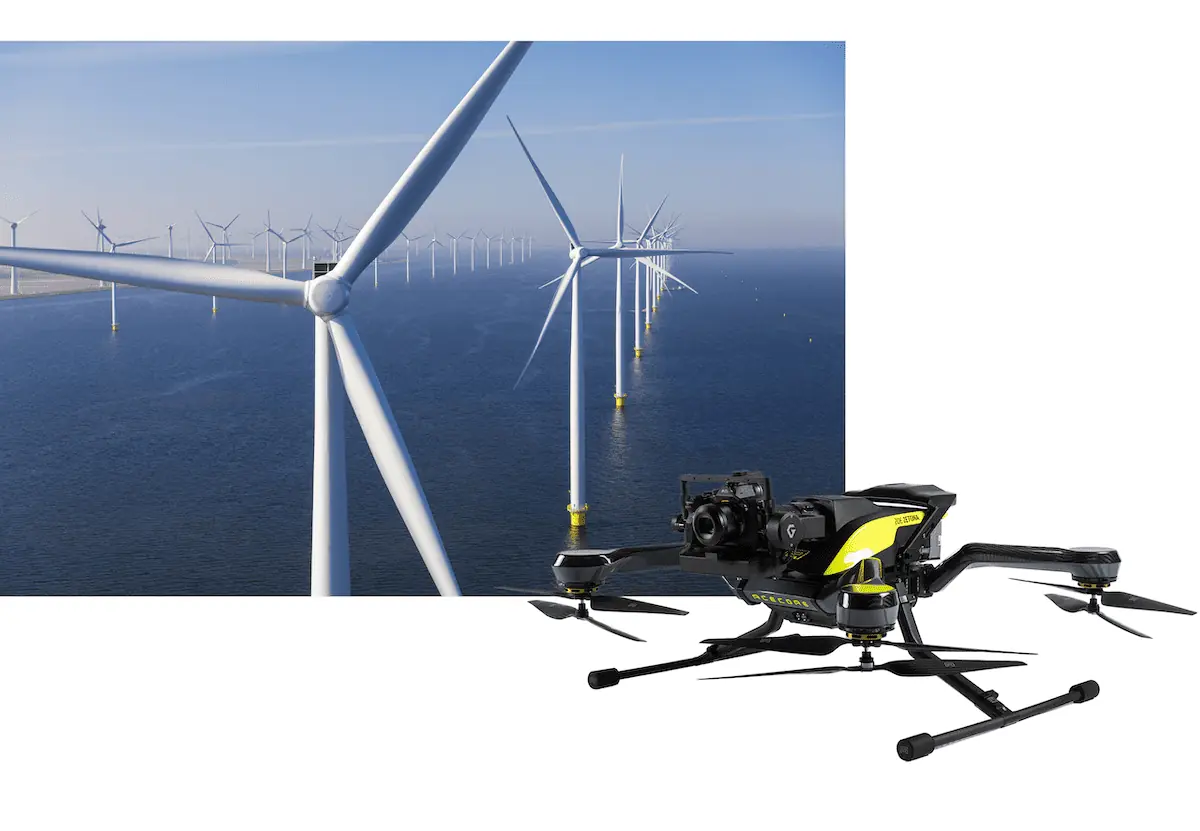

Acecore drone for industrial inspections

Aerial Surveying

Aerial mapping and surveying with Acecore professional drones is faster and more accurate, even with high levels of vegetation cover. We have partnered with an expert LiDAR systems developer to create a fool-proof unmanned aerial surveying system to meet almost any surveying need.

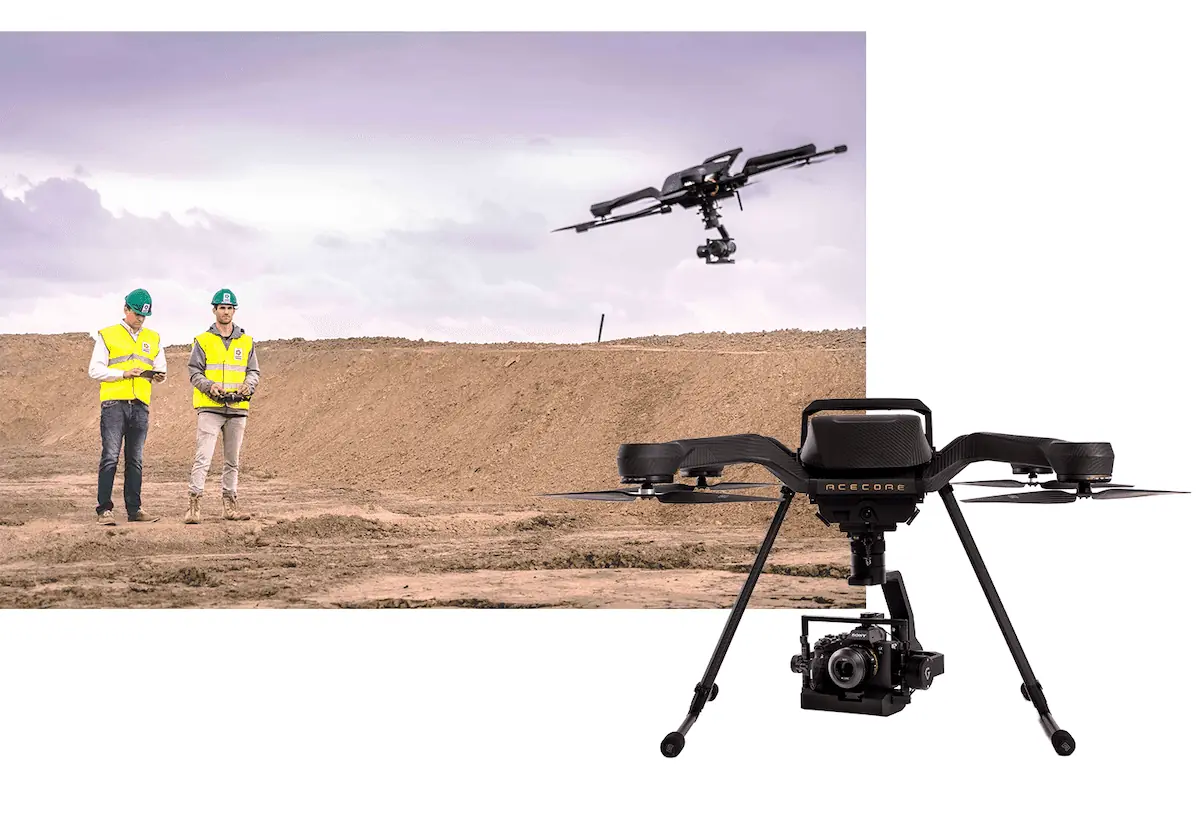

Acecore heavy lift aerial surveying drone

Emergency Services

Our drones offer superior performance for critical, time-limited missions day or night in even the harshest of weather conditions. Stabilised gimbal payloads with high-tech optical zoom and IR capabilities provide vibration-free imagery for emergency response, and search and rescue operations.

Acecore search and rescue drone
