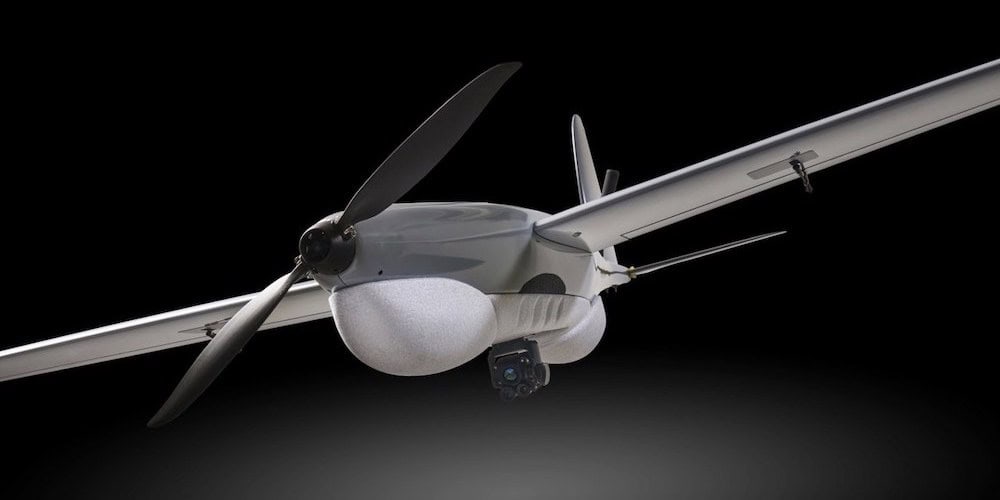

Sky-Watch’s RQ-35 Heidrun is a lightweight and compact fixed-wing mini-UAS designed to provide superior data-gathering for mission-critical military and defense operations such as ISR, force protection, and tactical terrain mapping. With a class-leading mission endurance of up to 15 minutes, it is highly resilient even in the face of electronic warfare and GPS-denied conditions.
The hand-launched system requires a minimal logistical footprint, and can be rapidly deployed and operated by a single user. The highly portable UAS can be carried in either a backpack or robust carrying case, and includes a portable tablet-based Ground Control Station (GCS) with comprehensive Drone Manager software.

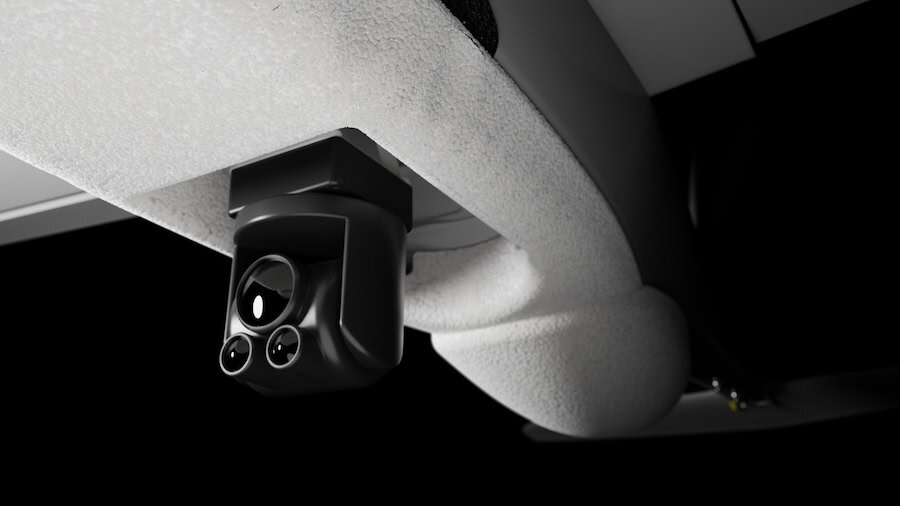

The versatile RQ-35 Heidrun offers a carrying capacity of up to 500 grams, and can be equipped with interchangeable gimbal payloads. Built-in camera-centric control allows the pilot to maneuver and manage missions directly through the live video feed, and also allows for high-precision deep stall landings on a specific target.
| Dimensions (L x W x D): | UAV (ready for takeoff): 1070 x 1650 x 170 mm UAV battery: 140 x 70 x 40 mm Complete UAS in transport case: 1121 x 409 x 355 mm Complete UAS in backpack: 1120 x 440 x 300 mm |
| Weight: | UAV (ready for takeoff): 3.07 kg UAV battery: 0.92 kg Complete UAS in transport case: 24.7 kg (excl. batteries) Complete UAS in backpack: 15.7 kg (excl. batteries)/td> |
| Max Flight Time: | 150 min (environment dependent) |
| Max Wind Tolerance: | 16 m/s (31 kts) |
| Cruise Speed: | 16 m/s (31 kts) |
| Service Ceiling: | 5000m (16,400 ft) ASL |
| Max Landing Altitude: | 3000m (9800 ft) ASL |
| Radio: | 2.2 – 2.5 GHz 10 MHz channel bandwidth Transmission power 0.1W normal, up to 2x37 dBm (2x 5W) with autonomous boost mode Transmission range up to 50km LOS with dual directional antennas |
| Triple-Lens Camera | 2 + 1 Lens Camera | |
| Platform: | Extractable gimbal mount, 2-axis stabilized | Extractable gimbal mount, 2-axis stabilized |
| Visible Camera: | Resolution: 1280x720 HFOV: 60° WFOV – 1.5° - 0.75° DFOV Visible 400-700 nm Zoom: x40 + x2 digital (x80) |
Resolution: 1280 x 720 HFOV: 60° WFOV – 3° - 1.5° DFOV Visible 400-700 nm Zoom: x20 + x2 digital (x40) |
| Thermal Camera: | — | Resolution: 640 x 480 HFOV: 32° W.FOV – 8° DFOV LWIR uncooled (8-14μm) Zoom: x4 digital |
| Extracted Range of Rotation: | +/- 155° azimuth (0 = UAV body heading) -70° to +10° pitch (0 = UAV water line) |
+/- 166° azimuth (0 = UAV body heading) -70° to +10° pitch (0 = UAV water line) |
| Retracted Range of Rotation: | Fixed 0° azimuth (0 = UAV body heading) -36° to -90° pitch (0 = UAV water line) |
Fixed 0° azimuth (0 = UAV body heading) -31° to -90° pitch (0 = UAV water line) |
