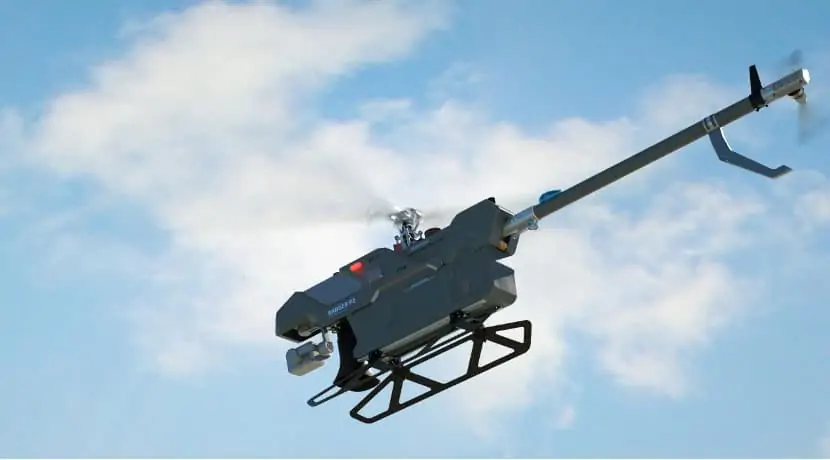

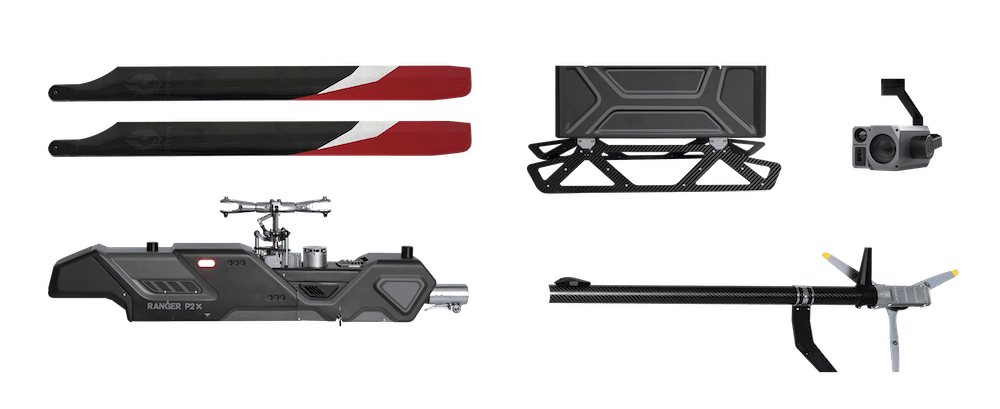

The Ranger P2-X is a long-endurance unmanned helicopter drone that features a modular quick-disassembly design, allowing the aircraft to be broken down into four modules and packed into a bag for easy transport. With a flight endurance of up to 2 hours, an operational range of 100km and a data transmission range of up to 30km, it is ideal for a wide range of surveillance and mapping applications.
The VTOL (vertical take-off and landing) UAV can take off and land from moving platforms, and can be equipped with a variety of payloads for multi-mission flexibility, including electro-optical (EO) and infrared (IR) imaging systems. The rugged unmanned helicopter can operate in harsh environmental conditions including temperatures down to -20°C, and has a verified flight ceiling of 5100 metres.
Specifications:
| Dimensions | Without rotor blades: 1690*247*495mm |
| Max Take-off Weight | 18.5kg |
| UAV Weight | 5.7kg |
| Max Payload | 1.5kg |
| Cruising Speed | 50-70km/h (max 100km/h) |
| Wind Resistance | Level 6 |
| Endurance | 120 min (without payload) |
| Max Operating ASL Altitude | 5000m |
| Operating Temperature | -20°C ~ +55°C |
