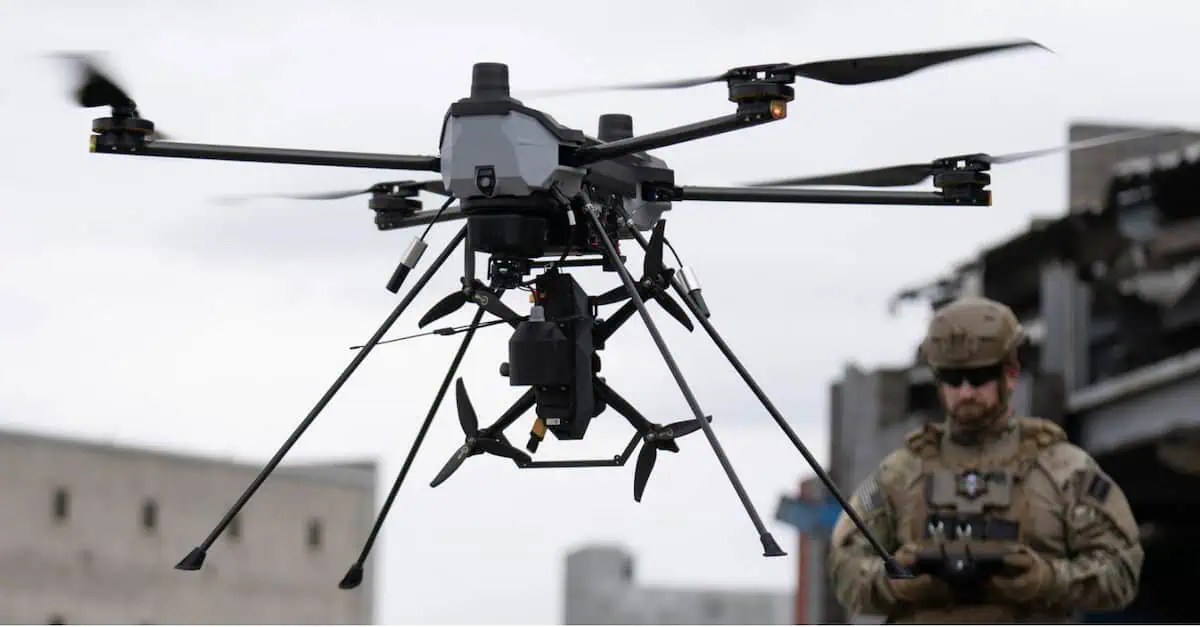

The PDW AM-FPV is a high-performance drone engineered for dynamic tactical scenarios, delivering the precision and versatility required for modern contested environments. Designed to bridge the gap between small, agile FPV drones and high-payload long-endurance platforms, the AM-FPV provides unmatched adaptability across ISR, target acquisition, and kinetic strike missions. Modular quick-swap arms in 5", 7", and 10" configurations allow mission-specific tuning in seconds, while a universal payload interface supports rapid integration of both sensing and strike systems.
With tool-less field repair, launch-readiness in two minutes, and best-in-class agility derived from its competitive racing drone lineage, the AM-FPV thrives in demanding urban and electromagnetic environments. Its pairing capability with PDW’s C100 command system extends range, situational awareness, and operational precision. Developed by a team of U.S. SOF veterans and race-drone engineers, the AM-FPV empowers forces to outmaneuver and outlast threats—delivering scalable, cost-effective lethality where it counts.
| Dimensions: |
AM-5: 5" AM-7: 7" AM-10: 10" |
| Endurance: |

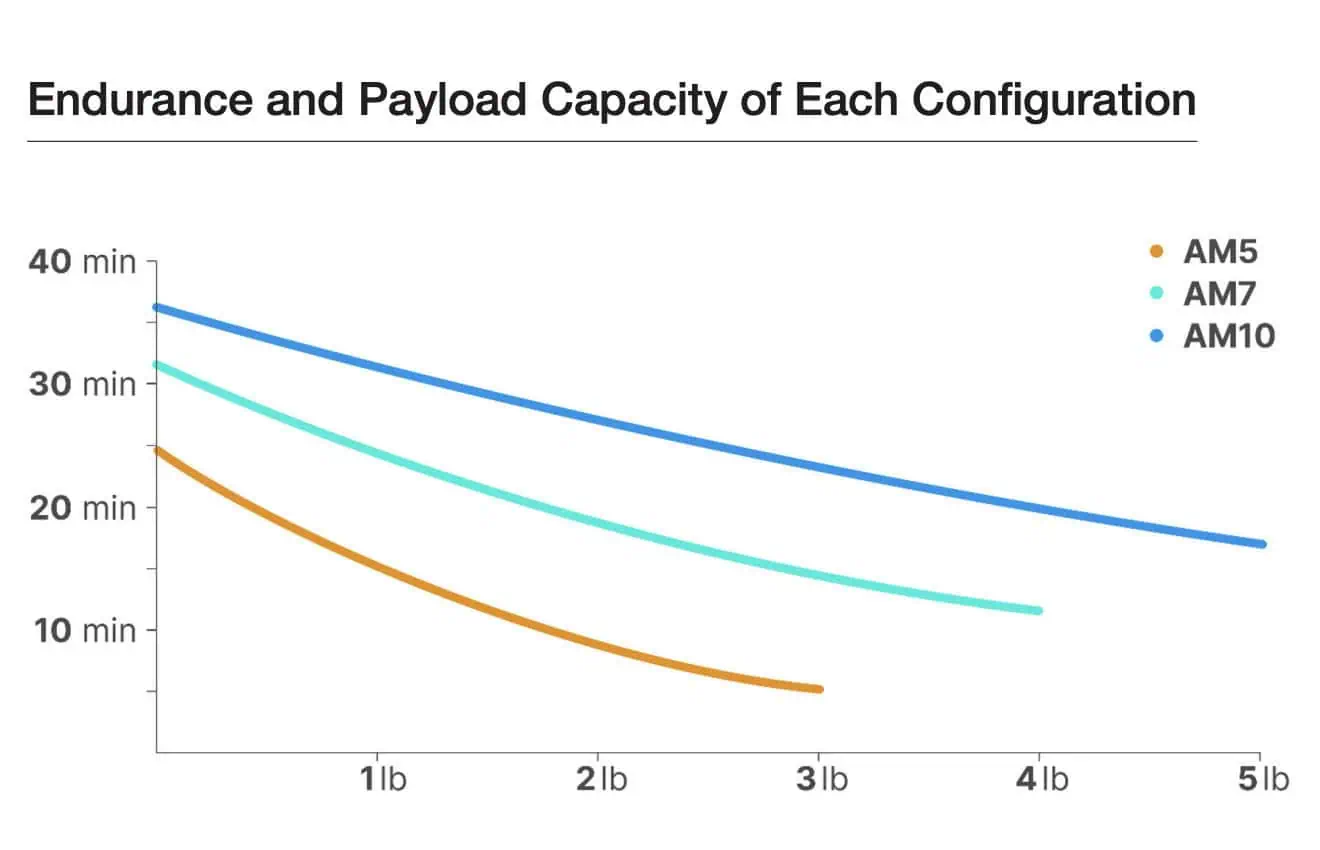

AM-5: 23min slick / 11min 3lb AM-7: 32min slick / 12min 4lb payload AM-10: 35min slick / 18min 5lb payload |
| Max Payload Capacity: |
AM-5 3lb (1.3kg) AM-7 4lb (1.8kg) AM-10 5lb (2.2kg) |
| Range: |
20+km point to point 30+km with C100 C2 relay |
| Payloads: | Universal electromechanical payload interface |
| Analog Camera: |
Sony 1/2.8” CMOS HFOV 114° Min. Illumination >0.003 Lux |
| EO/IR Illuminator: |
700 lumen 5700K (Day) / 760mW/sr 850nm (IR) Adjustable brightness (low, medium, full) |
| Radio: |
Quad-band multi-frequency C2 transceivers Band switching / Frequency hopping |
