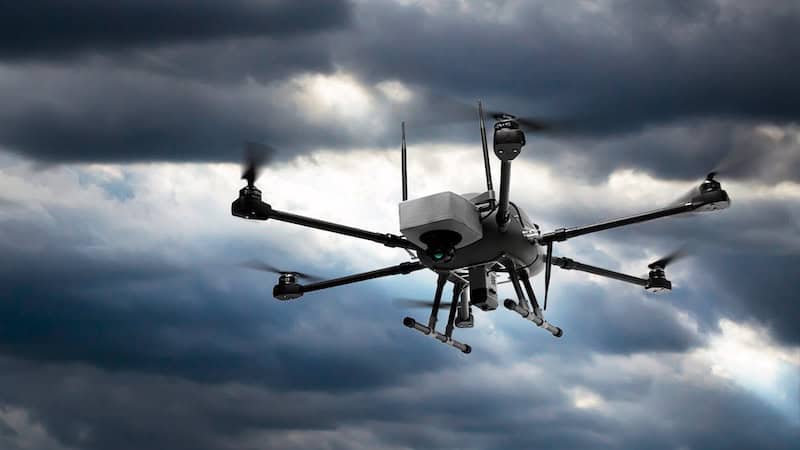

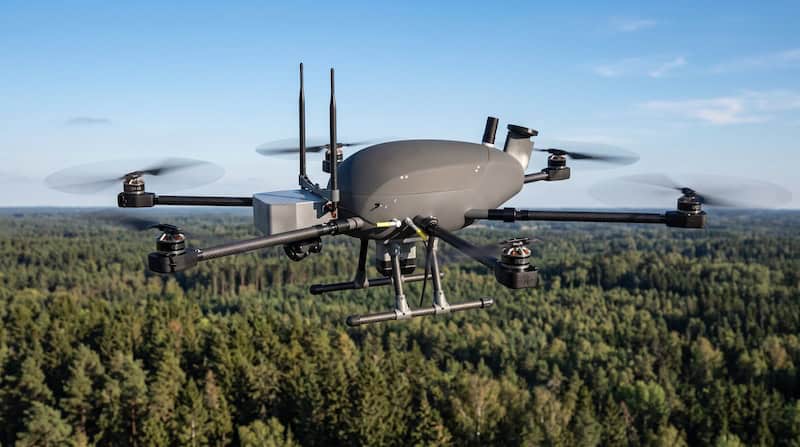

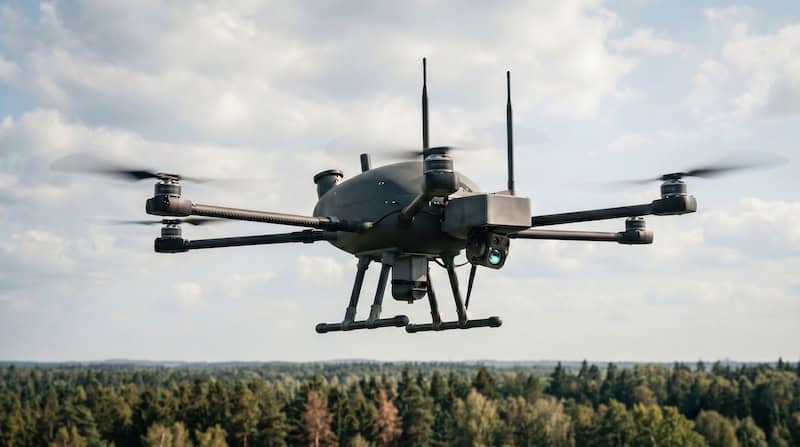

Abris’ Beetle is a versatile multirotor drone platform that is ideal for short-range tactical missions such as ISTAR and signal relay. With highly maneuverable VTOL operation and a controlled radius range of up to 12km, it is highly suited to scenarios with tight launch and landing spaces or that require relatively small areas of coverage.
Featuring advanced GNSS anti-jamming and resilient communications and telemetry transmission systems, the Beetle can provide secure connectivity and tactical signal relay in denied or infrastructure-limited environments. It can also be equipped with a NextVision X80 or Sony LR1 camera for high-quality EO imagery.

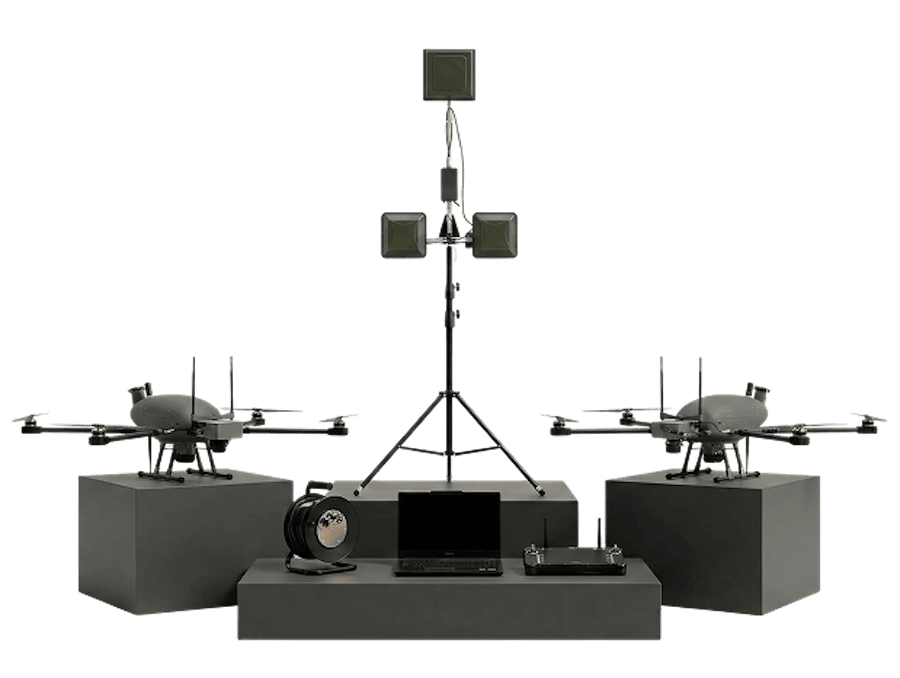

The complete kit includes two Beetle drones with NextVision X80 cameras, a ground control station, a jamming-resistant ground antenna station, and a variety of additional accessories.
Specifications:
| Dimensions (L x W): | 1050 x 1150 mm |
| MTOW: | 7.8 kg |
| Max Payload: | 1.8 kg |
| Max Endurance at MTOW: | 60 min |
| Operating Velocity Range: | 0 - 70 km/h |
| Operating Altitude Range: | 30 - 1000m |
| Max Flight Distance: | 40 km |
| Controlled Radius Range: | 12 km |
