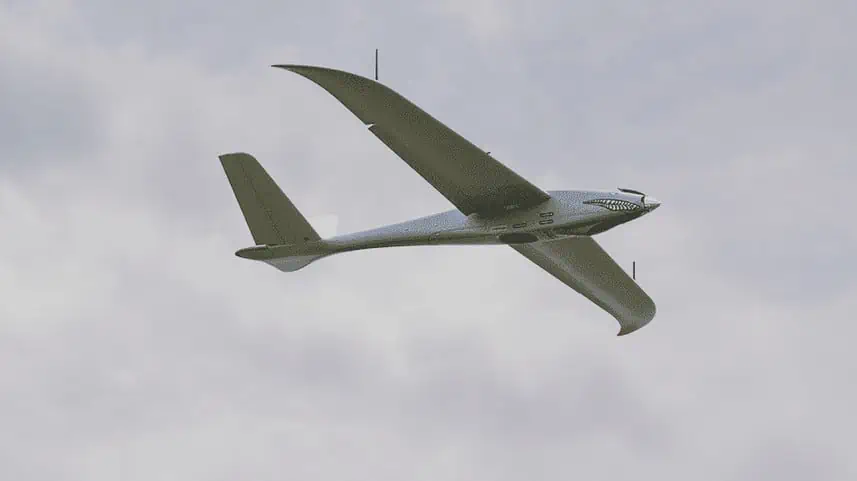

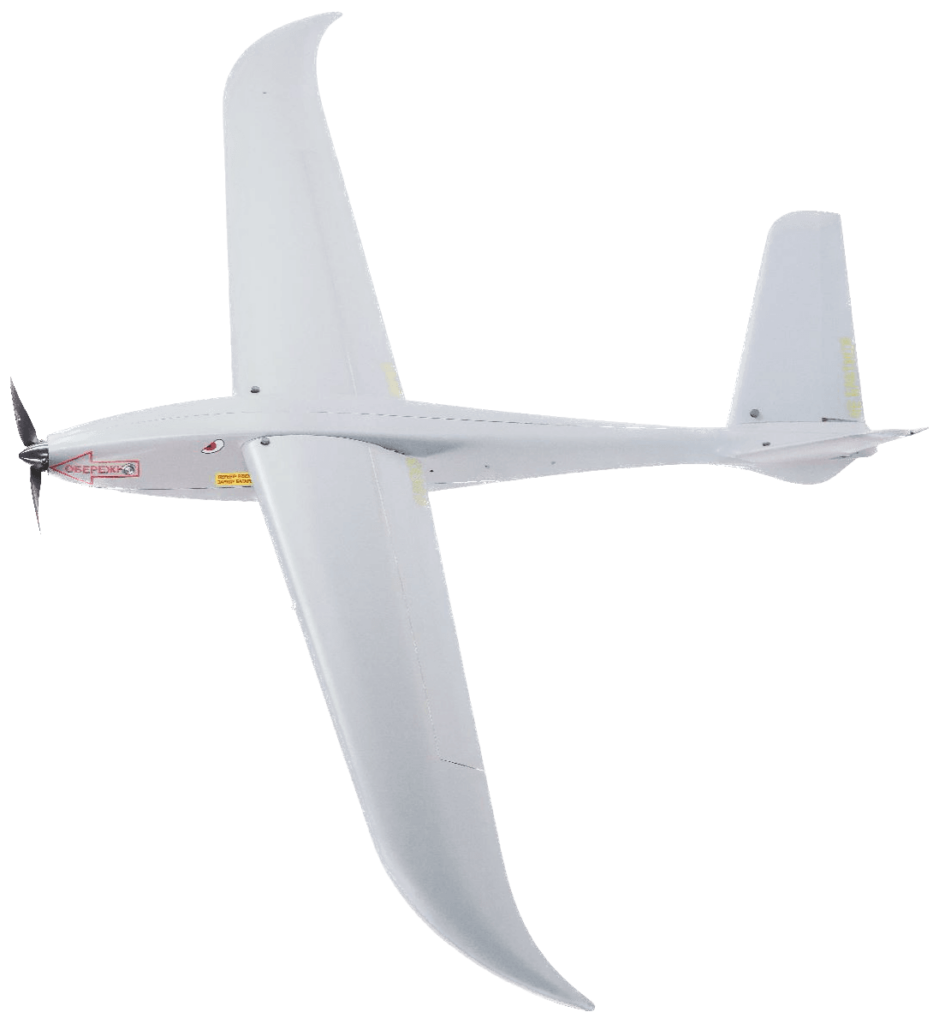

The Mini Shark is UKRSPECSYSTEMS' smallest and lightest fixed-wing UAS (unmanned aerial system). The man-portable drone platform fits into two backpacks and can be hand-launched by a single operator without the need for any additional equipment, and also features precise automatic belly landing.
The electric-powered UAS is equipped with a high-quality stabilized Full HD EO camera gimbal with 10x optical zoom, which automatically retracts inside the fuselage during landing. The system also includes a mobile ground control station (GCS) with a tracking antenna that enables BVLOS (beyond visual line of sight) flights at distances of up to 30km.
The Mini Shark is ideal for a wide range of applications, including ISR, environmental research, precision agriculture, and utilities inspection.
| Take-off weight | 5 kg |
| Wingspan | 2600 mm |
| Length | 1250 mm |
| Height | 260 mm |
| Flight duration | 2h |
| Communication range | up to 35 km |
| Operational altitude | 1000 m |
| Stall speed | 42 km/h |
| Cruising speed | 55 km/h |
| Maximum flight speed | 120km/h |
| Sensor type | EO camera |
| Zoom | 10x (optical) |
