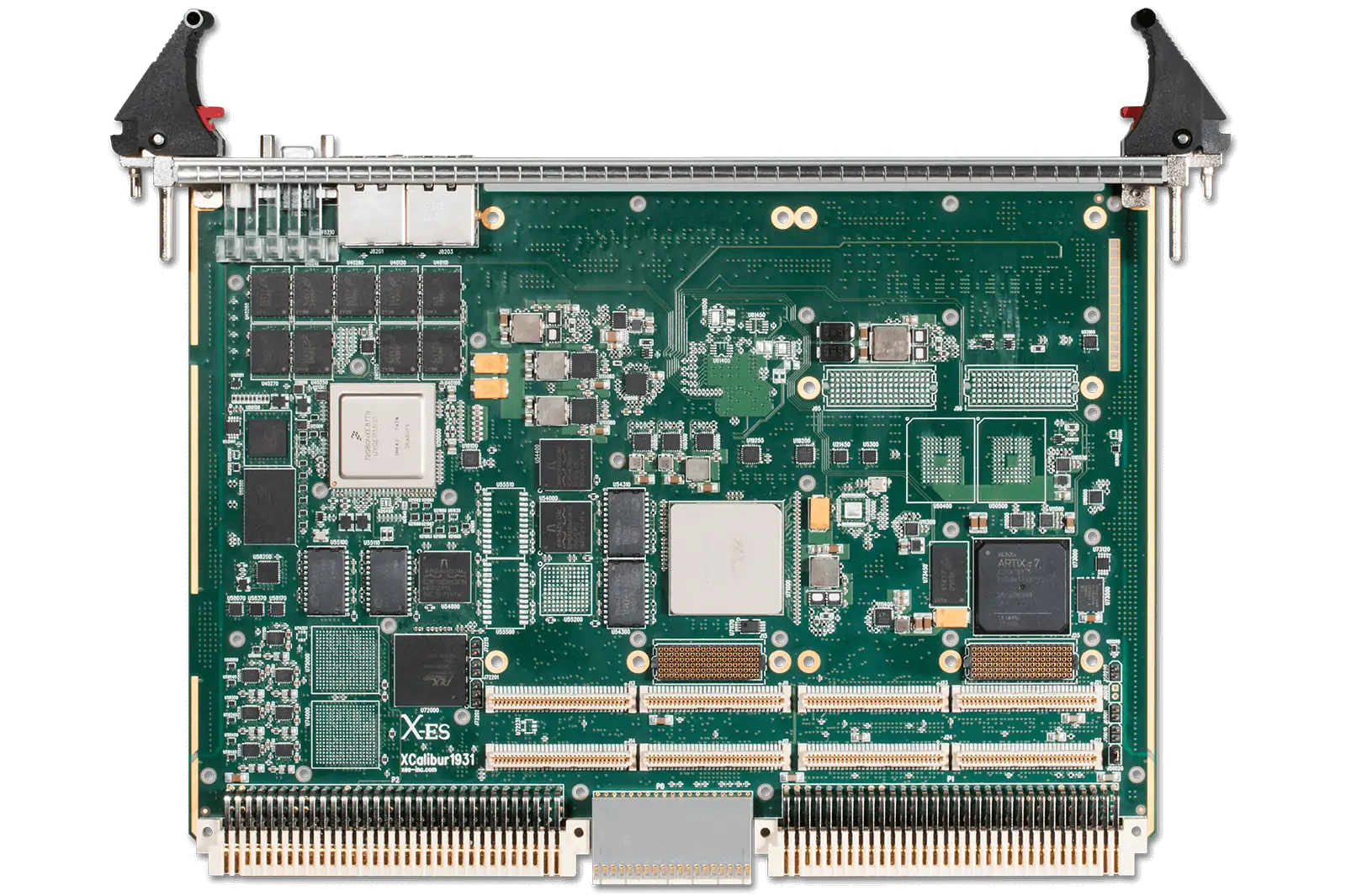

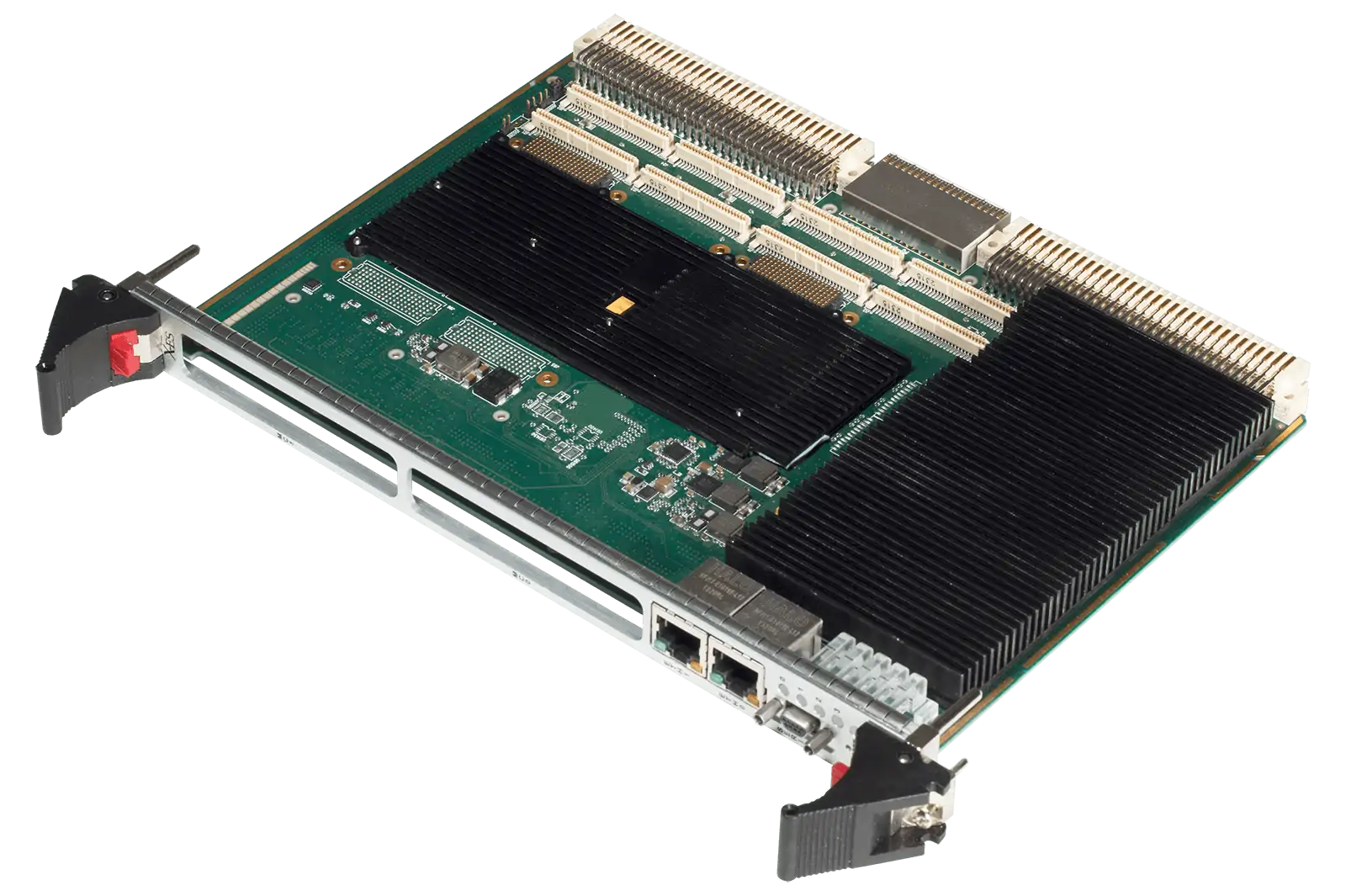

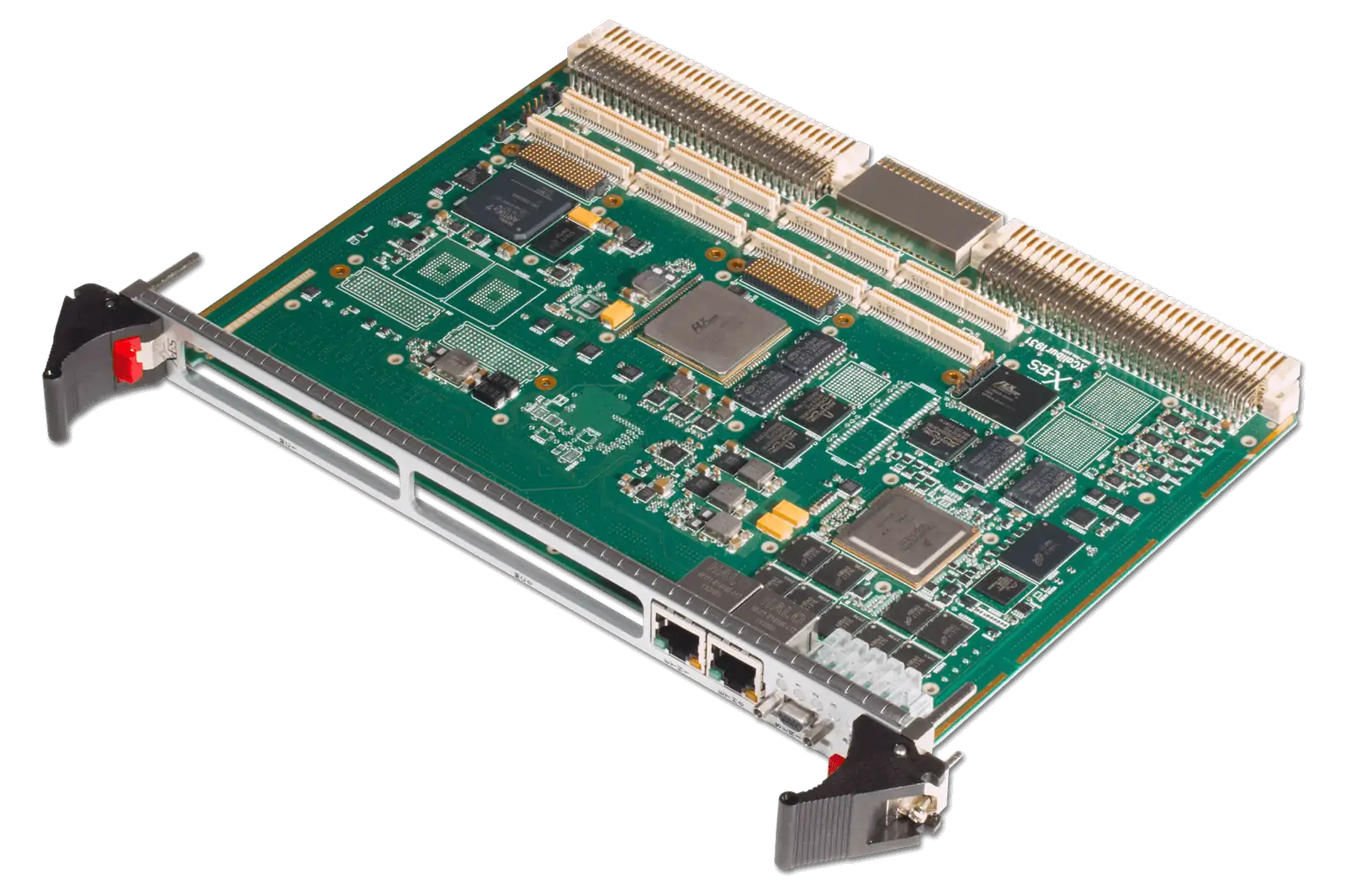

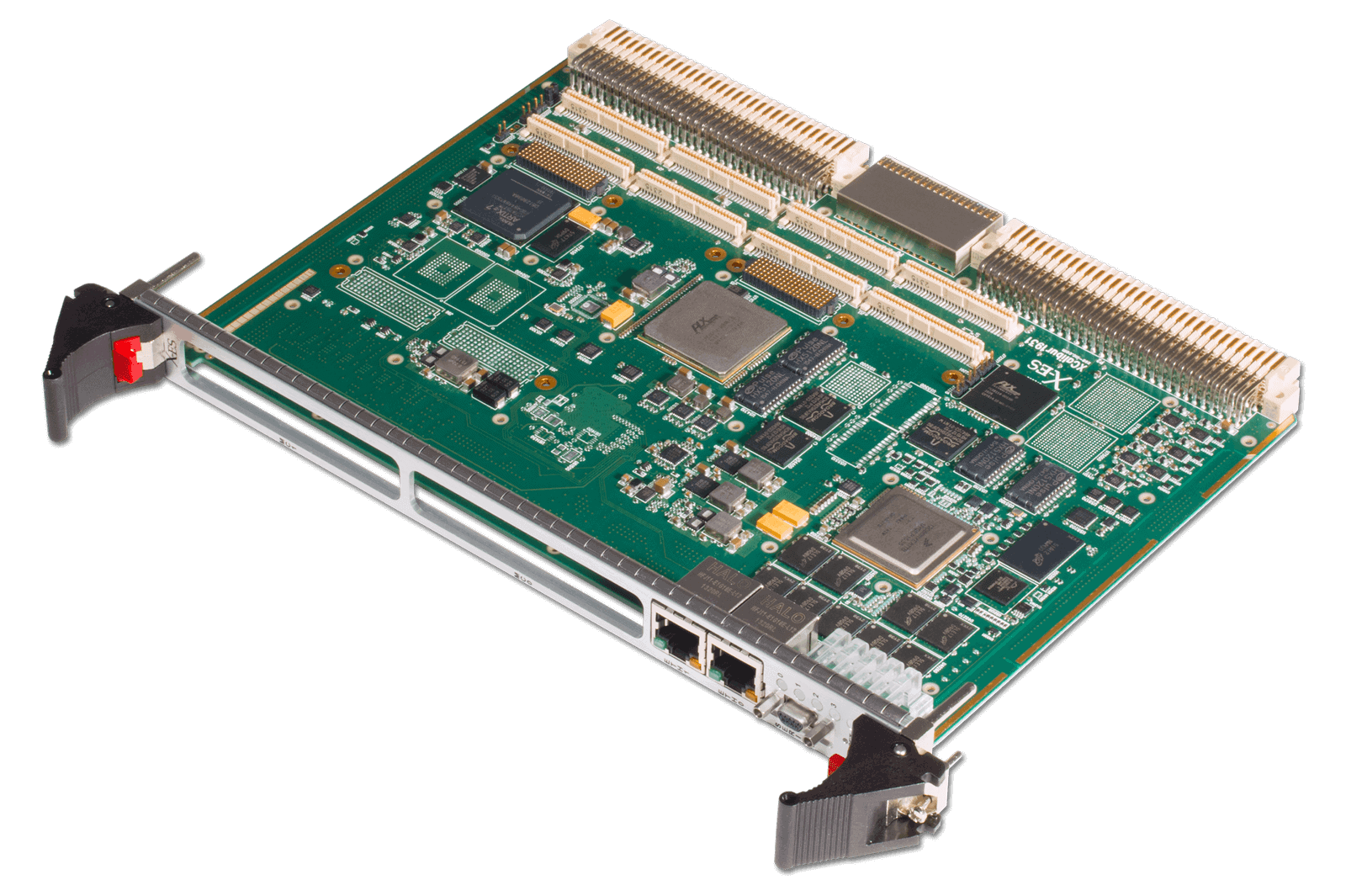

XCalibur1931 6U VME Multiprocessing SBC

The XCalibur1931 is a high-performance 6U VME multiprocessing single board computer designed for ruggedized systems requiring high bandwidth processing and low power consumption.

Featuring four dual-threaded e6500 cores running at up to 1.8 GHz, each with a 128-bit AltiVec SIMD unit, the system’s NXP QorIQ T2080 processor delivers enhanced performance and efficiency for embedded computing solutions such as drones, UAVs, unmanned vehicles and robotics.

The XCalibur1931 provides up to 8 GB of DDR3-1866 ECC SDRAM, two XMC/PrPMC interfaces, and 512 MB of NOR flash (with redundancy). The XCalibur1931 also supports up to six Gigabit Ethernet ports, PMC I/O, and RS-232/422/485 serial ports out the P2 backplane connectors. The front panel supports two Gigabit Ethernet ports, RS-232 serial, and an optional USB 2.0 port.
